FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck

Export reference
From $18,056
MSRP ¥13M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.1ton
Wheelbase:: 1800+3800mm
Tire Size:: 11.00-20
Rated payload: 10.17ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck is a Medium-duty truck featuring 10.17t payload, 20.4t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a DachaiCA6DE3-22E3 engine, 220 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3208P9K2T3E
Drive type: 6X2
Wheelbase: 1800+3800mm
engine: DachaiCA6DE3-22E3
transmission: Fast Gear8JS100B
Rear Axle Ratio: 5.286
Cab length: 8.8m
Cab width: 2.5m
Cab height: 3.1m
Front track width: 1928/1928mm
rear track: 1847mm
Curb Weight: 10.1ton
Rated payload: 10.17ton
GVWR: 20.4ton
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 29°
departure angle: 19°
Remarks: Cargo box size 6200×2300×890mm corresponds to rated payload 10170kg;
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DE3-22E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 770N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: Turbocharged Air-to-Air Intercooling
Transmission Parameters
Transmission Model: Fast Gear8JS100B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.2m
Cargo box width: 2.3m
Cargo box height: 0.89m
fuel tank
Fuel tank capacity: 200L
Chassis Specs
rear axle description: 457
rear axle allowable load: 10010kg
Axle ratio: 5.286
Leaf spring count: 12/12/9+12
Tire
Tire Size: 11.00-20
Number of tires: 8pcs

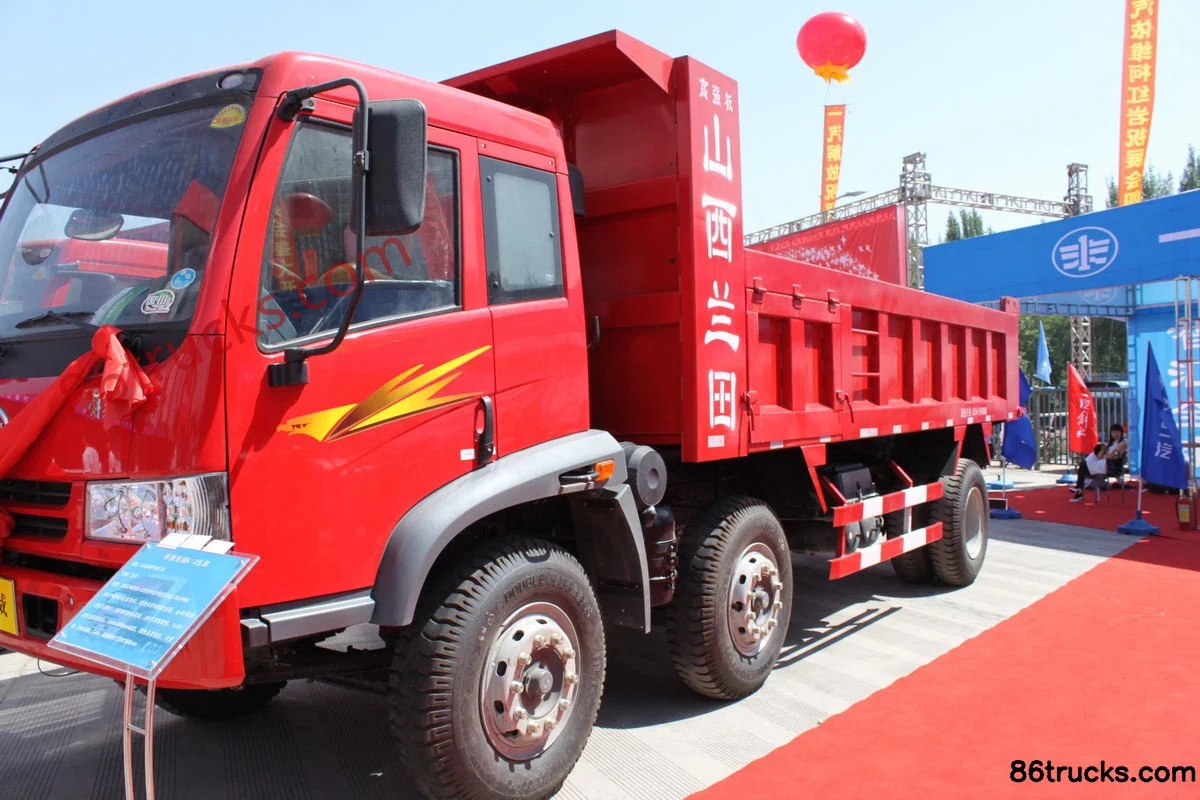

Photos

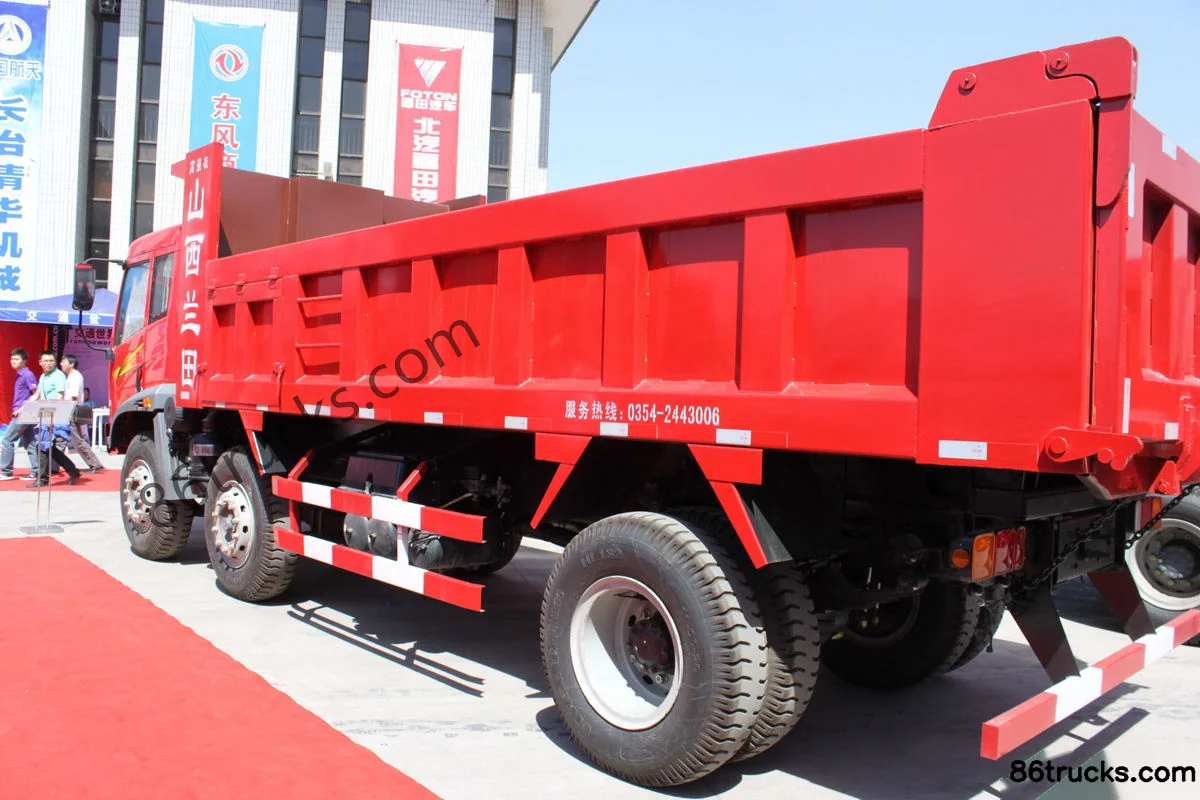

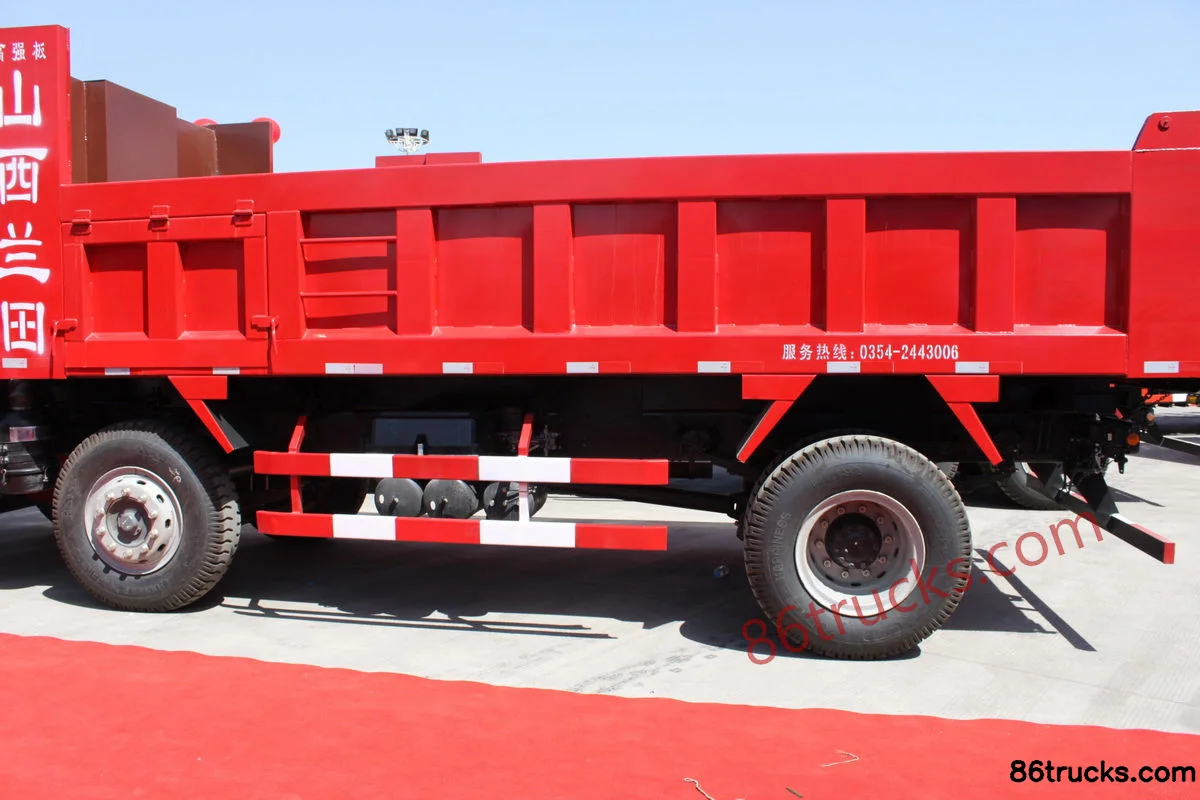

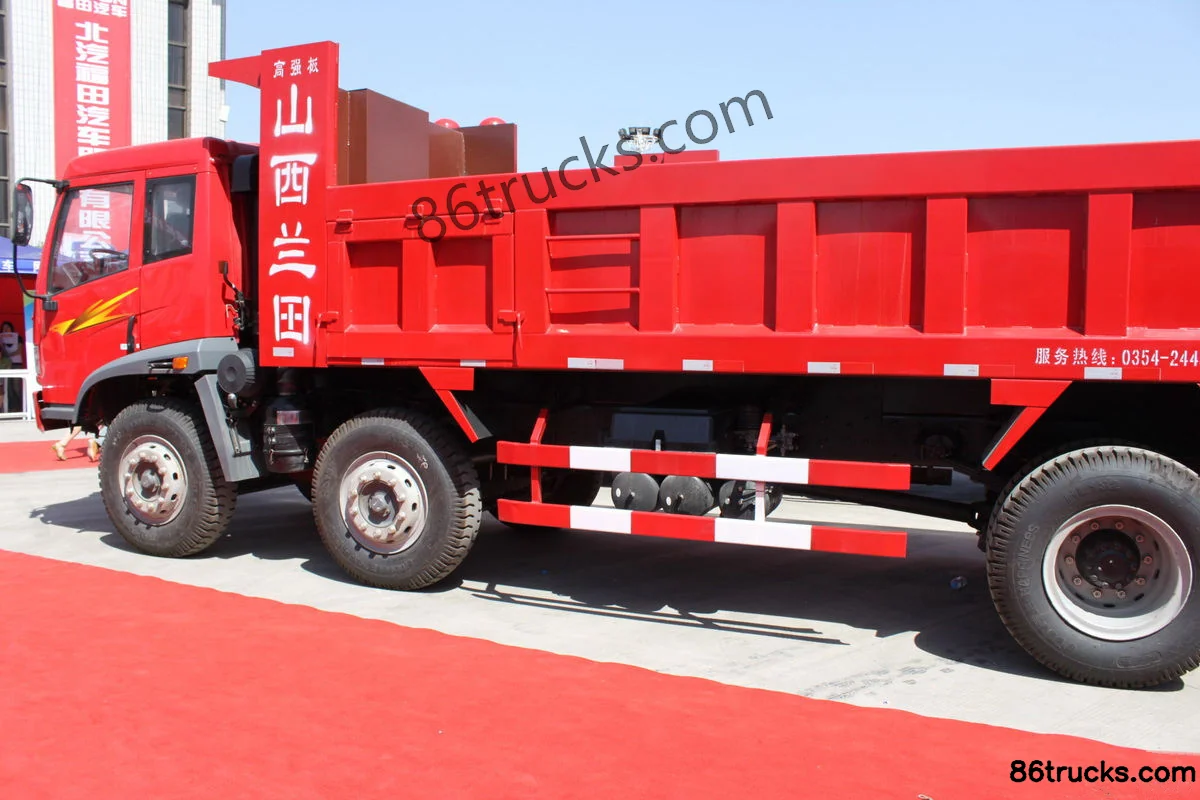

Exterior2

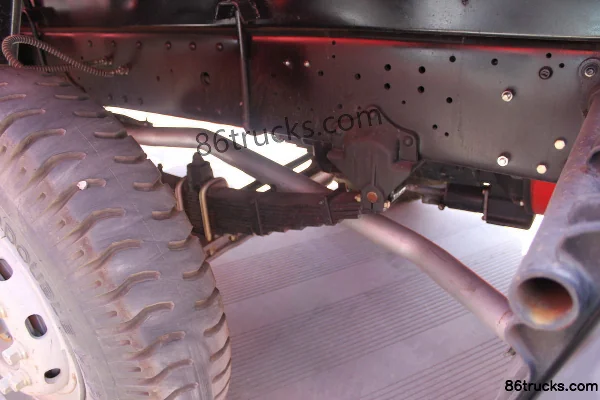

Chassis3

Chassis2

7 photos

FAQ

What is the export price of FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck, and what does it include?

FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck export reference is about From $18,056; MSRP is ¥13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck?

Key specs of FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck suited for?

FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck differ from other variants in the same series?

FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck belongs to FAW Jiefang Junwei J5K Medium-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Junwei (J5K) Medium Truck 220 hp 6X2(8 wheels) 6.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
