SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 12.26ton
Wheelbase:: 3300+1400mm
Tire Size:: 12.00R20 16PR
Cab dimensions:: 8.365×2.5×3.995m
Truck Type:: Concrete mixer truck
Rated payload: 12.61ton
Drive 6X4 (10 wheels)
Horsepower 320
Emission China V

Overview

The SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck is a concrete mixer truck featuring 12.61t payload, 12.26ton GVW, 6X4 (10 wheels) drive and Flat roof cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.365×2.5×3.995m
Truck Type: Concrete mixer truck
Drive type: 6X4
Vehicle origin: Chongqing
Wheelbase: 3300+1400mm
Front/rear track width: Front track: 2006mm; Rear track: 1850/1850mm
Curb Weight: 12.26ton
Rated payload: 12.61ton
Max. speed: 100km/h
Front/rear suspension: 1.435/2.23m
Body Parameters
Mixing drum capacity: 5.77m³
Vehicle certification code: CQ5256GJBHMVG334
Body Brand: SAIC Hongyan
Others: Available ratio: 4.44/4.875
Engine parameters
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611C*L
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail system
Chassis Specs
Chassis Series: SAIC IVECO Hongyan
Chassis Model: CQ1256HMVG33-384
rear axle description: 457 rear axle
Axle ratio: 4.111
Leaf spring count: 3/4,3/6,3/12,9/12
Transmission Parameters
Transmission Model: Fast Gear gearbox
Cab parameters
Cab: Flat roof
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs

Photos

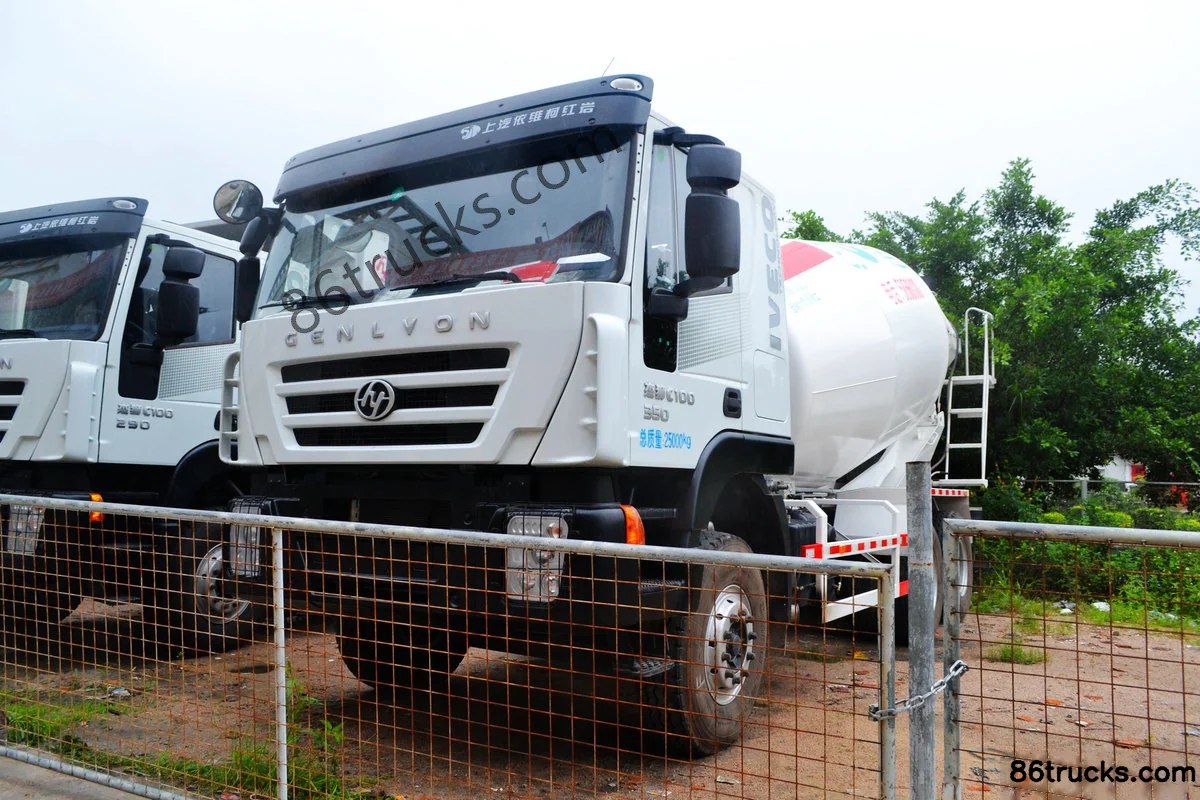

Exterior1

1 photos

FAQ

What emission standard does SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck?

Key specs of SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck: Drive: 6x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck suited for?

SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck differ from other variants in the same series?

SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck belongs to SAIC Hongyan Genlyon Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M500 Lightweight Version 320 hp 6X4(10 wheels) 5.77m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
