Sinotruk HW48506TC 6-speed manual transmission

Export reference
MSRP N/A
Matching Range:: Suitable for matching input torque 380-450 Nm highway vehicles and light passenger vehicles.
Max input torque:: 480N·m
1st gear ratio:: 6.47

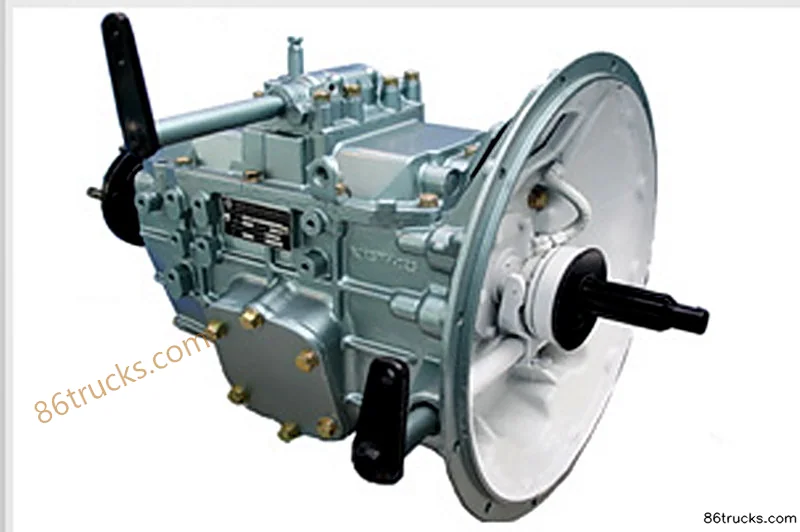

Sinotruk HW48506TC 6-speed manual transmission exterior
View more photos (1)
Transmission Model: HW48506TC
Transmission Brand: Sinotruk
Features: Single countershaft, full synchronizer

Overview

The Sinotruk HW48506TC 6-speed manual transmission is a parts product with spec HW48506TC.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW6 series
Features: Single countershaft, full synchronizer
Matching Range: Suitable for matching input torque 380-450 Nm highway vehicles and light passenger vehicles.
Max input torque: 480N·m
1st gear ratio: 6.47
synchronizer: Yes
2nd gear ratio: 4.01
3rd gear ratio: 2.32
4th gear ratio: 1.43
5th gear ratio:
6th gear ratio: 0.8
Reverse Gear 1 Ratio: 6.01
Transmission weight: 120kg
Transmission oil capacity: 5.5L
Control type: Various control configurations: left-hand or right-hand dual-lever control
Number of gears: 6Gear
shift type: Manual
Transmission Model: HW48506TC
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:

Photos

Exterior1

Sinotruk HW48506TC 6-speed manual transmission Exterior (1) | 86Trucks

1 photos

FAQ

What transport jobs is Sinotruk HW48506TC 6-speed manual transmission suited for?

Match Sinotruk HW48506TC 6-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW48506TC 6-speed manual transmission differ from other variants in the same series?

Sinotruk HW48506TC 6-speed manual transmission belongs to Sinotruk HW6-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW48506TC 6-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW48506TC 6-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
