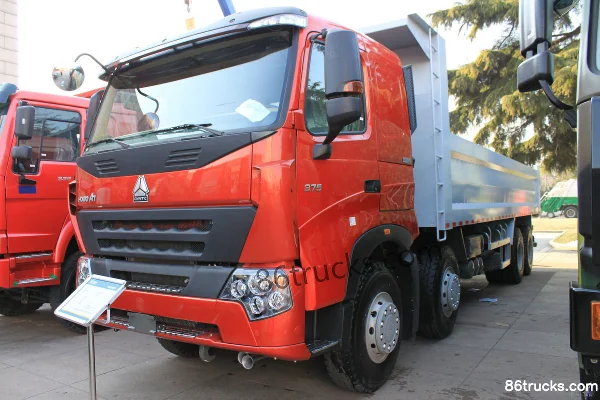

Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.2ton
Wheelbase:: 1950+3525+1350mm
Tire Size:: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR
Rated payload: 15.67ton
Drive 8X4 (12 wheels)
Horsepower 380
Cargo box type: Dump type

Overview

The Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck is a Heavy truck featuring 15.67t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukD10.38-40 engine, 380 hp, China IV emissions and Sinotruk transmission.

China IV 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317N3567P1
Drive type: 8X4
Wheelbase: 1950+3525+1350mm
engine: SinotrukD10.38-40
transmission: SinotrukHW19710
Rear Axle Ratio: 5.45
Cab length: 10.36m
Cab width: 2.496m
Cab height: 3.49m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 15.2ton
Rated payload: 15.67ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.38-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 276kW
Max hp: 380Horsepower
Max torque: 1560N·m
Max torque speed: 1200-1500rpm
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW19710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.3m
Cargo box width: 2.3m
Cargo box height: 1.1m
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: Sinotruk AC16 axle
rear axle allowable load: 1800017500 (tandem axle)kg
Axle ratio: 5.45
Leaf spring count: 11/11/12
Tire
Tire Size: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR
Number of tires: 12pcs

Photos

0 photos

FAQ

What emission standard does Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck?

Key specs of Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck: Drive: 8x4; Horsepower: 380 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck suited for?

Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck differ from other variants in the same series?

Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck belongs to Sinotruk HOWO A7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO heavy truck 380 hp 6X4(10 wheels) 7.3m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
