JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 5.995×1.92×2.775m
Type:: Explosives Transport Truck
Front/rear track width:: Front track: 1385; Rear track: 1425mm
GVWR:: 4.275ton
Drive 4X2 (6 wheels)
Horsepower 109
Rated mass: 1.495ton
Emission China IV

Overview

The JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck is a Explosives Transport Truck featuring 4.275t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 109 hp, China IV emissions and Diesel fuel.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×1.92×2.775m
Type: Explosives Transport Truck
Drive type: 4X2
Front/rear track width: Front track: 1385; Rear track: 1425mm
Wheelbase: 3360mm
Rated mass: 1.495ton
GVWR: 4.275ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ4
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Body Parameters
Transport medium: flammable gas
Vehicle certification code: JX5044XRQXG2
Body Brand: JMC
Cargo box parameters
Cargo box dimensions: 4.22×1.746×1.73m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Classic Shunda
Chassis Model: JX1041TG24
Leaf spring count: 7/4+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: JC528T8
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

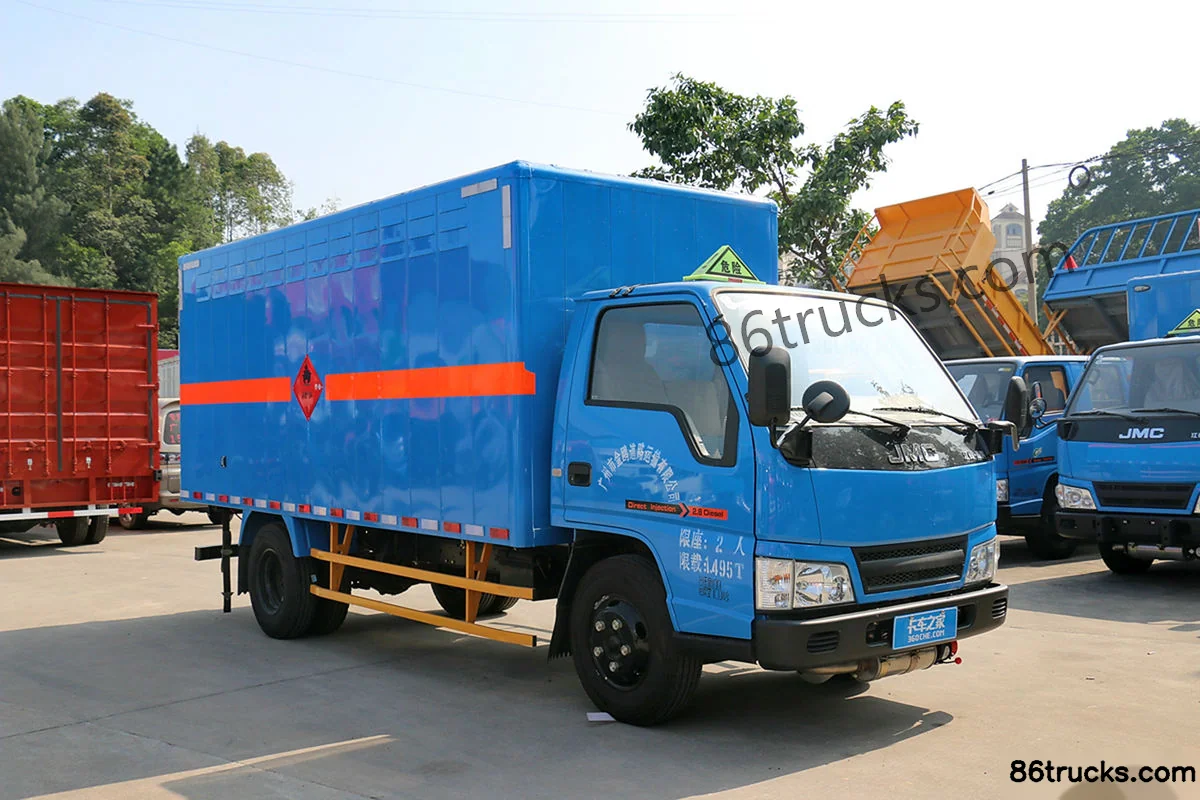

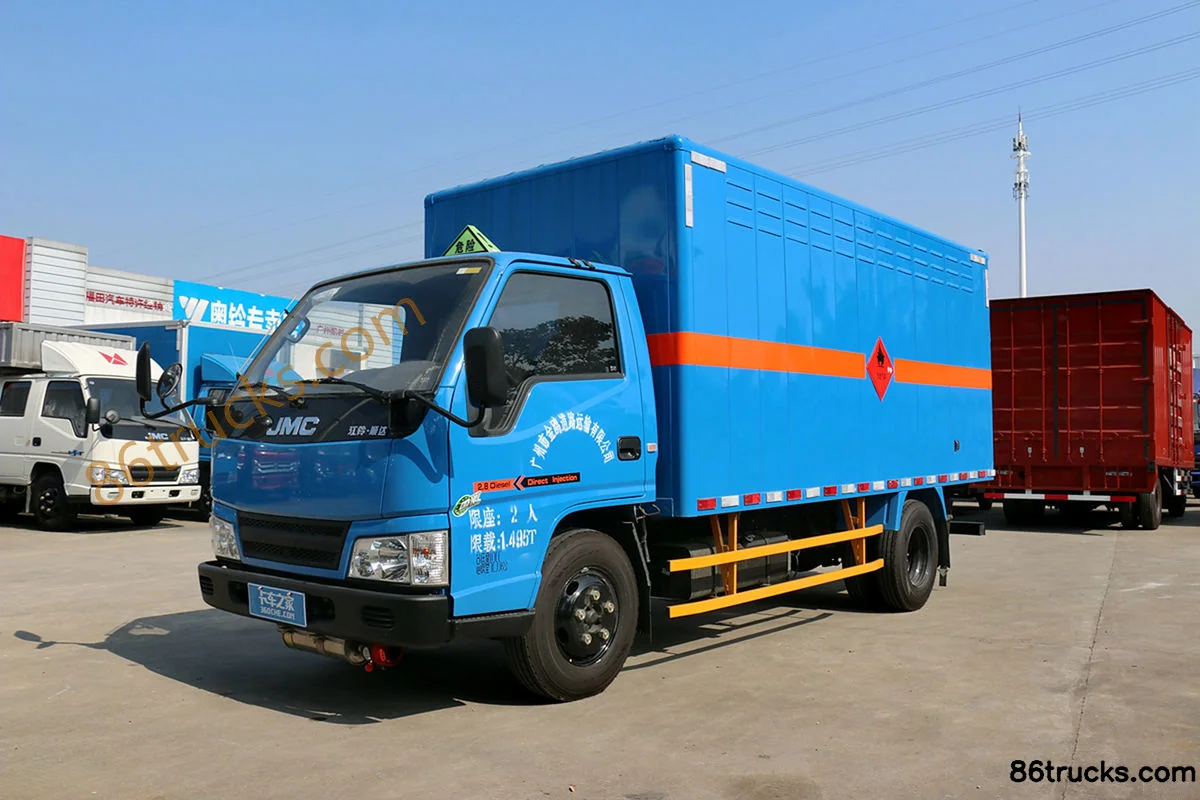

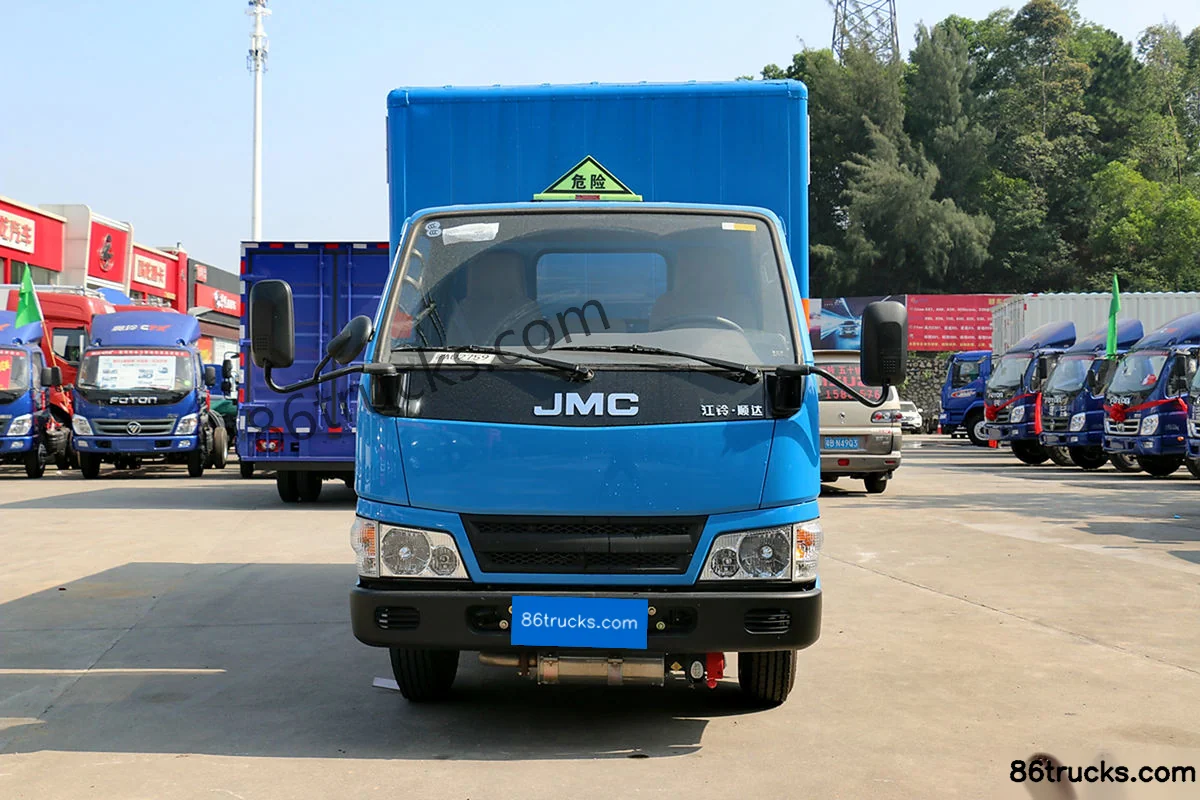

Exterior3

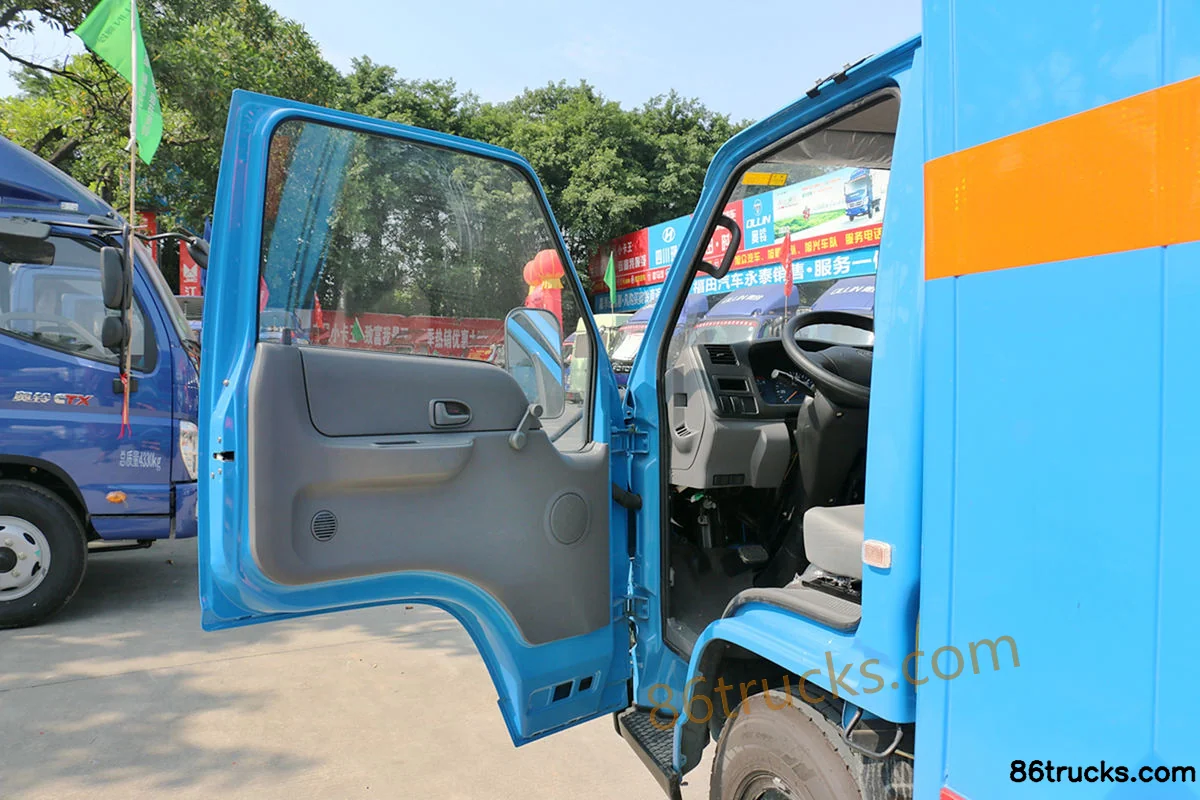

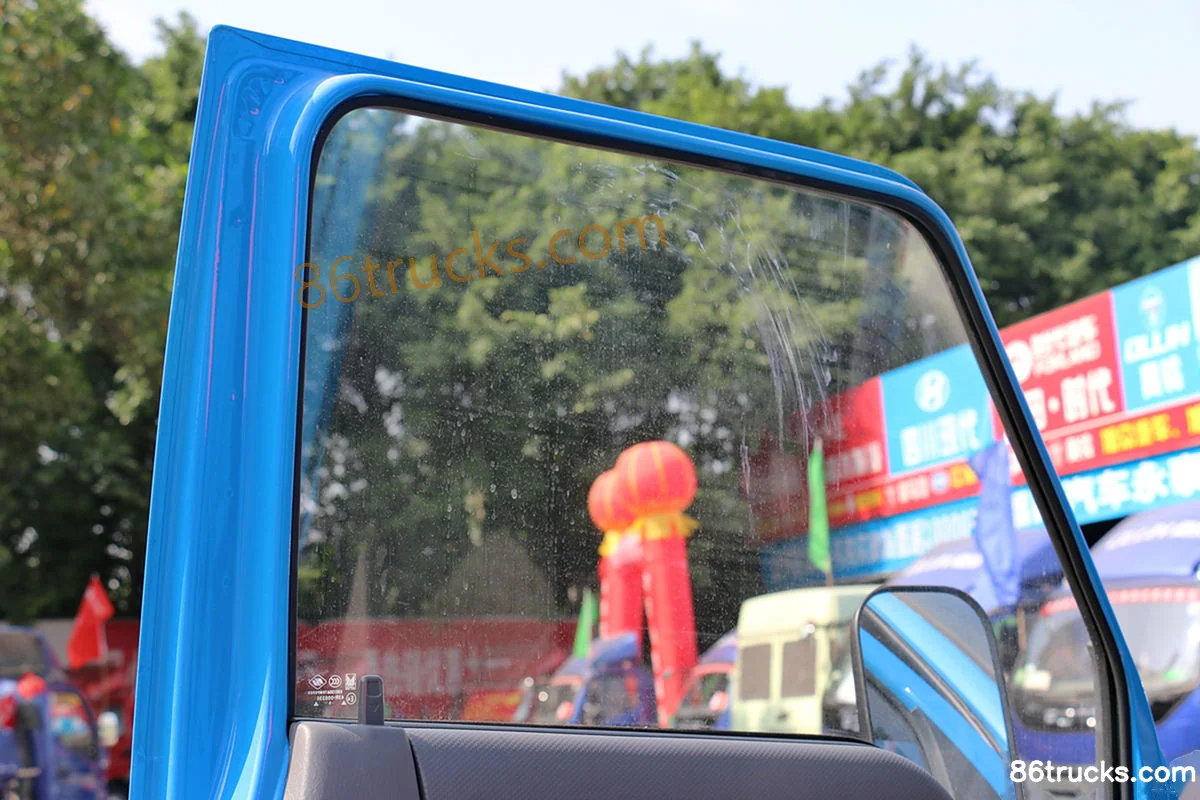

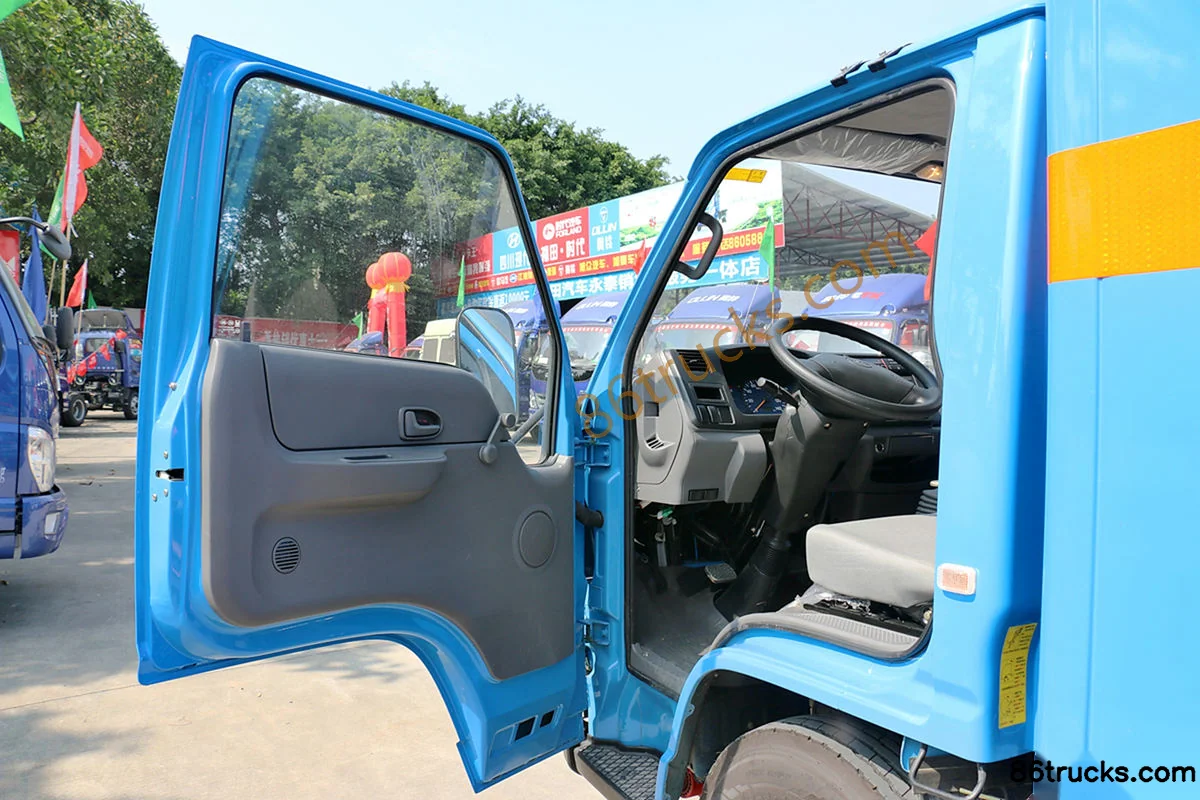

Cab3

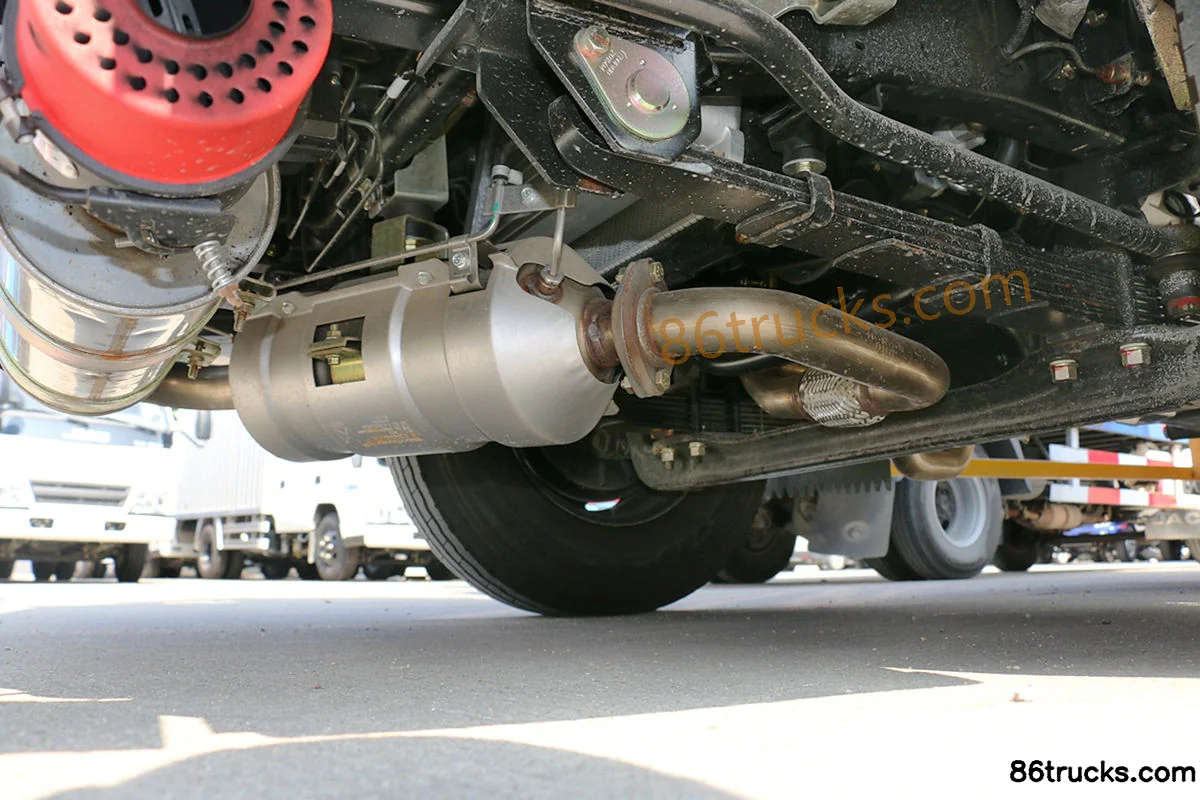

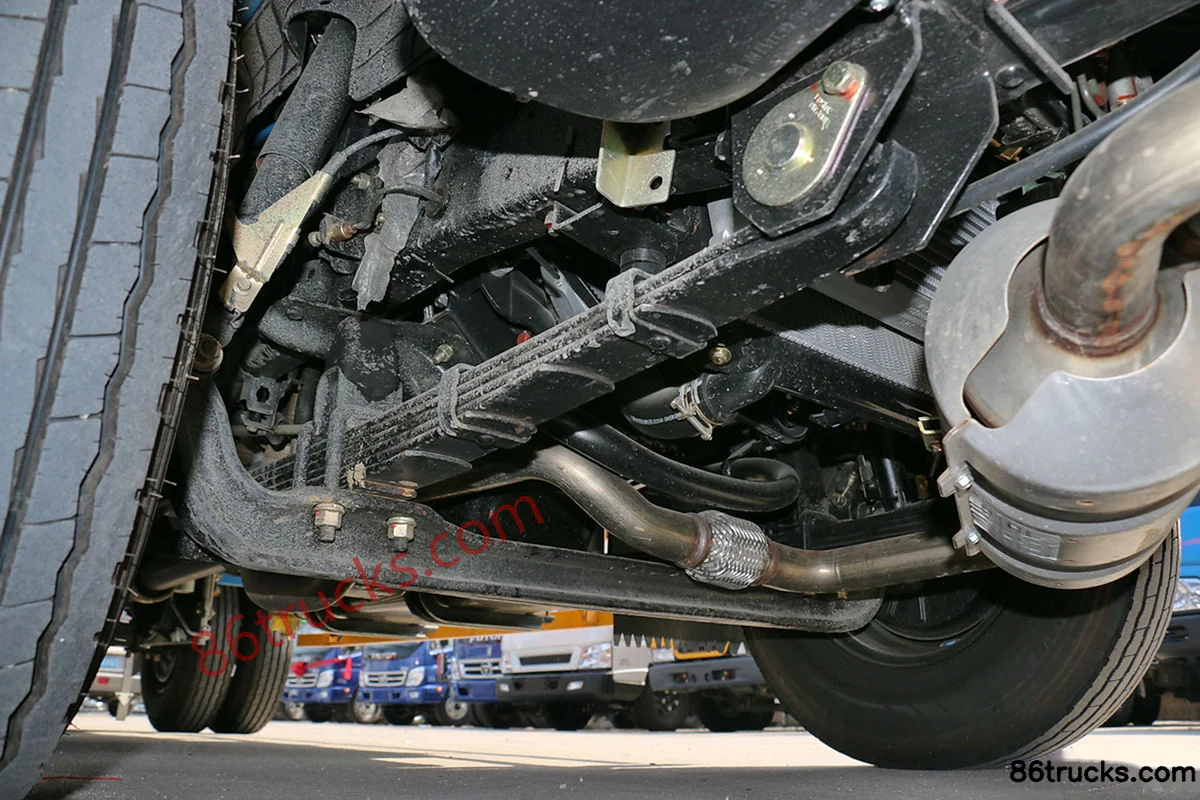

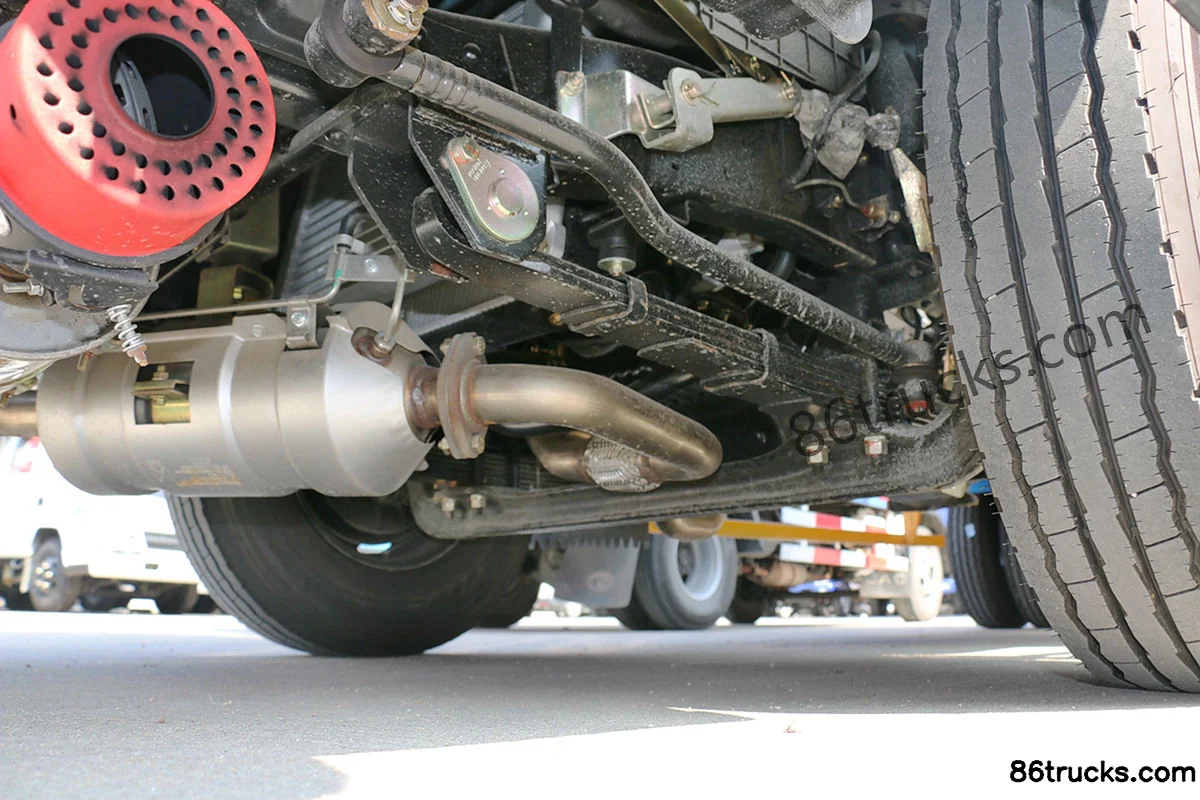

Chassis3

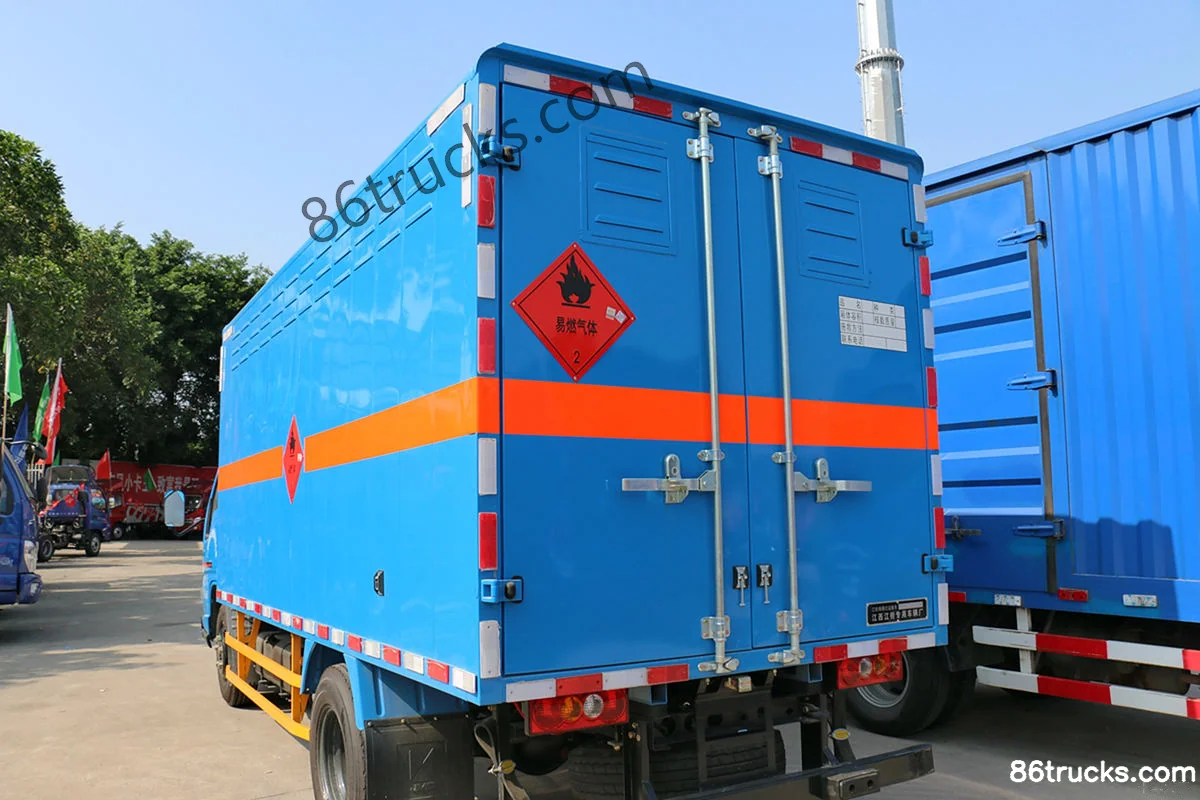

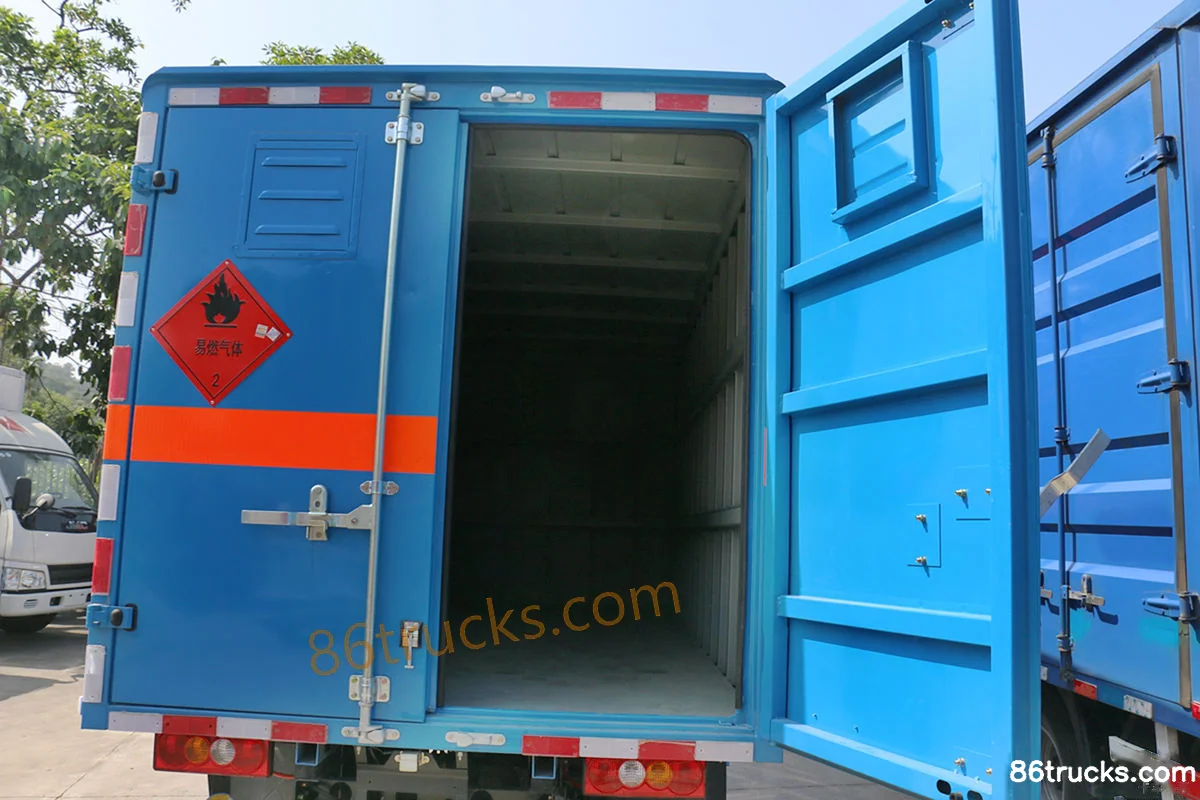

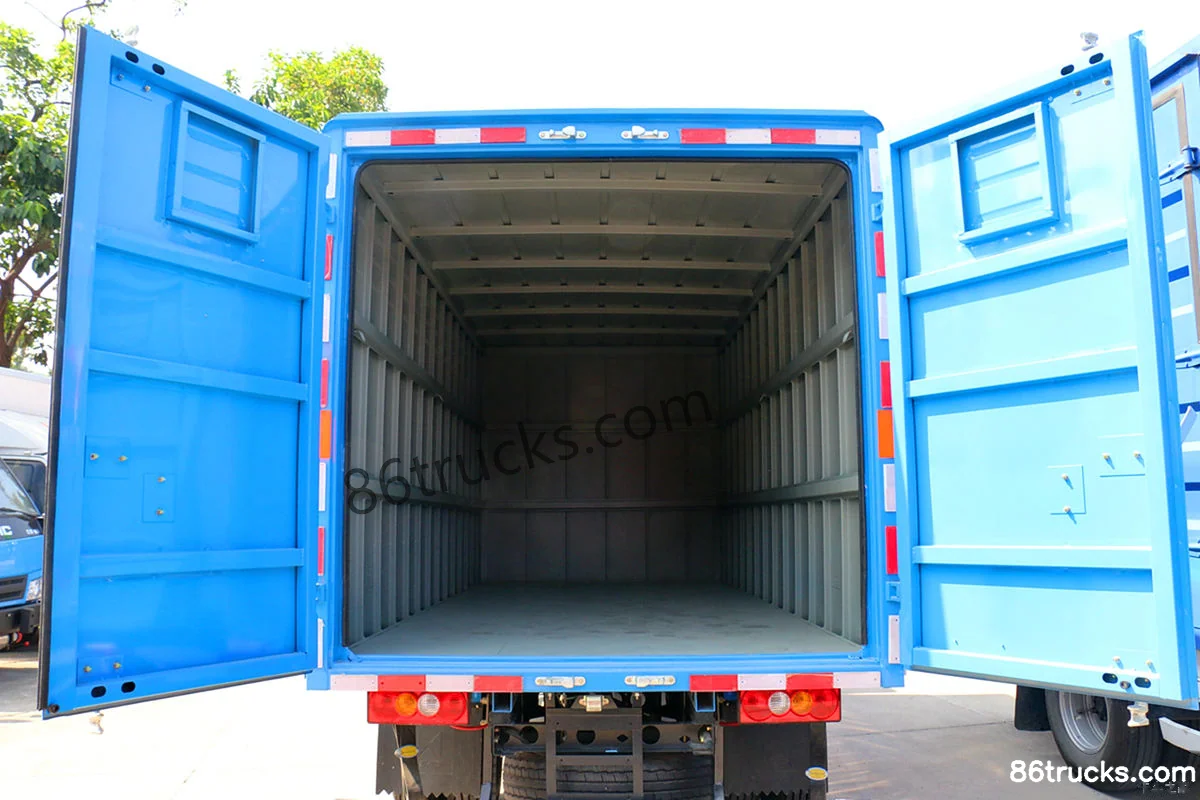

Body3

12 photos

FAQ

What emission standard does JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck?

Key specs of JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck suited for?

JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck differ from other variants in the same series?

JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck belongs to JMC Classic Shunda Light Truck (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Classic Shunda 109hp 4X2(6 wheels) explosive material transport truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
