Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck

Export reference
From $27,056
MSRP ¥19.48M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.1ton
Wheelbase:: 2650+1200mm
Tire Size:: 10.00R20 18PR
Rated payload: 16.265ton
Drive 6X2 (8 wheels)
Horsepower 245
Cargo box thickness: floor 3mm side 3mm

Overview

The Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck is a Heavy truck featuring 16.265t payload, 24.495t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3244K263EFA
Drive type: 6X2
Wheelbase: 2650+1200mm
engine: YuchaiYCS06245-60
transmission: Fast Gear10JS90-B
Rear Axle Ratio: 5.571
Cab length: 6.88m
Cab width: 2.46m
Cab height: 2.95m
Front track width: 1875mm
rear track: 1915/1750mm
Curb Weight: 8.1ton
Rated payload: 16.265ton
GVWR: 24.495ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10JS90-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box thickness: floor 3mm side 3mm
Cargo box type: Rear-dump body
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 1.2m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: Single-layer frame (10/280)mm
rear axle description: 457 rear axle
rear axle allowable load: 11495kg
Axle ratio: 5.571
Leaf spring count: 11/5/11+9
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

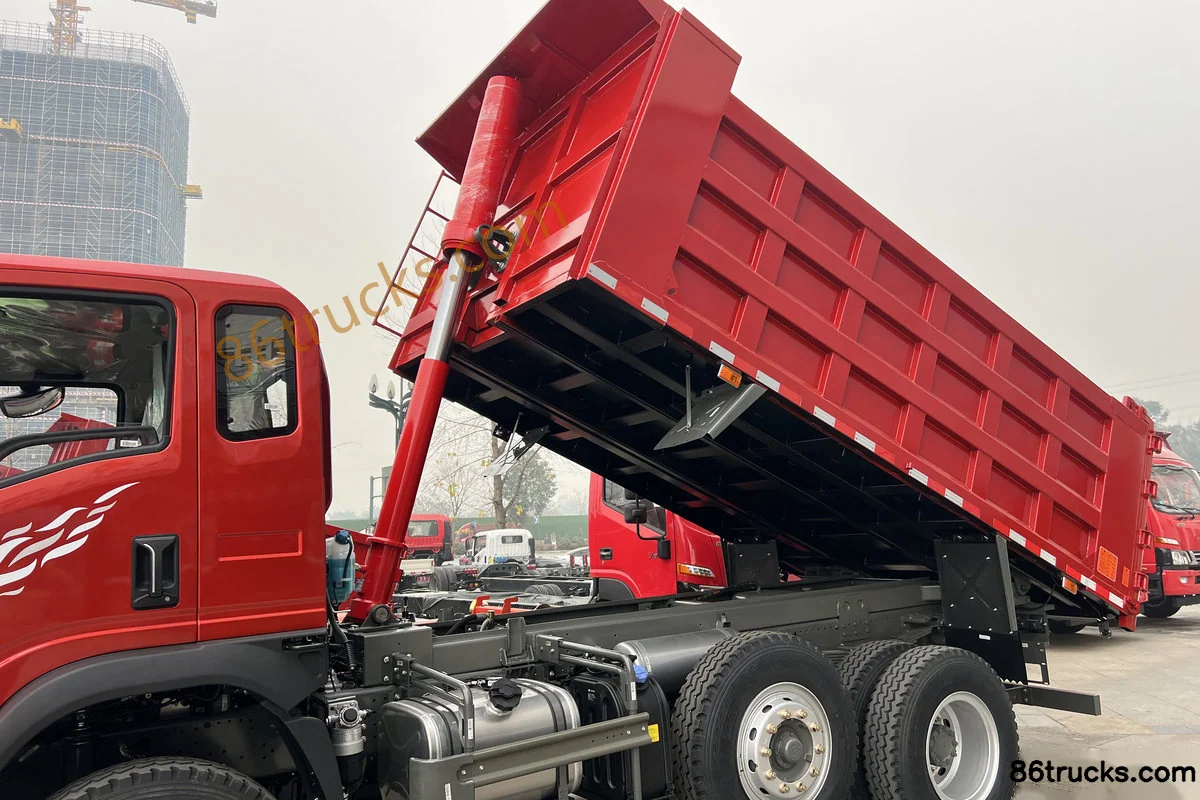

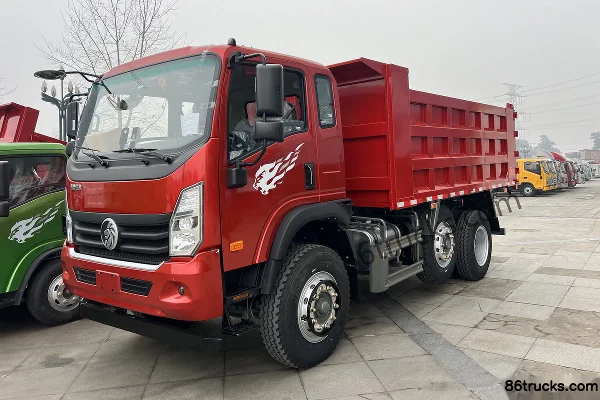

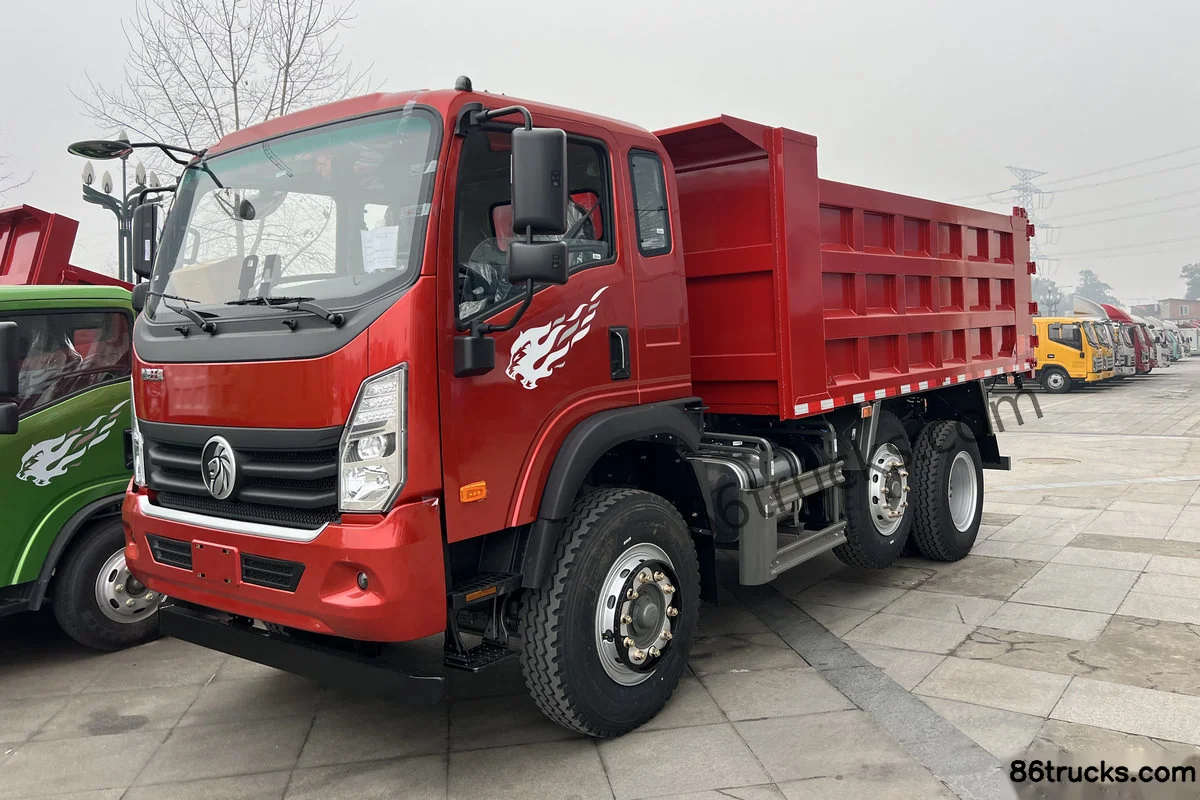

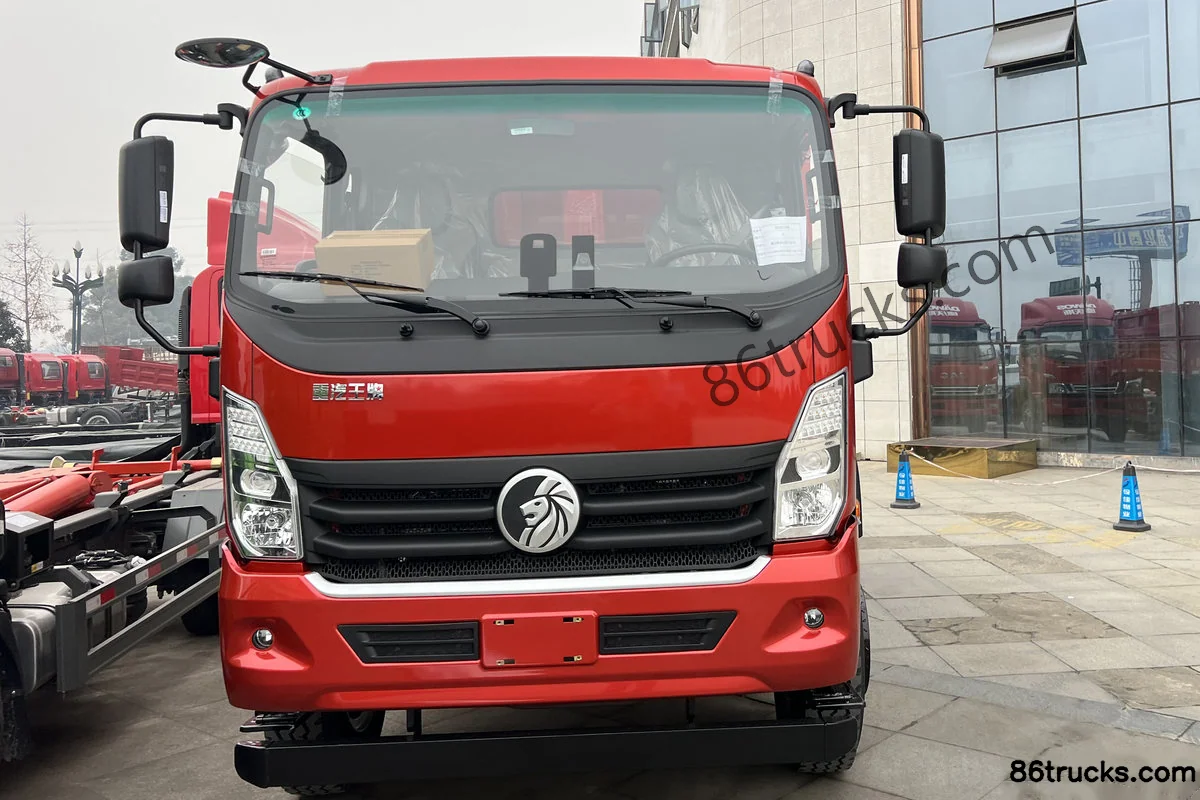

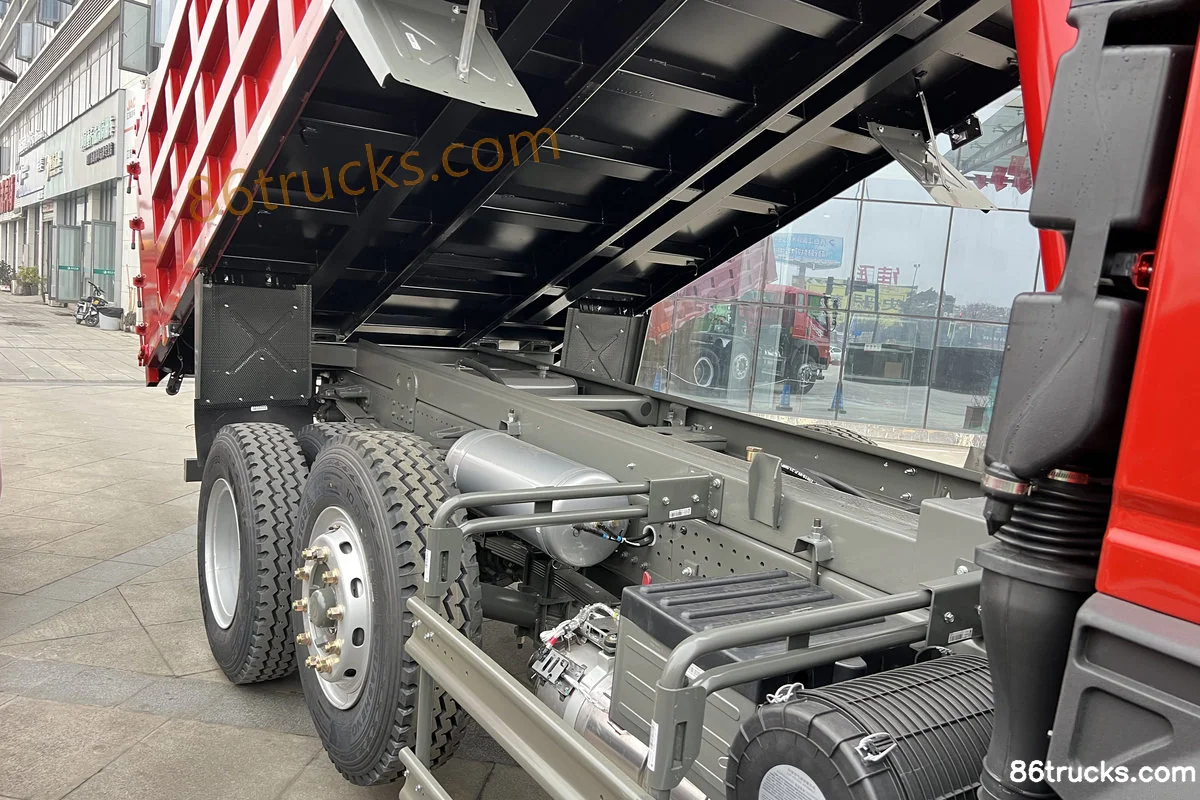

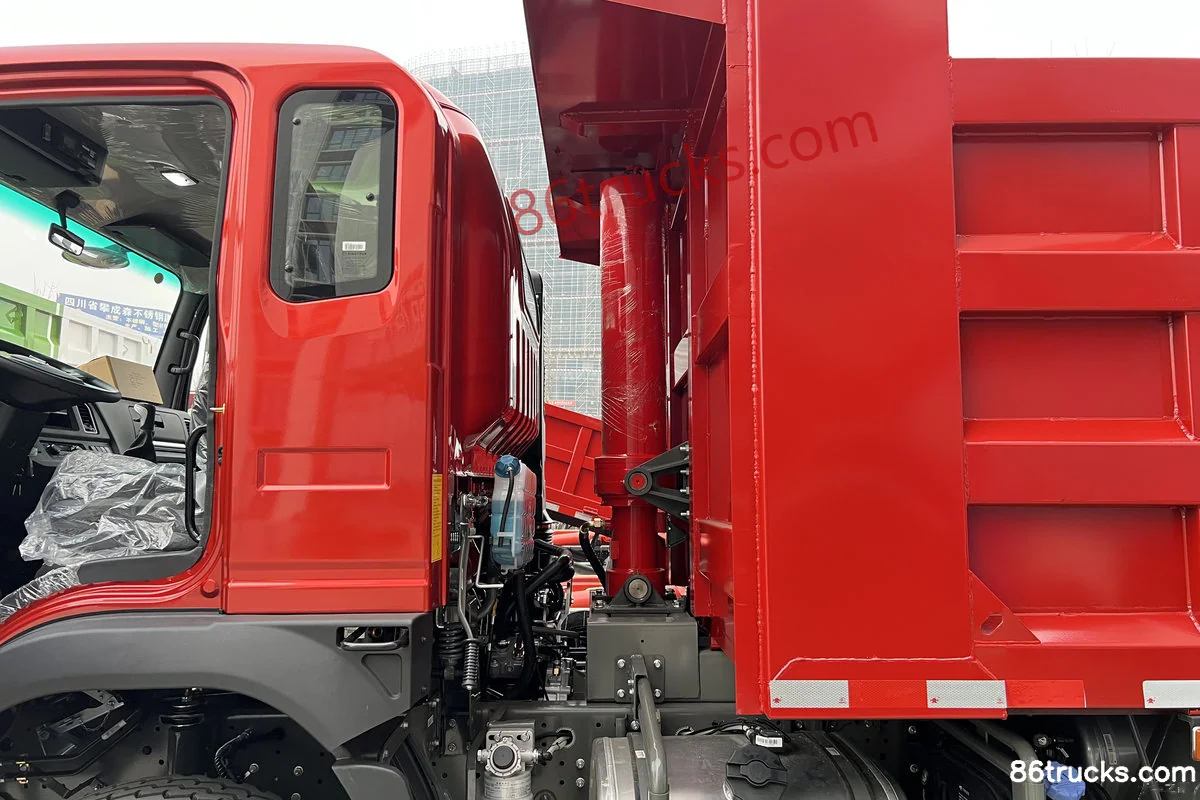

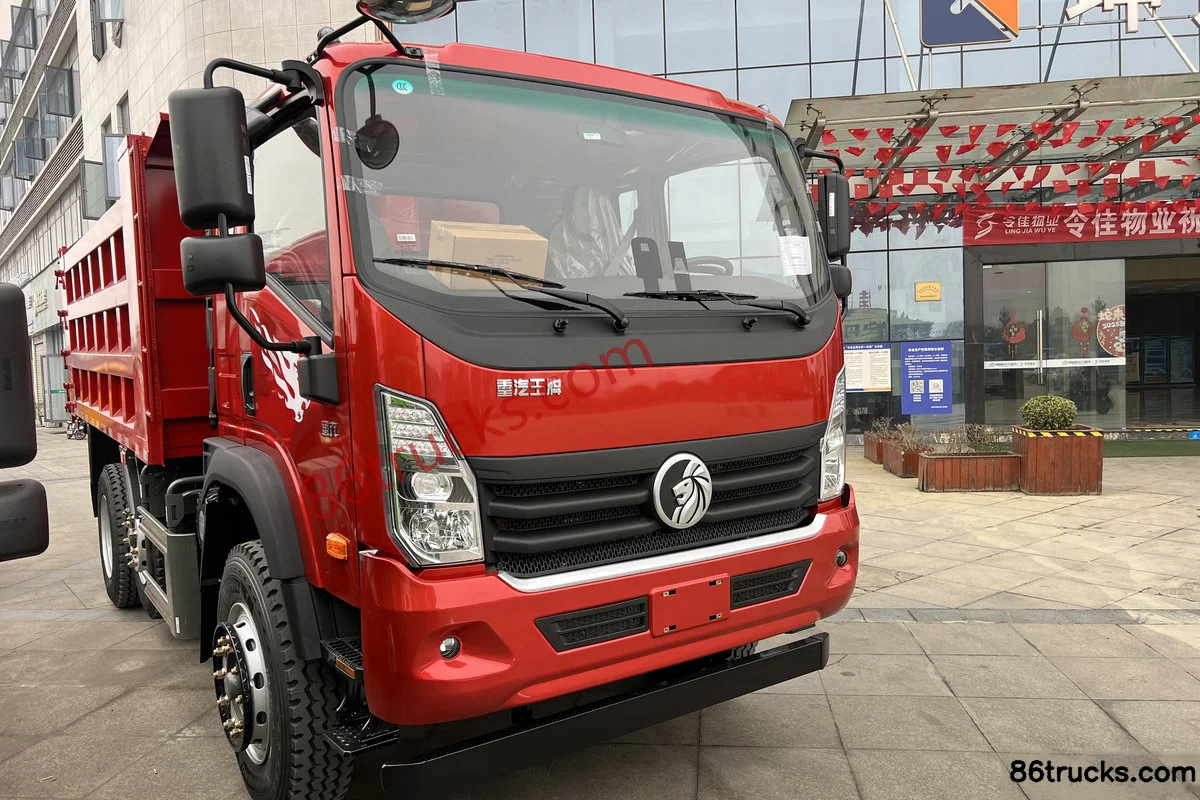

Photos

Exterior3

Cab1

Chassis2

6 photos

FAQ

What is the export price of Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck, and what does it include?

Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck export reference is about From $27,056; MSRP is ¥19.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck?

Key specs of Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck suited for?

Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck differ from other variants in the same series?

Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck belongs to Sinotruk V Series (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3 6.2L Diesel 245 hp 6X2(8 wheels) Fast Gear 10-Speed 4.5m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
