JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck

Export reference
From $16,500
MSRP ¥11.88M CNY
Emission: China V
Fuel: Diesel
Transmission: Lu'an
Curb Weight:: 2.6ton
Wheelbase:: 3308mm
Tire Size:: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR,6.50R16LT 8PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 120
Cargo box type: Dump type

Overview

The JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck is a Light Truck featuring 1.495t payload, 4.42t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JACHFC4DA1-2D engine, 120 hp, China V emissions and Lu'an transmission.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046R93K1C2V
Drive type: 4X2
Wheelbase: 3308mm
engine: JACHFC4DA1-2D
transmission: Lu'an LC5T28
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 1.985m
Cab height: 2.25m
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.42ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2D
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: Lu'an LC5T28
Transmission Brand: Lu'an
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.81m
Cargo box height: 0.4m
fuel tank
Fuel tank capacity: 75L
Chassis Specs
Front axle allowable load: 1590kg
rear axle allowable load: 2830kg
Axle ratio: 4.33
Leaf spring count: 3/9+7,11/9+7
Tire
Tire Size: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR,6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

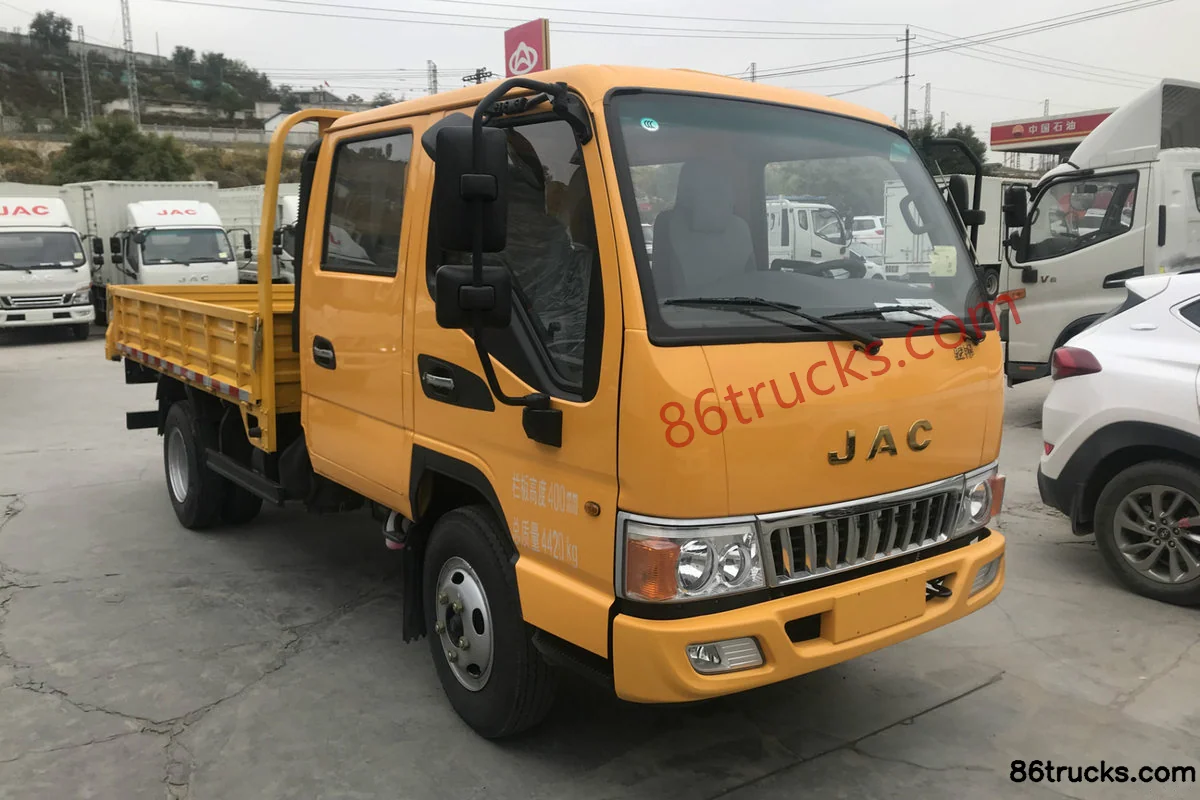

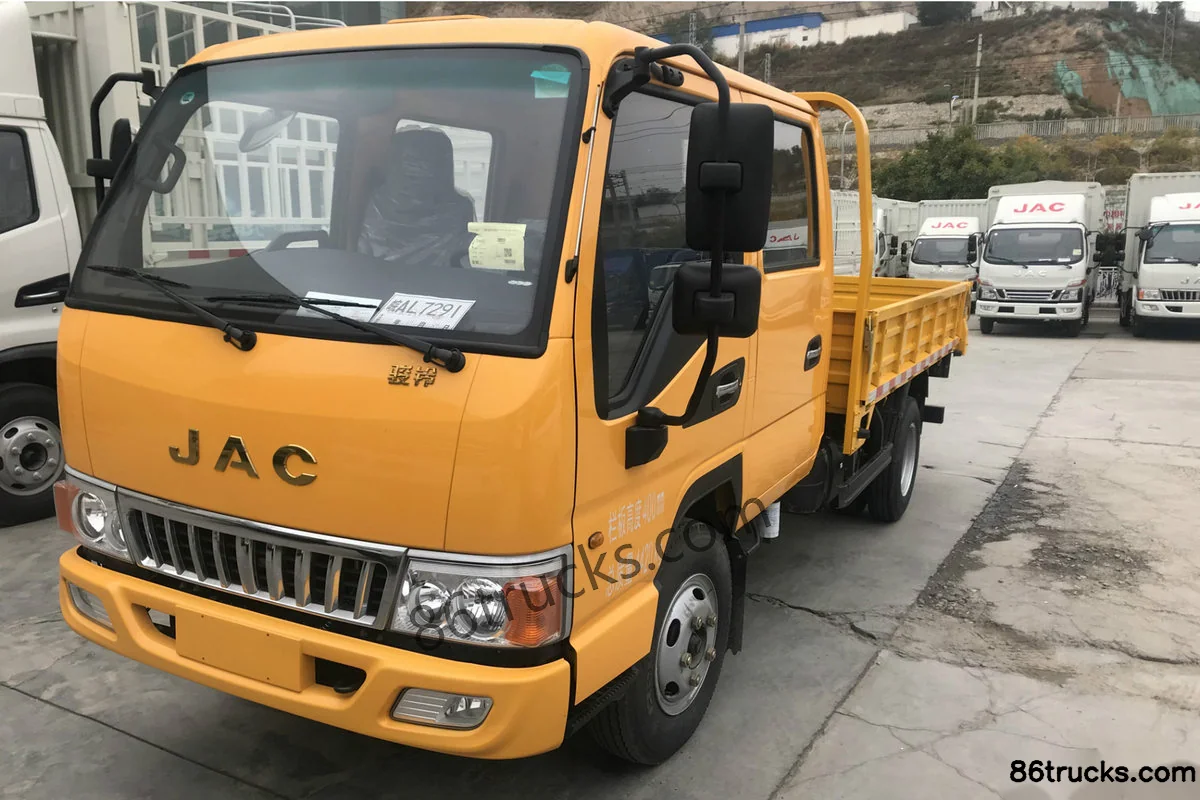

Photos

Exterior2

2 photos

FAQ

What is the export price of JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck, and what does it include?

JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck export reference is about From $16,500; MSRP is ¥11.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck?

Key specs of JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck suited for?

JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck differ from other variants in the same series?

JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G Series Annual Model Transport Type 120 hp 4X2(6 wheels) 3.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
