Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 2150+3950mm
Cab dimensions:: 10.5×2.5×3.88m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.46/2.94m

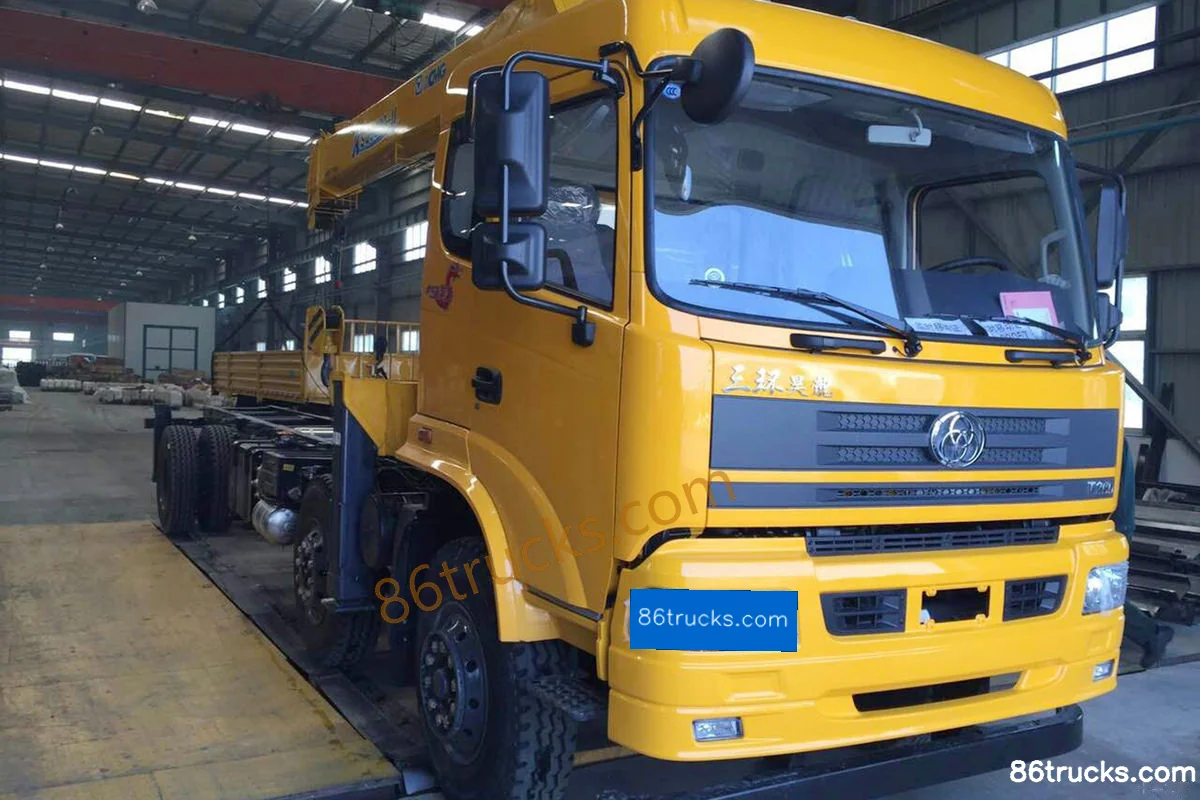

Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane exterior
View more photos (3)
Drive 6X2 (8 wheels)
Horsepower 240
Rated mass: 10.305ton
Emission China V

Overview

The Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane is a truck-mounted crane featuring 25t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 240 hp, China V emissions and Diesel fuel.

China V 240 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 10.5×2.5×3.88m
Type: truck-mounted crane
Drive type: 6X2
Wheelbase: 2150+3950mm
Rated mass: 10.305ton
GVWR: 25ton
Front/rear suspension: 1.46/2.94m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Body Parameters
Vehicle certification code: STQ5258JSQD5
Body Brand: Sanhuan Shitong
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Haolong
Chassis Model: STQ1258L16Y3D5
rear axle description: 153
Leaf spring count: 9/9/10+8,3/3/4+3,3/3/10+8,3/3/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS105
Cab parameters
Cab: T260 luxury cab
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs

Photos

Exterior3

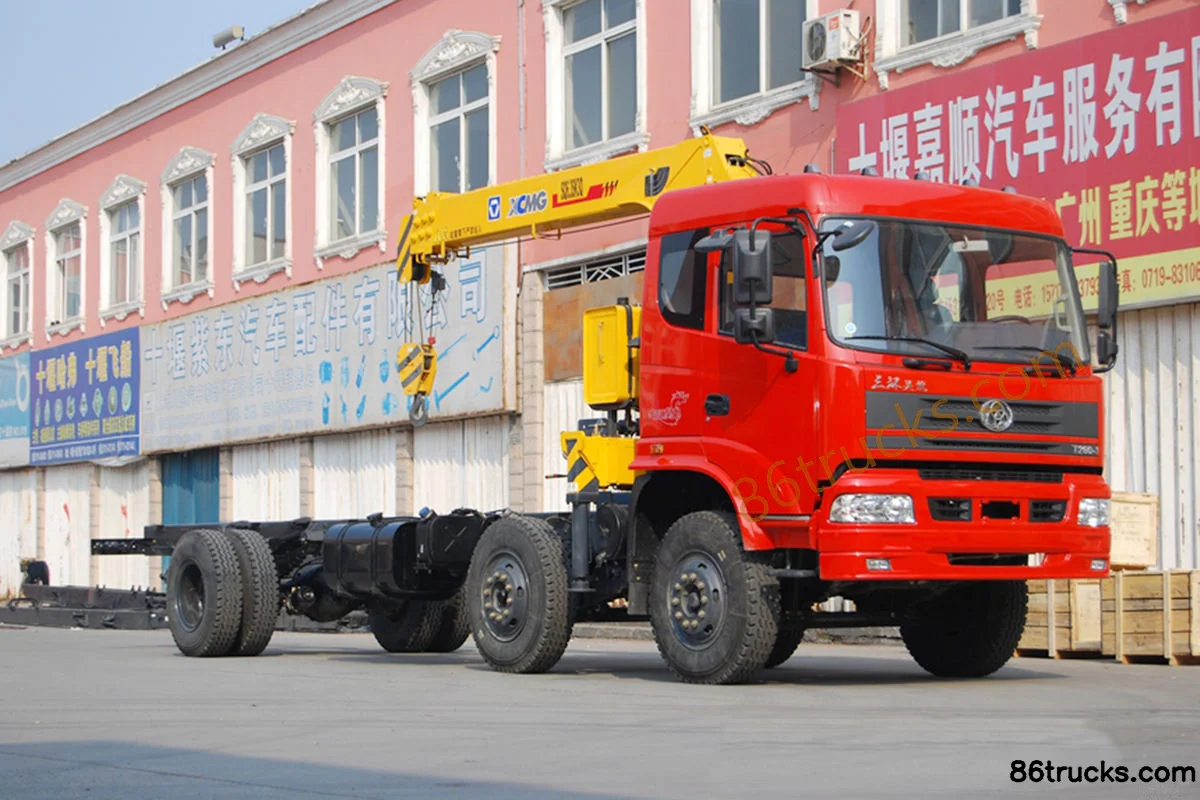

Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane Exterior (1) | 86Trucks Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane Exterior (2) | 86Trucks Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane?

Key specs of Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane: Drive: 6x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane suited for?

Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane differ from other variants in the same series?

Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane belongs to Sanhuan Shitong Haolong Medium Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 240 hp 6X2(8 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
