Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck

Export reference
From $66,056
MSRP ¥47.56M CNY
Emission: China VI
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.5ton
Wheelbase:: 4325+1350mm
Tire Size:: 12.00R20 16PR
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 400
Cargo box type: Dump type

Overview

The Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10H400E62 engine, 400 hp, China VI emissions and Sinotruk transmission.

China VI 400 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3257V434GF1
Drive type: 6X4
Wheelbase: 4325+1350mm
engine: WeichaiWP10H400E62
transmission: SinotrukHW19712CL
Rear Axle Ratio: 5.92
Cab length: 9.32m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2022mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 32°
Version: Standard Heavy Load
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10H400E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.5L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR
Transmission Parameters
Transmission Model: SinotrukHW19712CL
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.3m
Cargo box width: 2.35m
Cargo box height: 1.5m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab: TX-F
Cab width: 2280mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: 300mm
rear axle description: 16T heavy-duty double reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.92
Leaf spring count: 11/12
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

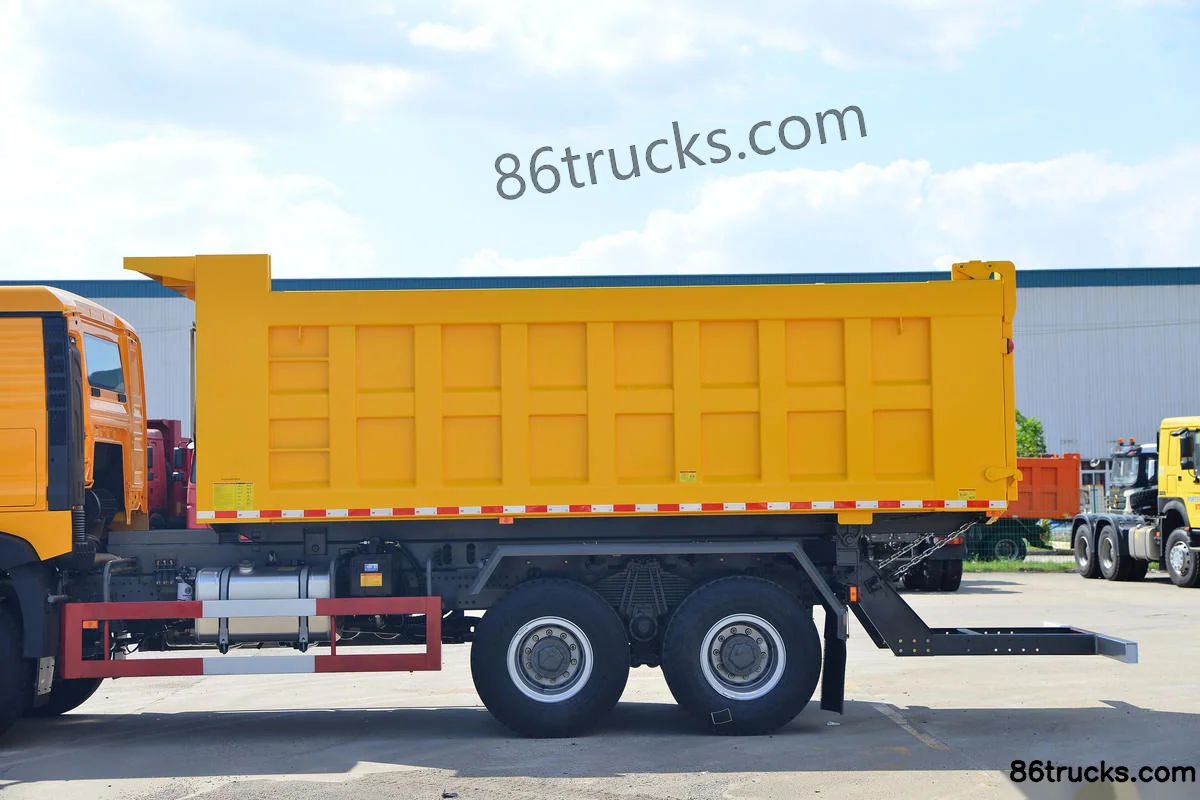

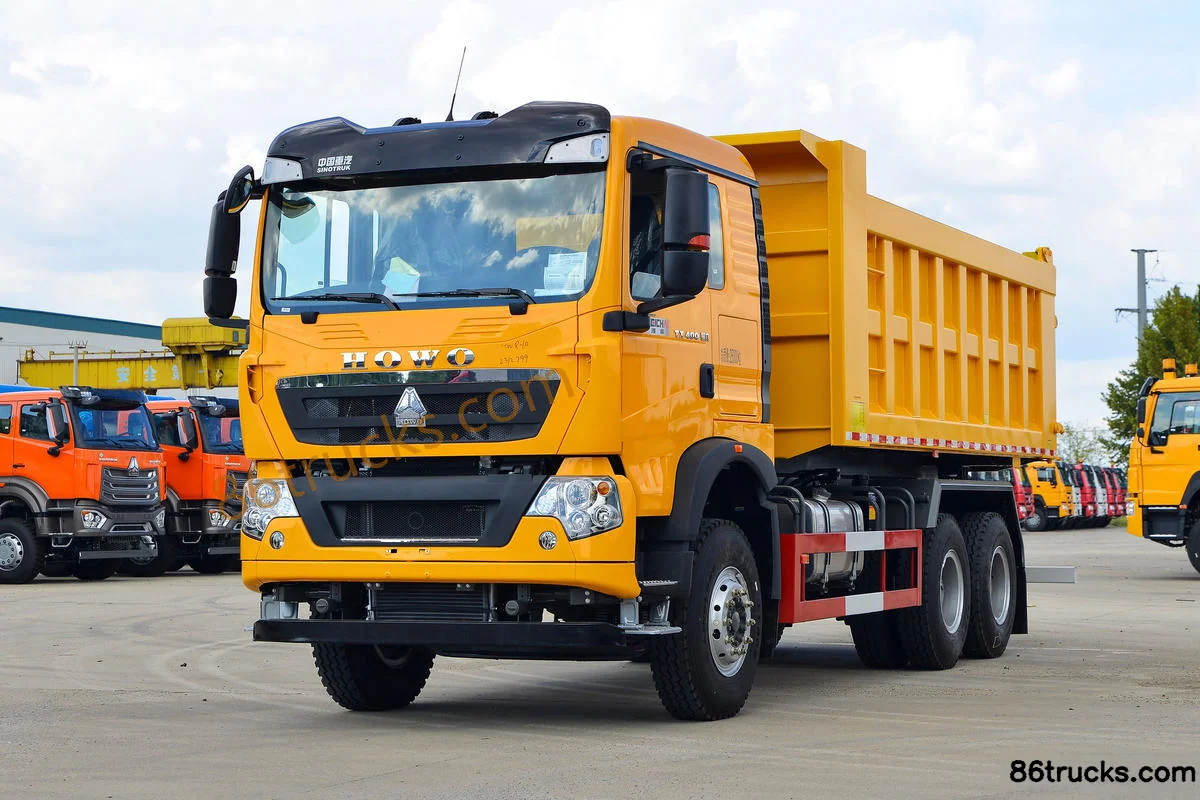

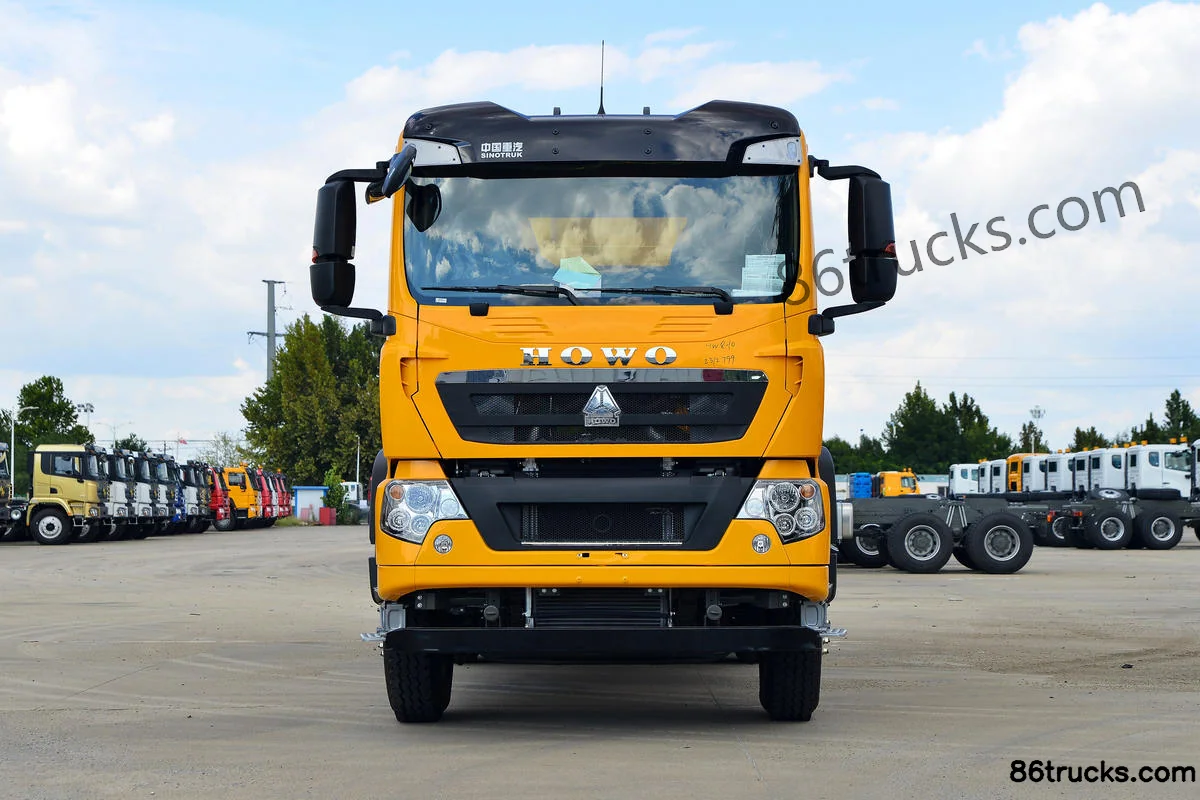

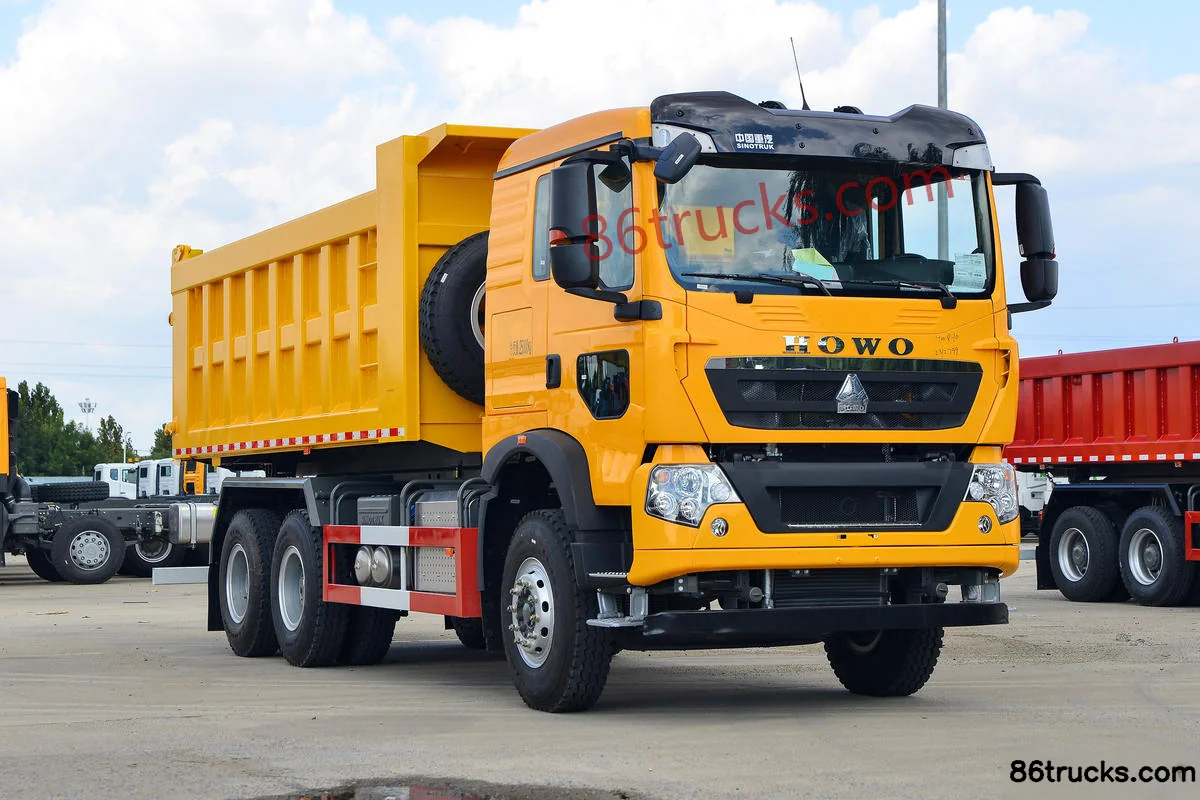

Exterior3

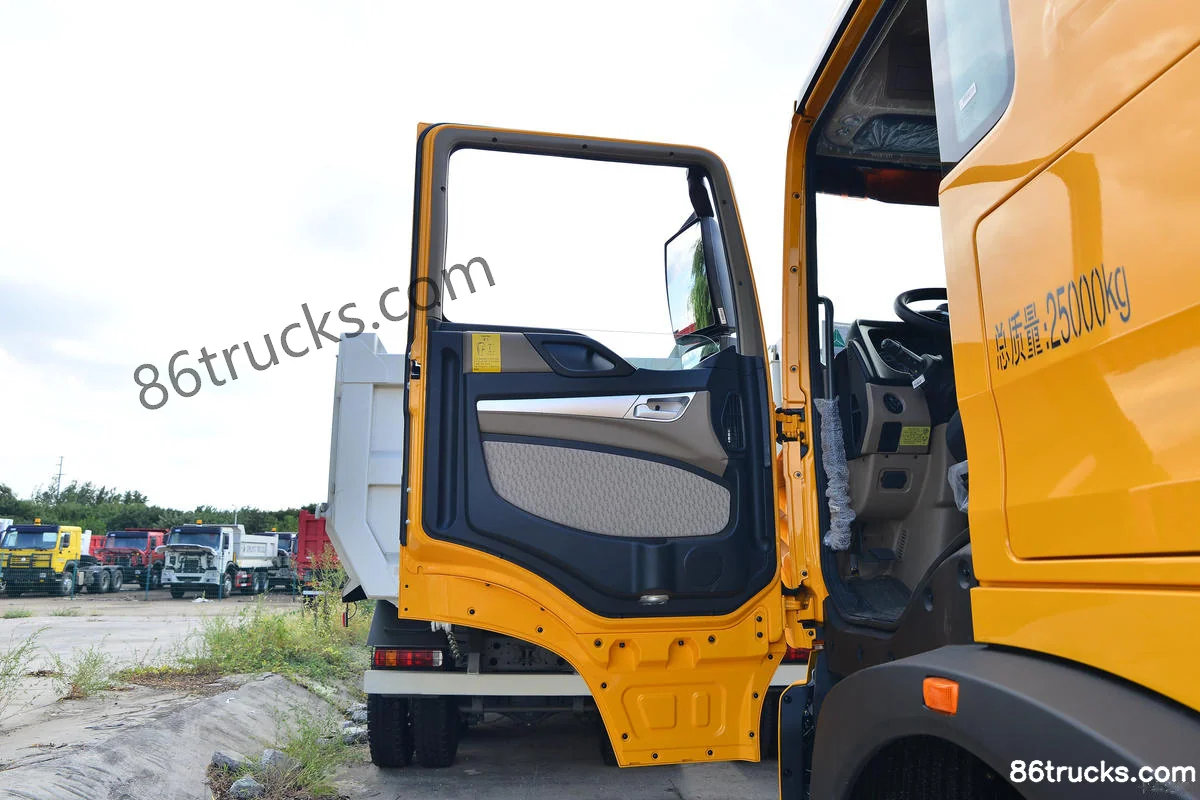

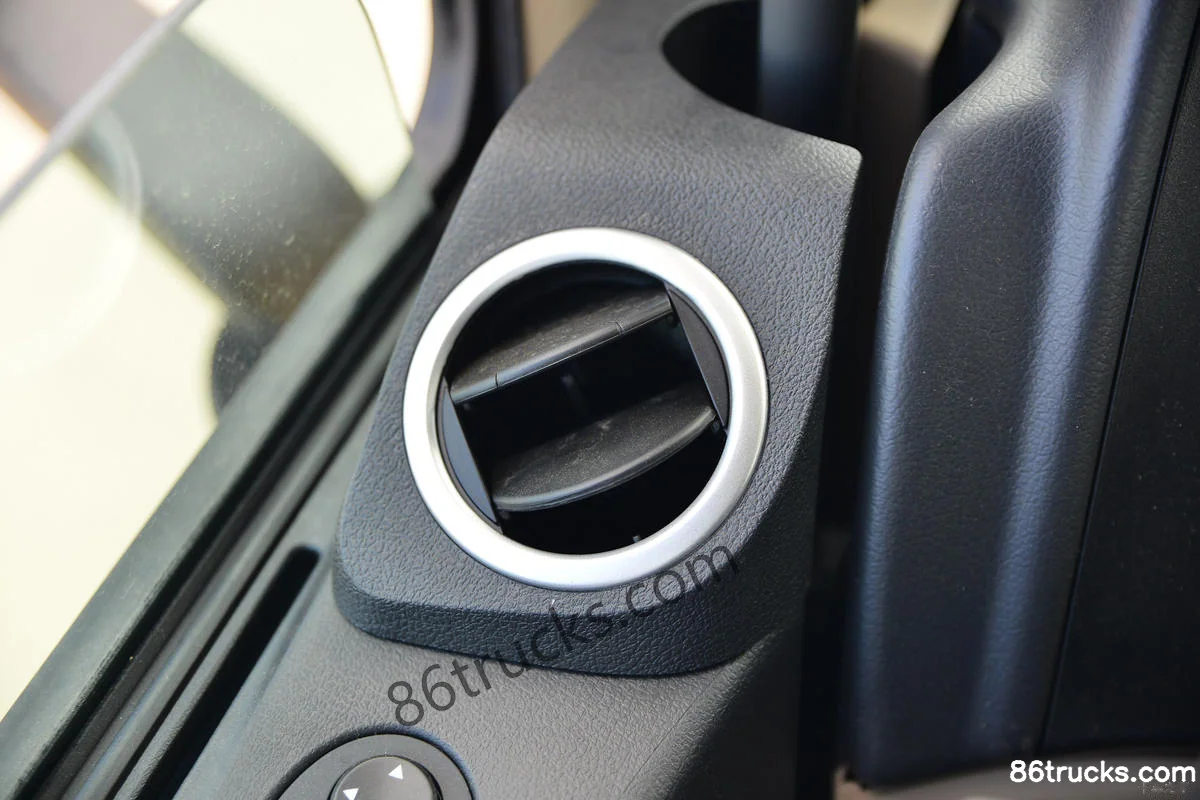

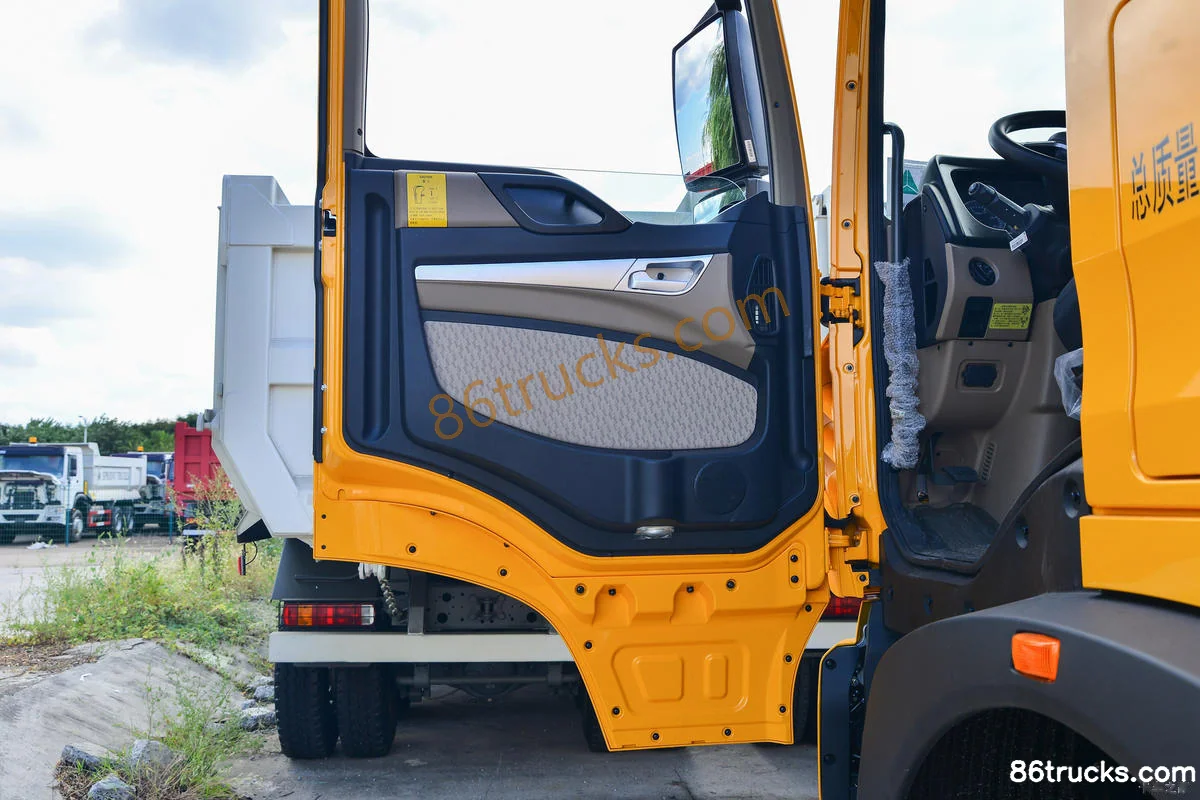

Cab3

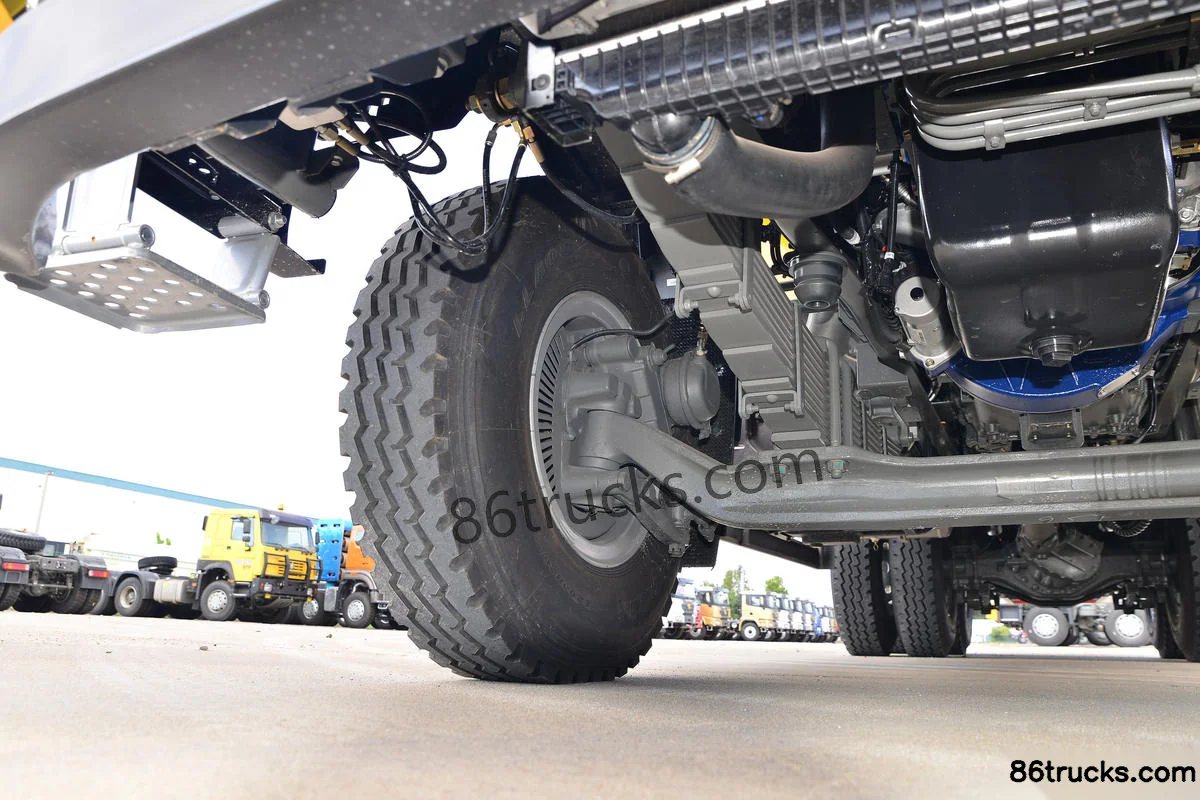

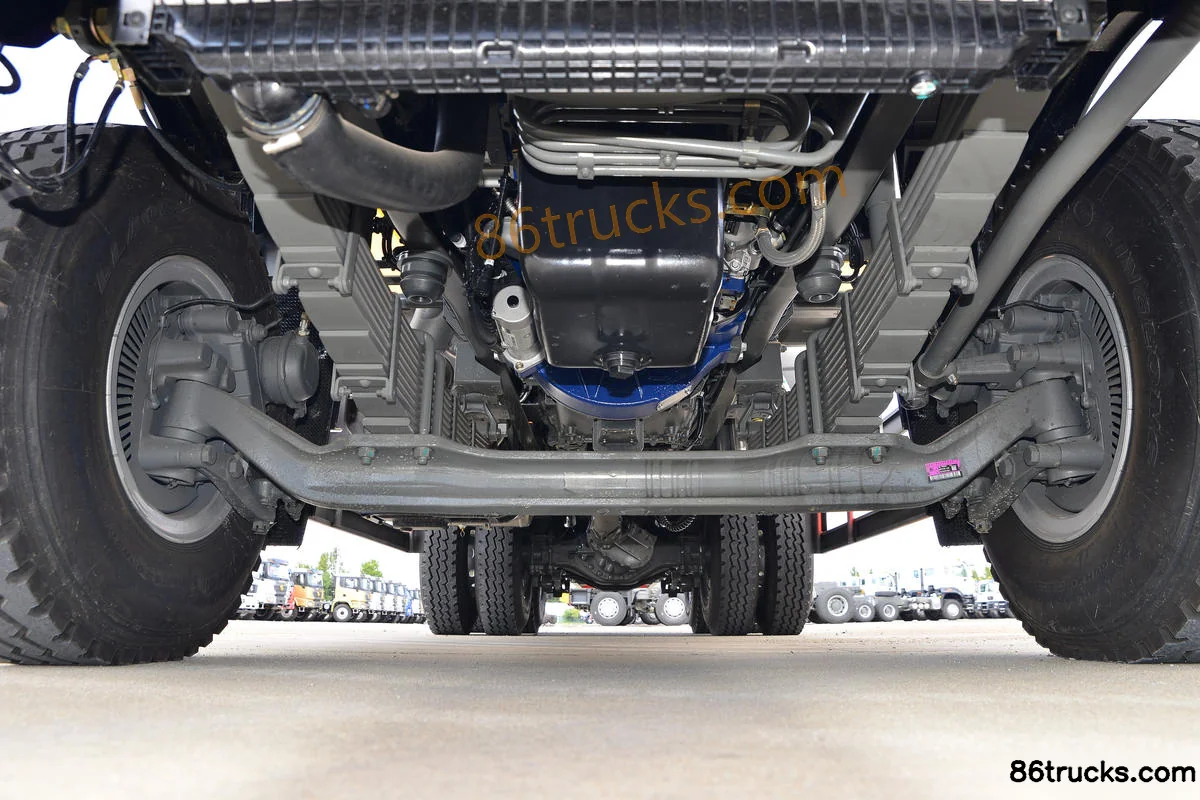

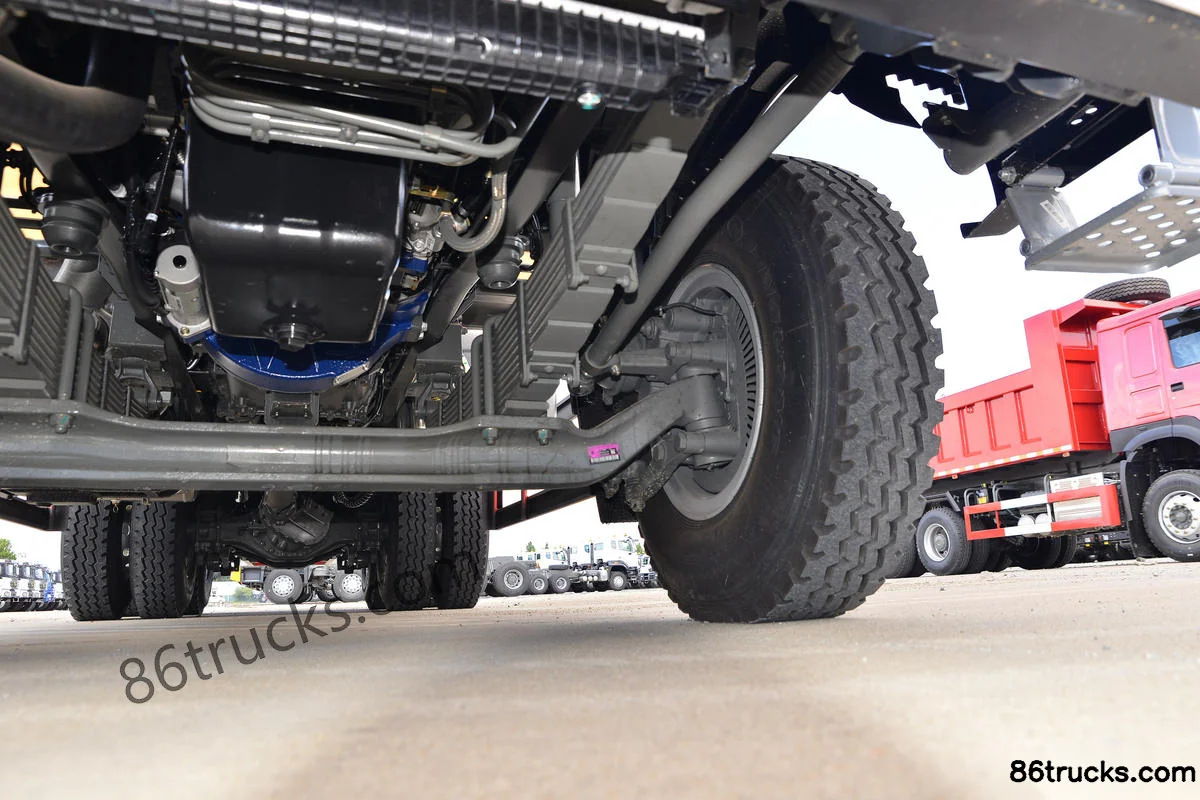

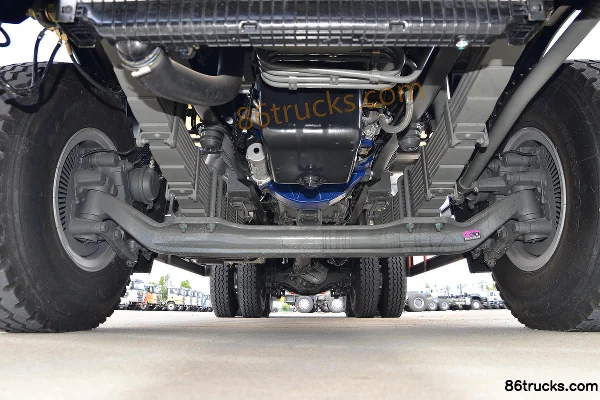

Chassis3

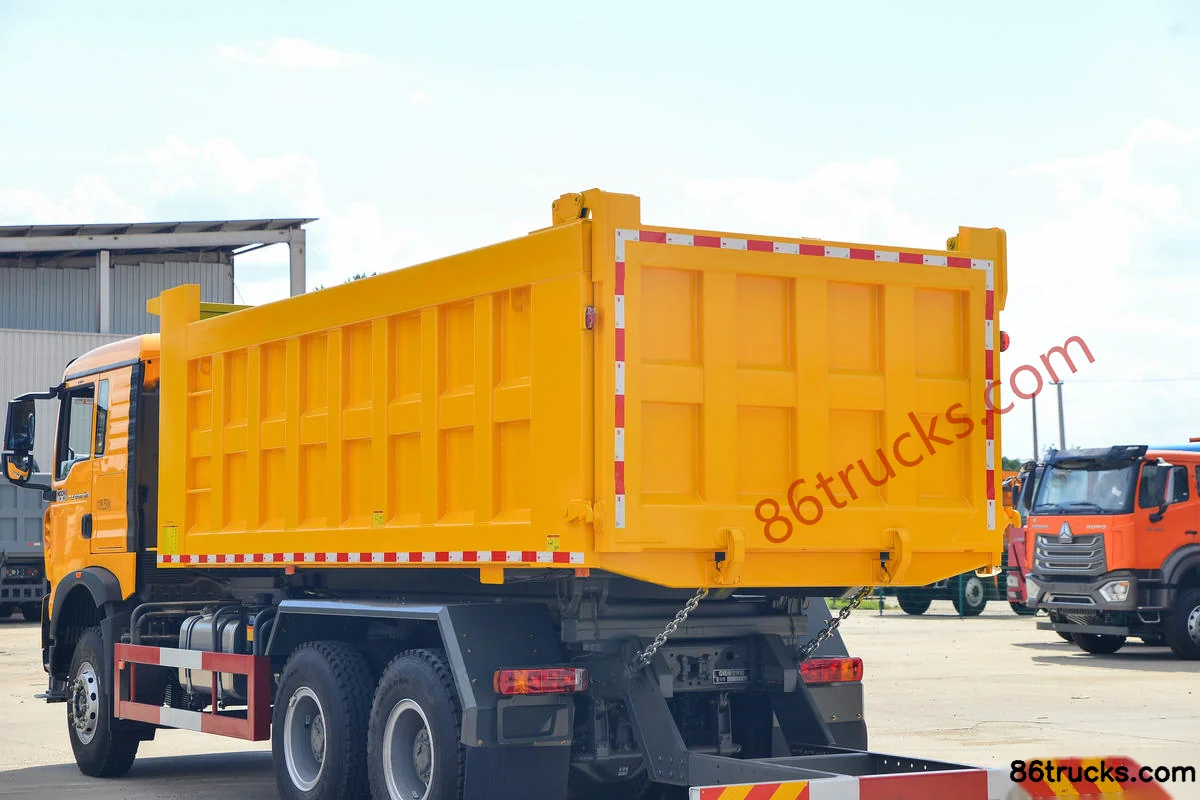

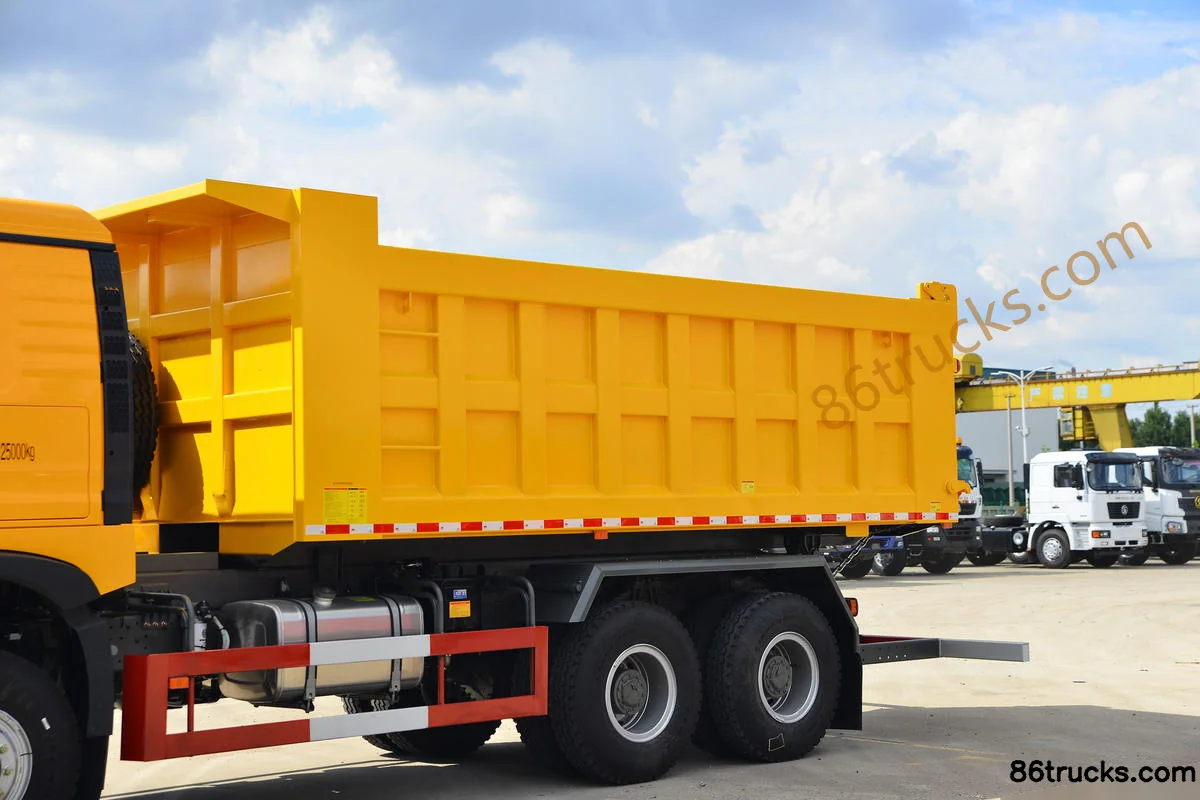

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck, and what does it include?

Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck export reference is about From $66,056; MSRP is ¥47.56M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck?

Key specs of Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck: Drive: 6x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck suited for?

Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck differ from other variants in the same series?

Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck belongs to SinotrukHOWOHOWO TX7 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX 400 hp 6X4(10 wheels) 6.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
