SANY 48m Concrete Pump Truck (Isuzu Chassis)

Export reference
MSRP N/A
Fuel: Diesel
Model code (announced):: SY5385THB48Ⅲ
Max pumping height:: 48m
Overall Dimensions: L×W×H:: 13.31×2.5×4m
Pumping displacement (low/high):: 100/140m³/h
Pumping pressure (low/high):: 8.3/12
Curb Weight: 38ton
Horsepower 390
Max output power: 287kW
Emission China III / Euro III

Overview

The SANY 48m Concrete Pump Truck (Isuzu Chassis) is a concrete pump truck featuring 38ton GVW, 390 hp and 287kW power. On the powertrain side, it comes with China III / Euro III emissions and Diesel fuel.

China III / Euro III 390 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SY5385THB48Ⅲ
Max pumping height: 48m
Overall Dimensions: L×W×H: 13.31×2.5×4m
Curb Weight: 38ton
Pumping system
Pumping displacement (low/high): 100/140m³/h
Pumping pressure (low/high): 8.3/12
Pumping strokes (low/high): 14/20Times/min
Delivery cylinder: bore × stroke: 260×2200mm
Oil pressure: 32Mpa
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 48m
Boom Horizontal Length: 44m
Boom Section Count: 5-arm section
Boom Vertical Depth: 30m
Turntable Rotation Angle: 270°
Min unfolded length: 11m
Outrigger spread width: front/rear: 9300/10500mm
Boom Section 1 - Length: 9060mm
first arm section angle: 90°
Boom Section 2 - Length: 8010mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 7800mm
Boom Section 3 - Angle: 180°
4th arm section length: 9465mm
Boom Section 4 - Angle: 240°
Boom Section 5 - Length: 9665mm
Boom Section 5 - Angle: 235°
Engine parameters
Engine Model: 6WF1D
fuel type: Diesel
Displacement: 14.256L
Emission standard: China III / Euro III
Max output power: 287kW
Max hp: 390Horsepower
Rated speed: 1800rpm
Chassis Specs
Chassis Series: IsuzuCYH51Y

Photos

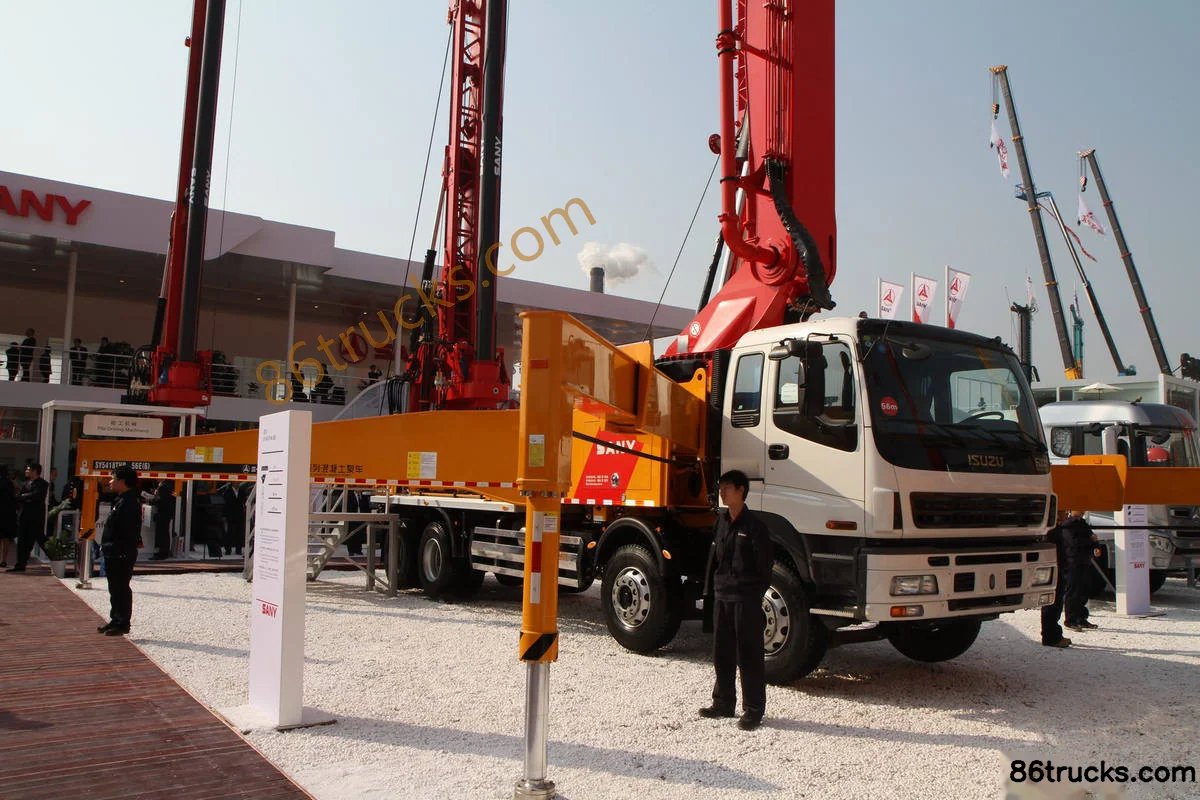

Exterior1

1 photos

FAQ

What emission standard does SANY 48m Concrete Pump Truck (Isuzu Chassis) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY 48m Concrete Pump Truck (Isuzu Chassis)?

Key specs of SANY 48m Concrete Pump Truck (Isuzu Chassis): Horsepower: 390 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY 48m Concrete Pump Truck (Isuzu Chassis) suited for?

SANY 48m Concrete Pump Truck (Isuzu Chassis) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SANY 48m Concrete Pump Truck (Isuzu Chassis) differ from other variants in the same series?

SANY 48m Concrete Pump Truck (Isuzu Chassis) belongs to SANY Group Isuzu chassis (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 48m Concrete Pump Truck (Isuzu Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 48m Concrete Pump Truck (Isuzu Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
