Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 7.68ton
Wheelbase:: 3900mm
Tire Size:: 9.00R20
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck is a Medium-duty truck featuring 7.99t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a SinotrukMC05.18-50 engine, 180 hp, China V emissions and Sinotruk transmission.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5168ZLJG10EB0
Drive type: 4X2
Wheelbase: 3900mm
engine: SinotrukMC05.18-50
transmission: SinotrukHW90510C
Rear Axle Ratio: 5.571
Cab length: 6.53m
Cab width: 2.495m
Cab height: 3.1m
Front track width: 1980mm
rear track: 1850mm
Curb Weight: 7.68ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 18.5°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.18-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1300-1700rpm
Rated speed: 2400rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: D13 Semi-high Semi-floating
Chassis Specs
Front axle description: 153
Front axle allowable load: 5550kg
Frame Dimensions: 280 double-layermm
rear axle description: 153
rear axle allowable load: 10300kg
Axle ratio: 5.571
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

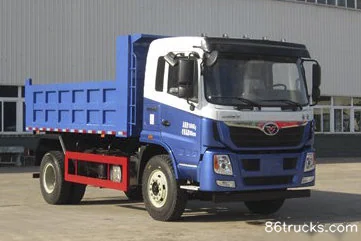

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck?

Key specs of Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck suited for?

Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck differ from other variants in the same series?

Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck belongs to Sinotruk H5 near-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H5 180 hp 4X2(6 wheels) 4.2m Dump Garbage Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
