Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 4100+1350mm
Tire Size:: 11.00R20,12.00R20 16PR
Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck exterior
View more photos (3)
Rated payload: 12.305ton
Drive 6X4 (10 wheels)
Horsepower 430
Cargo box type: Rear-dump body

Overview

The Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck is a Heavy truck featuring 12.305t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, 430 hp, China V emissions and Fast Gear transmission.

China V 430 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CGC3250D5ECHD
Drive type: 6X4
Wheelbase: 4100+1350mm
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSDX220T-B
Rear Axle Ratio: 5.262
Cab length: 8.895m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2020mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.305ton
GVWR: 25ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 27°
Remarks: QH70 PTO
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSDX220T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof short crew cab
Chassis Specs
Front axle description: 9.5TMAN
Front axle allowable load: 7000kg
Frame Dimensions: 320×90×(8+8)mm
rear axle description: 16T MAN double reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 10/12,13/14,12/12,12/14
Tire
Tire Size: 11.00R20,12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electronic Central Lock:

Photos

Exterior3

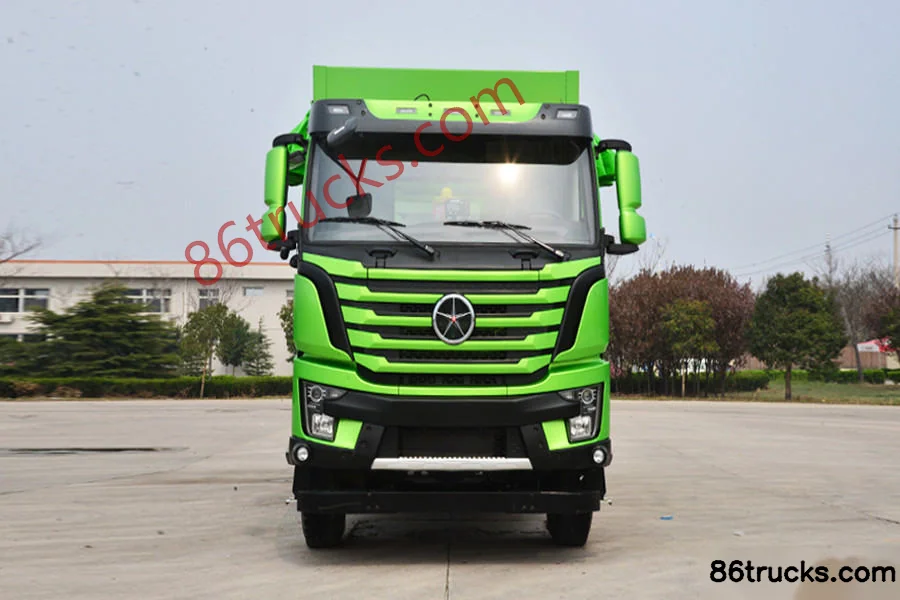

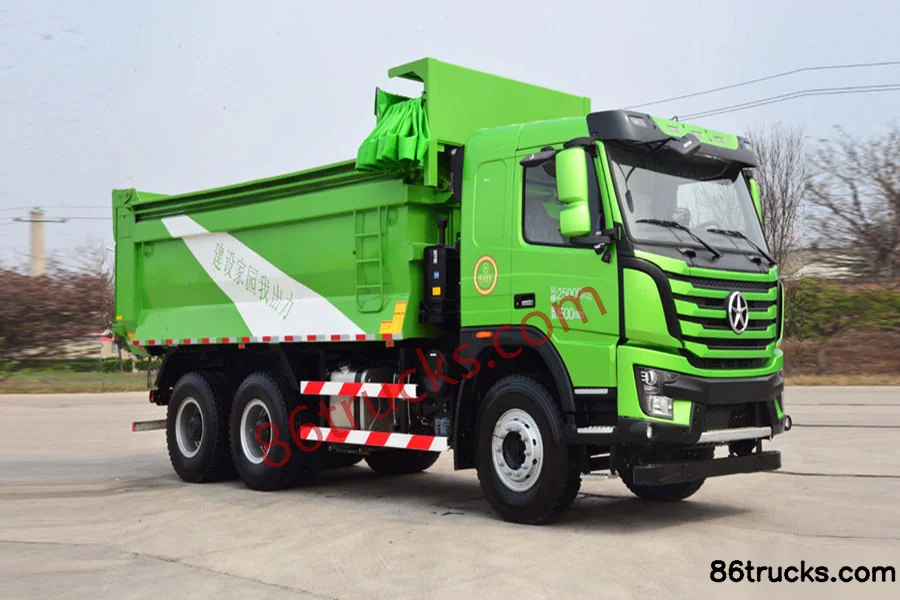

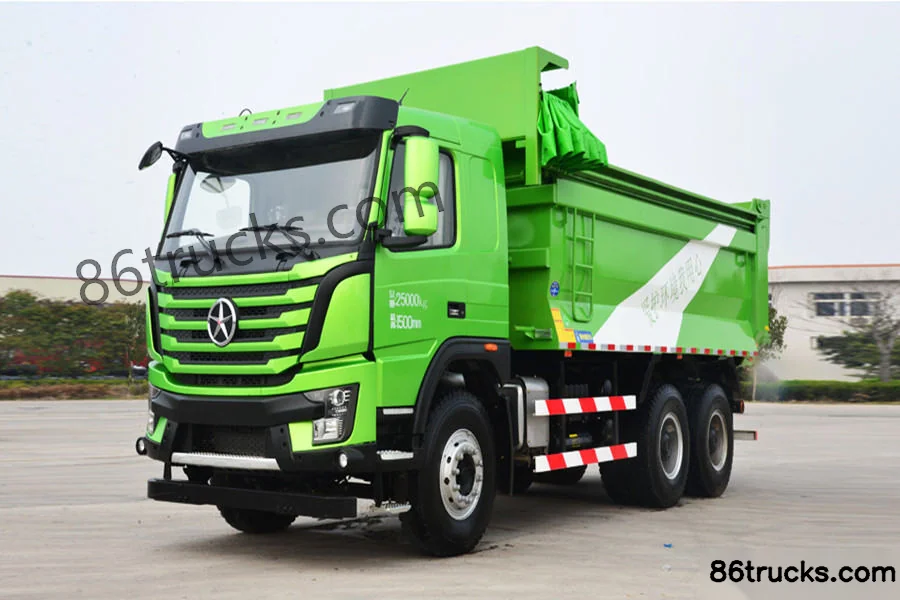

Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck Exterior (1) | 86Trucks Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck Exterior (2) | 86Trucks Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck?

Key specs of Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck: Drive: 6x4; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck suited for?

Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck differ from other variants in the same series?

Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck belongs to Dayun N8V Heavy-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N8V Heavy Truck 430hp 6X4(10 wheels) 6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
