Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3900+1350mm
Tire Size:: 12.00R20 16PR
Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck exterior
View more photos (12)
Rated payload: 12.305ton
Drive 6X4 (10 wheels)
Horsepower 345
Cargo box type: Dump type

Overview

The Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck is a Heavy truck featuring 12.305t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a HanmaCM6D18.345 50 engine, 345 hp, China V emissions and Fast Gear transmission.

China V 345 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HN3250B35D4M5
Drive type: 6X4
Wheelbase: 3900+1350mm
engine: HanmaCM6D18.345 50
transmission: Fast Gear9JS180T
Rear Axle Ratio: 5.263
Cab length: 9.08m
Cab width: 2.495m
Cab height: 3.36m
Front track width: 2065mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.305ton
GVWR: 25ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 17°
Remarks: Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, thickened front and rear leaf springs, 130-C balance shaft with pad, 22000 driveshaft, GPS lock device. Optional: Air suspension seat, Hanma engine compression brake, aluminum alloy fuel tank, 12SDC1851 transmission; optional European-style flat-top cab, 8+8 (auxiliary web height 310) frame.
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: HanmaCM6D18.345 50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.84L
Emission standard: China V
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1660N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear9JS180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.2m
Cargo box width: 2.3m
Cargo box height: 1.01m
Cab parameters
Cab: all-steel flat-top cab
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: 8+5 (web height 310)mm
rear axle description: HL300A(5.263) Cast Steel
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.263
Leaf spring count: 9/12
Tire
Tire Size: 12.00R20 16PR
Tire Type: 12-ply steel
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:

Photos

Exterior3

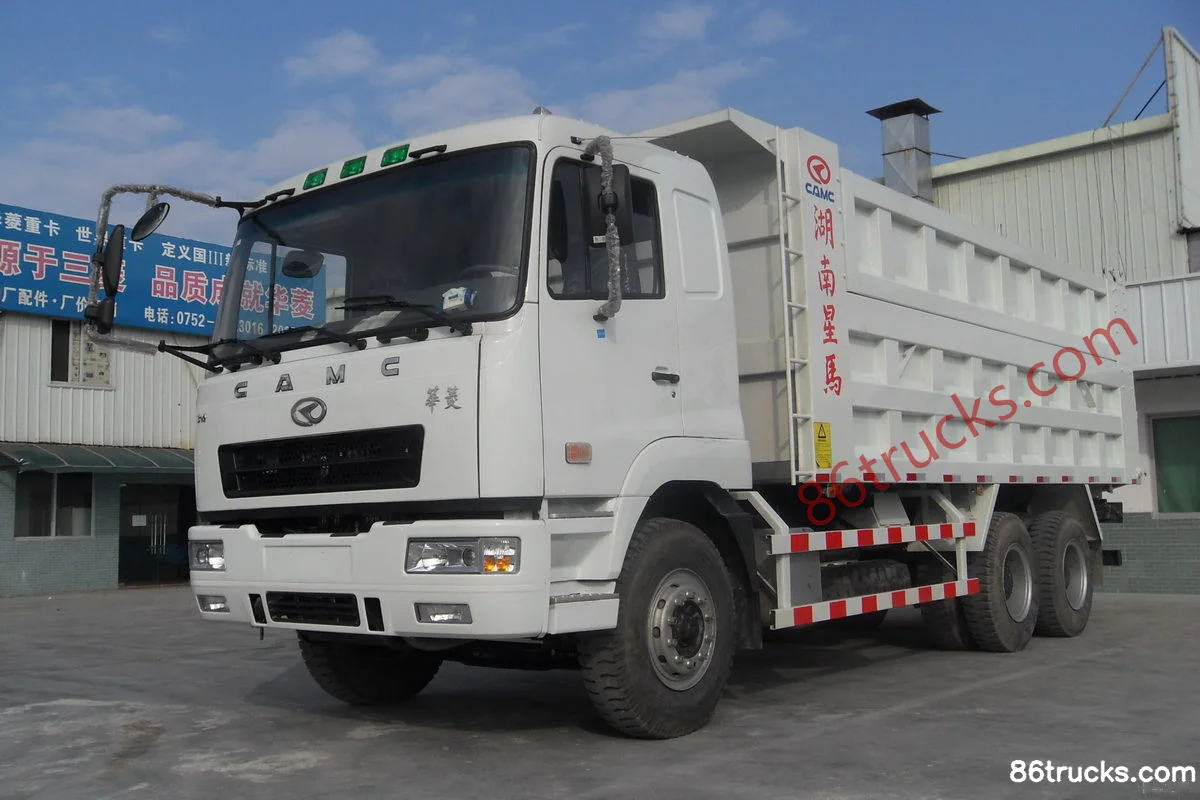

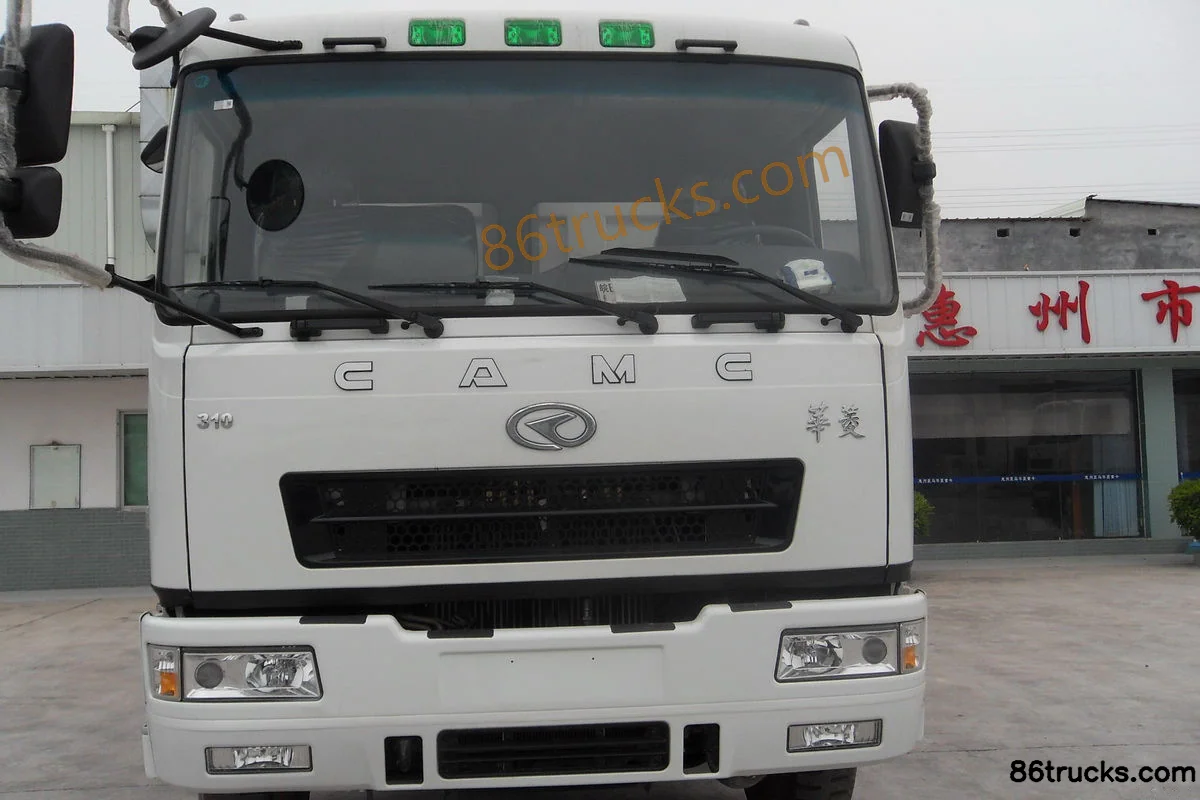

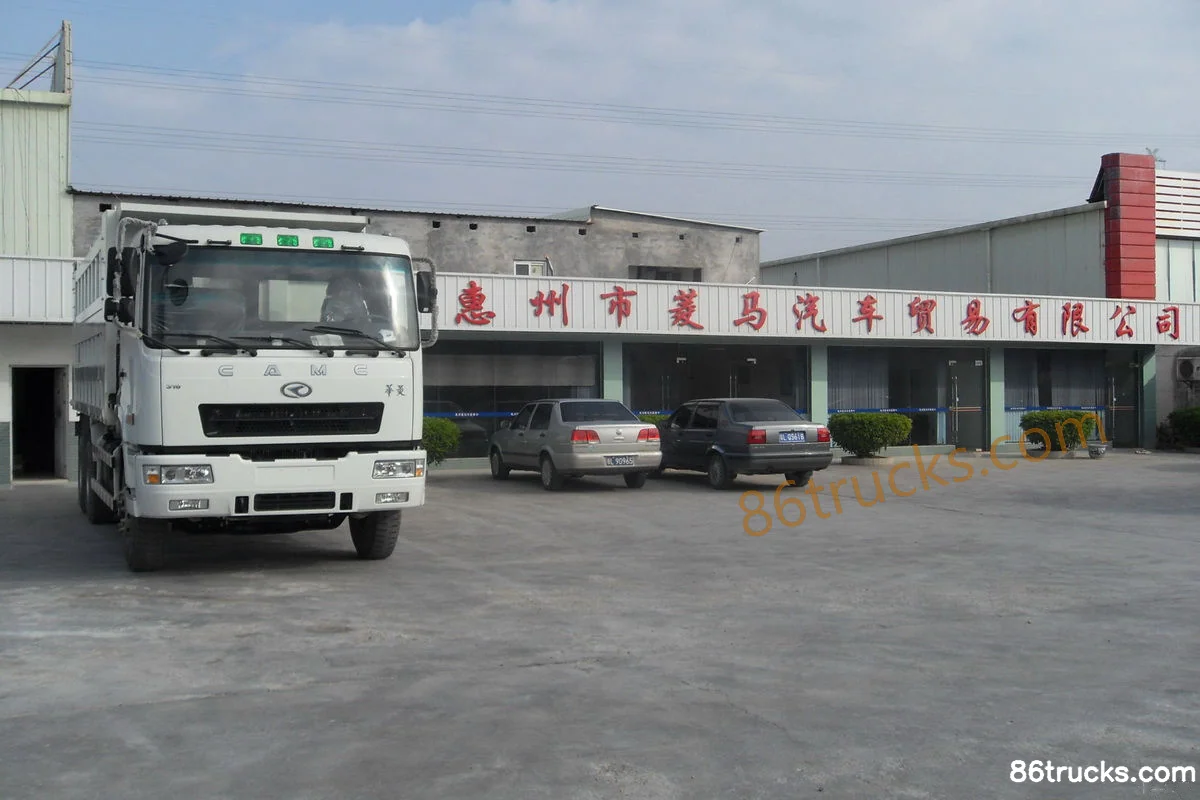

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Exterior (1) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Exterior (2) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Exterior (3) | 86Trucks

Cab3

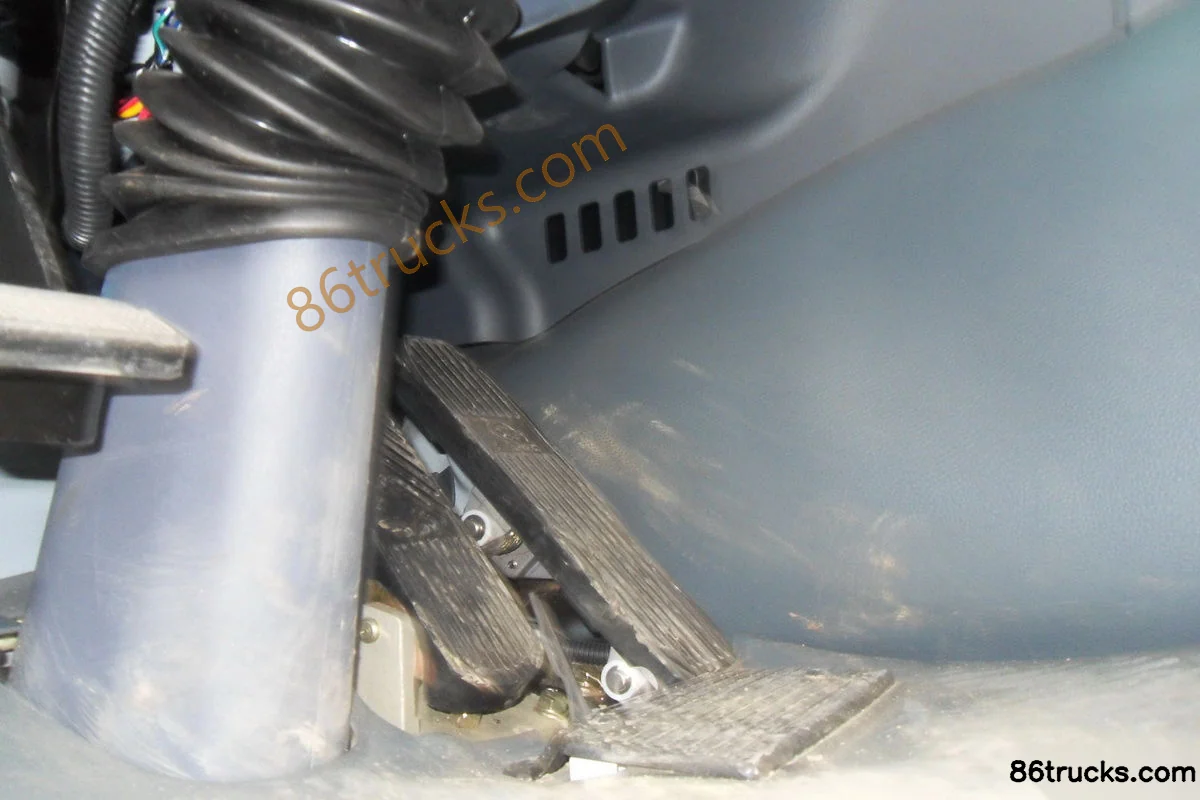

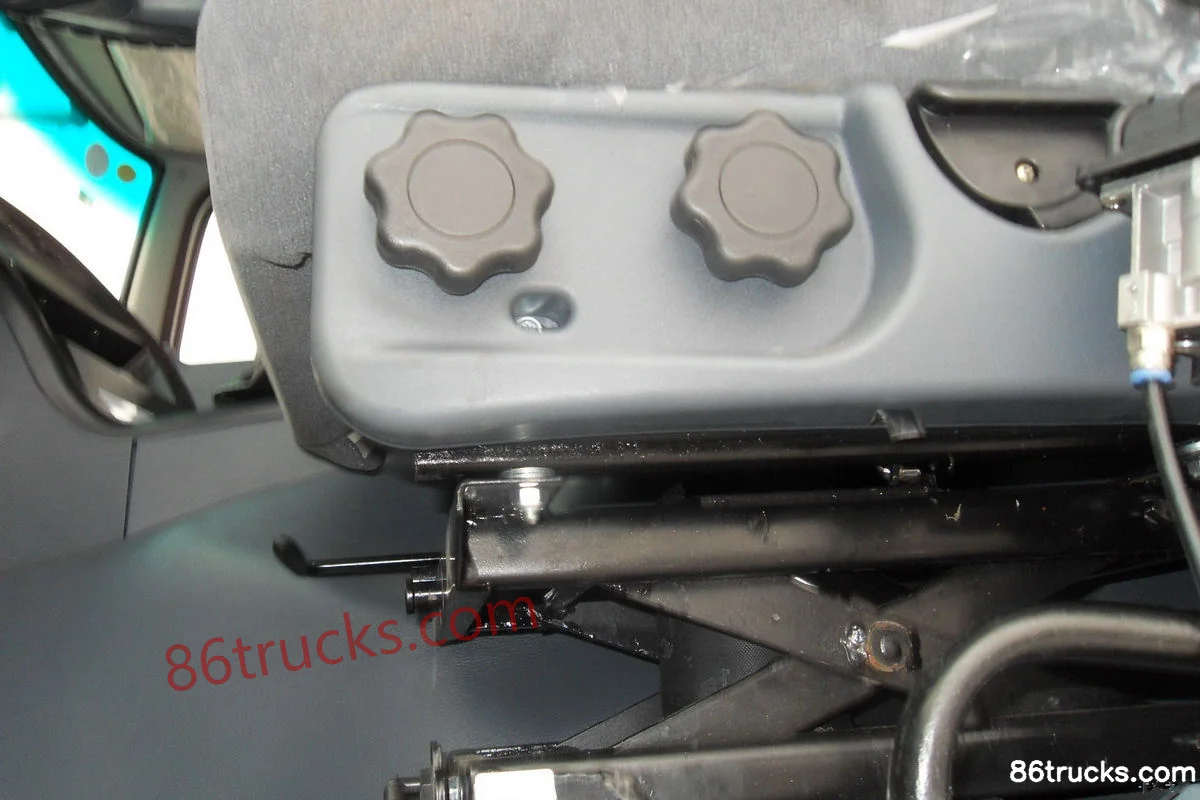

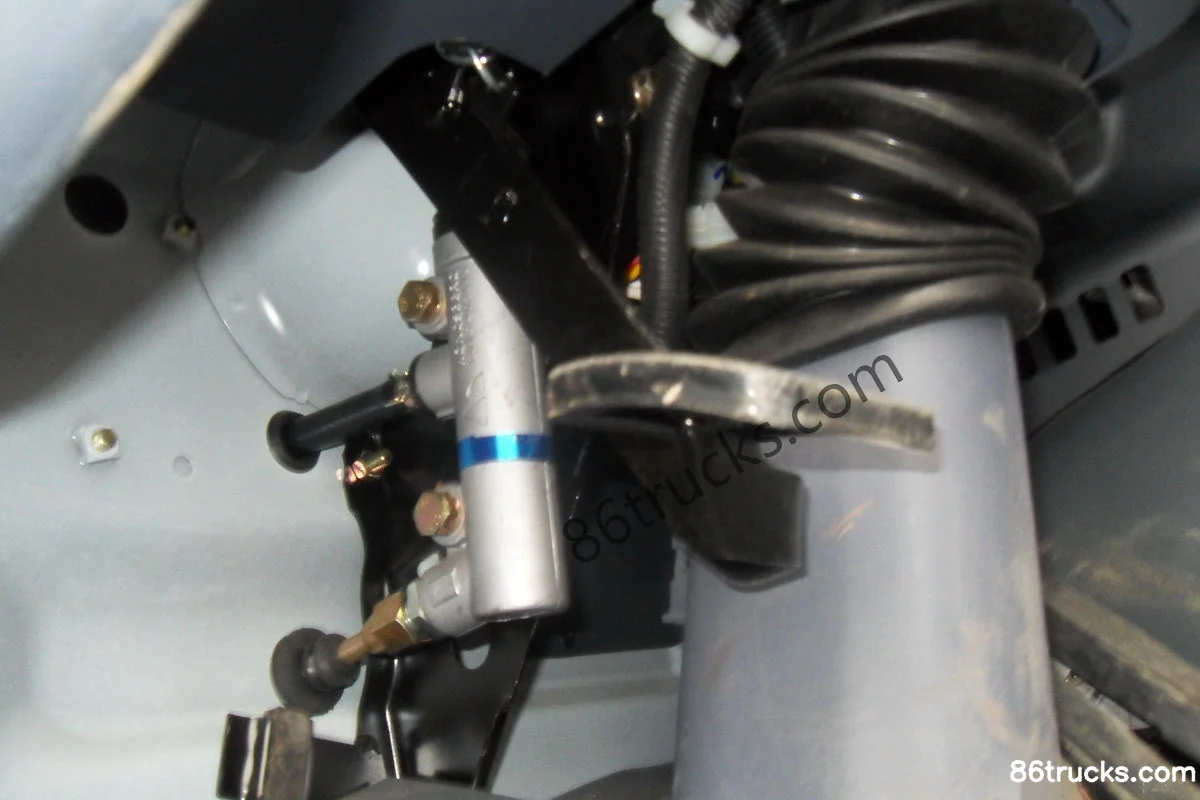

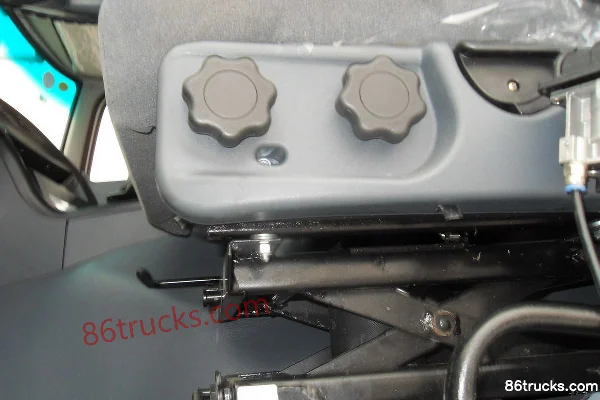

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Cab (1) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Cab (2) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Cab (3) | 86Trucks

Chassis3

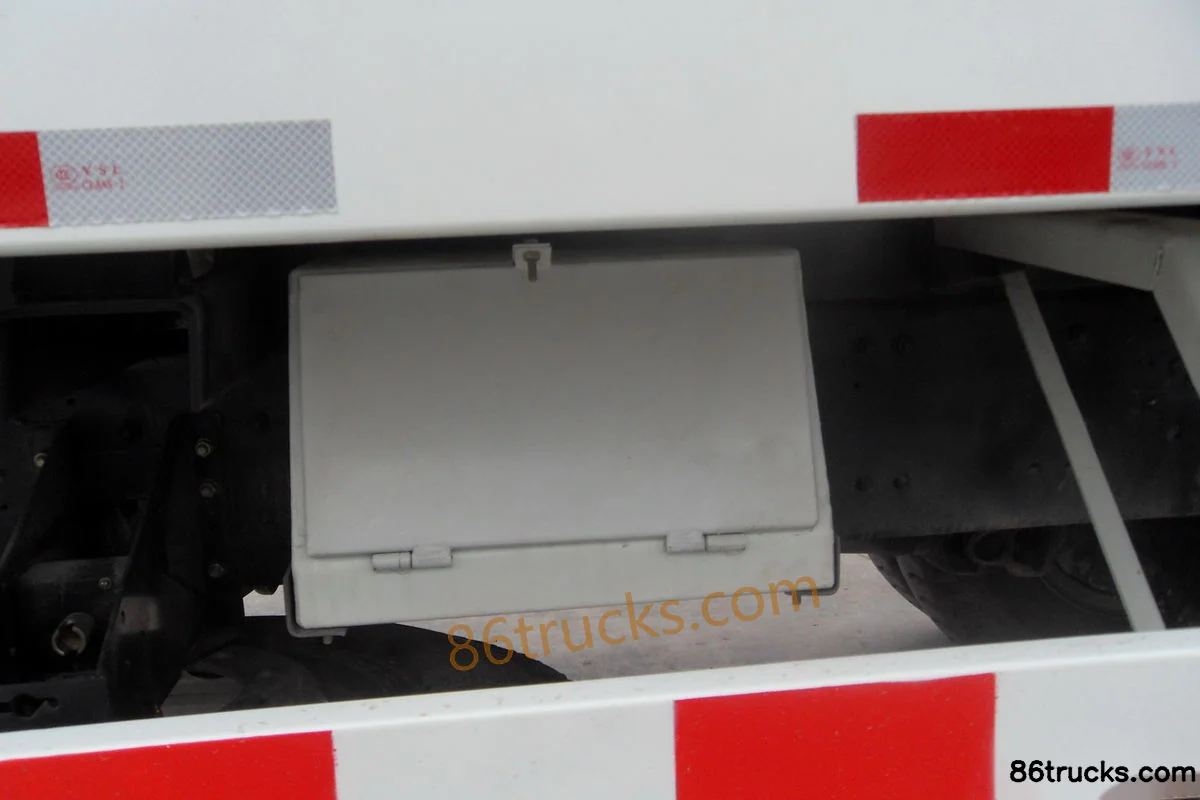

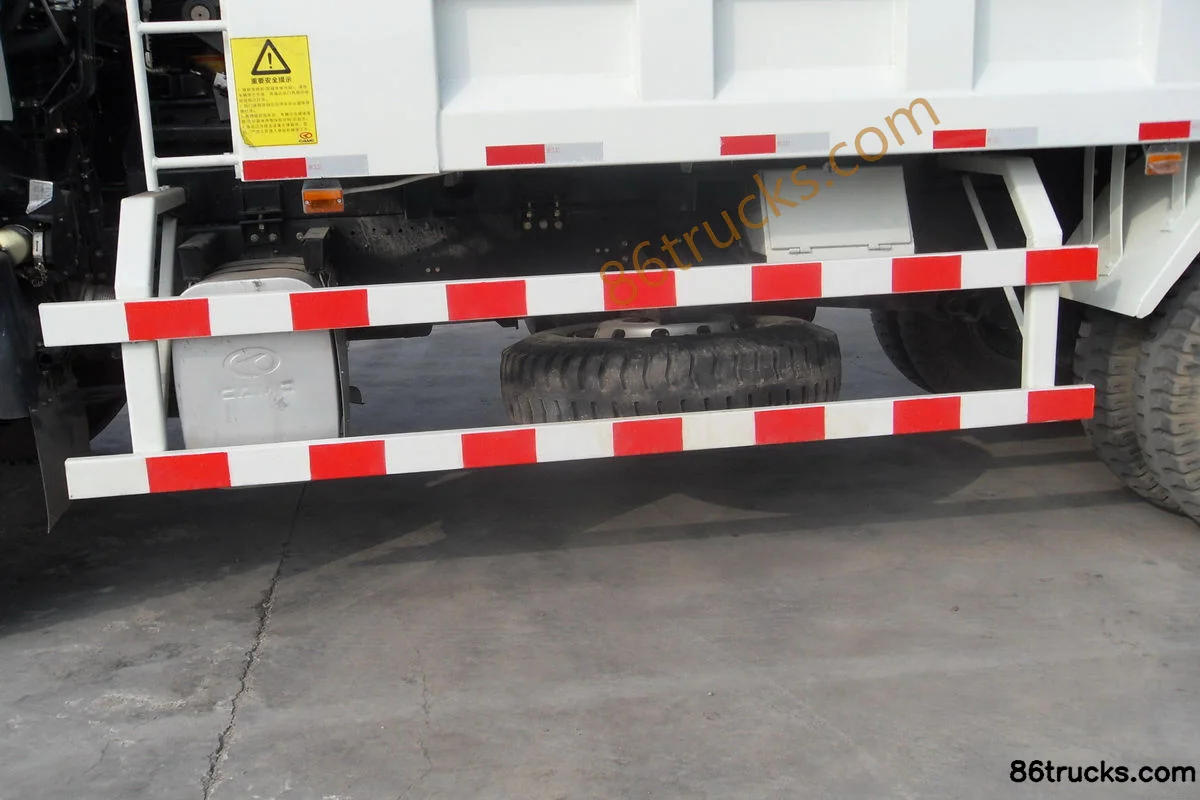

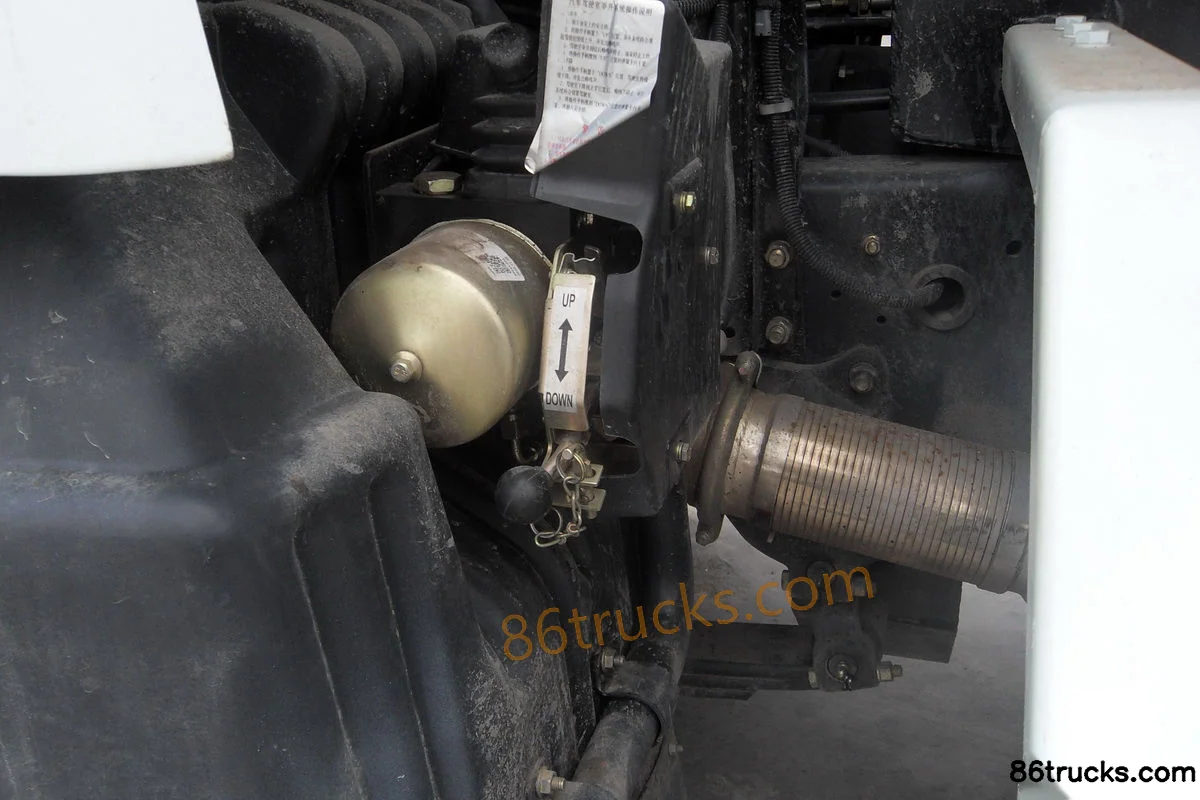

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Chassis (1) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Chassis (2) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Chassis (3) | 86Trucks

Body3

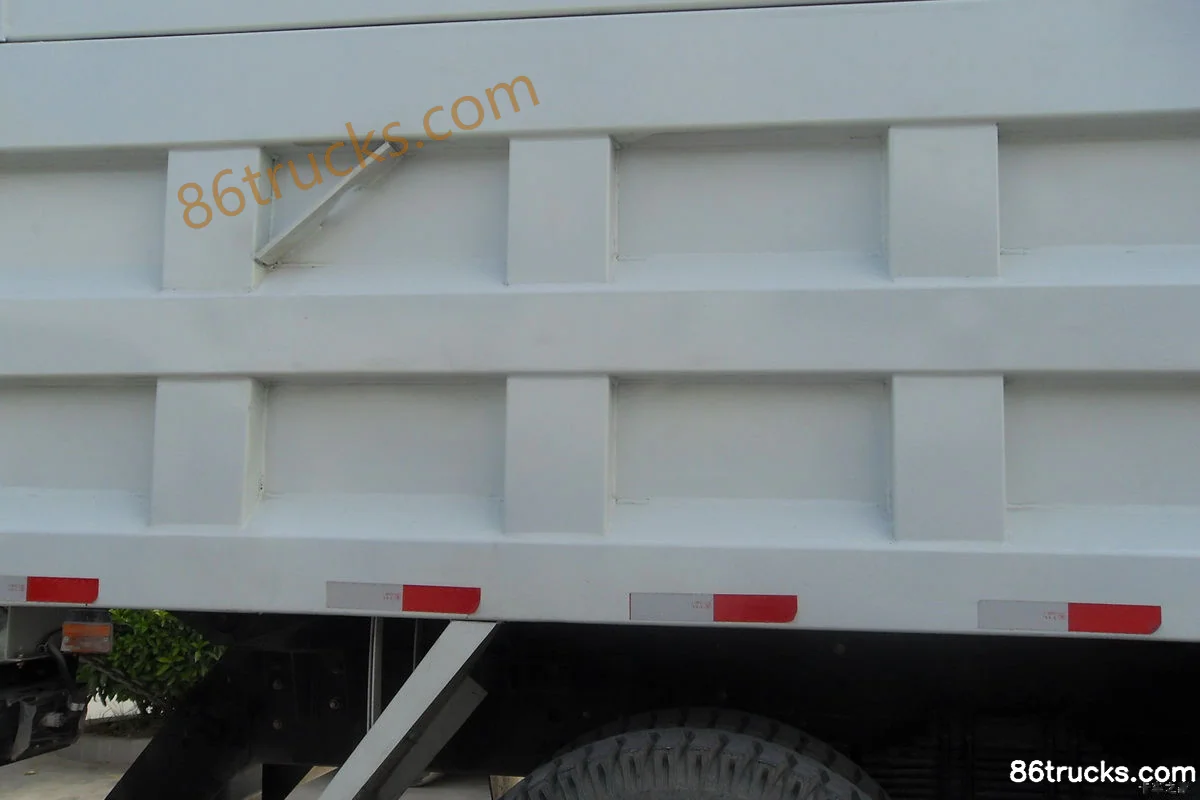

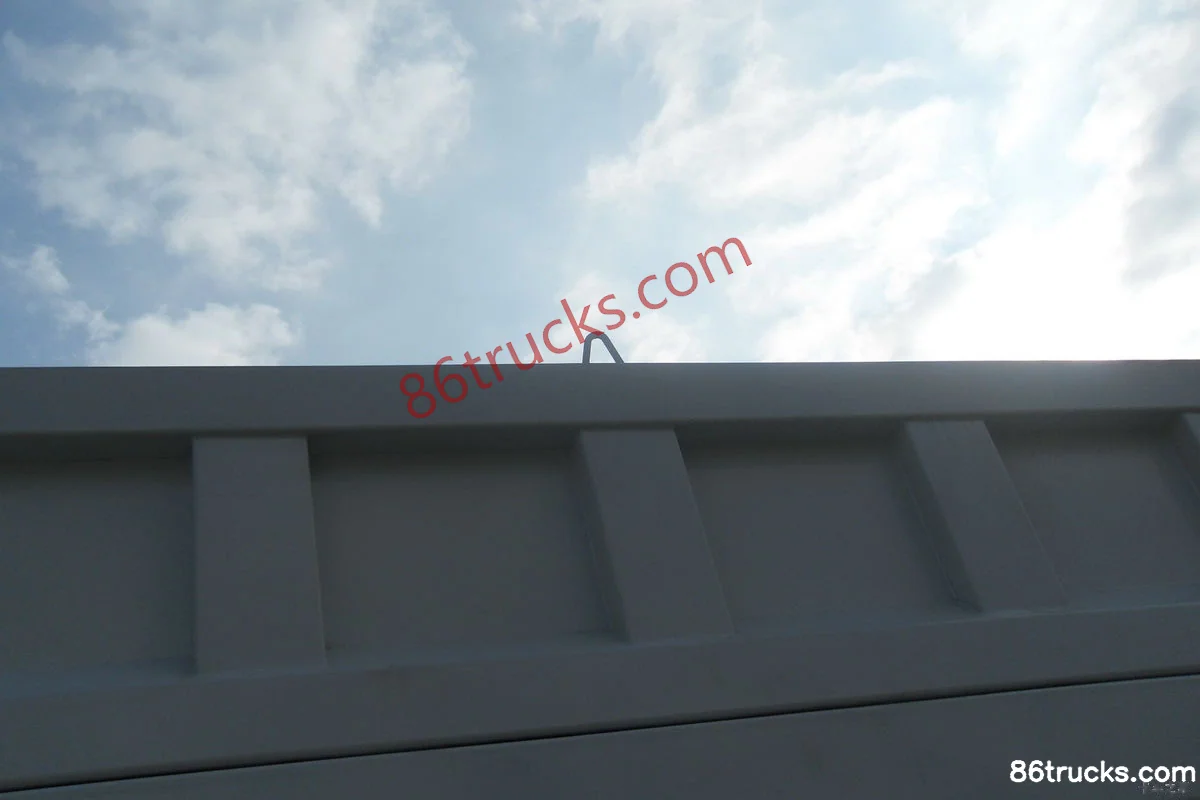

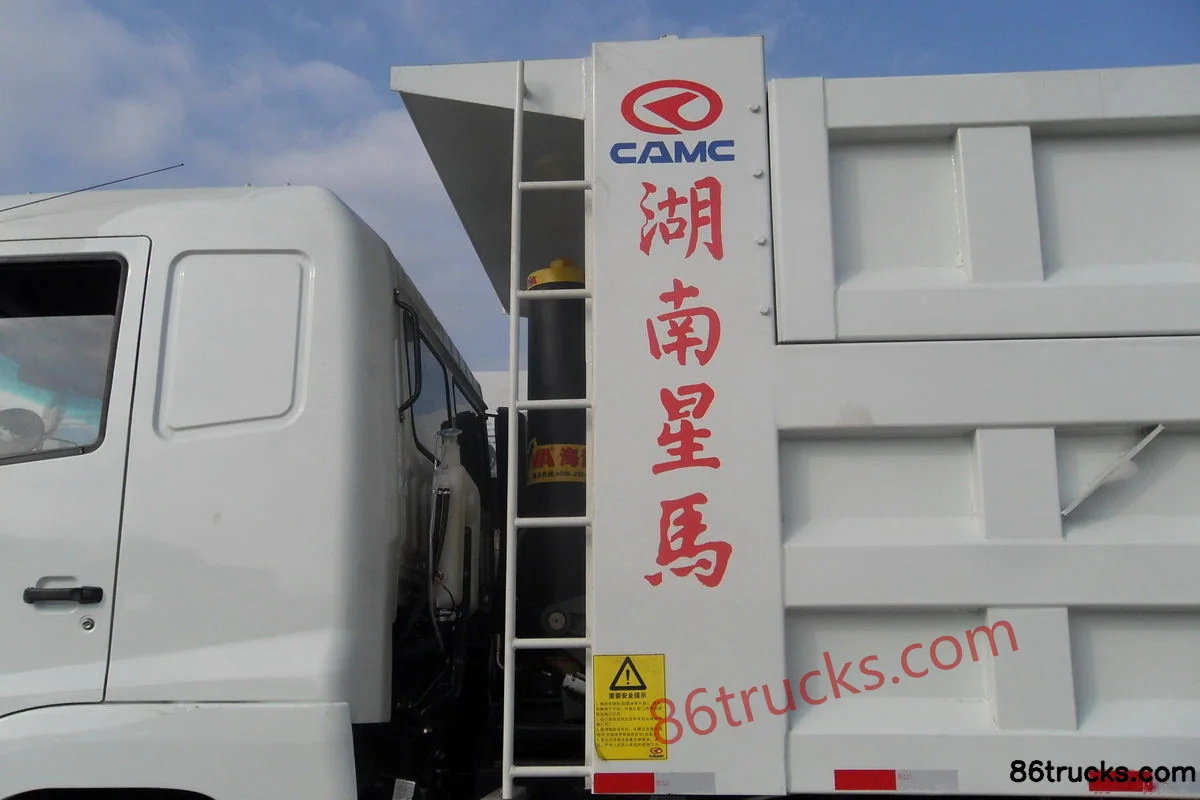

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Body (1) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Body (2) | 86Trucks Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck?

Key specs of Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck: Drive: 6x4; Horsepower: 345 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck suited for?

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck differ from other variants in the same series?

Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck belongs to Hualing M5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 345 hp 6X4(10 wheels) 6.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
