SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.09ton
Wheelbase:: 4000+1400mm
Tire Size:: 12.00R20
Rated payload: 12.78ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck is a Heavy truck featuring 12.78t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3255HTG404
Drive type: 6X4
Wheelbase: 4000+1400mm
engine: WeichaiWP10.336E40
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 5.73
Cab length: 8.685m
Cab width: 2.5m
Cab height: 3.72m
Front track width: 2006mm
rear track: 1850/1850mm
Curb Weight: 12.09ton
Rated payload: 12.78ton
GVWR: 25ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 350L
Chassis Specs
rear axle description: Dual-stage reduction
rear axle allowable load: 16000kg
Axle ratio: 5.73
Leaf spring count: 9/12
Tire

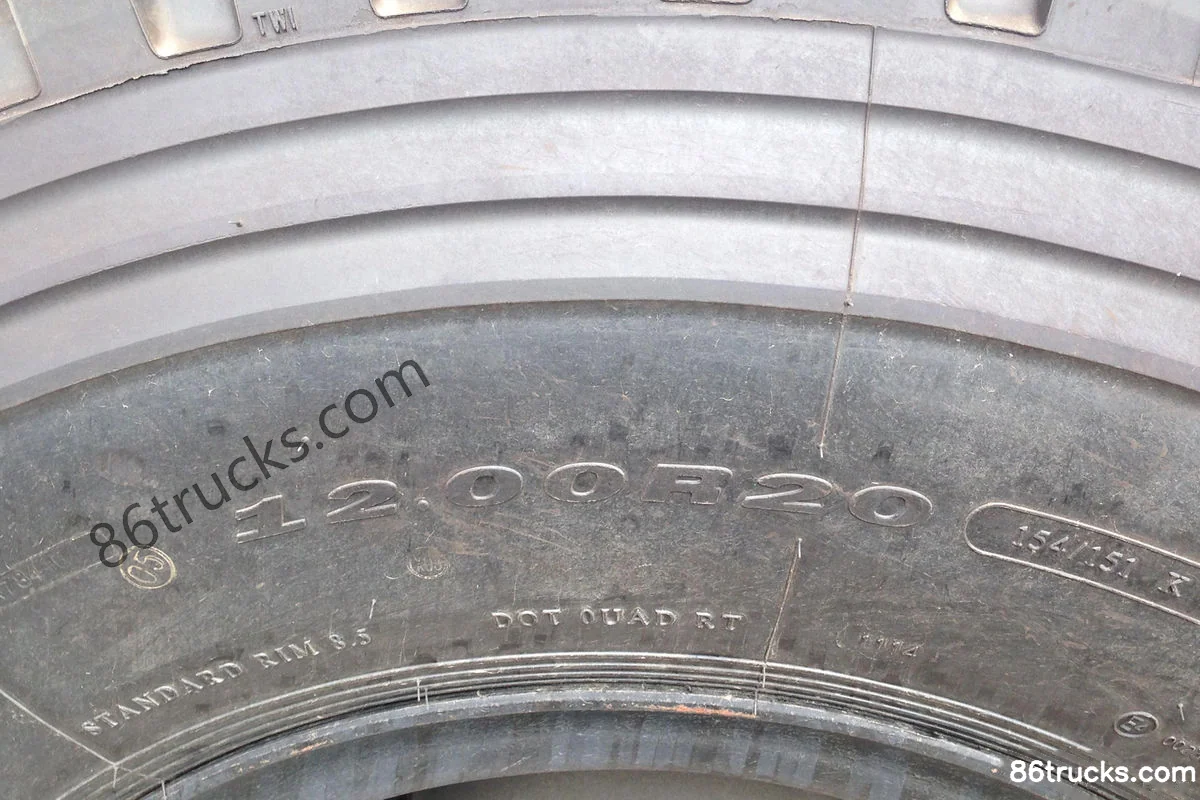

Tire Size: 12.00R20
Number of tires: 10pcs

Photos

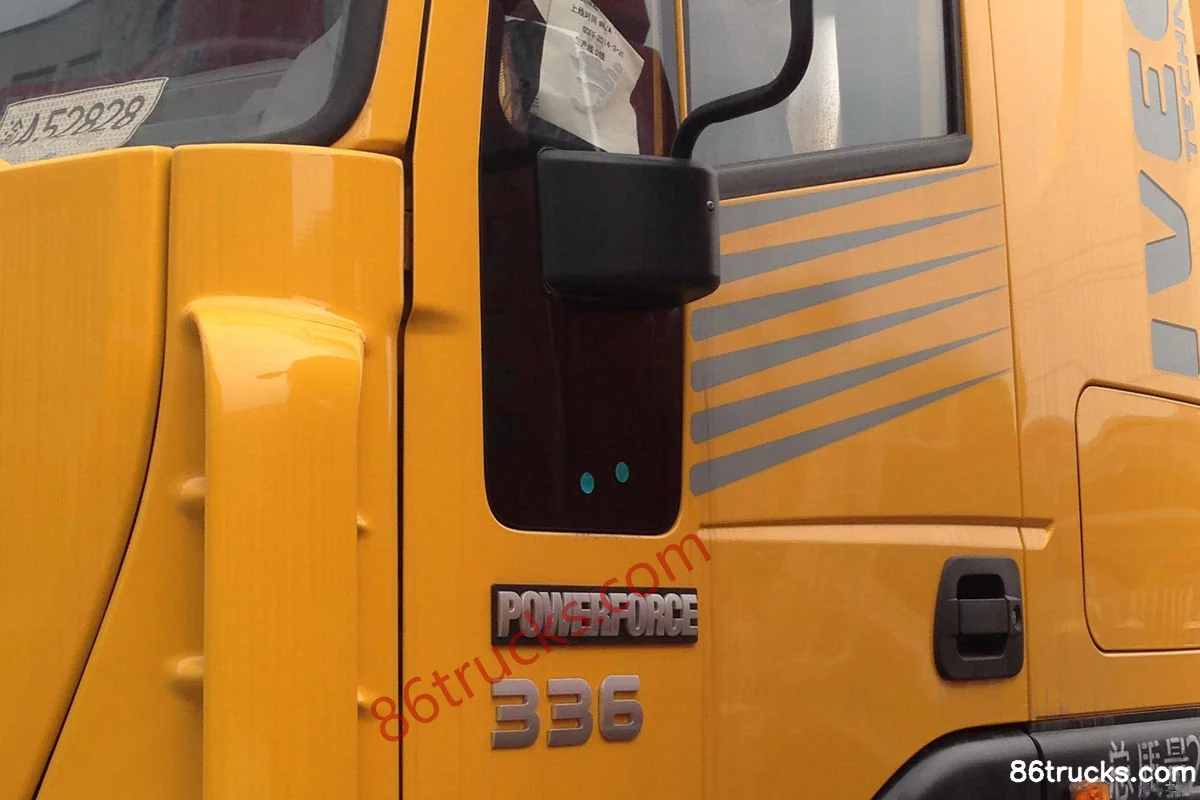

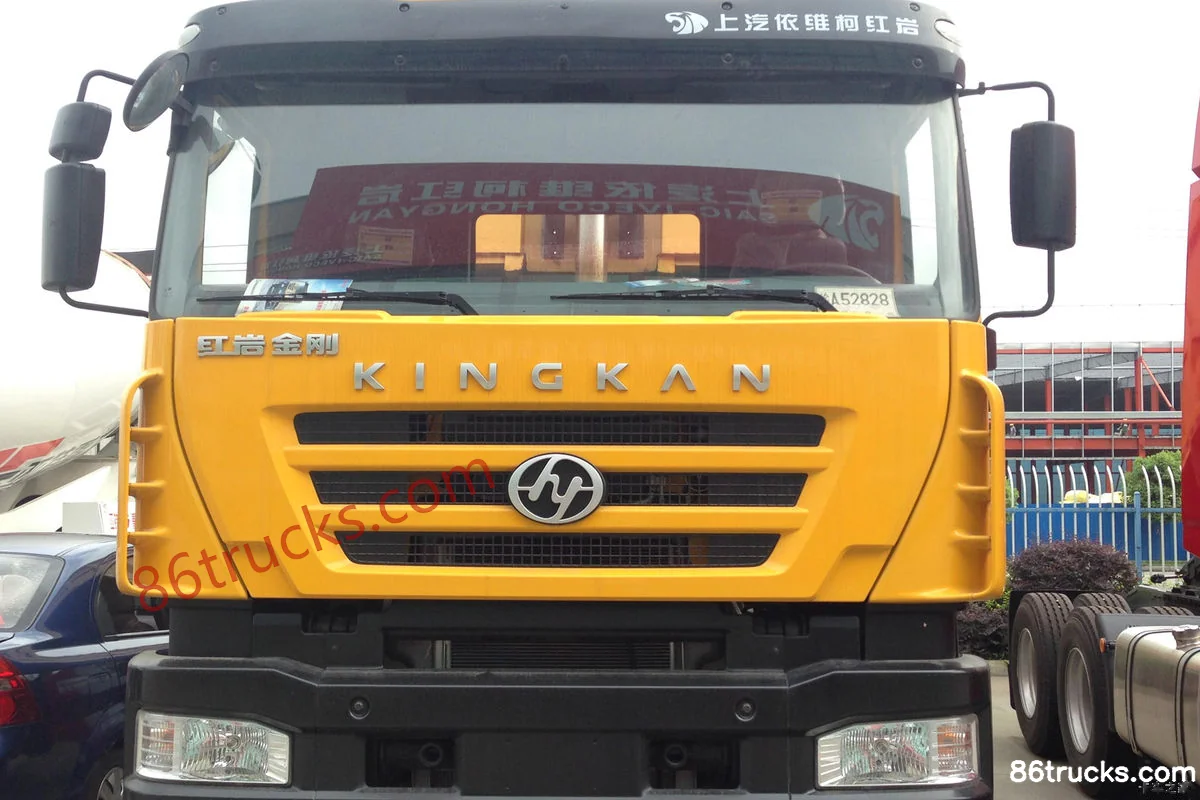

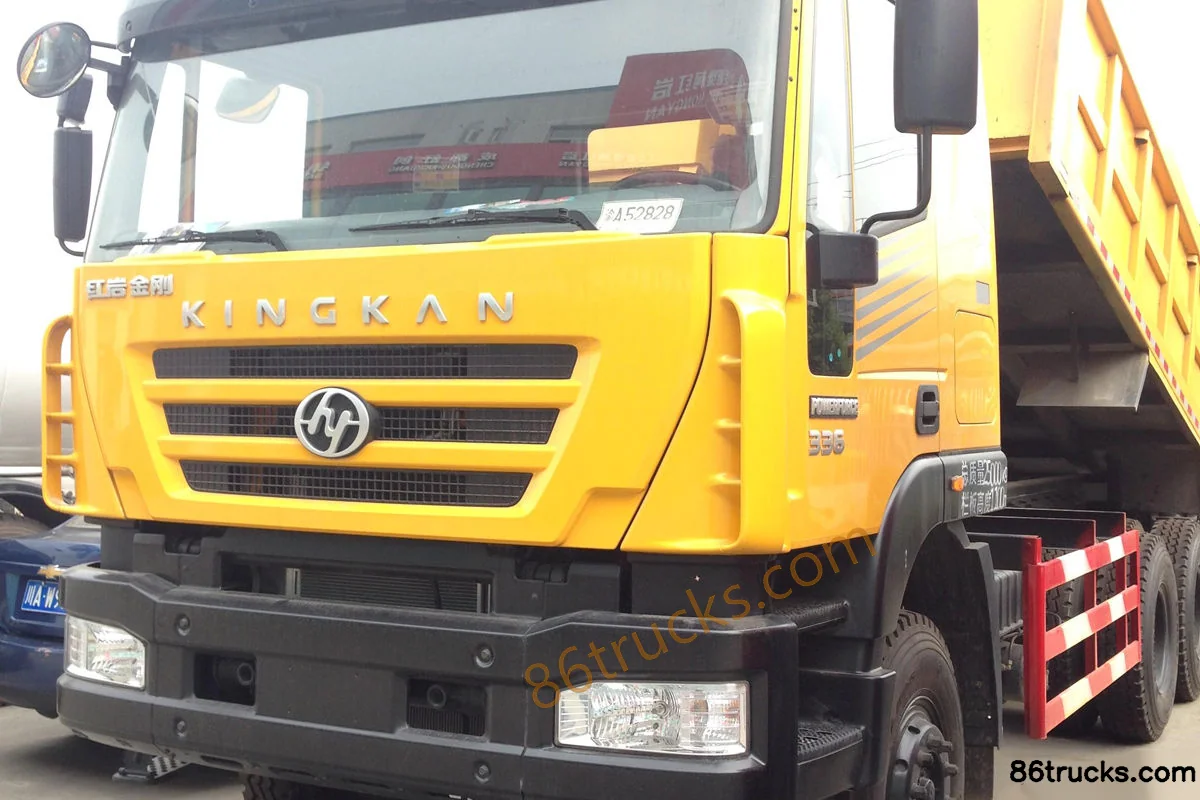

Exterior3

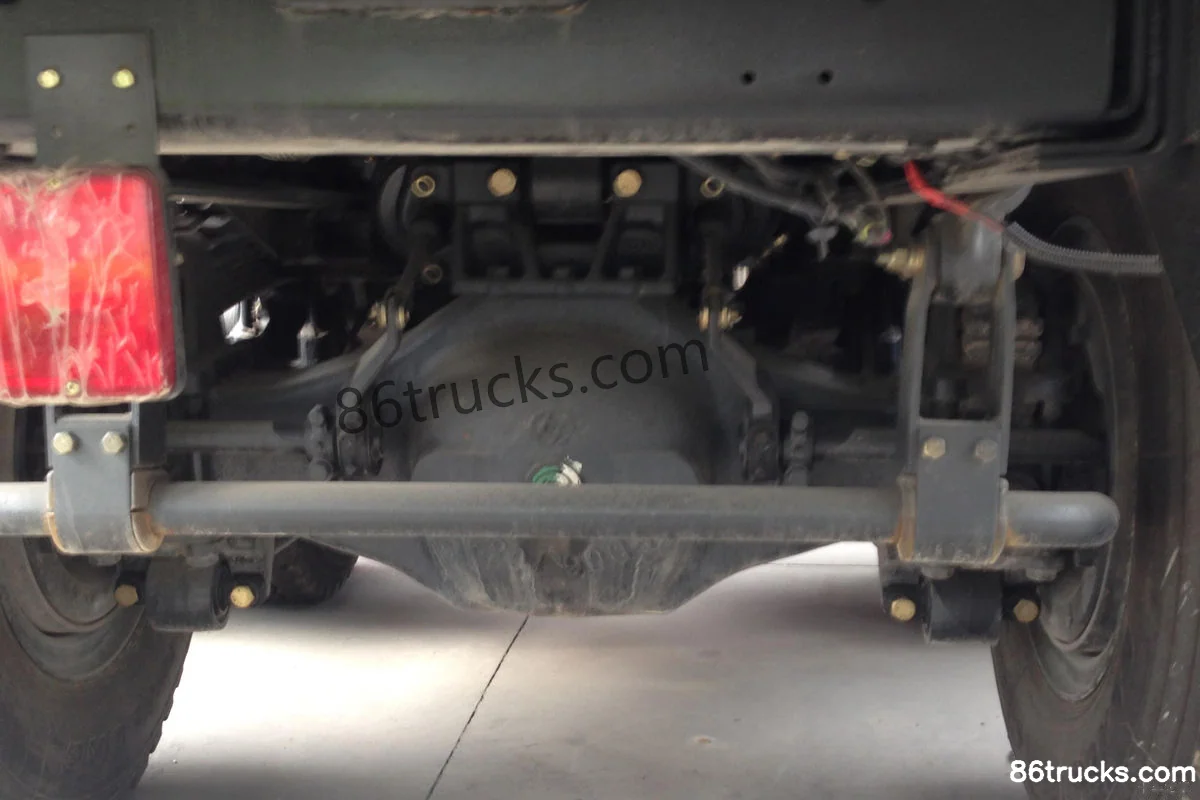

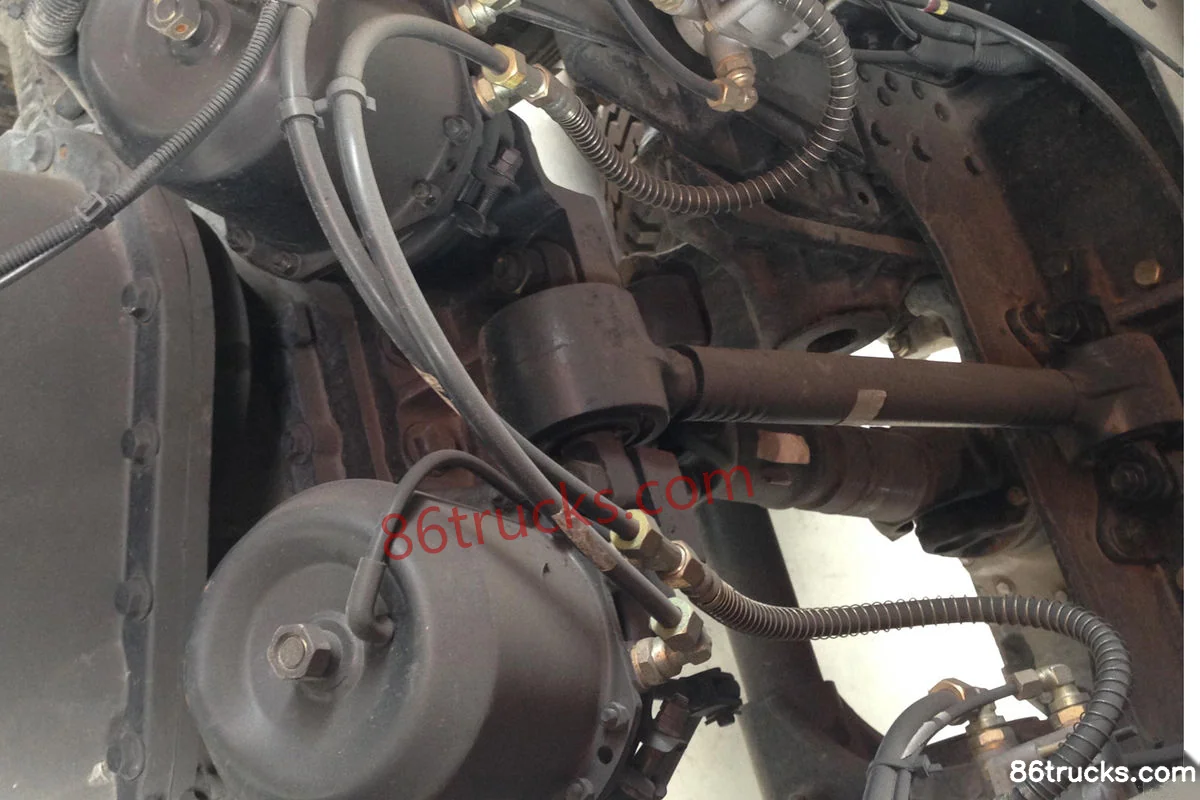

Chassis3

6 photos

FAQ

What emission standard does SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck?

Key specs of SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck suited for?

SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck differ from other variants in the same series?

SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck belongs to SAIC Hongyan New King Kong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan New Jingang heavy truck 336hp 6X4(10 wheels) 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
