SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.96ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 10.15×2.525×3.995m
Truck Type:: Concrete mixer truck
Rated payload: 16.91ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) is a concrete mixer truck featuring 16.91t payload, 13.96ton GVW, 8X4 (12 wheels) drive and Flat roof cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.15×2.525×3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Chongqing
Front/rear track width: Front track: 2006/2006mm; Rear track: 1850/1850mm
Wheelbase: 1800+3000+1400mm
Curb Weight: 13.96ton
Rated payload: 16.91ton
Max. speed: 100km/h
Front/rear suspension: 1.435/21.75m
Body Parameters

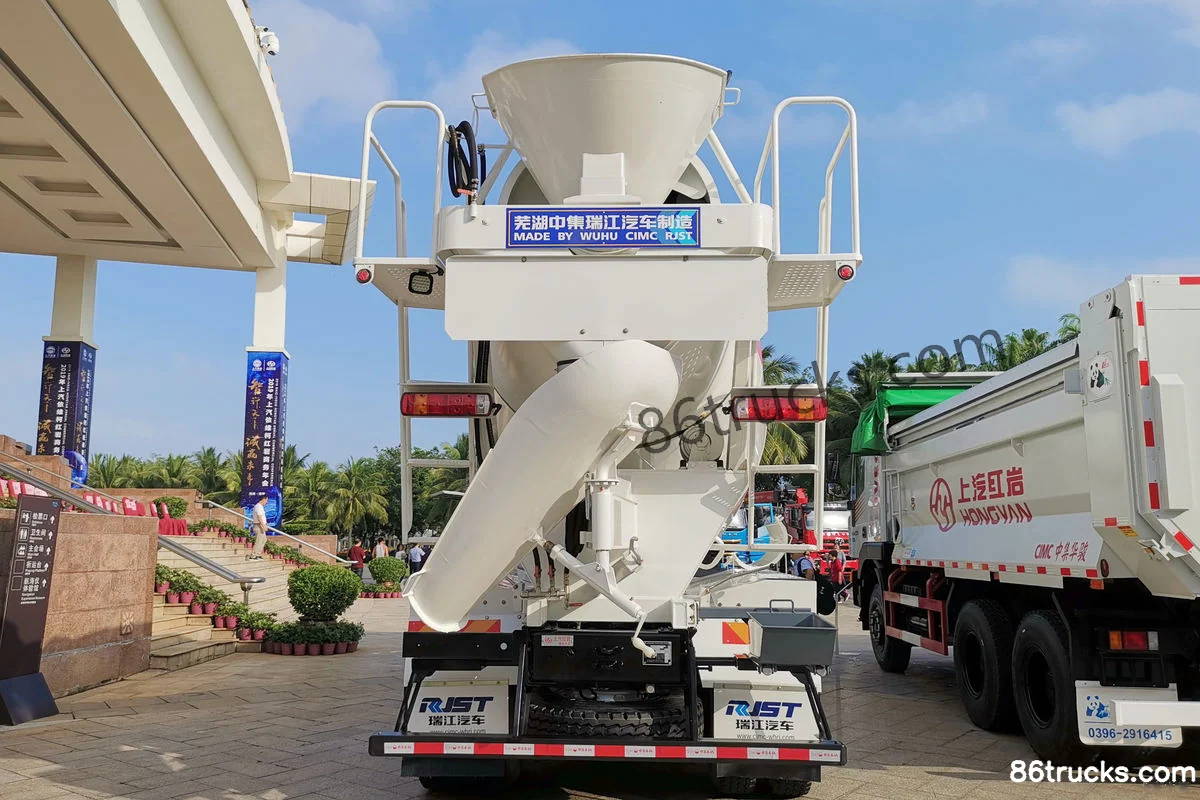

Mixing drum capacity: 7.75m³
Vehicle certification code: CQ5316GJBHMVG306
Body Brand: SAIC Hongyan
Engine parameters
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611C*L
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail system
Chassis Specs
Chassis Series: SAIC IVECO Hongyan
Chassis Model: CQ1316HMVG27-366
Front axle description: 5.5T
rear axle description: MHY300S
Axle ratio: 4.8
Leaf spring count: 3/3/6
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD150T-B
Cab parameters
Cab: Flat roof
Tire

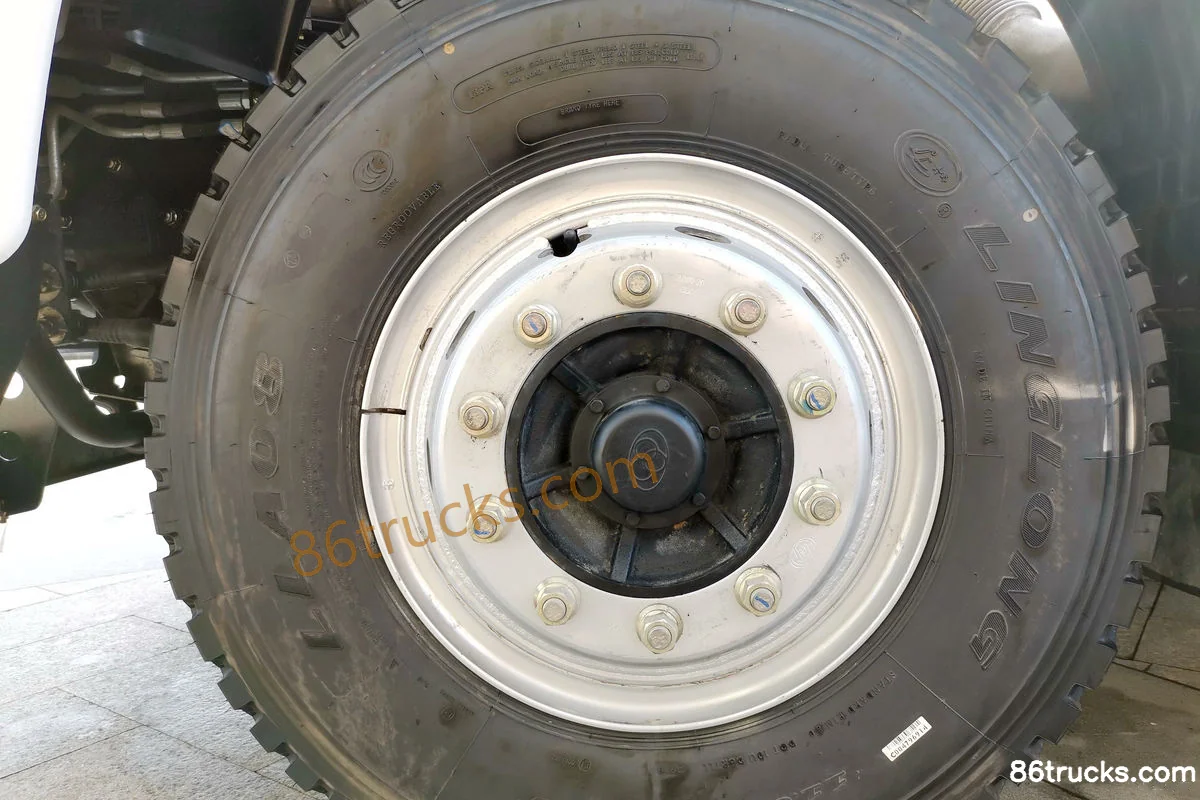

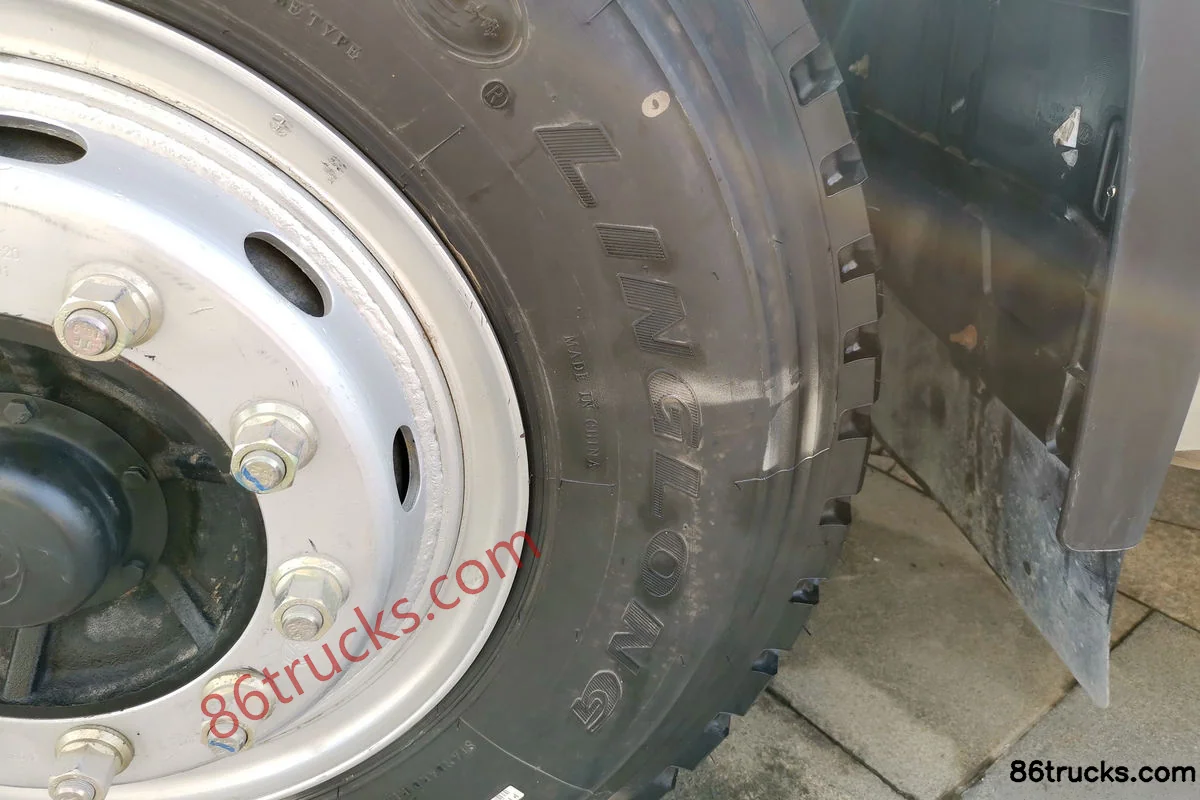

Tire Size: 11.00R20
Number of tires: 12pcs

Photos

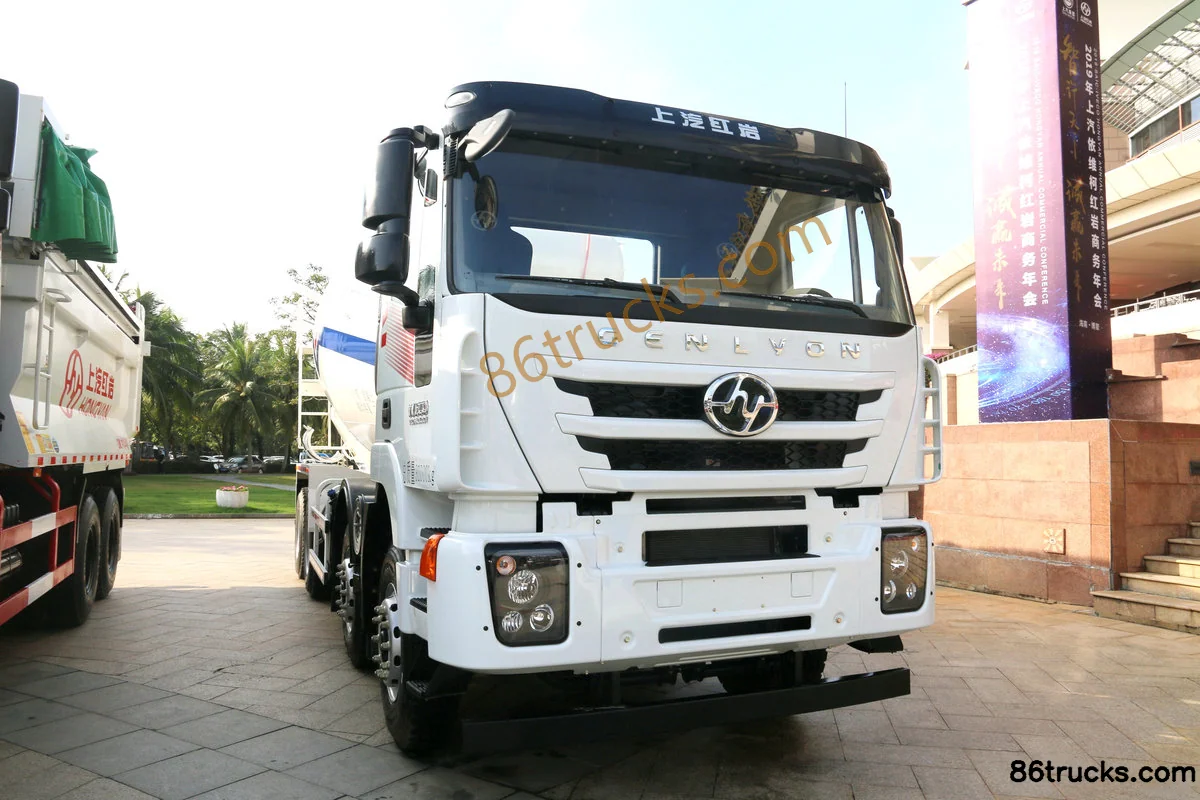

Exterior3

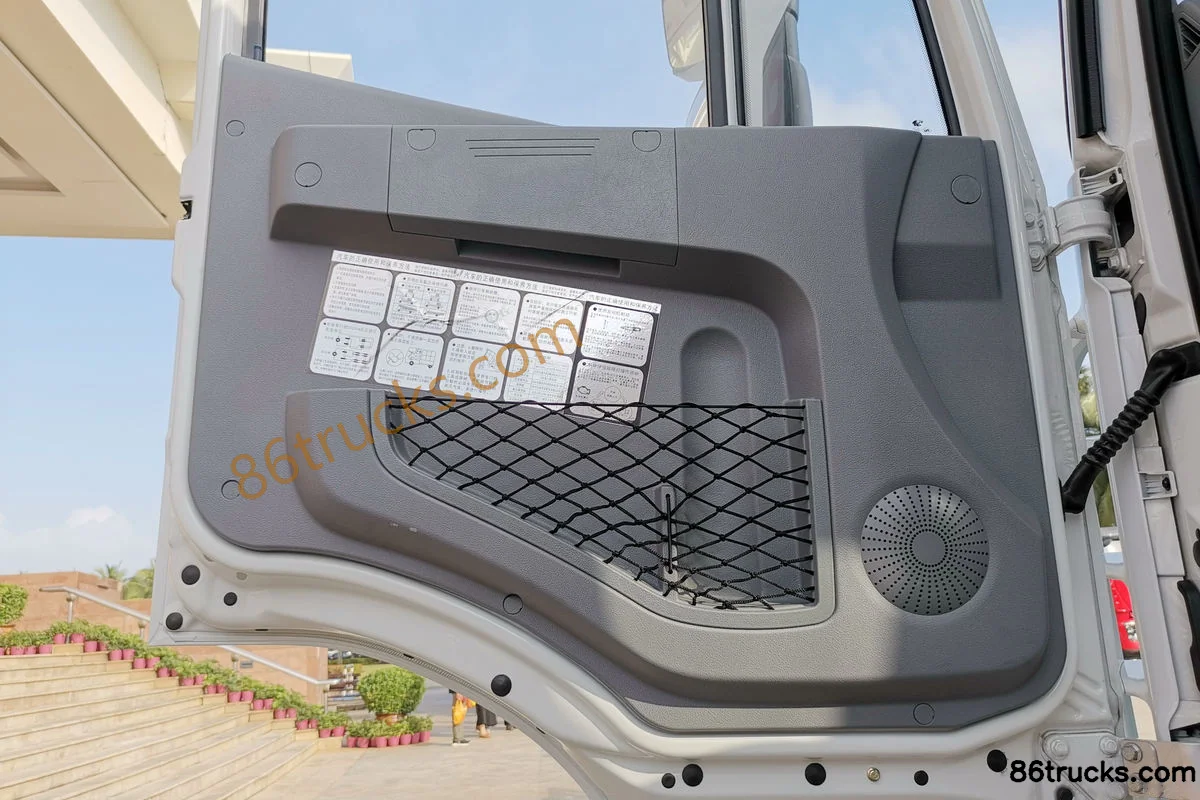

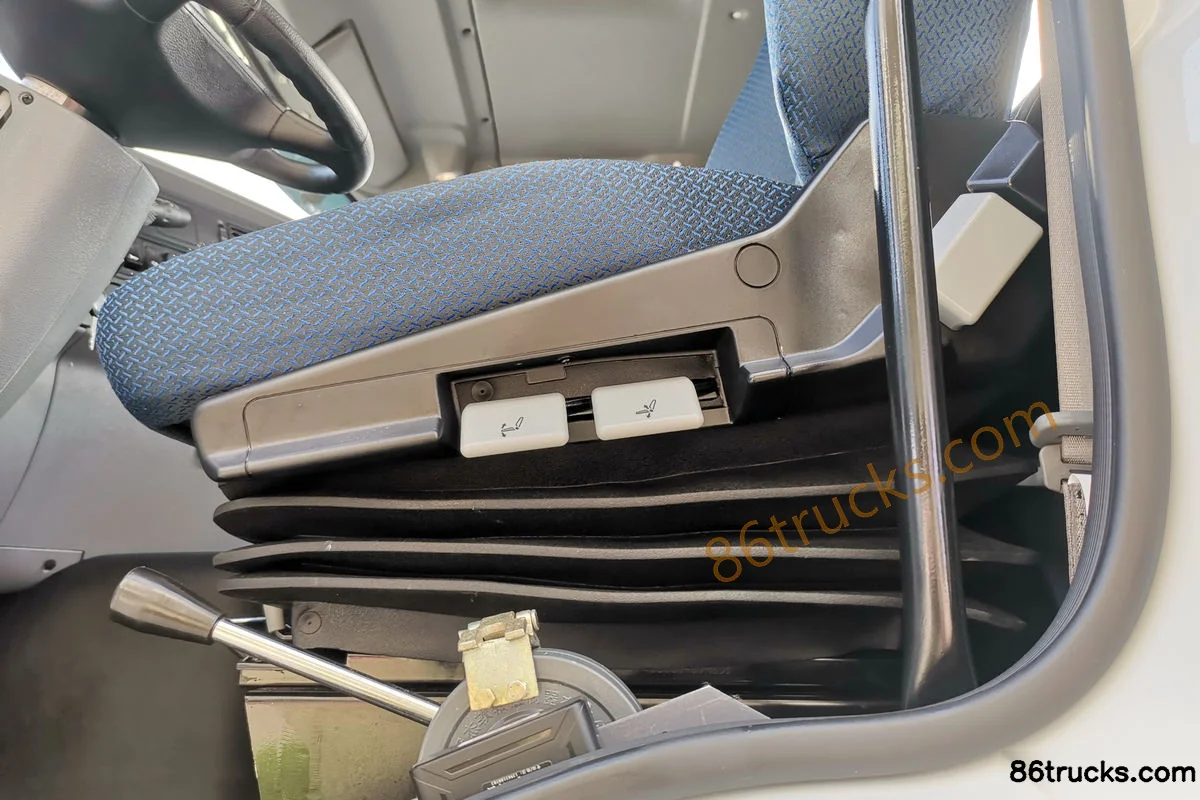

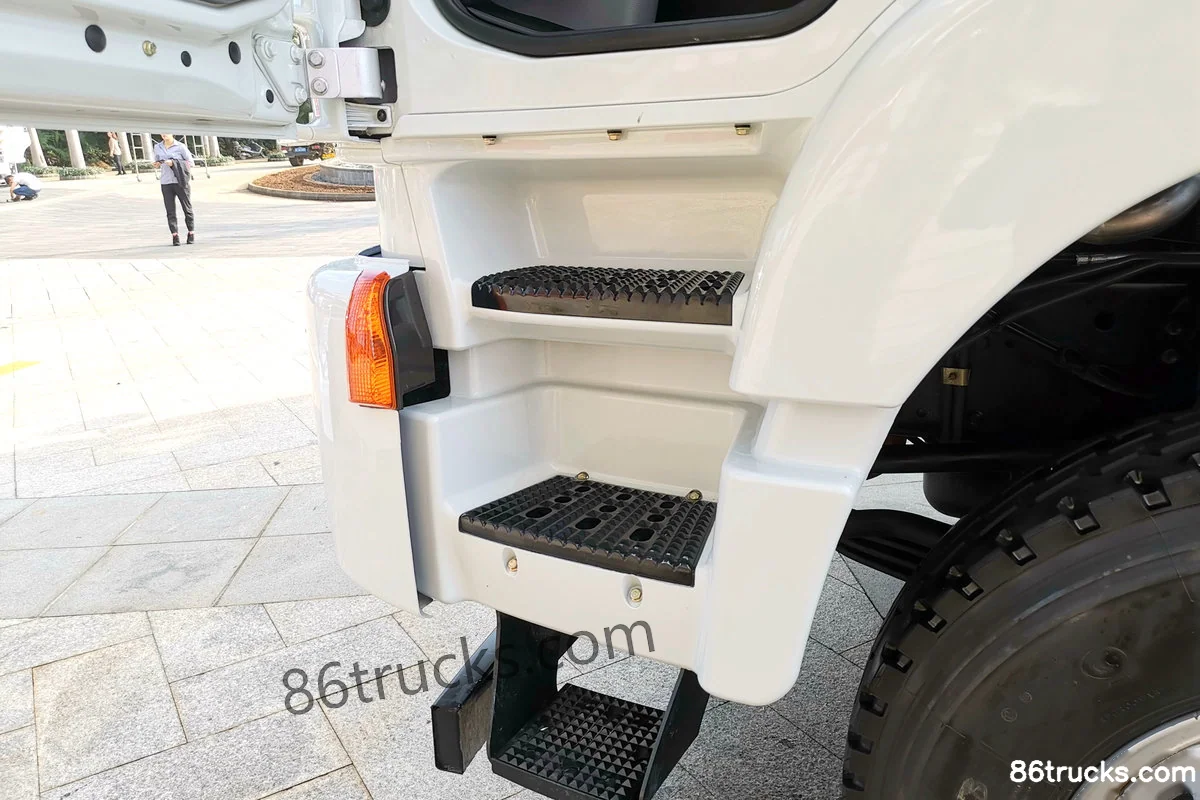

Cab3

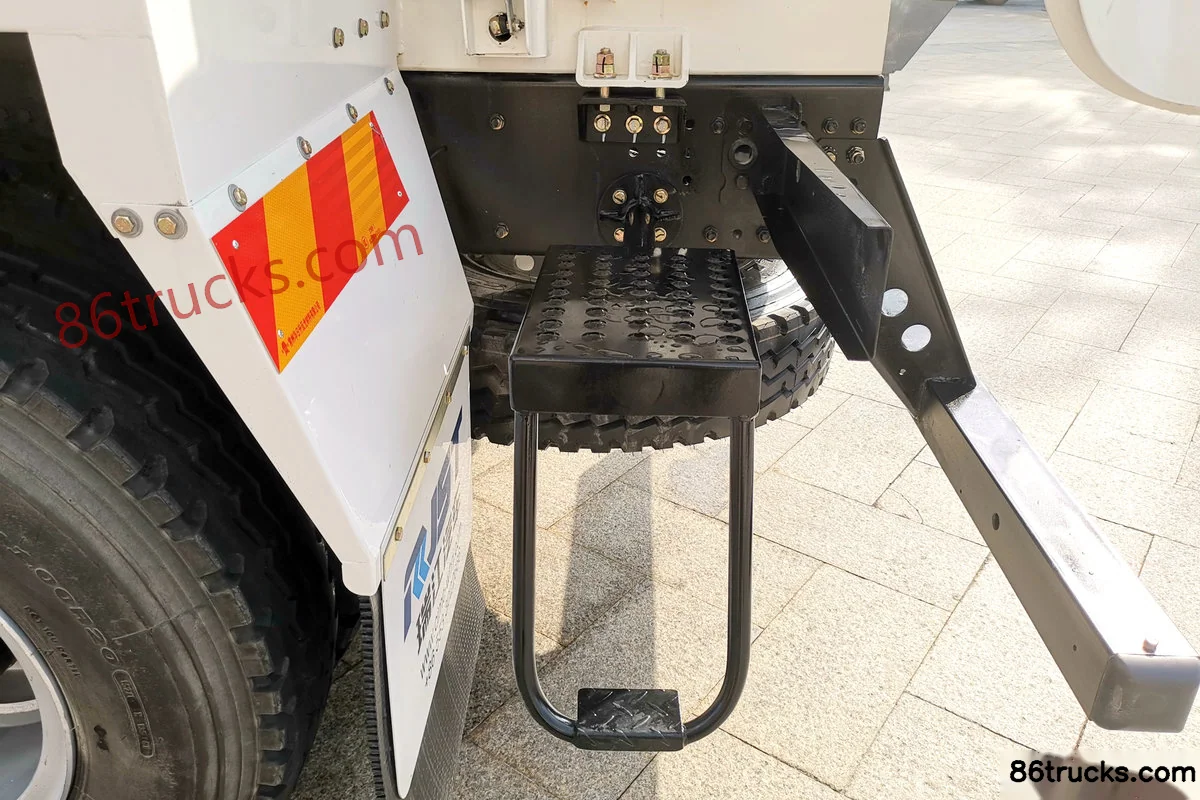

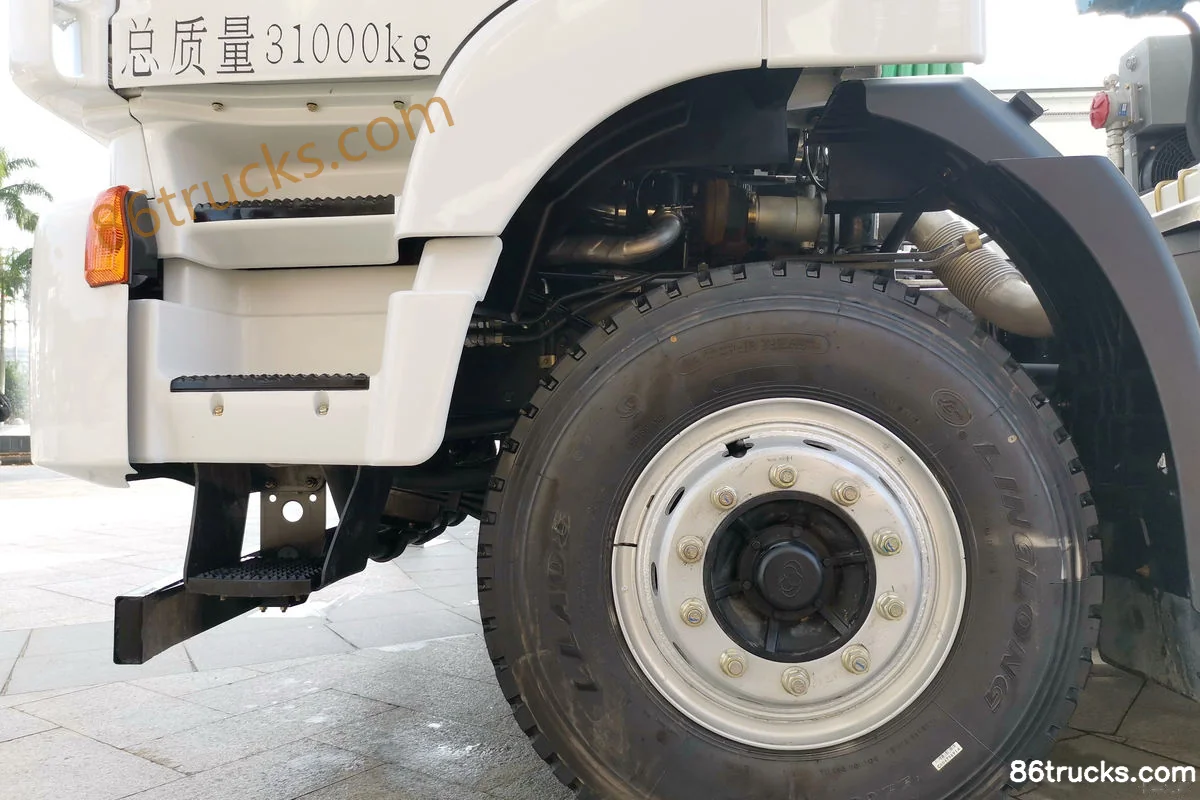

Chassis3

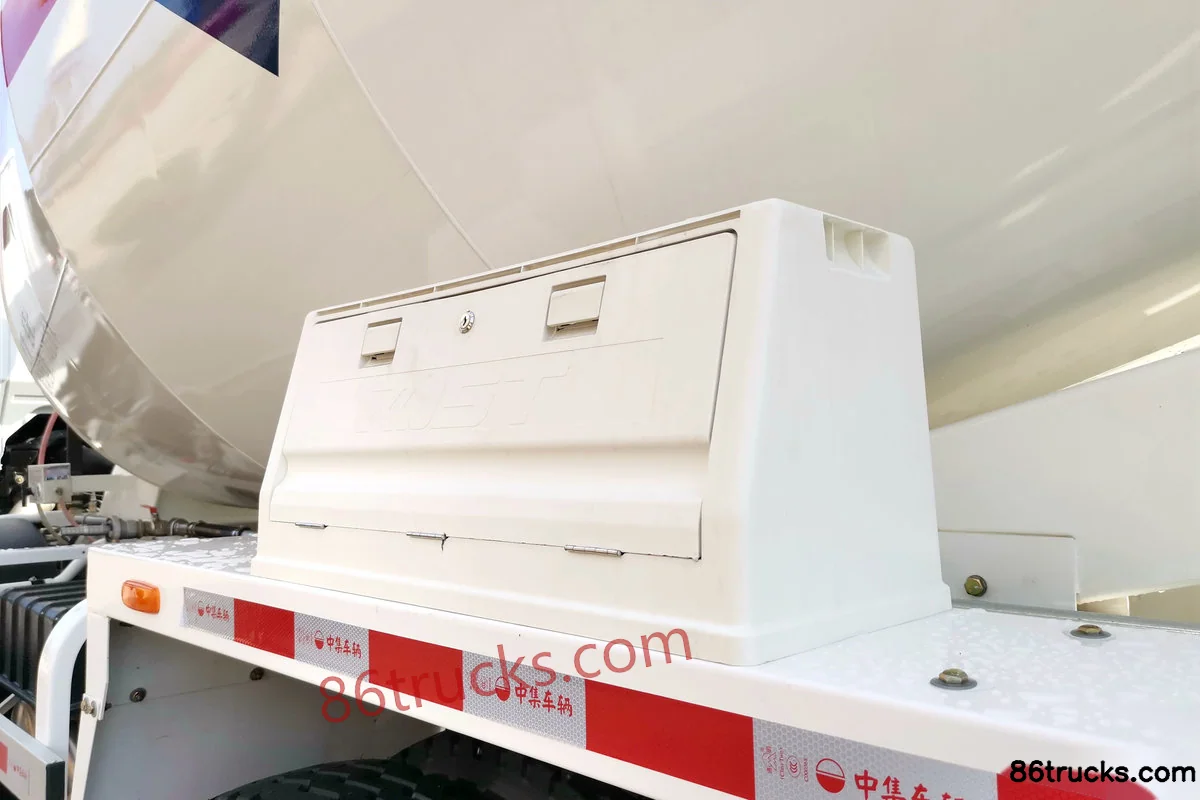

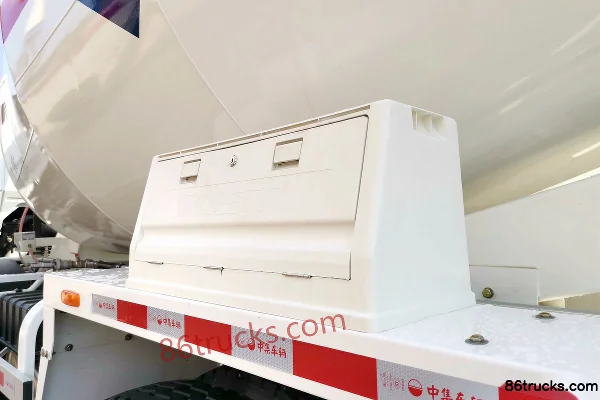

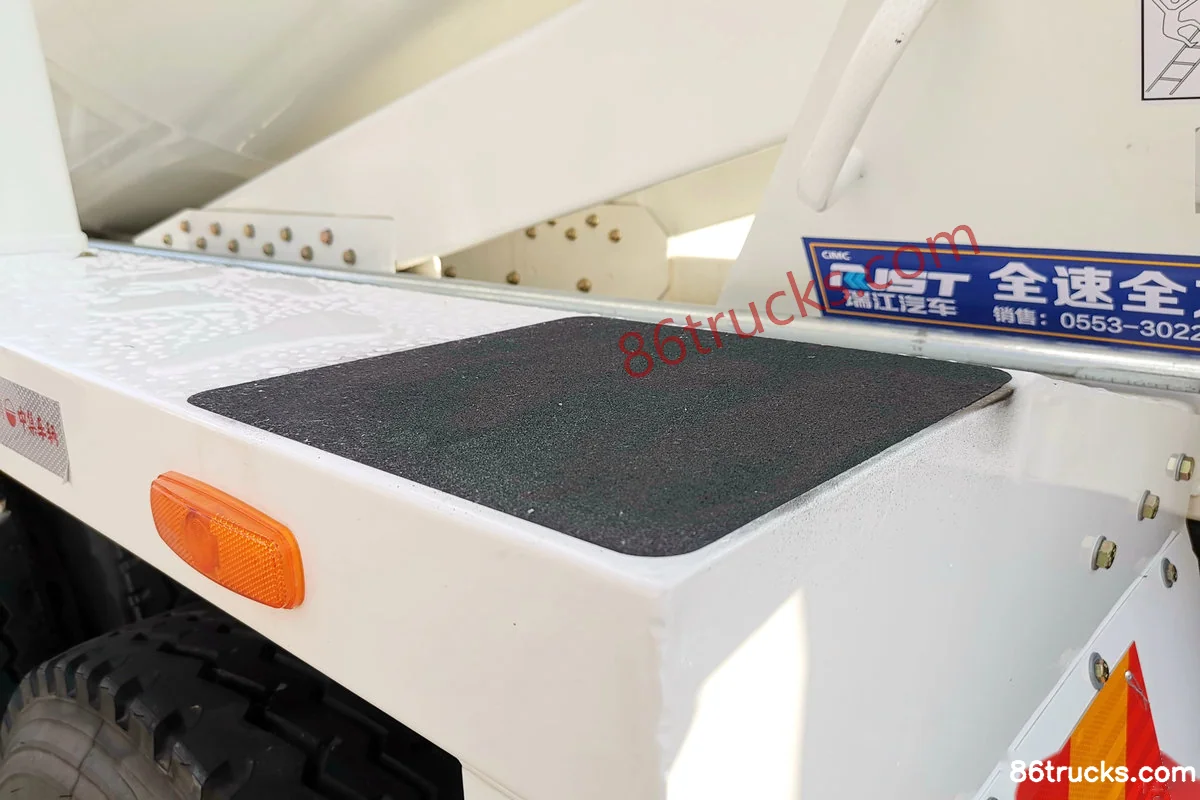

Body3

12 photos

FAQ

What emission standard does SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle)?

Key specs of SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) suited for?

SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) differ from other variants in the same series?

SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle) belongs to SAIC Hongyan Genlyon Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.75 m³ concrete mixer truck (HY300S rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
