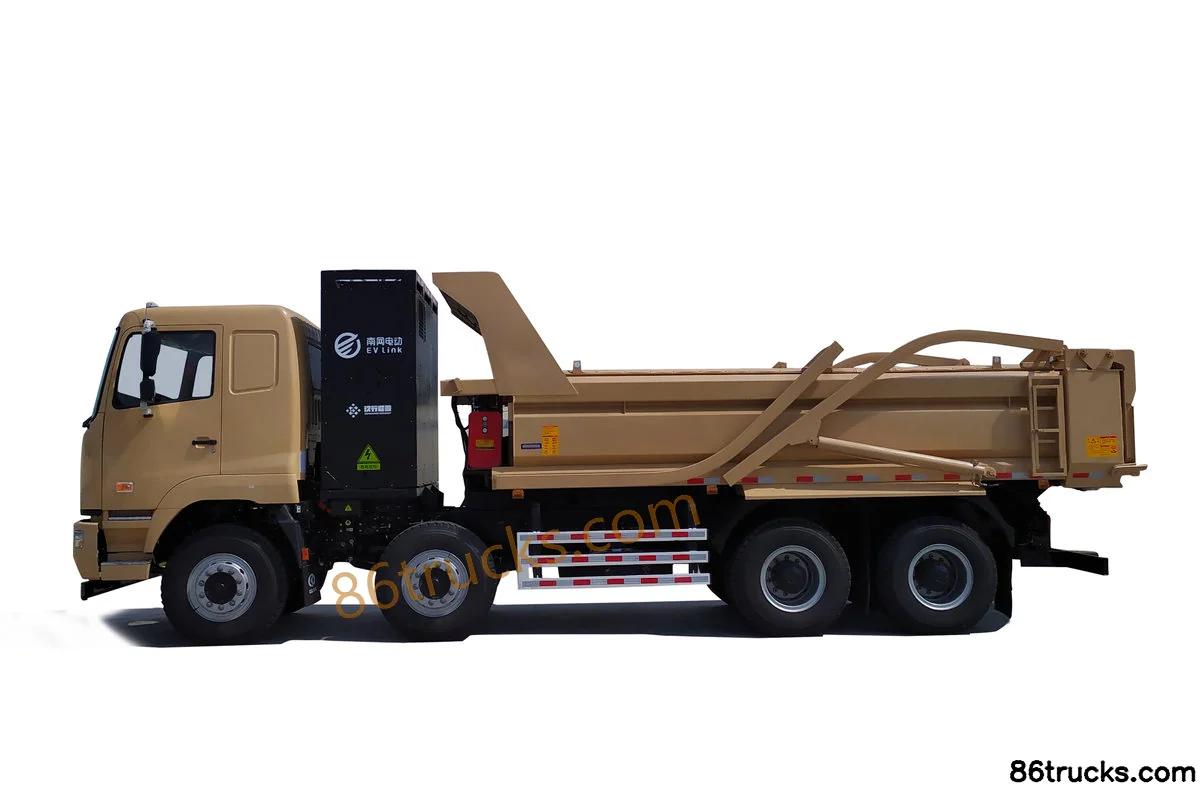

Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh

Export reference
MSRP N/A
Rated payload:: 12.37ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Model code (announced):: HN3310B36C1BEV
Cab length:: 9.52m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery type: Lithium Iron Phosphate Battery
Motor 1 Model: TZ400XSTPG04
Curb Weight: 18.5ton

Overview

The Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh is a Heavy truck featuring Lithium Iron Phosphate Battery battery/range, TZ400XSTPG04 motor, 8X4 (12 wheels) drive and 12.37t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3310B36C1BEV
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.52m
Cab width: 2.55m
Cab height: 3.36m
Curb Weight: 18.5ton
Rated payload: 12.37ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Model: TZ400XSTPG04
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360kW
total rated torque: 1600N·m
total peak torque: 2800N·m
Battery/Charging
Charging method: Battery swap
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281.92kWh
fast charge time:
Transmission Parameters
Number of gears: 9Gear
shift type: AMT manual/auto
Transmission Model: 9-Speed AMT
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 0.9m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Dual 16T grade
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

3 photos

FAQ

What are the key specs of Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh?

Key specs of Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh suited for?

Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh differ from other variants in the same series?

Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh belongs to Hualing M5 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing M5 31T 8X4(12 wheels) Battery Swap Edition 5.6m Electric Dump Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
