Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Intercooled (Turbo)
Compression ratio:: 16.2 : 1
Bore × Stroke:: 125x147mm
Suitable Range: Widely used in on-road vehicles such as trucks, buses, RVs, light commercial vehicles, and pickup trucks, as well as off-road machinery including construction equipment, mining machinery, agricultural machinery, marine, oil & gas fields, railways, and generator sets.
Engine Model: ISME420 30
Engine Series: ISM Series

Overview

The Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine is a parts product with fit for Widely used in on-road vehicles such as trucks, buses, RVs, light commercial vehicles, and pickup trucks, as well as off-road machinery including construction equipment, mining machinery, agricultural machinery, marine, oil & gas fields, railways, and generator sets. and spec ISME420 30.

China III / Euro III 420 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: ISM Series
Engine manufacturer: Xi’an Cummins
Suitable Range: Widely used in on-road vehicles such as trucks, buses, RVs, light commercial vehicles, and pickup trucks, as well as off-road machinery including construction equipment, mining machinery, agricultural machinery, marine, oil & gas fields, railways, and generator sets.
Intake type: Turbocharged Intercooled (Turbo)
Engine net weight: 940kg
Engine Dimensions: 1335x825x1159mm
Compression ratio: 16.2 : 1
Bore × Stroke: 125x147mm
Valves per cylinder: 4pcs
firing order: 1-5-3-6-2-4
Engine Brand: Xi’an Cummins
Engine Model: ISME420 30
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.8L
Emission standard: China III / Euro III
Max output power: 306kW
Max hp: 420Horsepower
Max torque: 2010N·m
Max torque speed: 1200rpm
Rated speed: 1900rpm
Engine Type: Turbocharged Intercooled (Turbo), Direct Injection, Electronic Control

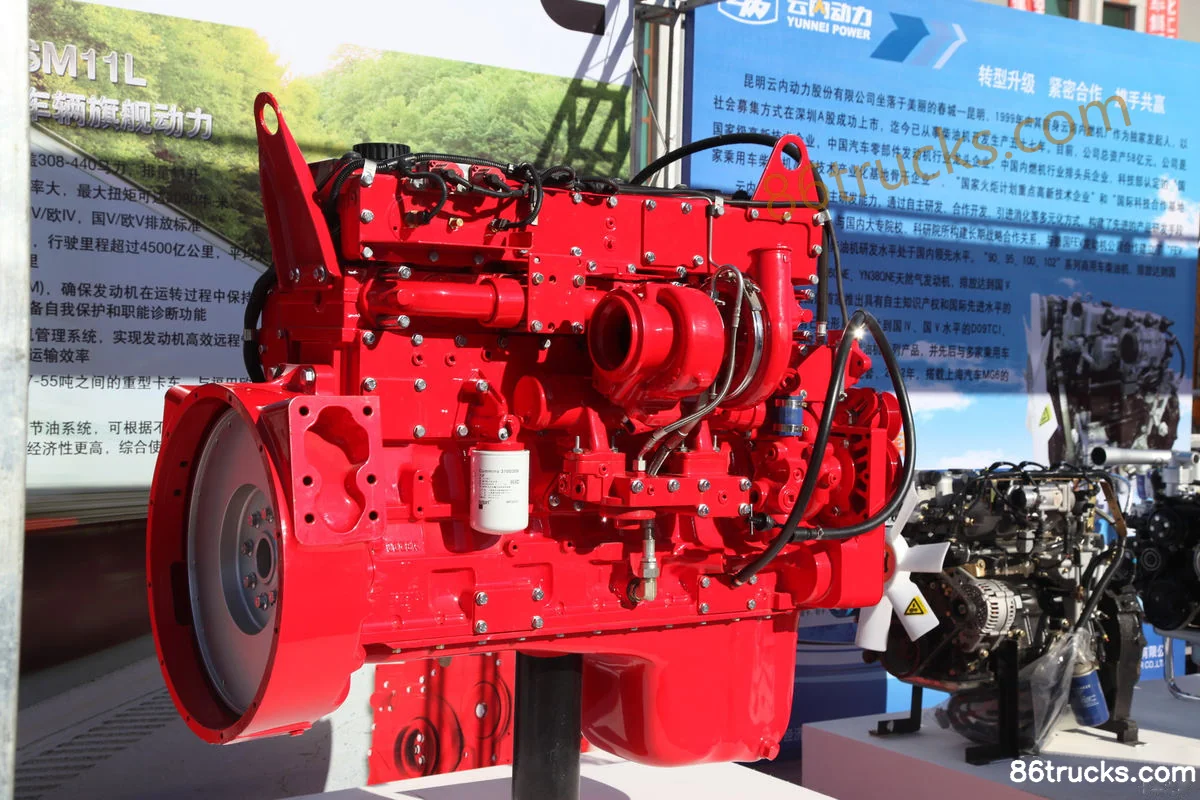

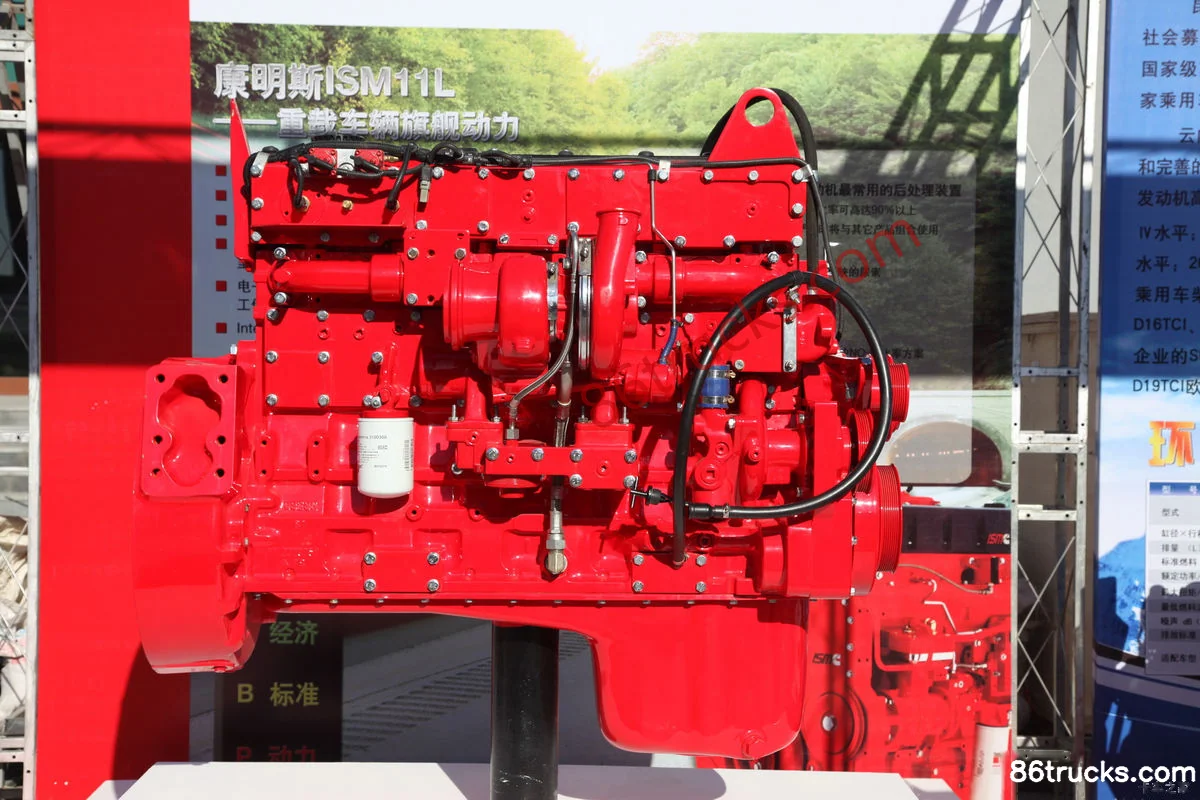

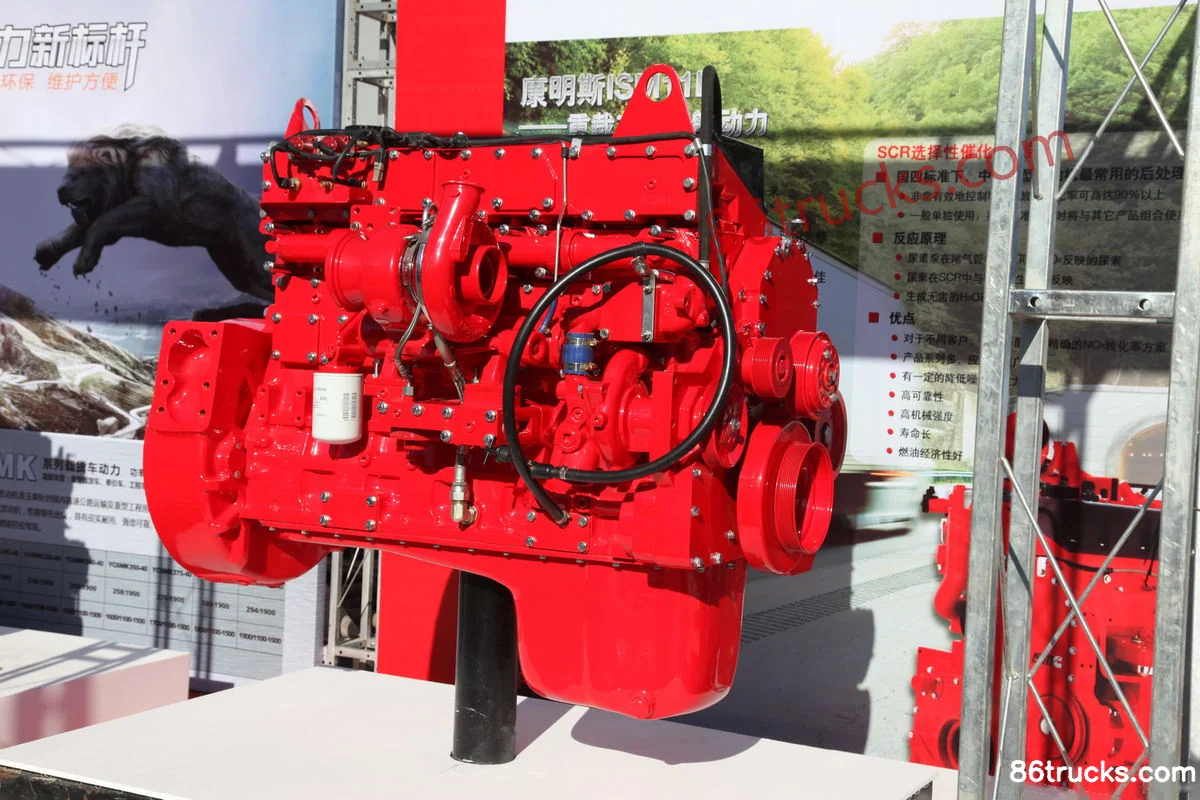

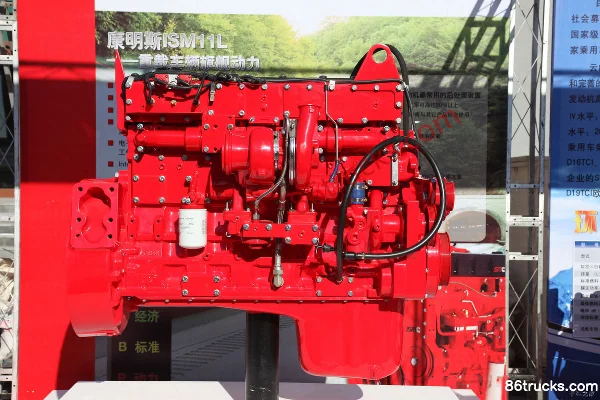

Photos

Exterior3

3 photos

FAQ

What emission standard does Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine?

Key specs of Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine: Horsepower: 420 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine suited for?

Match Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine differ from other variants in the same series?

Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine belongs to Xi’an Cummins ISM Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Xi’an Cummins ISME420 30 420 hp 10.8L China III Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
