Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 3800mm
Tire Size:: 11.00R20 18PR
Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck exterior
View more photos (9)
Rated payload: 8.805ton
Drive 4X4 (6 wheels)
Horsepower 245
Cargo box length: 4.5m

Overview

The Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck is a Heavy truck featuring 8.805t payload, 18t GVW, 4.5m cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 4X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ2186L07Y3E6
Drive type: 4X4
Wheelbase: 3800mm
engine: YuchaiYCS06245-60
transmission: Fast Gear 10-Speed Transmission
Cab length: 7.36m
Cab width: 2.4m
Cab height: 3m
Front track width: 1820mm
rear track: 1800mm
Curb Weight: 9ton
Rated payload: 8.805ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 10-Speed Transmission
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height: 0.5m
Cab parameters
Cab: Mid-roof
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Leaf spring count: 6+4/10+8,9/10+8,9/11+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

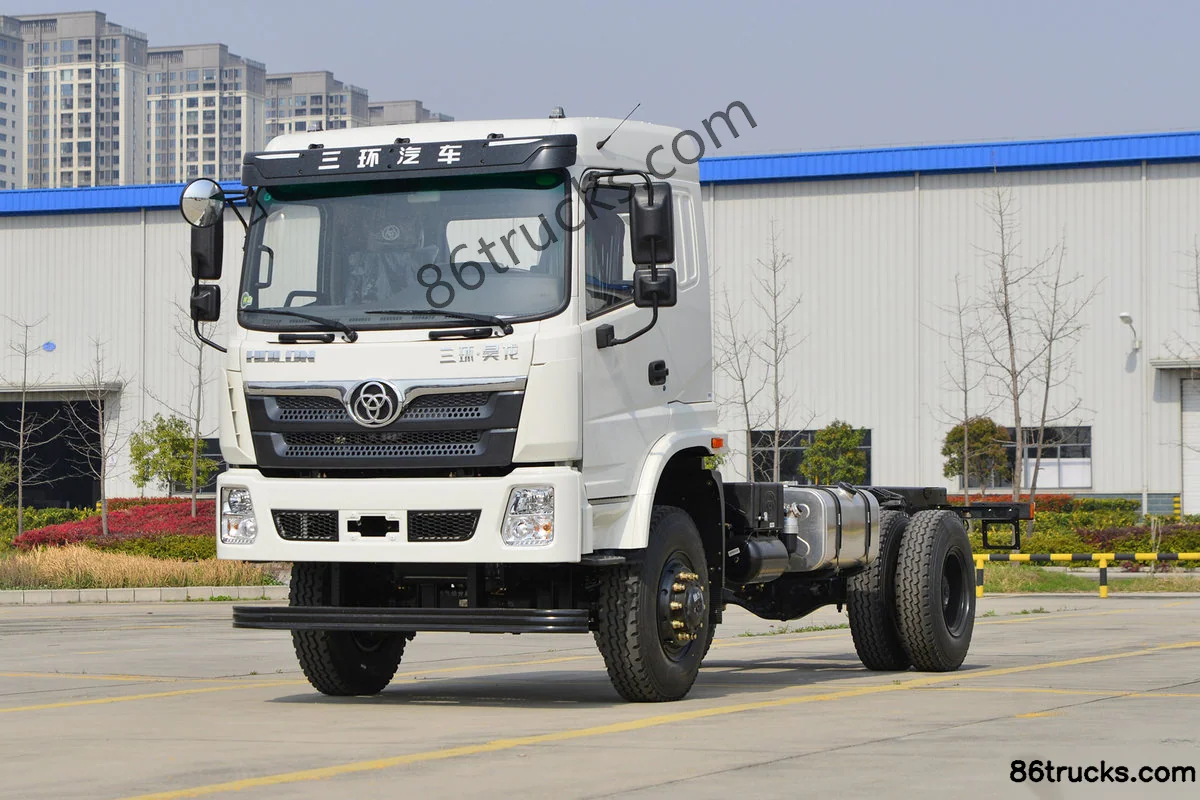

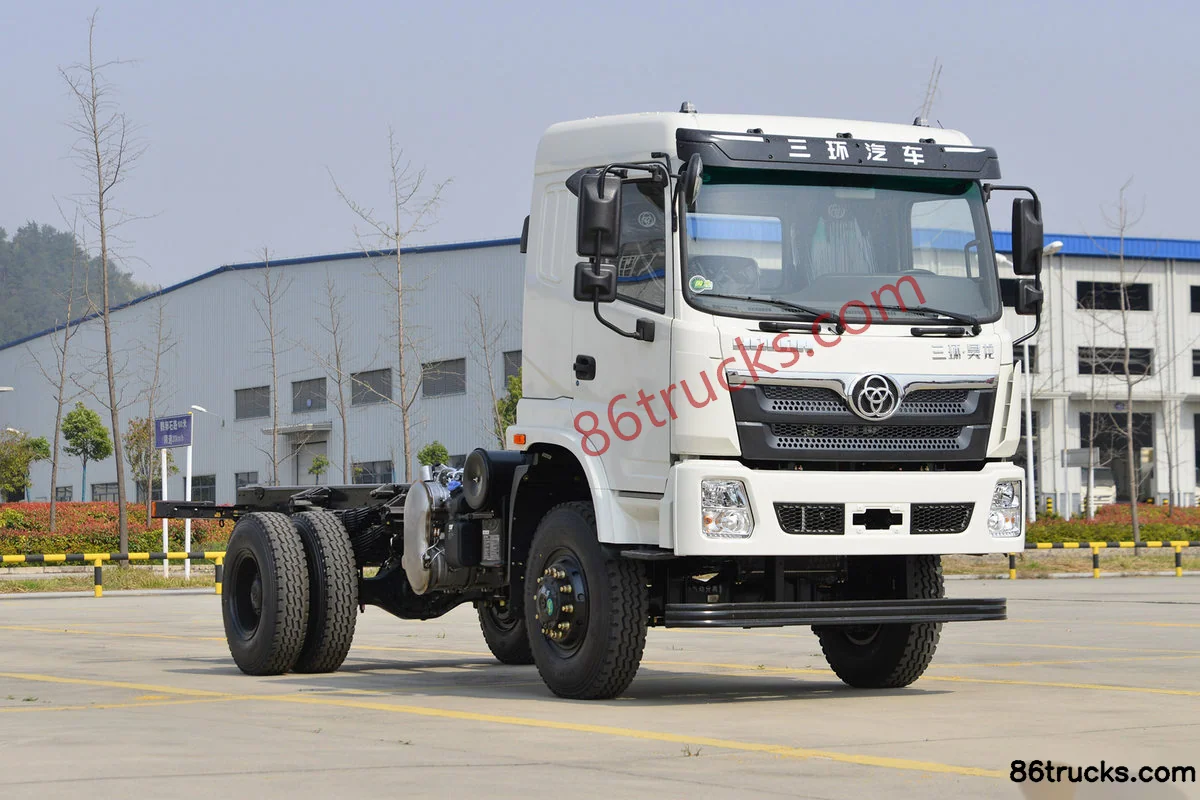

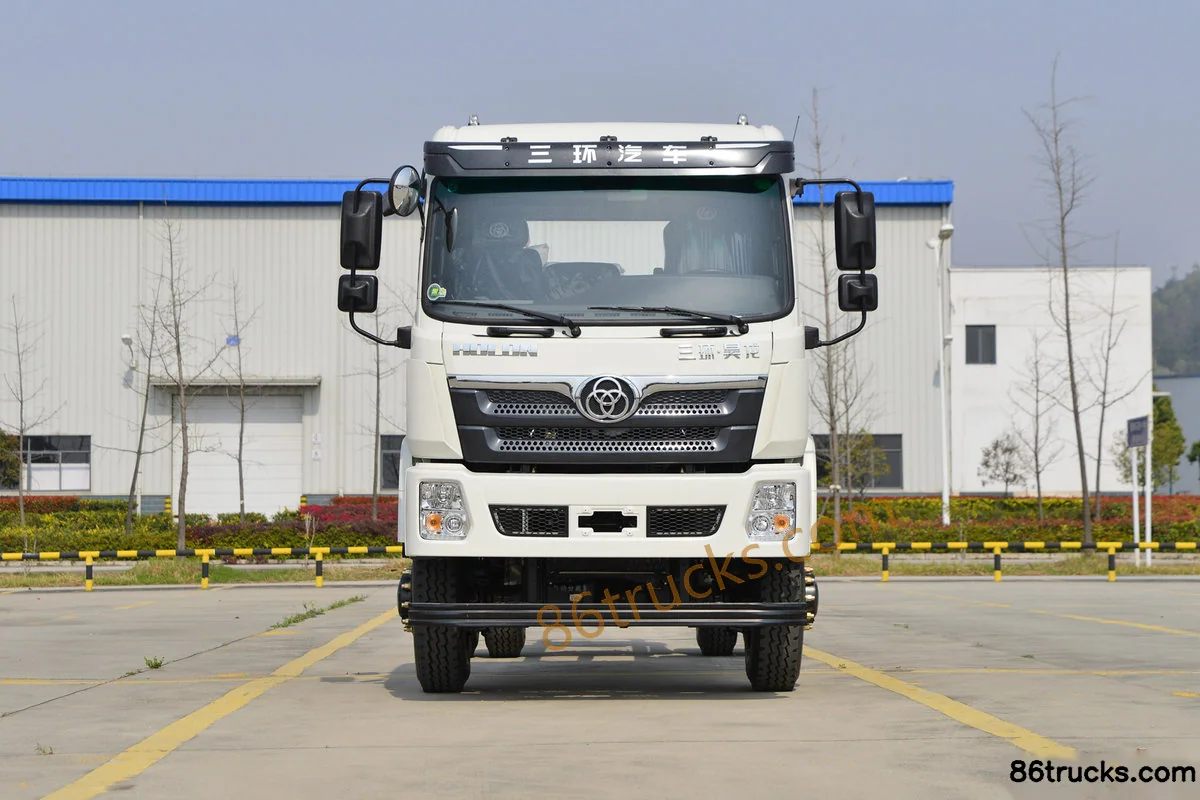

Exterior3

Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Exterior (1) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Exterior (2) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Exterior (3) | 86Trucks

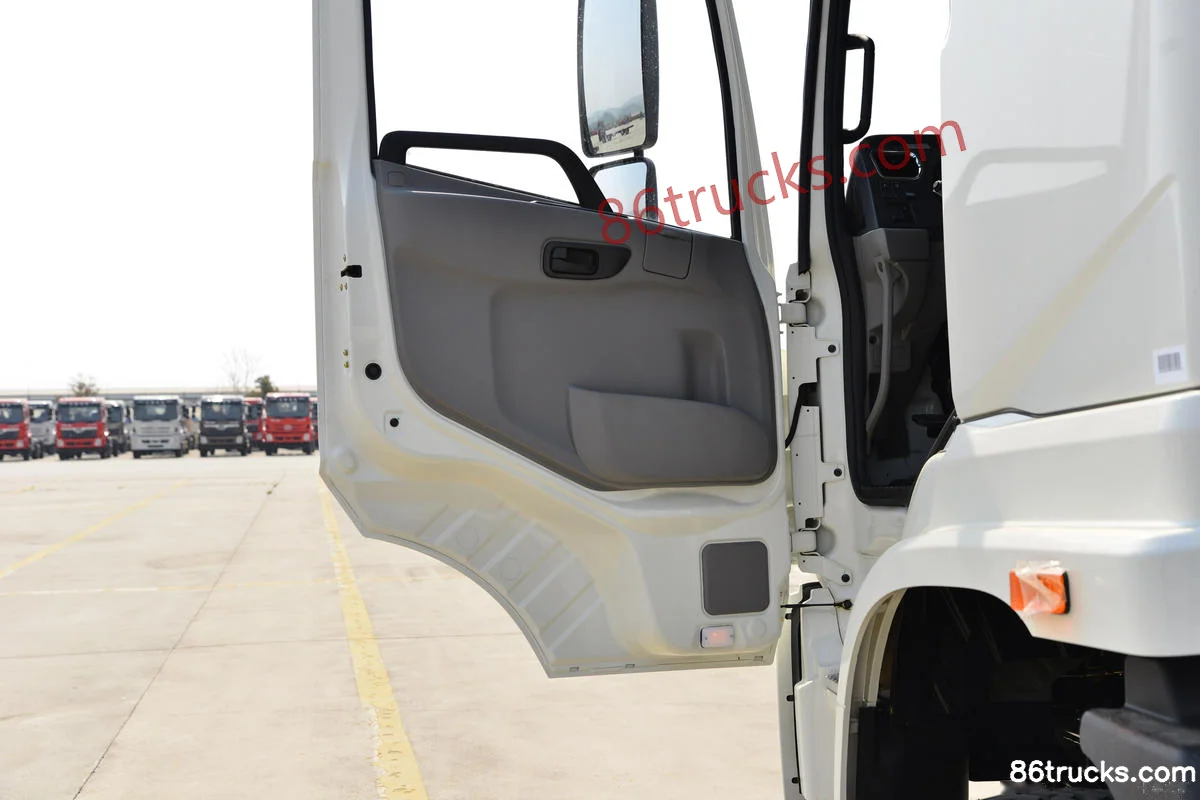

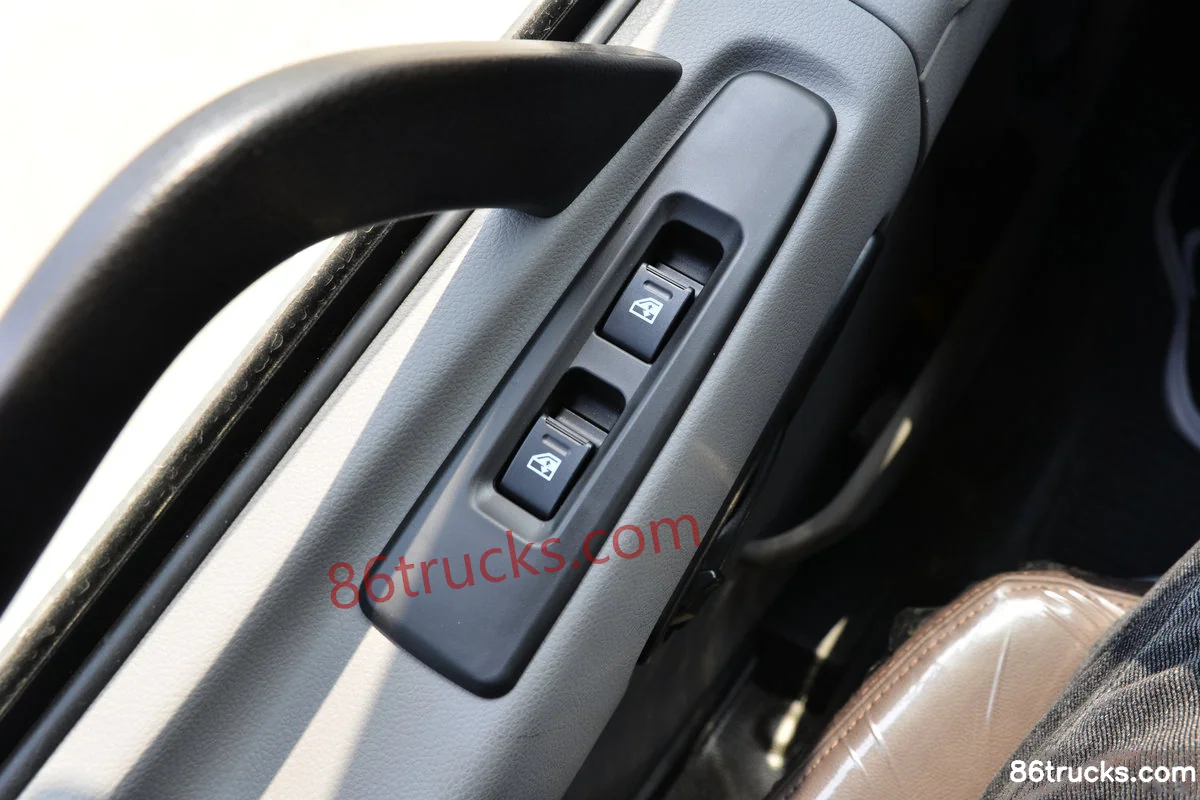

Cab3

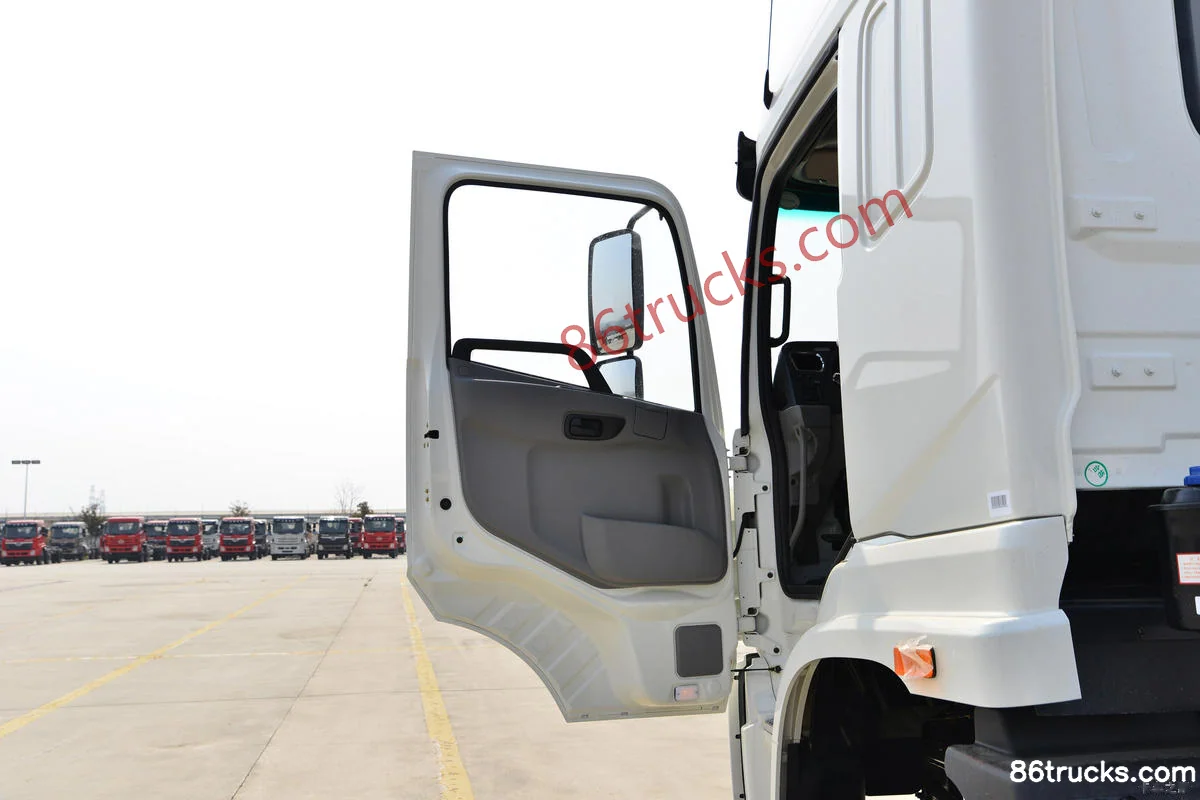

Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Cab (1) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Cab (2) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Cab (3) | 86Trucks

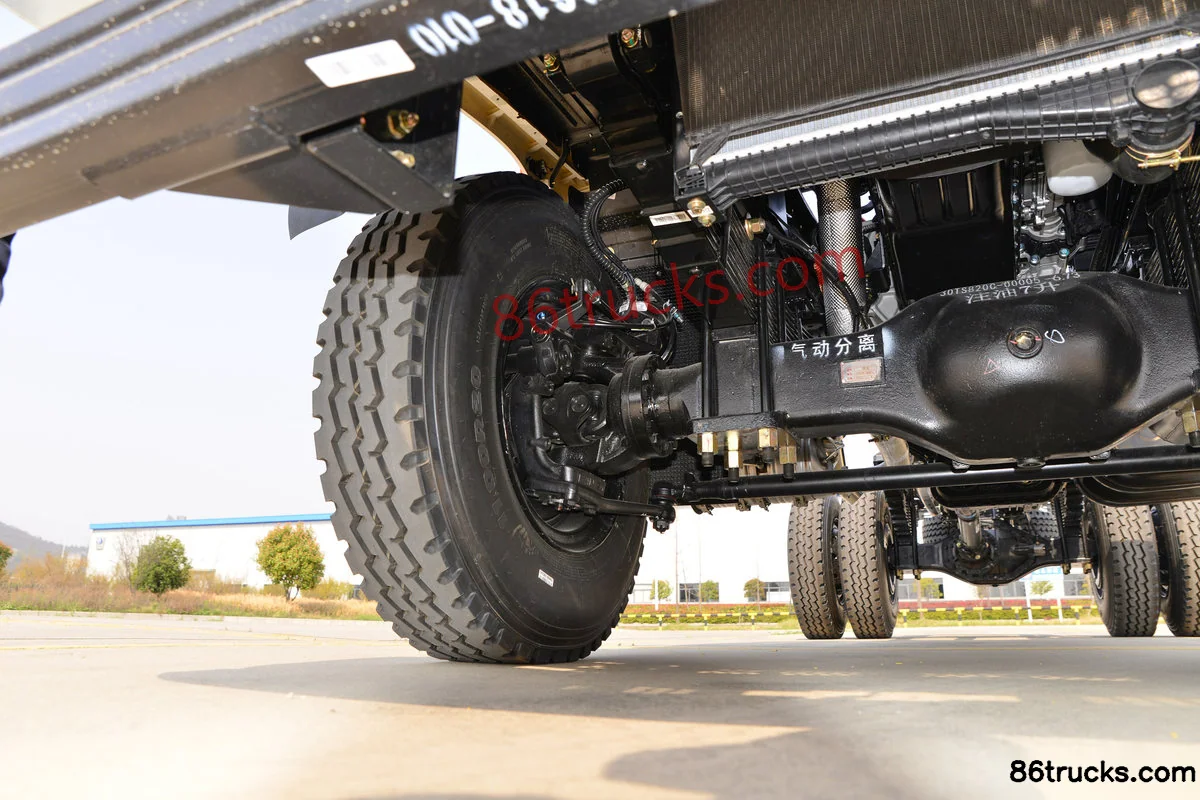

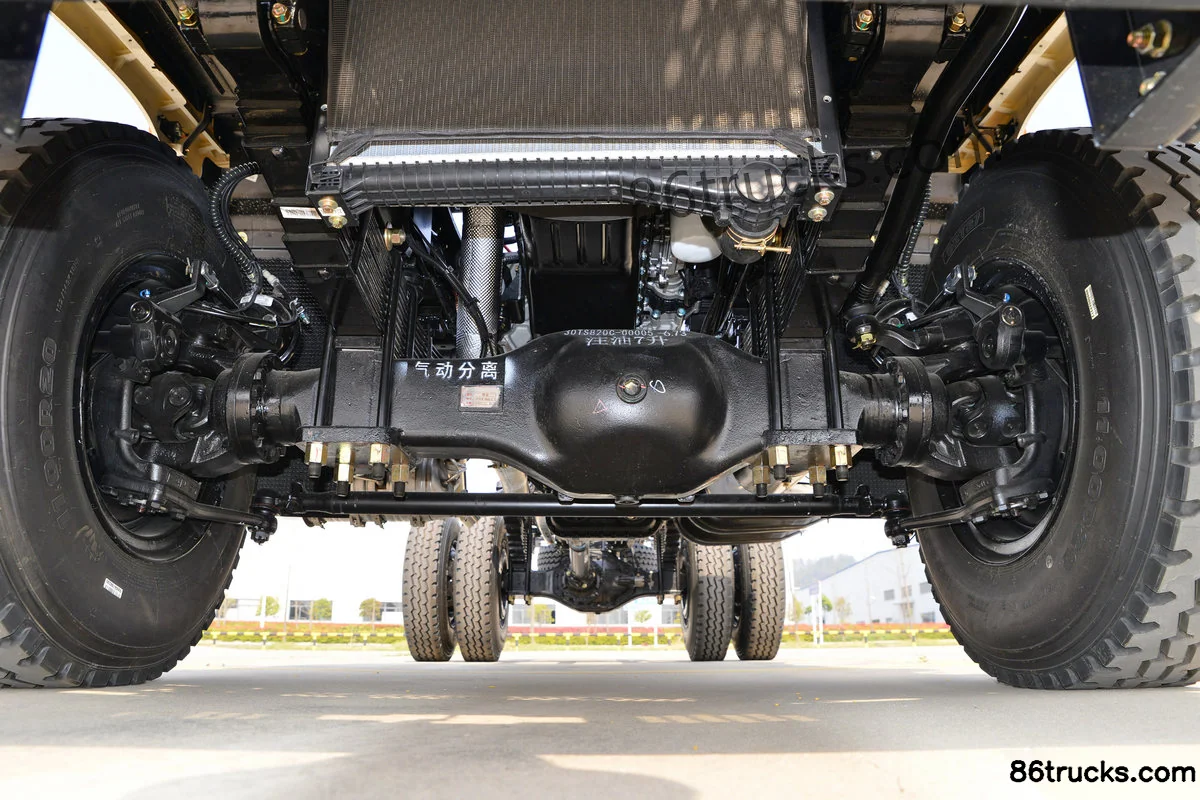

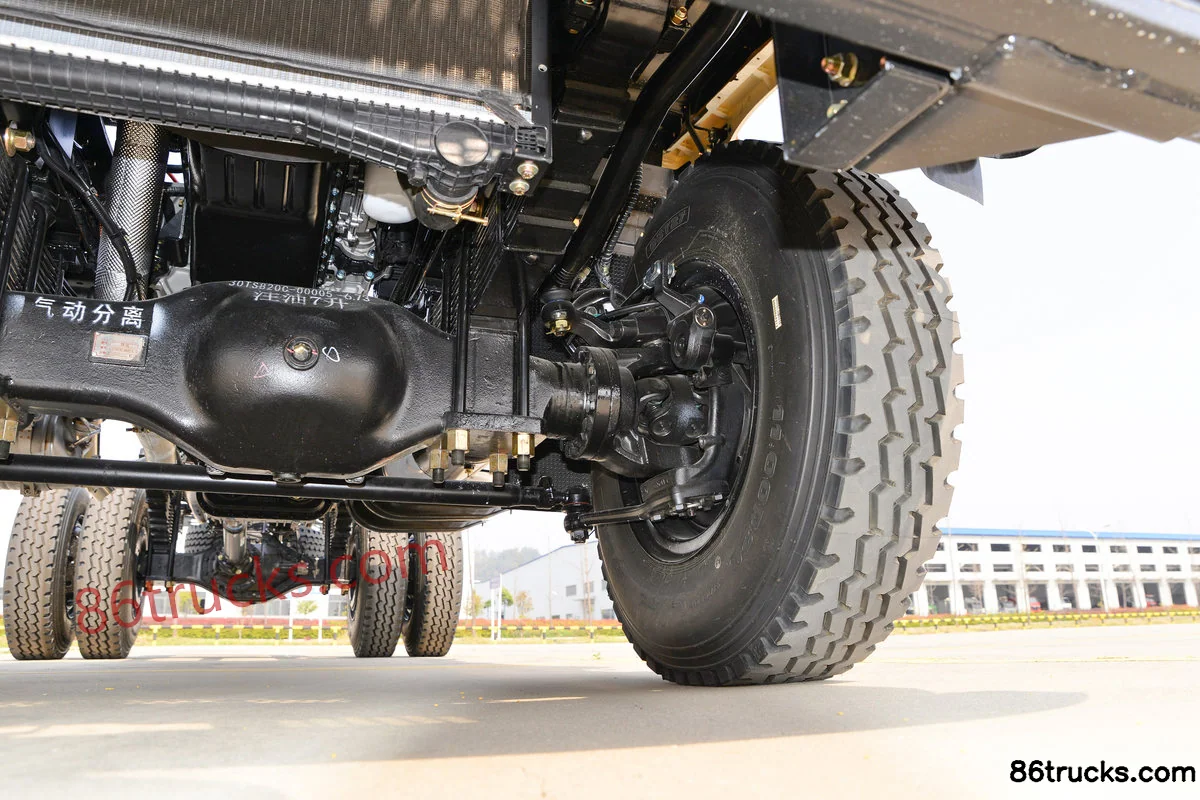

Chassis3

Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Chassis (1) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Chassis (2) | 86Trucks Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck?

Key specs of Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck: Drive: 4x4; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck suited for?

Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 245hp 4X4(6 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
