FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck

Export reference
From $28,889
MSRP ¥20.8M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.9ton
Wheelbase:: 1860+2700mm
Tire Size:: 10.00-20 18PR,11.00-20 18PR,10.00R20 18PR,11.00R20 16PR
Rated payload: 16.25ton
Drive 6X2 (8 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck is a Medium-duty truck featuring 16.25t payload, 24.48t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a XichaiCA6DLD-20E5 engine, 200 hp, China V emissions and Fast Gear transmission.

China V 200 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZT3240P3K2E5T3A90
Drive type: 6X2
Wheelbase: 1860+2700mm
engine: XichaiCA6DLD-20E5
transmission: Fast Gear8JS85E
Cab length: 7.845m
Cab width: 2.55m
Cab height: 3.4m
Front track width: 1845/1845mm
rear track: 1860mm
Curb Weight: 8.9ton
Rated payload: 16.25ton
GVWR: 24.48ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 16°
Remarks: Optional cargo box size 5m, lightweight
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-20E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.6L
Emission standard: China V
Max output power: 149kW
Max hp: 200Horsepower
Max torque: 780N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.8m
Cargo box width: 2.35m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 6490/6490kg
rear axle description: 435 narrow
rear axle allowable load: 11500kg
Leaf spring count: 10/10/8+9,10/10/13+7,10/10/10+3,7/7/8+9,7/7/13+7,7/7/10+3,3/3/4+3
Tire
Tire Size: 10.00-20 18PR,11.00-20 18PR,10.00R20 18PR,11.00R20 16PR
Number of tires: 8pcs
Control configuration
ABS:

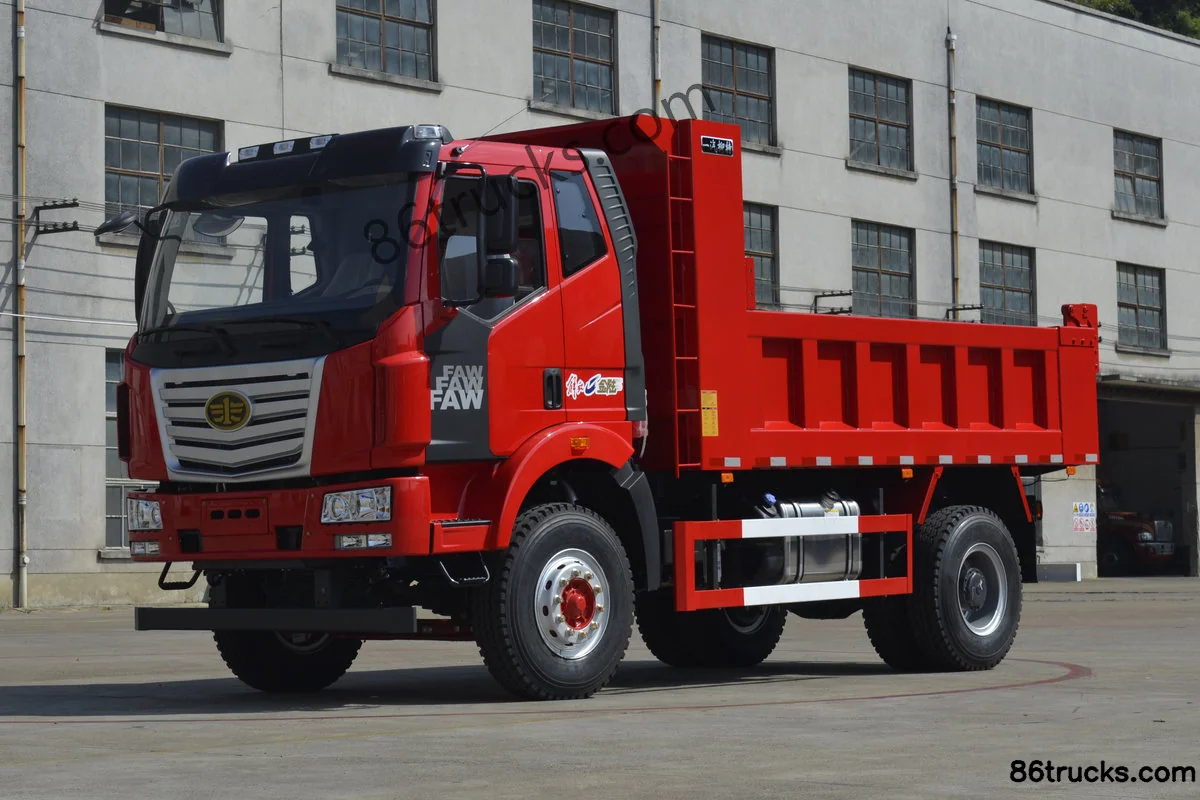

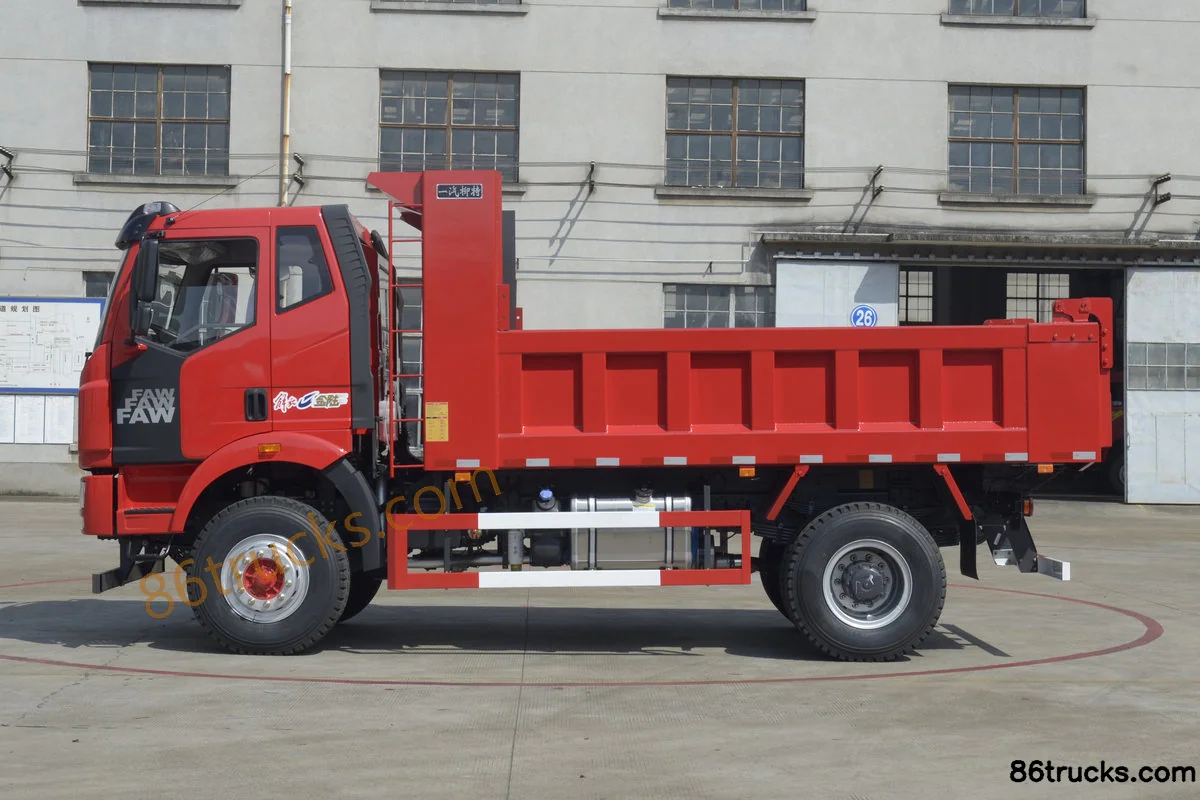

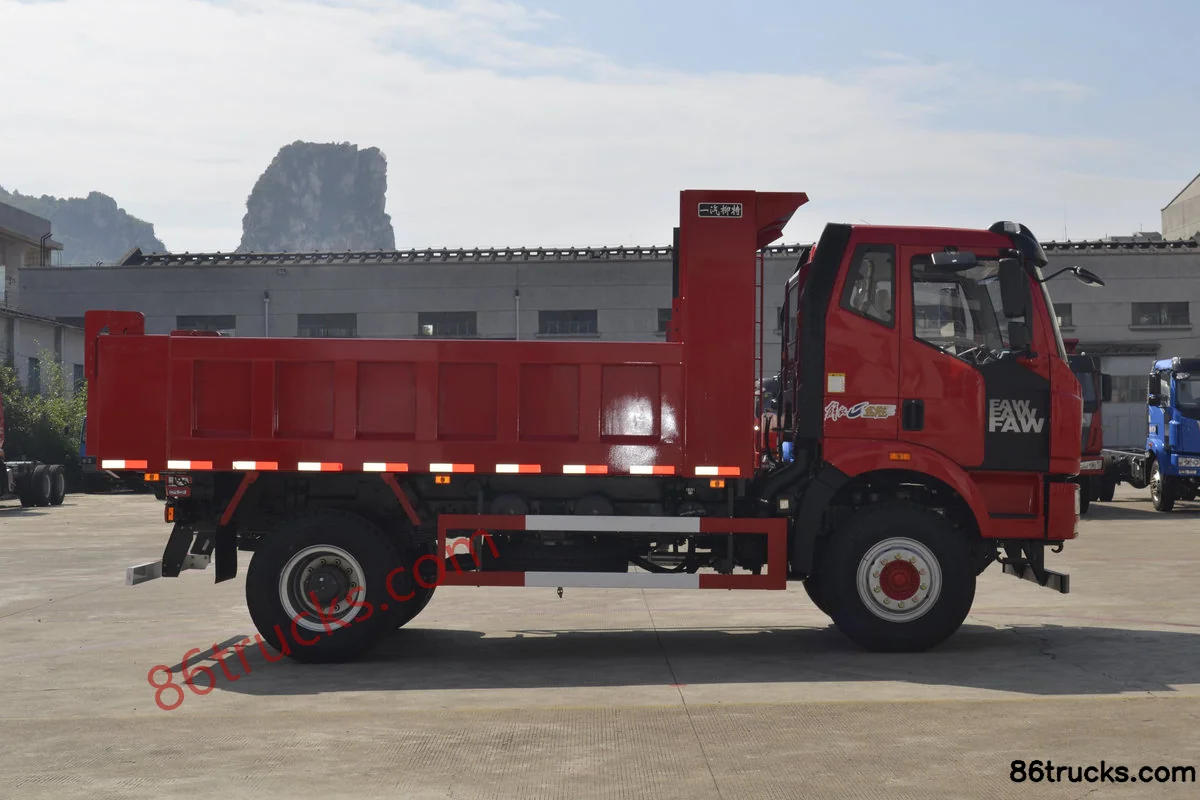

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck, and what does it include?

FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck export reference is about From $28,889; MSRP is ¥20.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck?

Key specs of FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck: Drive: 6x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck suited for?

FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck differ from other variants in the same series?

FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jinlu Medium Truck 200 hp 6X2(8 wheels) 4.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
