Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline)

Export reference
From $7,472
MSRP ¥5.38M CNY
Emission: China V
Fuel: gasoline
Transmission: Qingshan
Curb Weight:: 1.51ton
Wheelbase:: 2566mm
Tire Size:: 175R14LT 8PR
Rated payload: 1.69ton
Drive 4X2 (6 wheels)
Horsepower 112
Cargo box type: Dump type

Overview

The Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) is a mini truck featuring 1.69t payload, 3.33t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a RuizhanTNN4G15A engine, 112 hp, China V emissions and Qingshan transmission.

China V 112 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3030D5JA3-FA
Drive type: 4X2
Wheelbase: 2566mm
engine: RuizhanTNN4G15A
transmission: QingshanMF513
Rear Axle Ratio: 5.13
Cab length: 4.755m
Cab width: 1.63m
Cab height: 2.03m
Front track width: 1260mm
rear track: 1195mm
Curb Weight: 1.51ton
Rated payload: 1.69ton
GVWR: 3.33ton
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 24°
departure angle: 28°
Energy Type: gasoline
Engine parameters
Engine Brand: Ruizhan
Engine Model: RuizhanTNN4G15A
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 1.499L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Max torque: 143N·m
Max torque speed: 4000rpm
Rated speed: 6000rpm
Engine Type: DOHC, 16-valve, VVT-i, electronic multi-point sequential injection
Transmission Parameters
Transmission Model: QingshanMF513
Transmission Brand: Qingshan
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.05m
Cargo box width: 1.51m
Cargo box height: 0.36m
Chassis Specs
Front axle allowable load: 1265kg
rear axle allowable load: 2065kg
Axle ratio: 5.13
Leaf spring count: 3/5
Tire
Tire Size: 175R14LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs

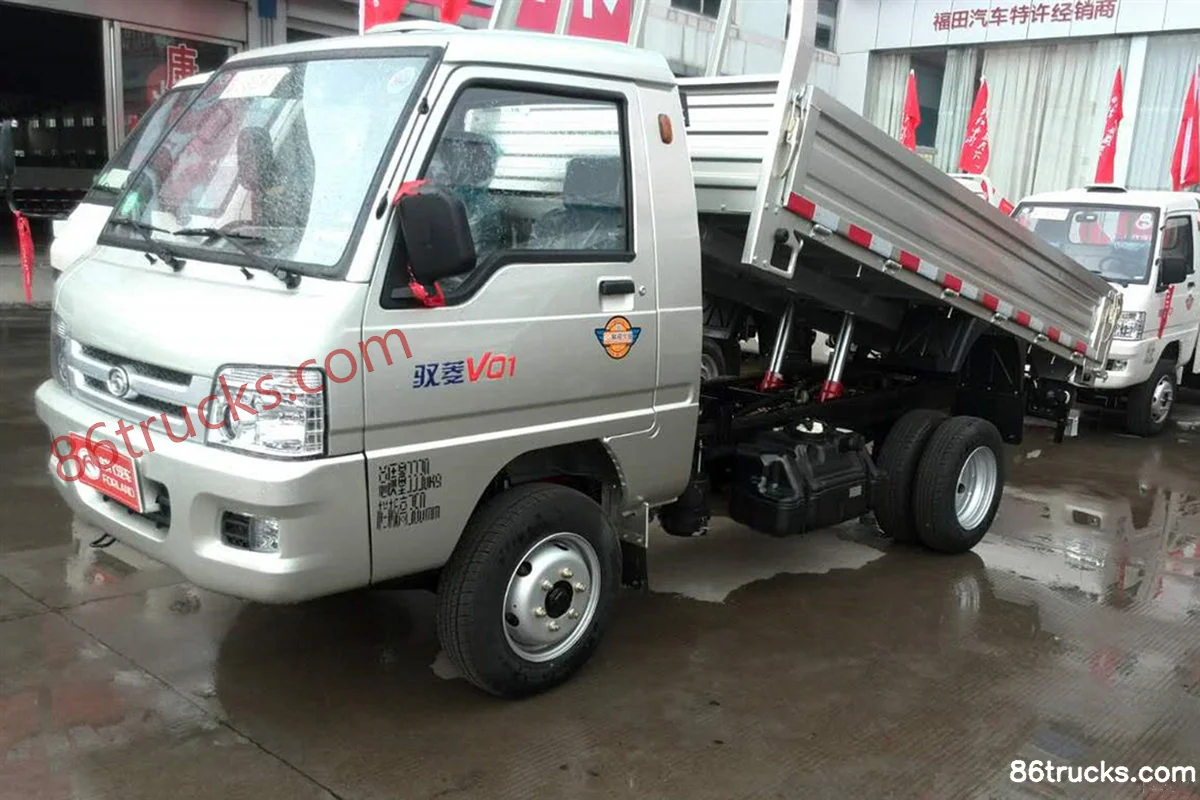

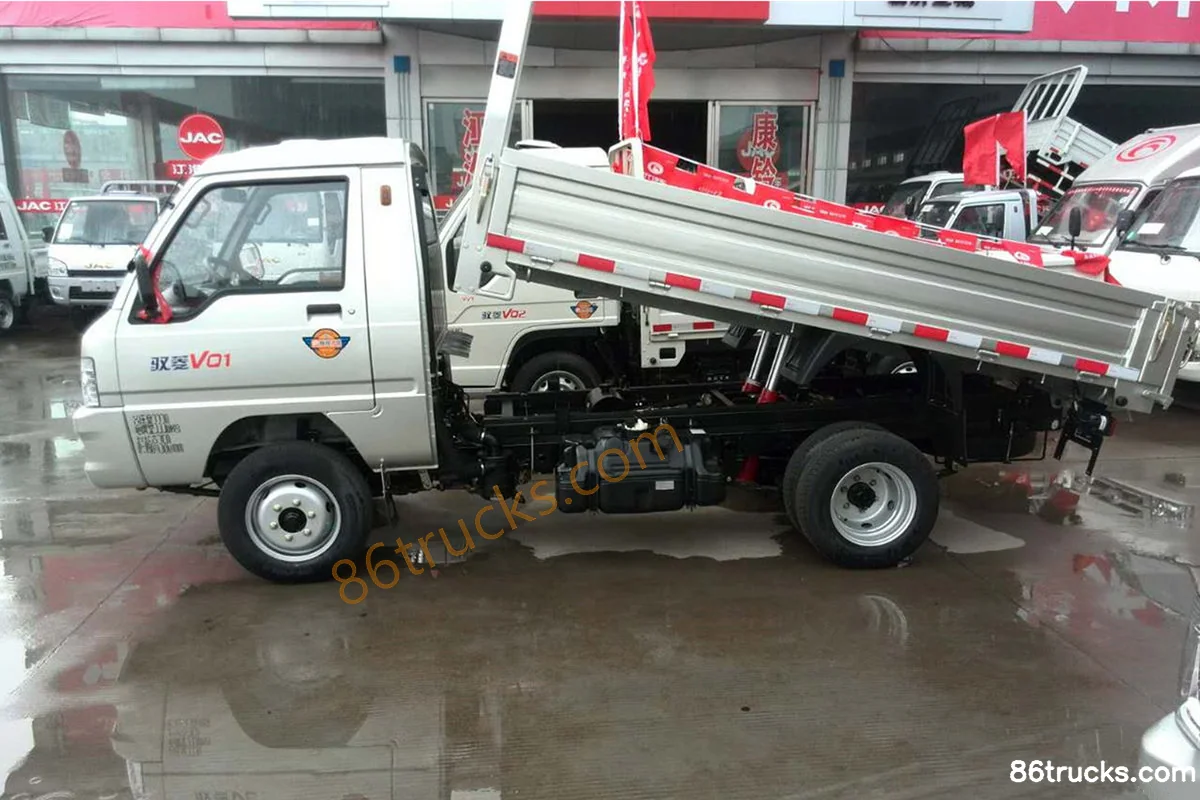

Photos

Exterior2

2 photos

FAQ

What is the export price of Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline), and what does it include?

Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) export reference is about From $7,472; MSRP is ¥5.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline)?

Key specs of Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline): Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: gasoline; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) suited for?

Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) differ from other variants in the same series?

Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline) belongs to Forland Yuling Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Yuling VQ1 112 hp 4X2(6 wheels) 3.05m Dump Truck (Gasoline)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
