JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 17.4ton
Wheelbase:: 1800+3500+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 10.995×2.495×3.99m
Truck Type:: concrete mixer truck
Rated payload: 13.42ton
Drive 8X4 (12 wheels)
Horsepower 375
Emission China IV

Overview

The JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 13.42t payload, 17.4ton GVW, 8X4 (12 wheels) drive and 10.995×2.495×3.99m cab. On the powertrain side, it comes with 375 hp, China IV emissions and Diesel fuel.

China IV 375 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.995×2.495×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4
Front/rear track width: Front track: 2040/2040mm; Rear track: 1860/1860mm
Wheelbase: 1800+3500+1350mm
Curb Weight: 17.4ton
Rated payload: 13.42ton
Max. speed: 80km/h
Front/rear suspension: 1.495/2.85m
Body Parameters
Mixing drum capacity: 6.2m³
Vehicle certification code: HFC5311GJBP1K6H35F
Body Brand: JAC Gallop
Engine parameters
Engine Model: Weichai WP12.375E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China IV
Max output power: 276kW
Max hp: 375Horsepower
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: GallopK3
Chassis Model: HFC3311P1K6H35F
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear 12JSD200T
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

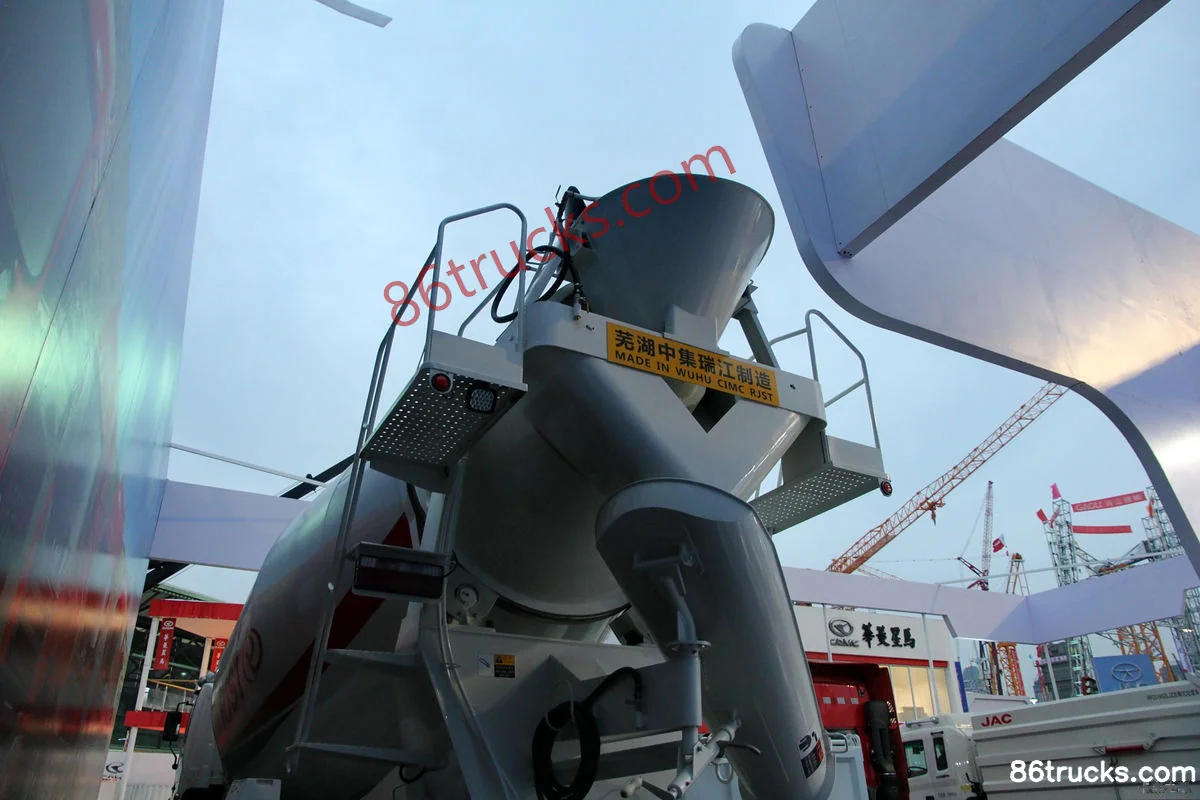

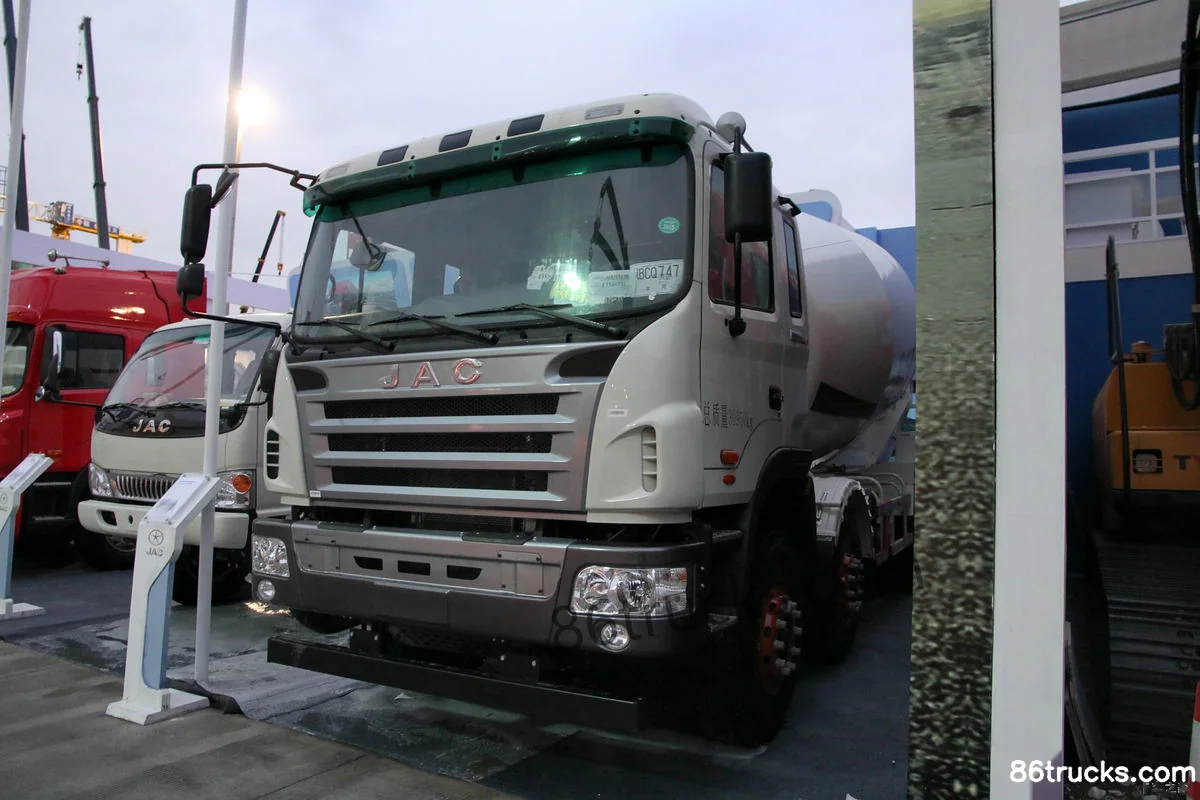

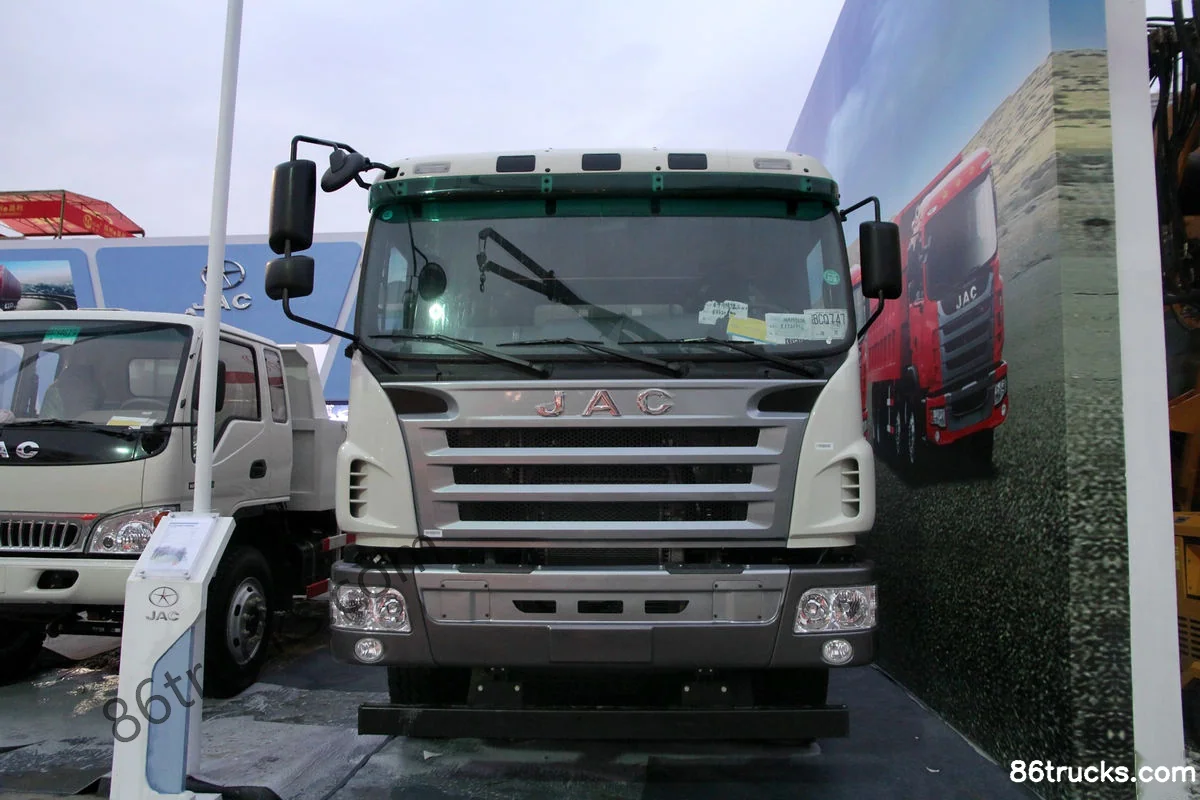

Exterior3

3 photos

FAQ

What emission standard does JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck?

Key specs of JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck: Drive: 8x4; Horsepower: 375 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck suited for?

JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck differ from other variants in the same series?

JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck belongs to JAC Gallop K3 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop 375 hp 8X4(12 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
