JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck

Export reference
From $10,736
MSRP ¥7.73M CNY
Horsepower: 95
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: Xingrui
Curb Weight:: 1.885ton
JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck is a mini truck featuring 3.8m cargo length, stake body cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 95 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 95 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC1040PV4K1B4S
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3100mm
Box length class: 3.8m
engine: QuanchaiQ23-95E60
transmission: Xingrui LC5T28
Rear Axle Ratio: 4.875
Cab length: 5.87m
Cab width: 1.86m
Cab height: 2.07m
Front track width: 1375mm
rear track: 1405mm
Curb Weight: 1.885ton
Rated payload: 1.495ton
GVWR: 3.51ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 18°
departure angle: 16.5°
Front/rear suspension: 1.185/1.345m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-95E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 1.77m
Cargo box height: 0.355m
*Cargo box interior width: 1.77
Cab parameters
Cab width: 1626mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 1.5T axle tube
Front axle allowable load: 1420kg
Frame Dimensions: 130×50×4mm
rear axle description: 2.1T
rear axle allowable load: 2090kg
Axle ratio: 4.875
Leaf spring count: 3/3+2
Tire
Tire Size: 175/75R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: Valeo
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
Vehicle Warranty Period: Max 3 Years or 500,000 km
24-hour service hotline: 4008009933
Rescue service: 24 hours

Photos

Exterior3

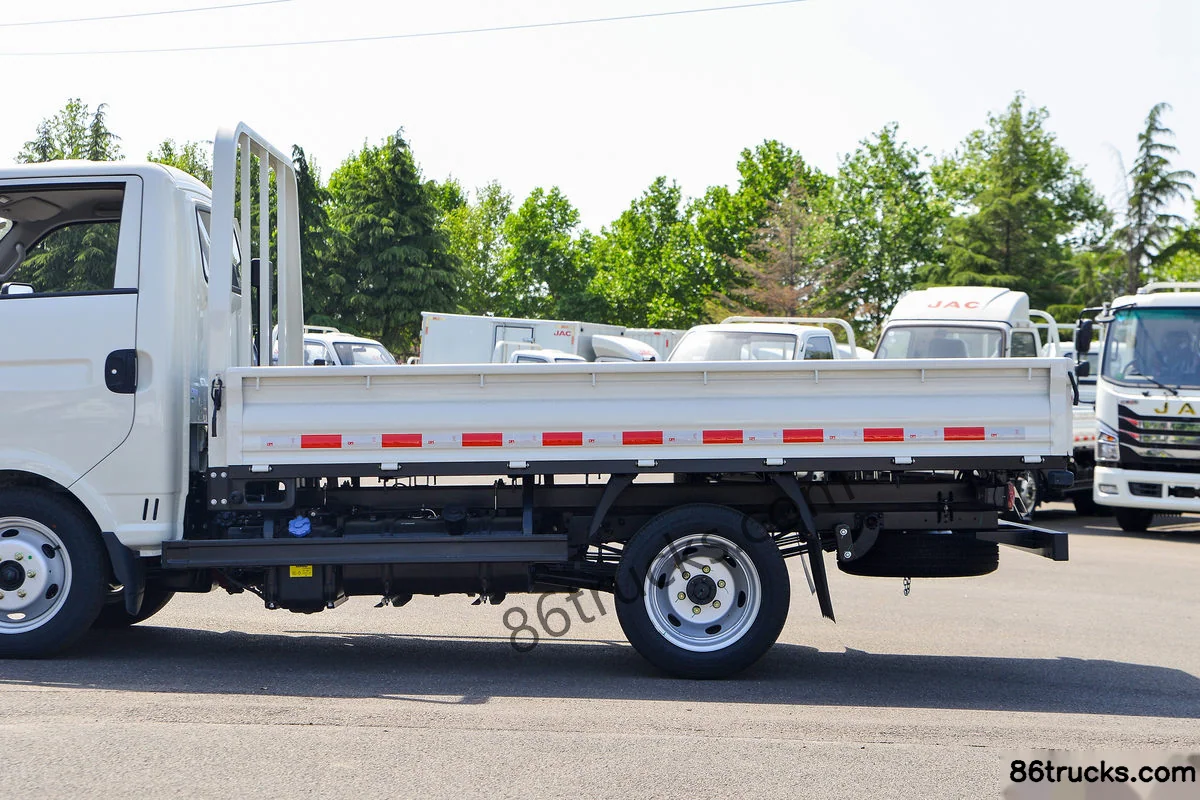

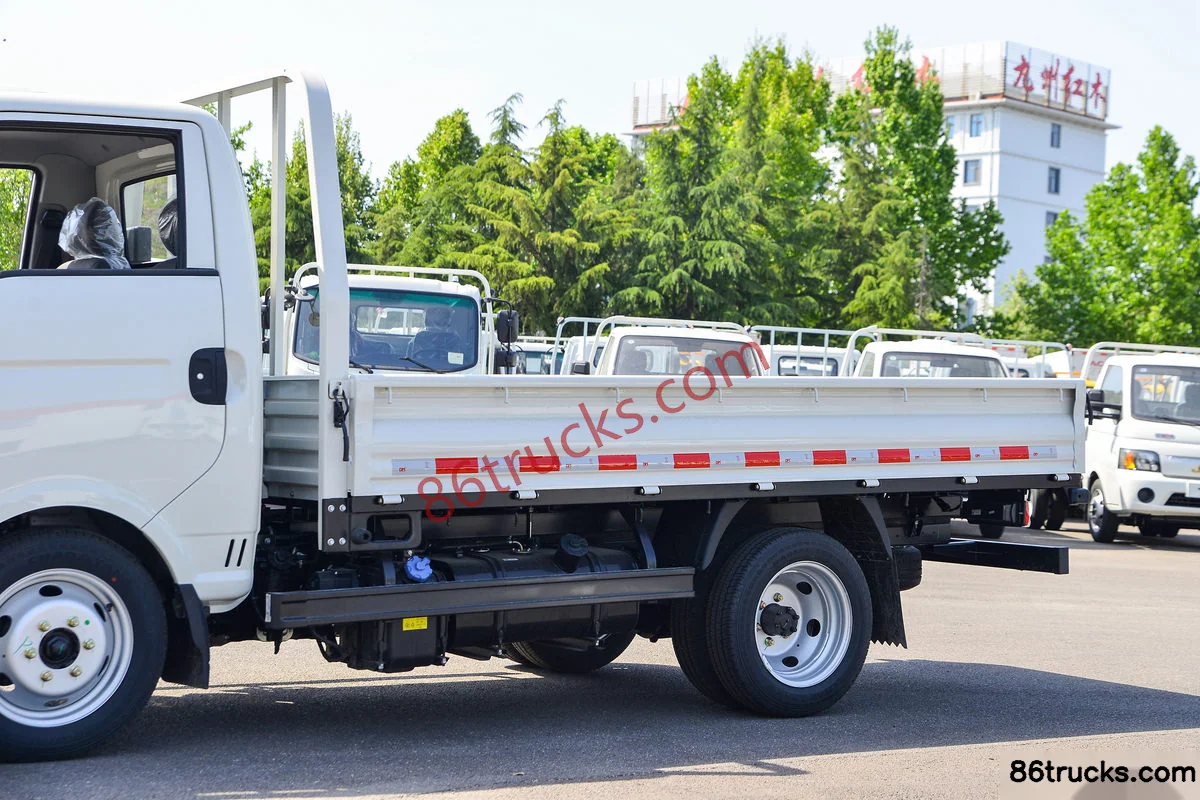

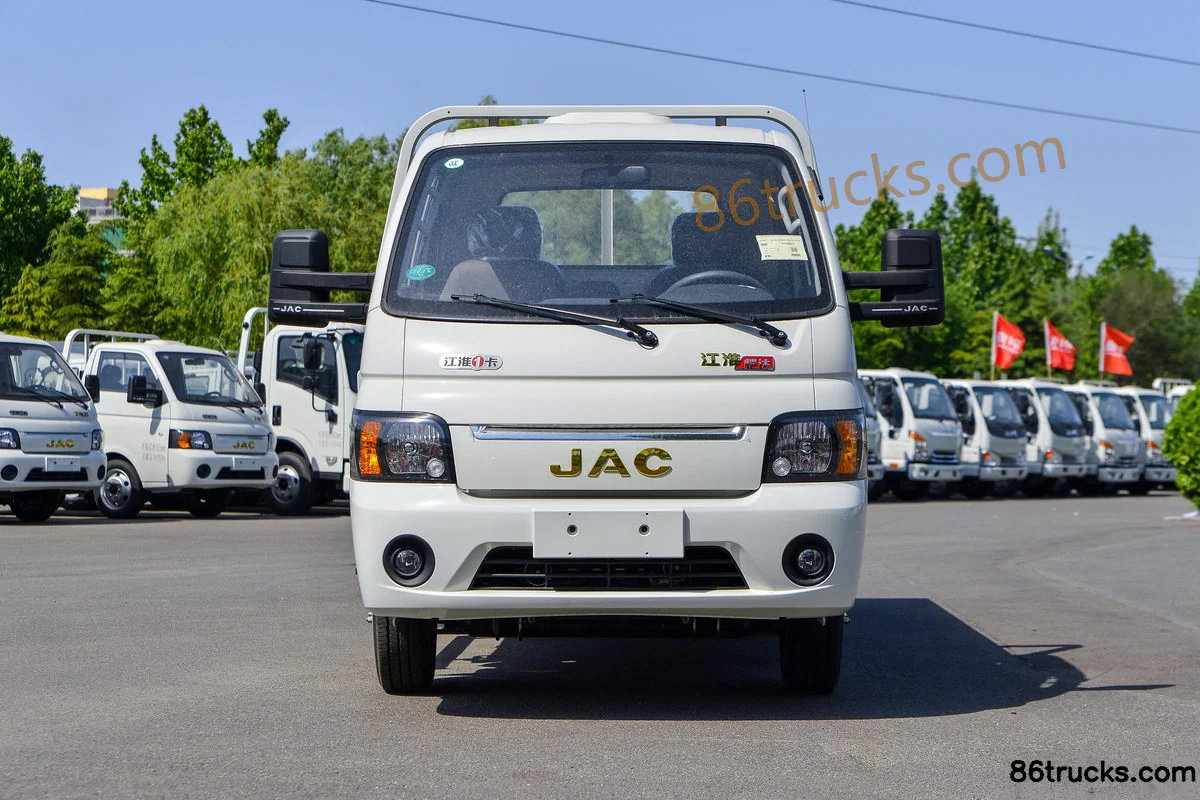

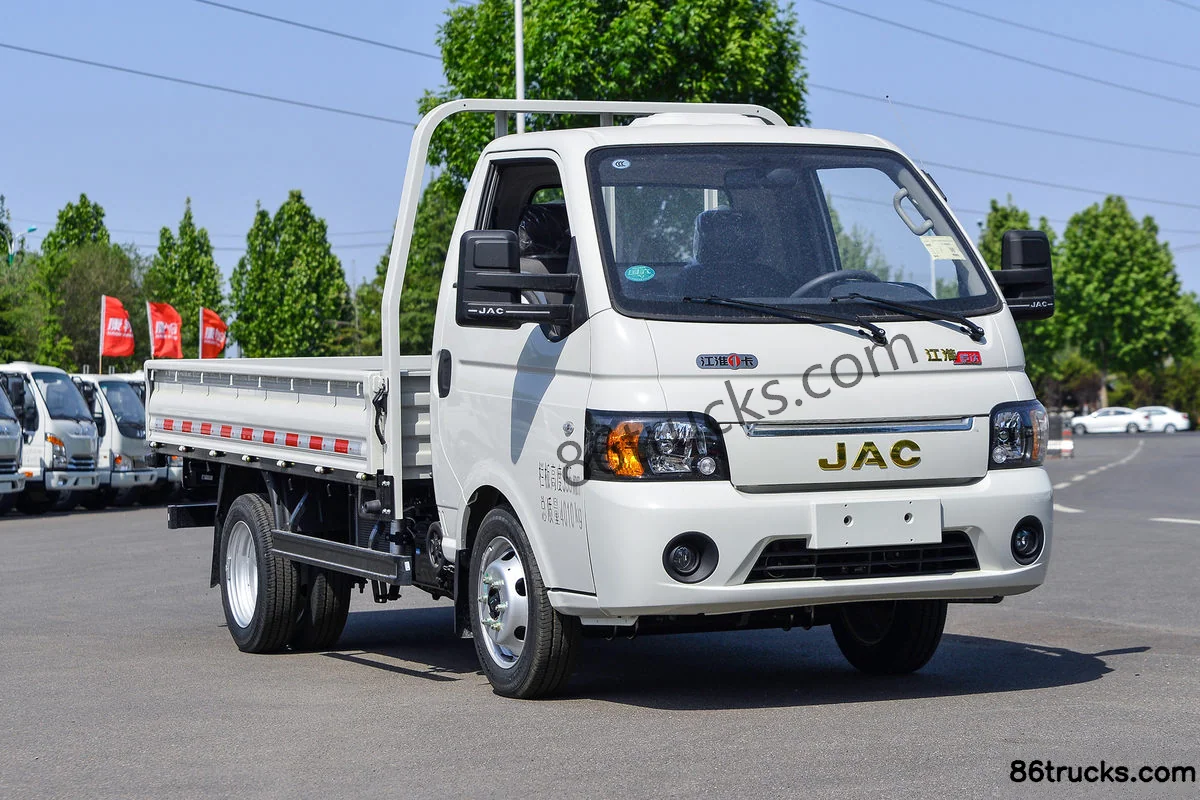

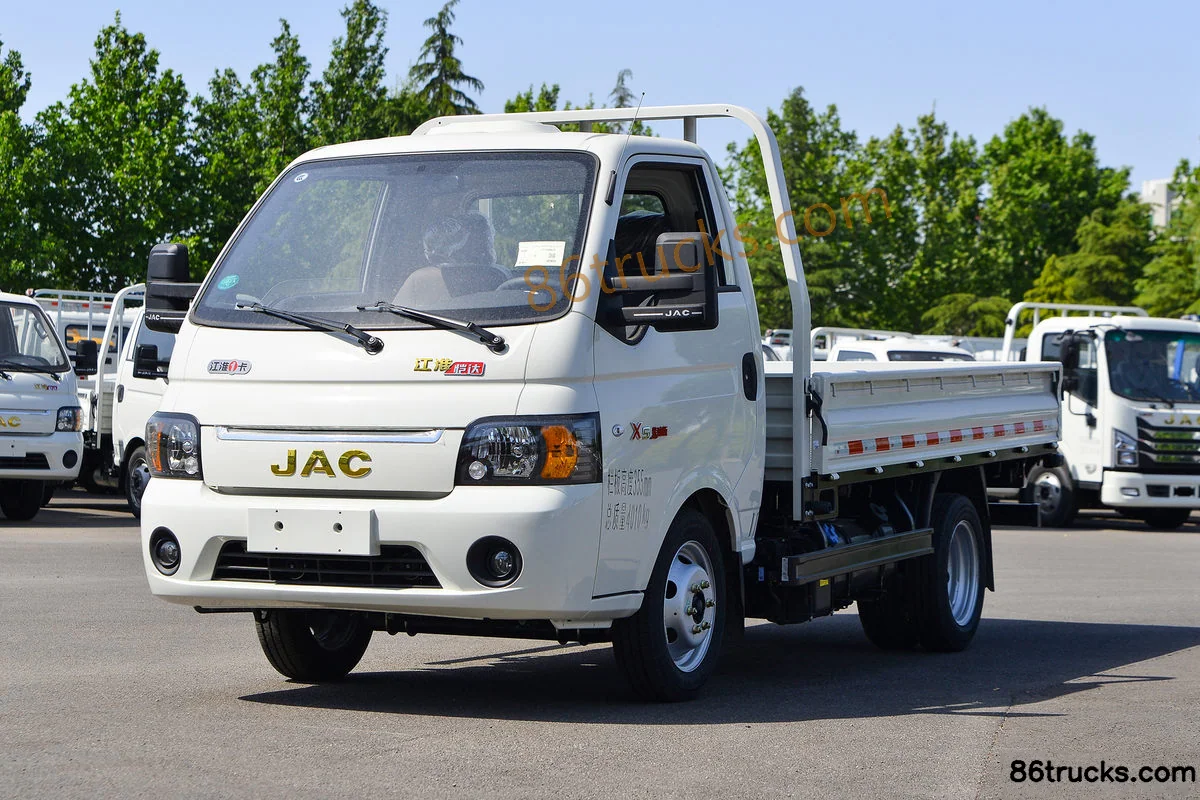

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Exterior (1) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Exterior (2) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Exterior (3) | 86Trucks

Cab3

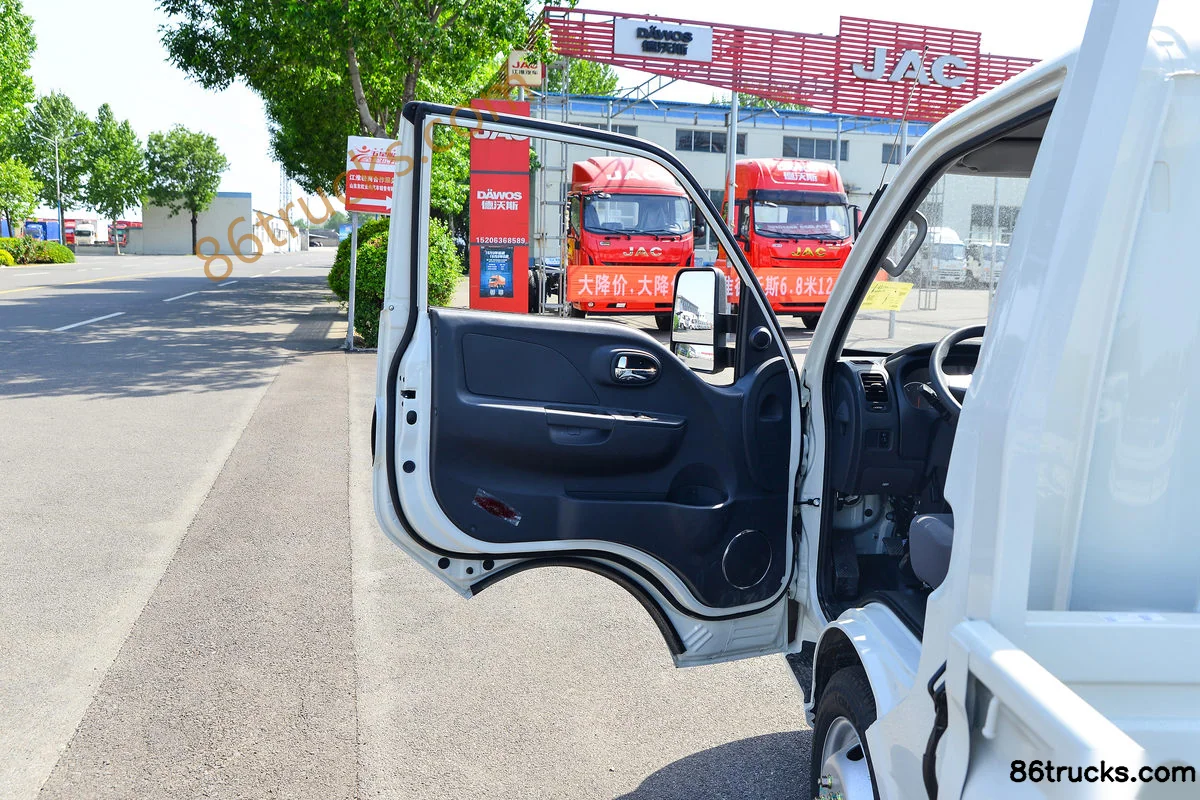

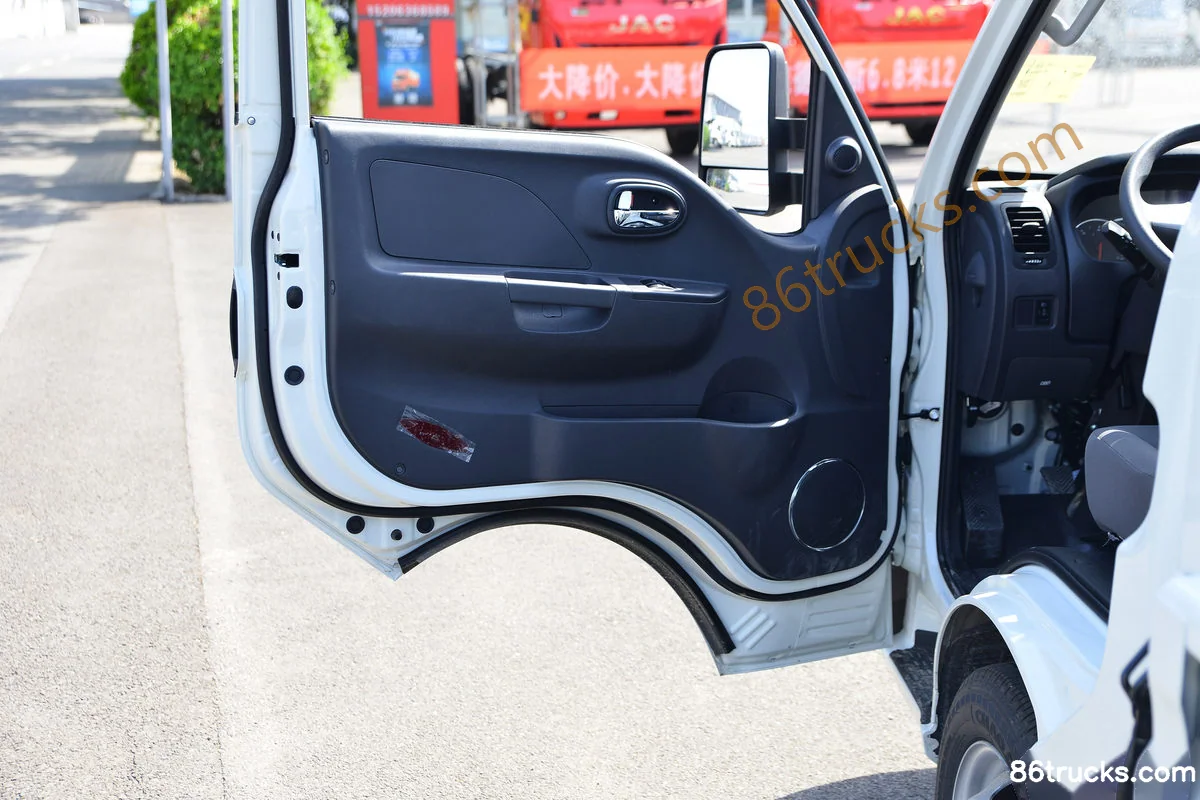

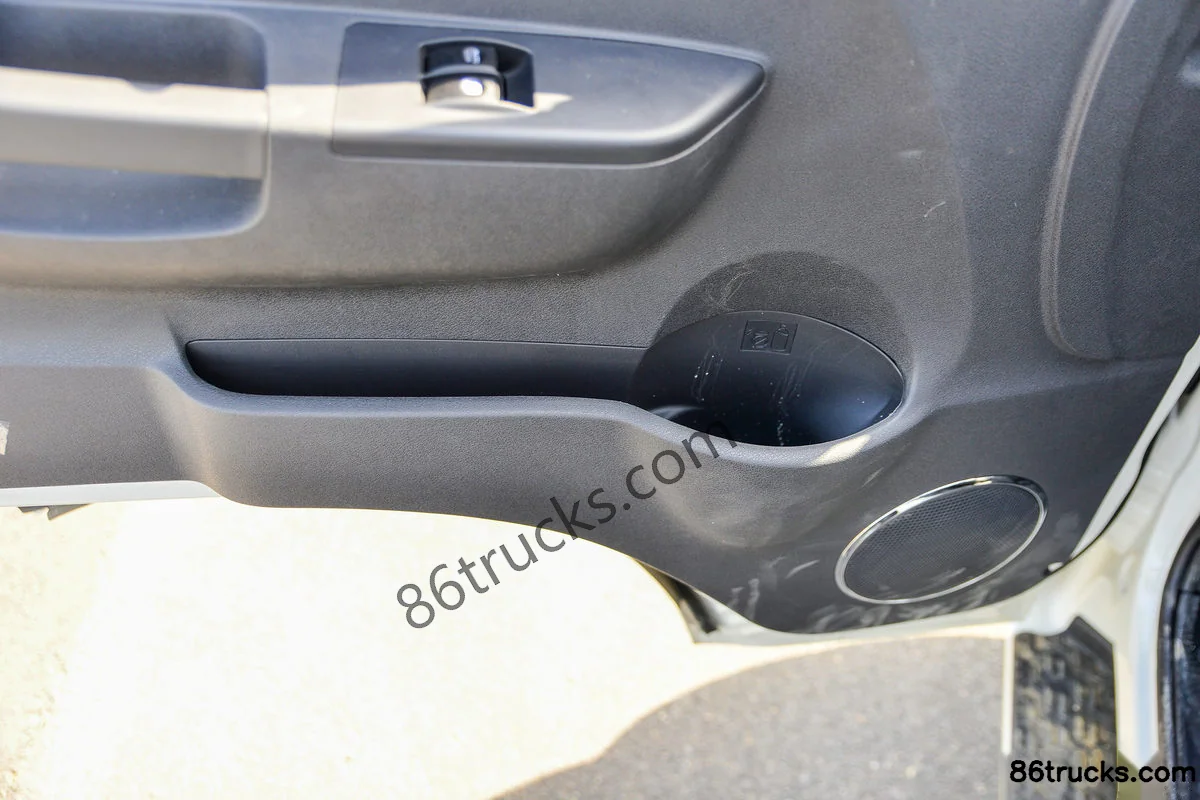

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Cab (1) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Cab (2) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Cab (3) | 86Trucks

Chassis3

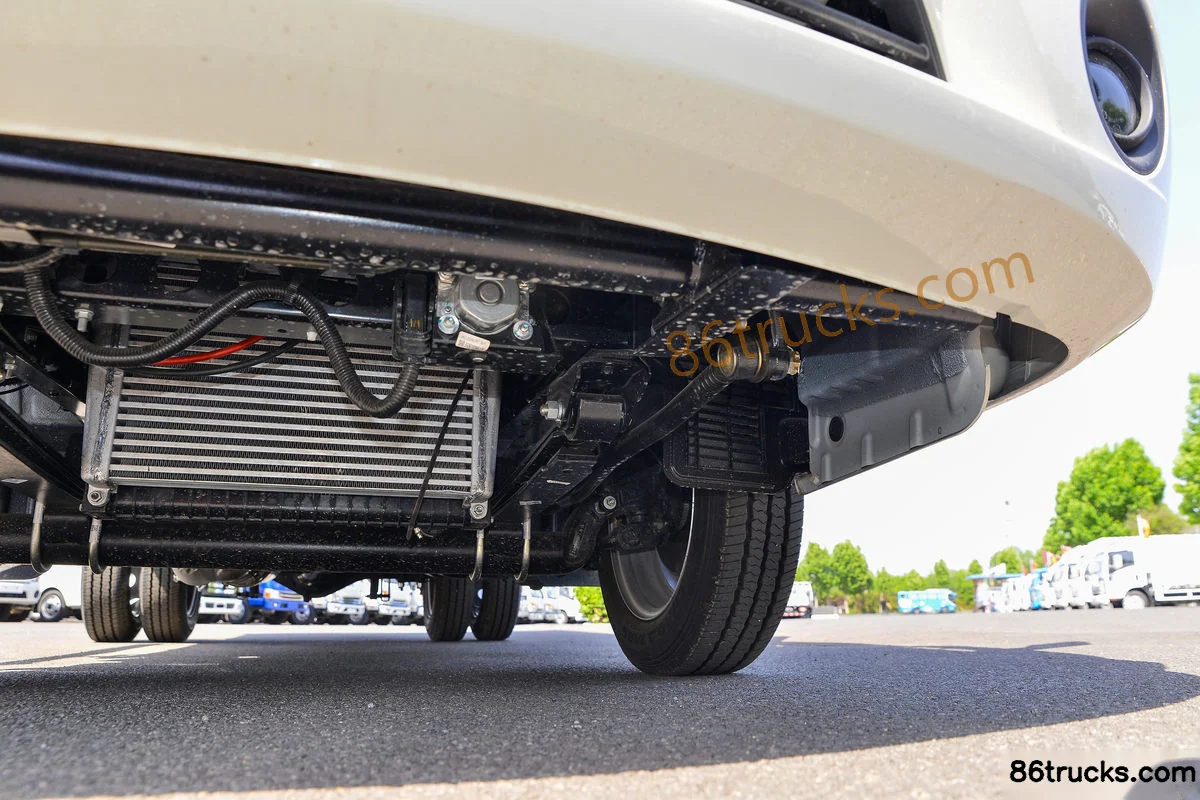

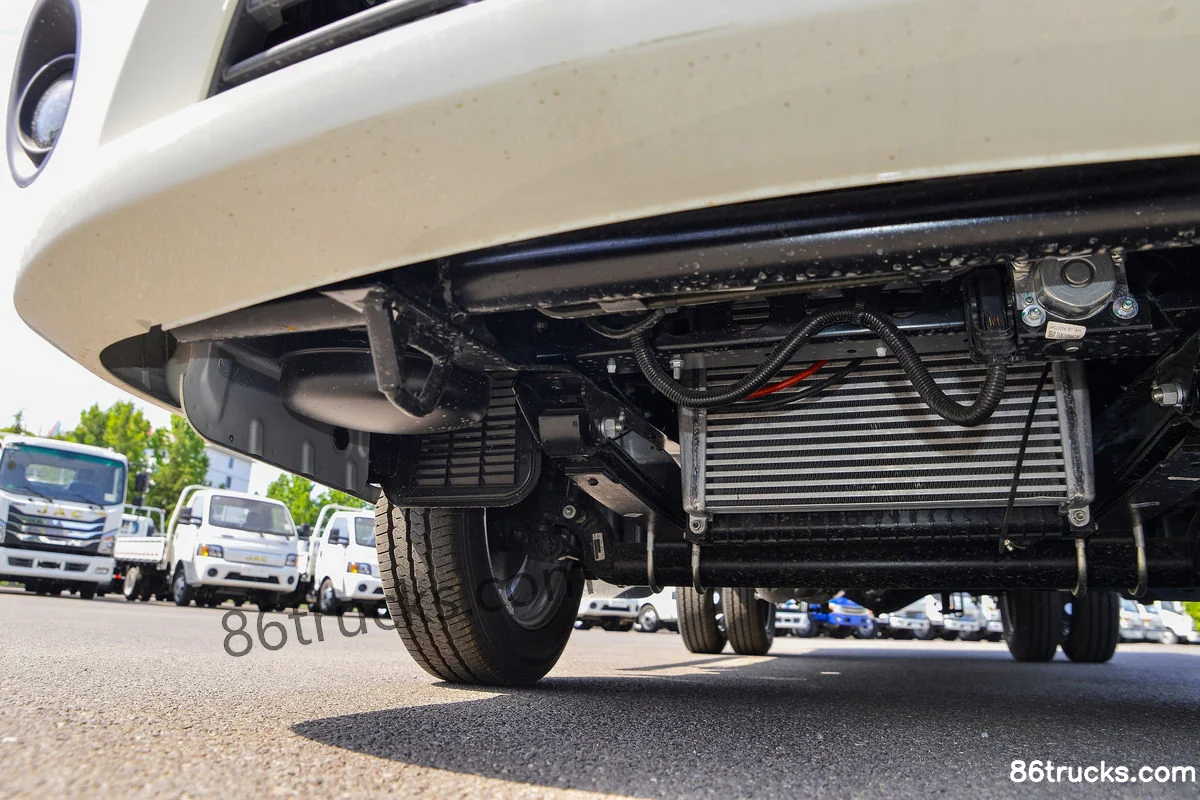

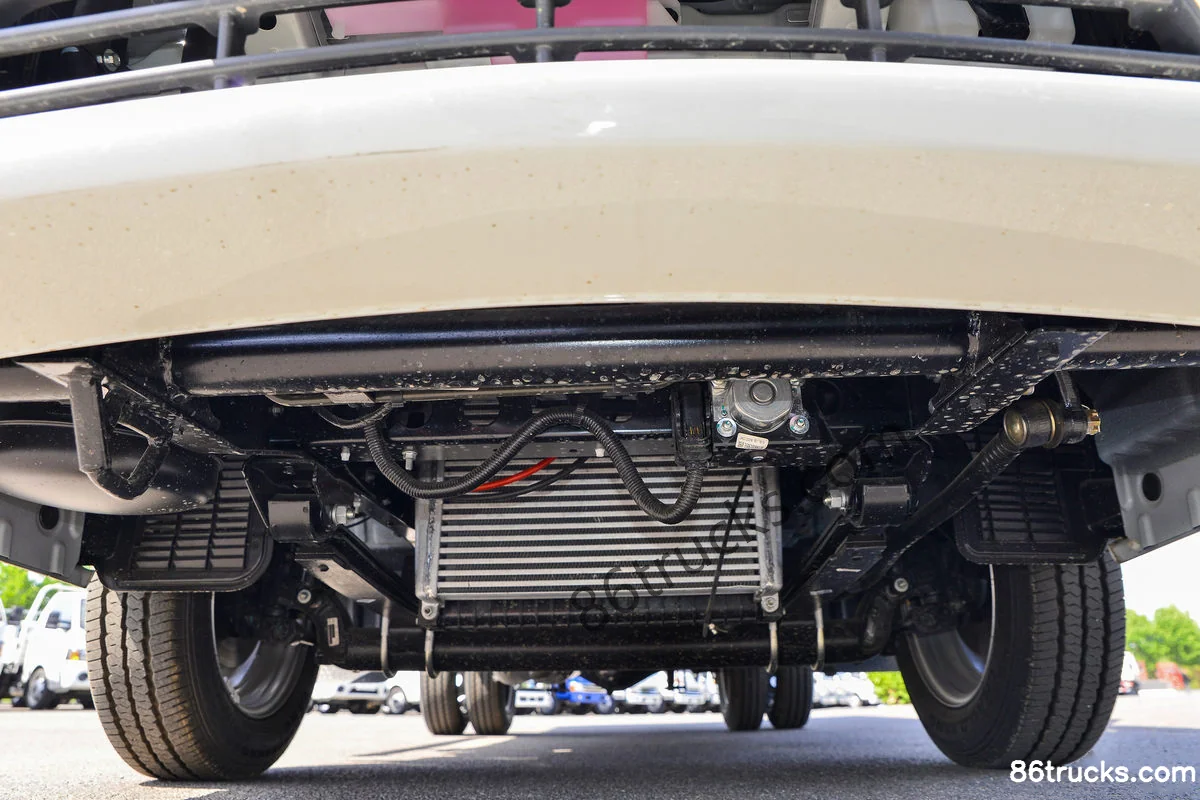

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Chassis (1) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Chassis (2) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Chassis (3) | 86Trucks

Body3

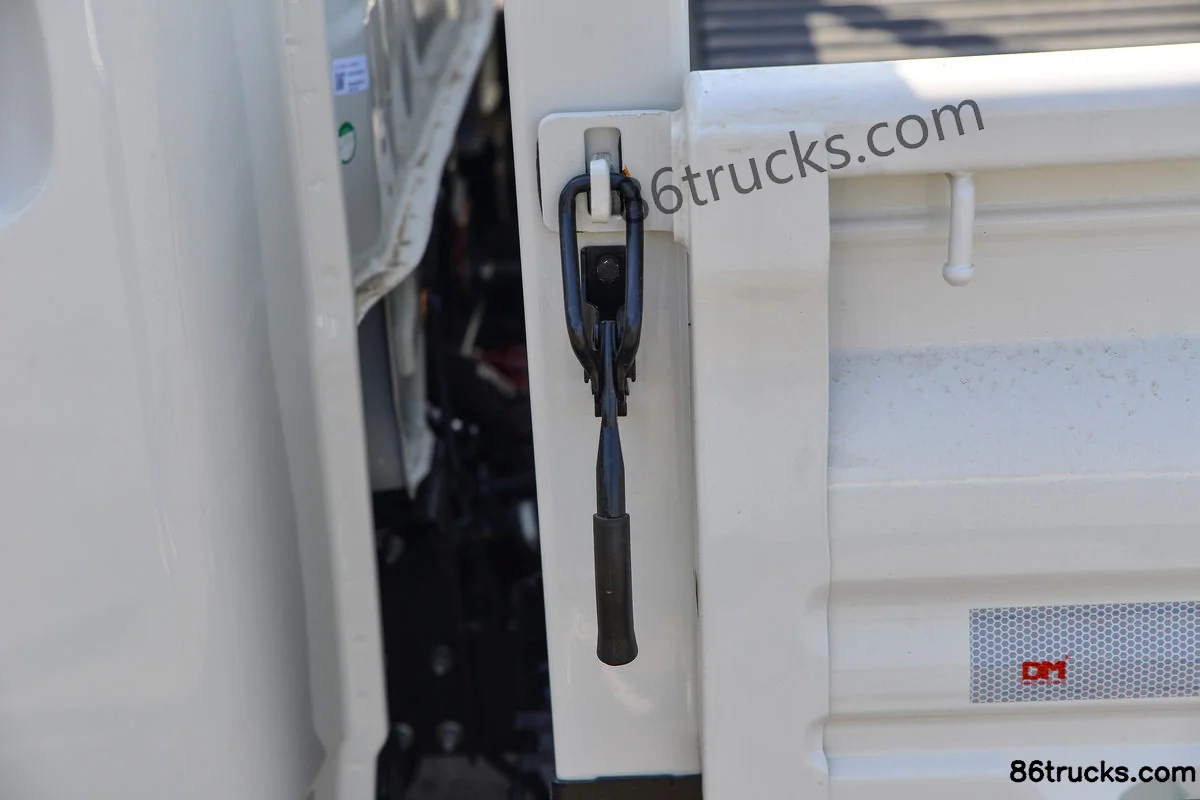

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Body (1) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Body (2) | 86Trucks JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck, and what does it include?

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck export reference is about From $10,736; MSRP is ¥7.73M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck?

Key specs of JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 95 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.3L; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck suited for?

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck differ from other variants in the same series?

JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck belongs to JACX5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kaida X5 95 hp 4X2(6 wheels) 3.8m Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
