Hanma 14S OR 2250 14-Speed Manual Transmission

Export reference
MSRP N/A
Matching Range:: Truck Tractor
Max input torque:: 2250N·m
1st gear ratio:: 9.227
Hanma 14S OR 2250 14-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: 14S OR2250
Transmission Brand: Hanma
Features: all 4 synchronizers use 171mm dual-cone synchronizer

Overview

The Hanma 14S OR 2250 14-Speed Manual Transmission is a parts product with spec 14S OR2250.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Hanma
Transmission series: 14-speed series
Features: all 4 synchronizers use 171mm dual-cone synchronizer
Matching Range: Truck Tractor
Max input torque: 2250N·m
1st gear ratio: 9.227
synchronizer: Yes
2nd gear ratio: 7.382
Low Gear 1: 13.281
3rd gear ratio: 5.823
4th gear ratio: 4.659
5th gear ratio: 3.75
Low Gear 2: 10.625
6th gear ratio: 3
7th gear ratio: 2.461
8th gear ratio: 1.963
Reverse Gear 1 Ratio: 11.621
Transmission weight: 330kg
9th gear ratio: 1.533
10-speed gear ratio: 1.242
11-speed gear ratio:
12-speed gear ratio: 0.8
Reverse Gear 2 Ratio: 9.297
Number of gears: 14Gear
Transmission Model: 14S OR2250
shift method: Manual
Forward gears: 14Gear
Number of Reverse Gears: 2pcs

Photos

Exterior3

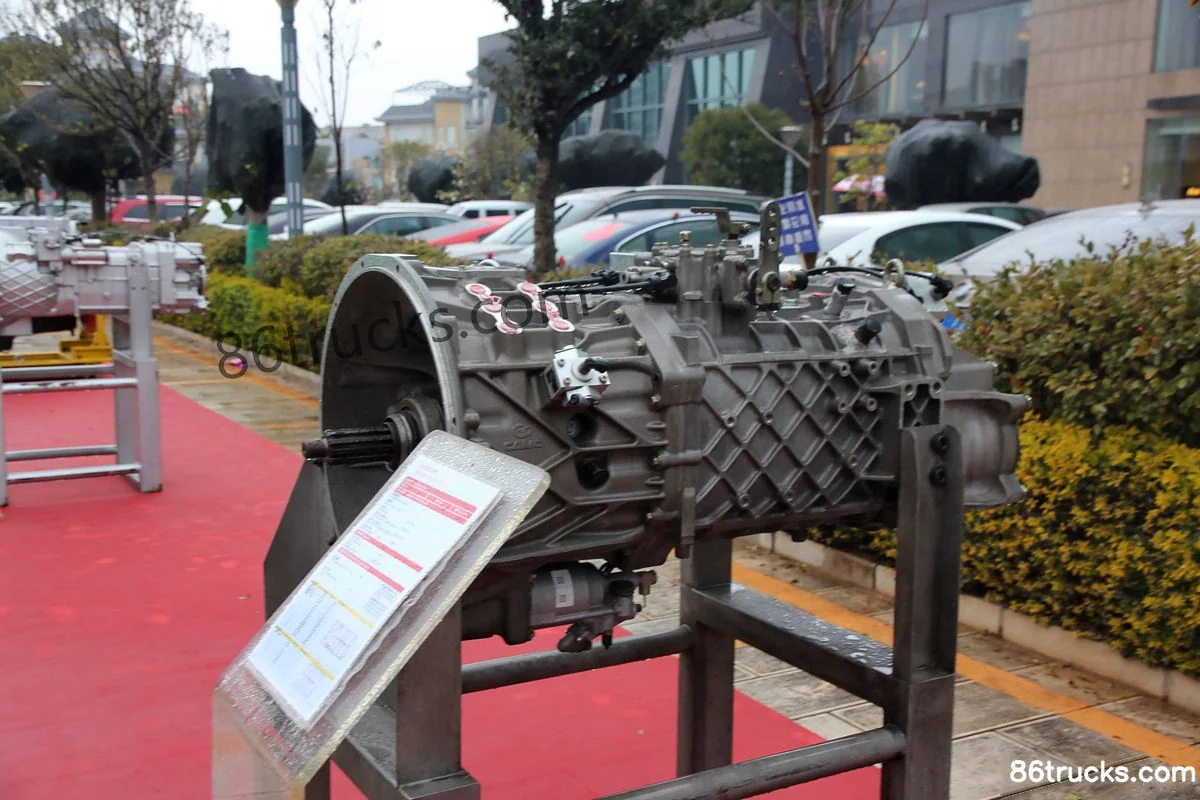

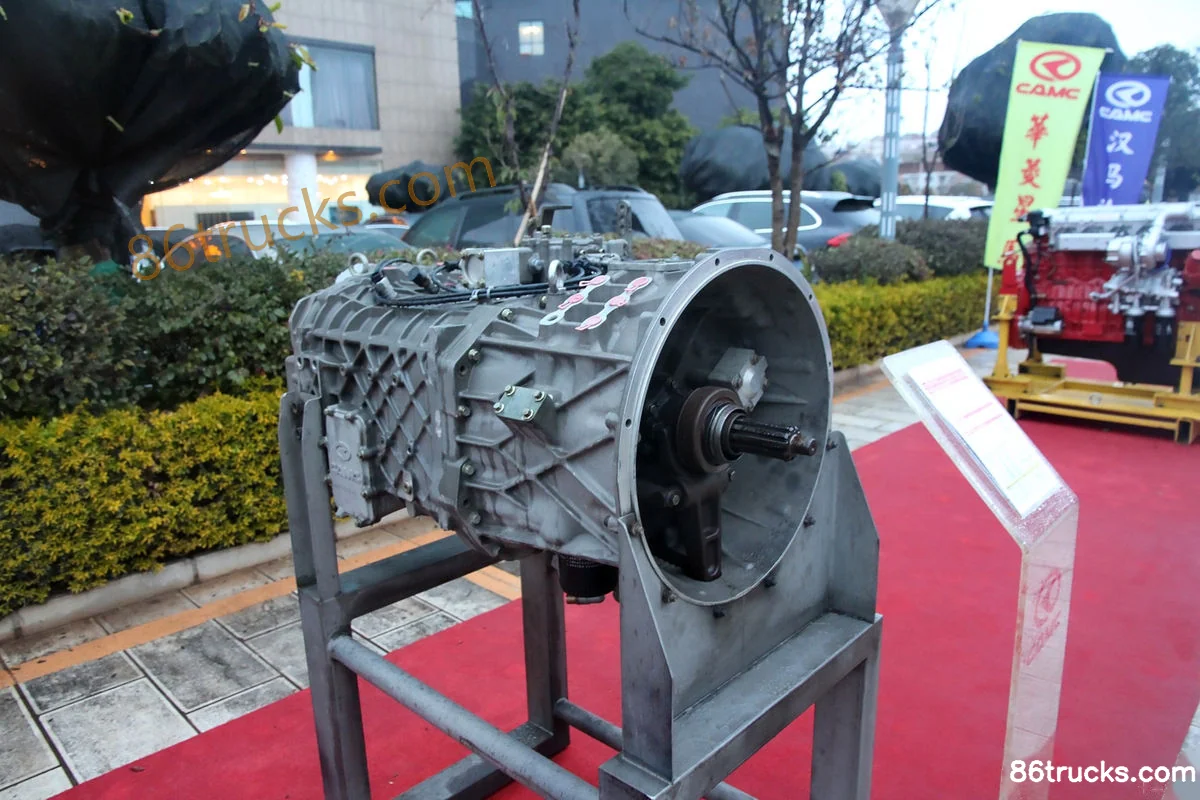

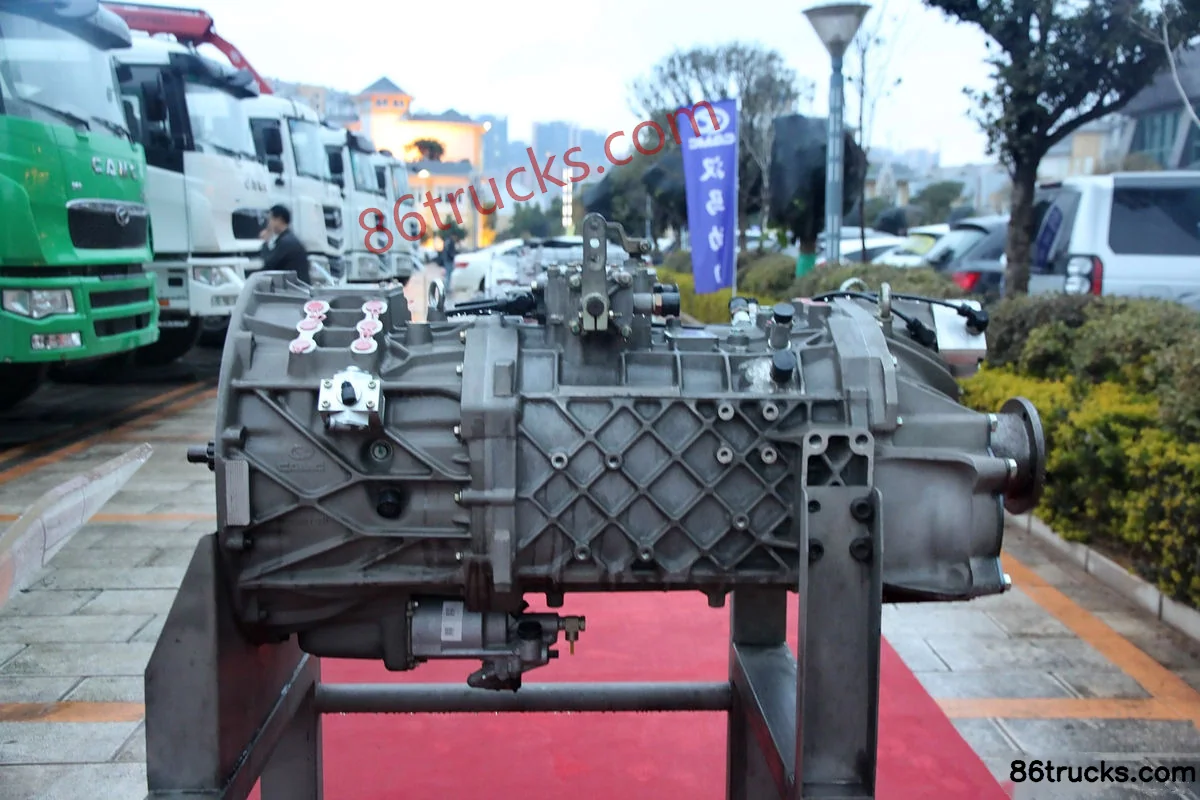

Hanma 14S OR 2250 14-Speed Manual Transmission Exterior (1) | 86Trucks Hanma 14S OR 2250 14-Speed Manual Transmission Exterior (2) | 86Trucks Hanma 14S OR 2250 14-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Hanma 14S OR 2250 14-Speed Manual Transmission suited for?

Match Hanma 14S OR 2250 14-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Hanma 14S OR 2250 14-Speed Manual Transmission differ from other variants in the same series?

Hanma 14S OR 2250 14-Speed Manual Transmission belongs to Hanma 14-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hanma 14S OR 2250 14-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hanma 14S OR 2250 14-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
