Meritor MFS66122 steer front axle

Export reference
MSRP N/A
Application Scope:: Highway logistics trucks and hazardous material transport trucks
Front/rear track width:: 2021mm
Brake:: Disc brake
Meritor MFS66122 steer front axle exterior
View more photos (2)
Axle Model: Meritor MFS66122
Brake size: 22.5
Axle Type: Steering axle

Overview

The Meritor MFS66122 steer front axle is a parts product with spec Meritor MFS66122 and 22.5 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: Meritor MFS66122
Axle Type: Steering axle
Application Scope: Highway logistics trucks and hazardous material transport trucks
Applicable Tire: 22.5
Front/rear track width: 2021mm
Rated axle load: 6600ton
Brake: Disc brake
Brake size: 22.5
curb weight: 400kg
Rim Used: 9.00x22.5; 8.25x22.5inch
Wheel Bolts: 10xM22x1.5mm
Remarks: Max steering angle: 45°, kingpin center distance: 1752.6 mm; weight approx. 30 kg lighter than domestic same-class axles; Meritor original brake, larger braking torque; imported friction linings, longer service life; grease or oil lubrication, oil change interval up to 1 year or 160,000 km for high-speed passenger vehicles (Meritor approved oil); larger steering angle, lower steering effort; adjustable tie rod for easy caster and camber adjustment, improving tire life; inclined kingpin design for improved vehicle stability.

Photos

Exterior2

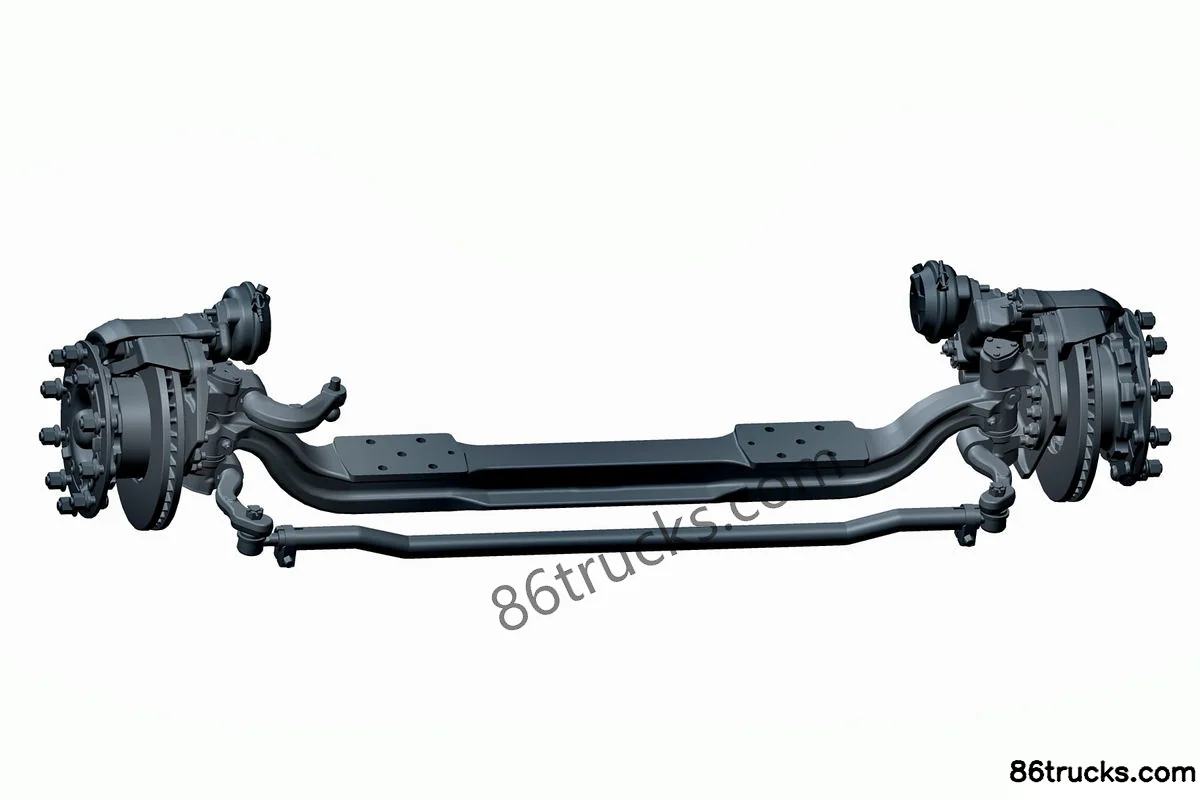

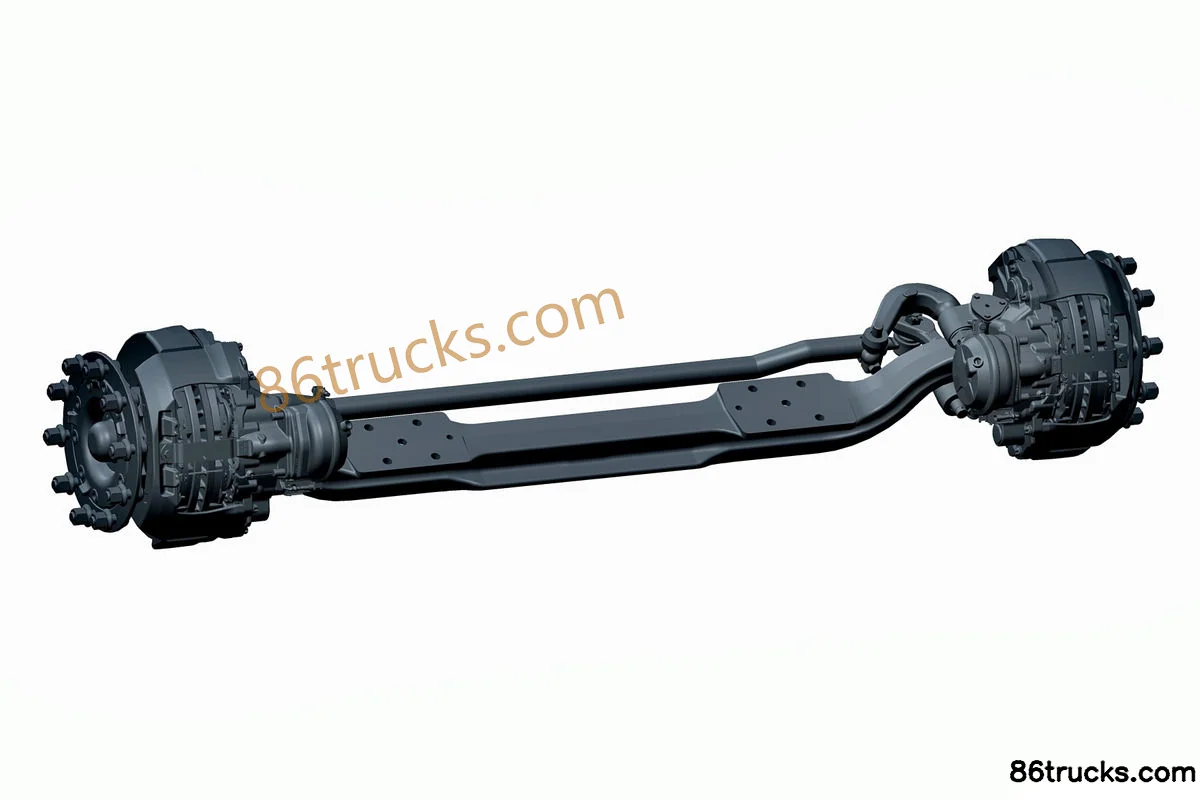

Meritor MFS66122 steer front axle Exterior (1) | 86Trucks Meritor MFS66122 steer front axle Exterior (2) | 86Trucks

2 photos

FAQ

What transport jobs is Meritor MFS66122 steer front axle suited for?

Match Meritor MFS66122 steer front axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Meritor MFS66122 steer front axle differ from other variants in the same series?

Meritor MFS66122 steer front axle belongs to Meritor drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Meritor MFS66122 steer front axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Meritor MFS66122 steer front axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
