Doosan DX500LC crawler excavator

Export reference
MSRP N/A
Model:: DX500LC
Engine Model:: crawler excavator
Tonnage:: 50ton
Bucket capacity:: 2.14cubic meter
boom length:: 7100mm
Arm Length:: 3350mm
Doosan DX500LC crawler excavator exterior
View more photos (3)
Operating weight: 51.1ton
Bucket type: backhoe
Fuel Tank Capacity: 620L
Product power: Conventional Power

Overview

The Doosan DX500LC crawler excavator is a excavator featuring 51.1ton GVW, backhoe bucket capacity, 620L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: DX500LC
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 50ton
Bucket capacity: 2.14cubic meter
Operating weight: 51.1ton
boom length: 7100mm
Arm Length: 3350mm
Machine dimensions: 12.13×3.34×3.73mm
Track shoe width: 600mm
Counterweight ground clearance: 1460mm
Rear Overhang Radius: 3700mm
Min ground clearance: 770cm
hydraulic system
Max flow of main pump: 2×360L/min
Working hydraulic circuit: 31.4/boost 34.3
travel hydraulic circuit: 31.4/boost 34.3Mpa
Swing Hydraulic Circuit: 26.5Mpa
performance specs
Travel speed: 5.6/3.2km/h
Bucket digging force: 302kN
Arm Digging Force: 221.6kN
Oil capacity
Fuel Tank Capacity: 620L
coolant: 29.5L
hydraulic oil tank: 390L
Engine Oil Capacity: 28L
Operating Range
Max digging radius: 12120mm
Max digging depth: 7810mm
Max digging height: 11080mm
Max unloading height: 7880mm
Max vertical digging depth: 4410mm
Engine parameters
Engine Model: DoosanDE12TIS
Max output power: 238kW

Photos

Exterior3

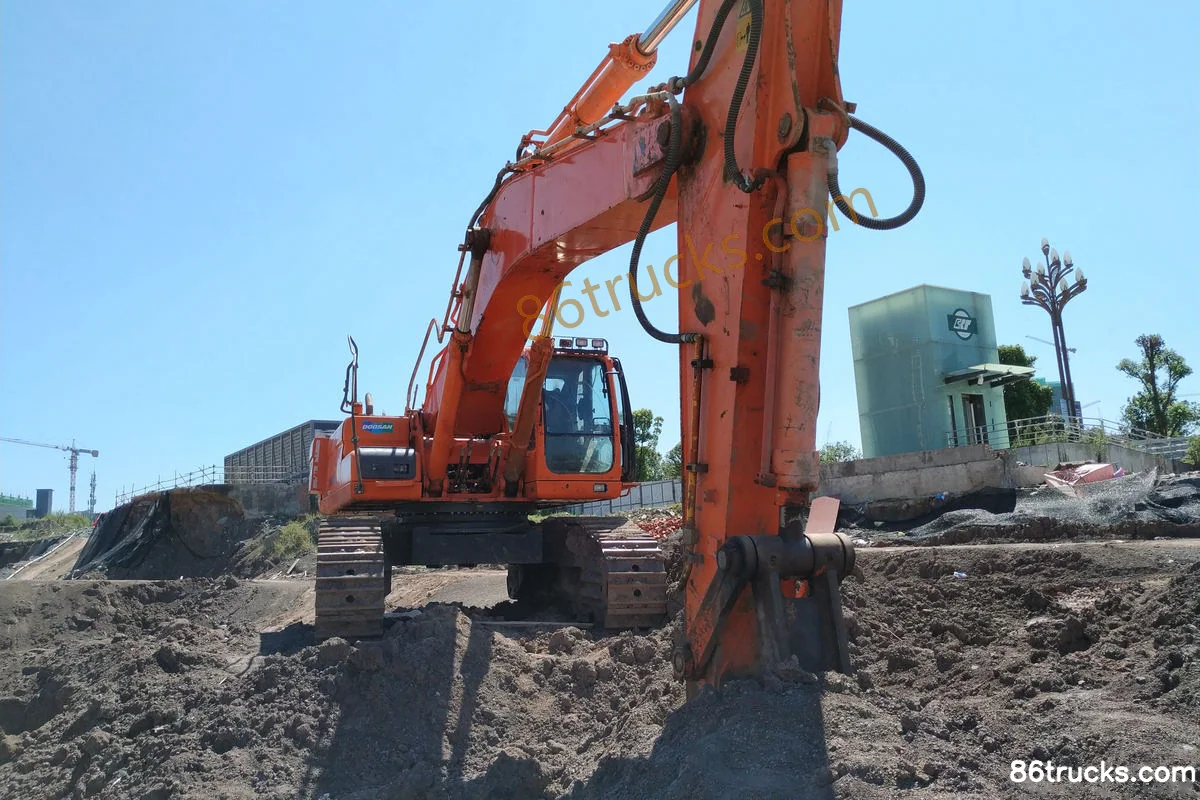

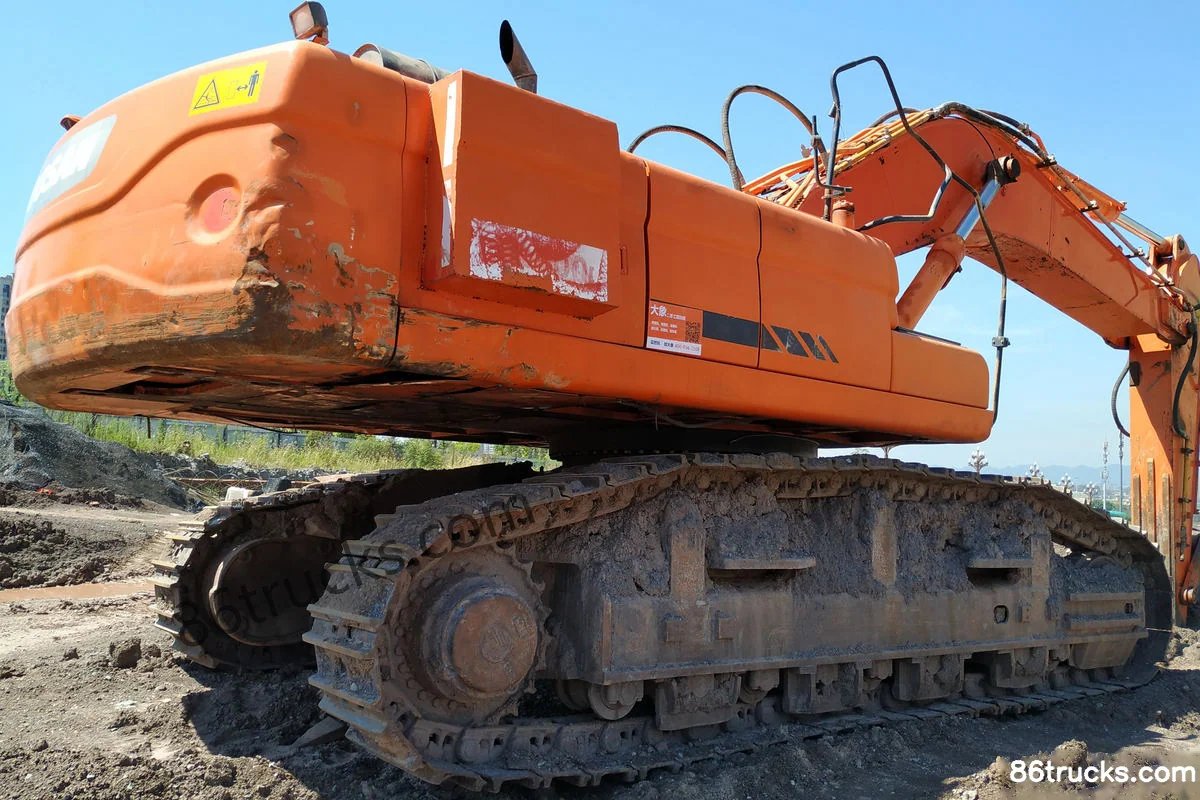

Doosan DX500LC crawler excavator Exterior (1) | 86Trucks Doosan DX500LC crawler excavator Exterior (2) | 86Trucks Doosan DX500LC crawler excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Doosan DX500LC crawler excavator suited for?

Doosan DX500LC crawler excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Doosan DX500LC crawler excavator differ from other variants in the same series?

Doosan DX500LC crawler excavator belongs to Doosan Doosan Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Doosan DX500LC crawler excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Doosan DX500LC crawler excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
