SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 17.5ton
Wheelbase:: 1800+3600+1350mm
Tire Size:: 12.00R20 18PR,11.00R2018PR
Cab dimensions:: 11.41×2.5×3.998m
Truck Type:: concrete mixer truck
Rated payload: 13.37ton
Drive 8X4 (12 wheels)
Horsepower 380
Emission China V

Overview

The SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) is a concrete mixer truck featuring 13.37t payload, 17.5ton GVW, 8X4 (12 wheels) drive and 11.41×2.5×3.998m cab. On the powertrain side, it comes with 380 hp, China V emissions and Diesel fuel.

China V 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.41×2.5×3.998m
Drive type: 8X4
Truck Type: concrete mixer truck
Wheelbase: 1800+3600+1350mm
Vehicle origin: Changsha, Hunan
Front/rear track width: Front track: 2022/2022mm; Rear track: 1830/1830
Curb Weight: 17.5ton
Rated payload: 13.37ton
Max. speed: 80km/h
Front/rear suspension: 1.5/2.935m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 276kW
Max hp: 380Horsepower
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Body Parameters
Mixing drum capacity: 6.1m³
Vehicle certification code: SYM5312GJB1EZ
Body Brand: SANY Group
Chassis Specs
Chassis Series: HOWO-7
Chassis Model: ZZ1317N3667E1
Axle ratio: 4.8
Leaf spring count: 11/11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW19710
Tire
Tire Size: 12.00R20 18PR,11.00R2018PR
Number of tires: 12pcs

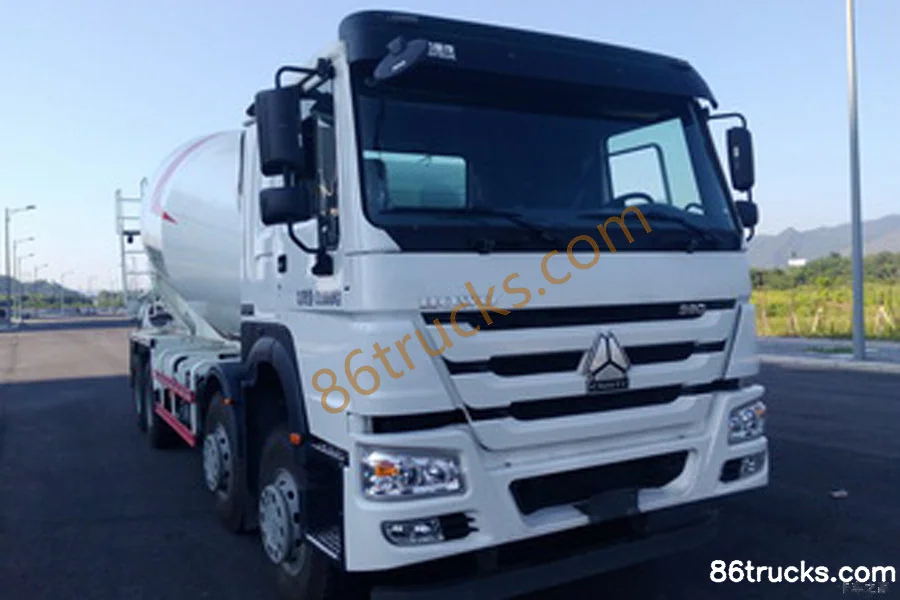

Photos

Exterior1

1 photos

FAQ

What emission standard does SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis)?

Key specs of SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis): Drive: 8x4; Horsepower: 380 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) suited for?

SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) differ from other variants in the same series?

SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis) belongs to SANY Truck Sinotruk HOWO chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 380hp 8X4(12 wheels) 6.1m³ concrete mixer truck (Sinotruk HOWO chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
