Caterpillar 320B Crawler Excavator

Export reference
MSRP N/A
Model:: 320B
Engine Model:: crawler excavator
Tonnage:: 20ton
Bucket capacity:: 0.92cubic meter
boom length:: 5680mm
Arm Length:: 2900mm
Caterpillar 320B Crawler Excavator exterior
View more photos (3)
Operating weight: 19.4ton
Bucket type: backhoe
Fuel Tank Capacity: 340L
Product power: Conventional Power

Overview

The Caterpillar 320B Crawler Excavator is a excavator featuring 19.4ton GVW, backhoe bucket capacity, 340L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 320B
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 20ton
Operating weight: 19.4ton
Bucket capacity: 0.92cubic meter
boom length: 5680mm
Arm Length: 2900mm
Machine dimensions: 9.44×2.8×2.94mm
Track shoe width: 600mm
Track gauge: 2200mm
Rear Overhang Radius: 2750mm
Min ground clearance: 475cm
hydraulic system
Max flow of main pump: 185L/min
Working hydraulic circuit: 34.3
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 23Mpa
performance specs
Travel speed: 3.4/5.5km/h
Oil capacity
Fuel Tank Capacity: 340L
coolant: 25L
hydraulic oil tank: 130L
Engine Oil Capacity: 20.5L
Operating Range
Max digging depth: 6640mm
Max digging height: 9470mm
Max unloading height: 6570mm
Max vertical digging depth: 6040mm
Engine parameters
Engine Model: CaterpillarCAT 3066T
Max output power: 99.9kW

Photos

Exterior3

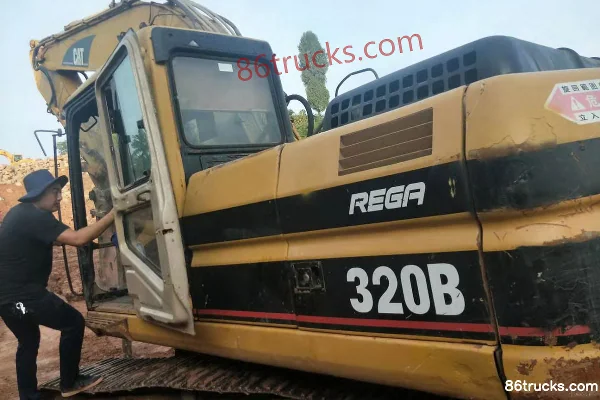

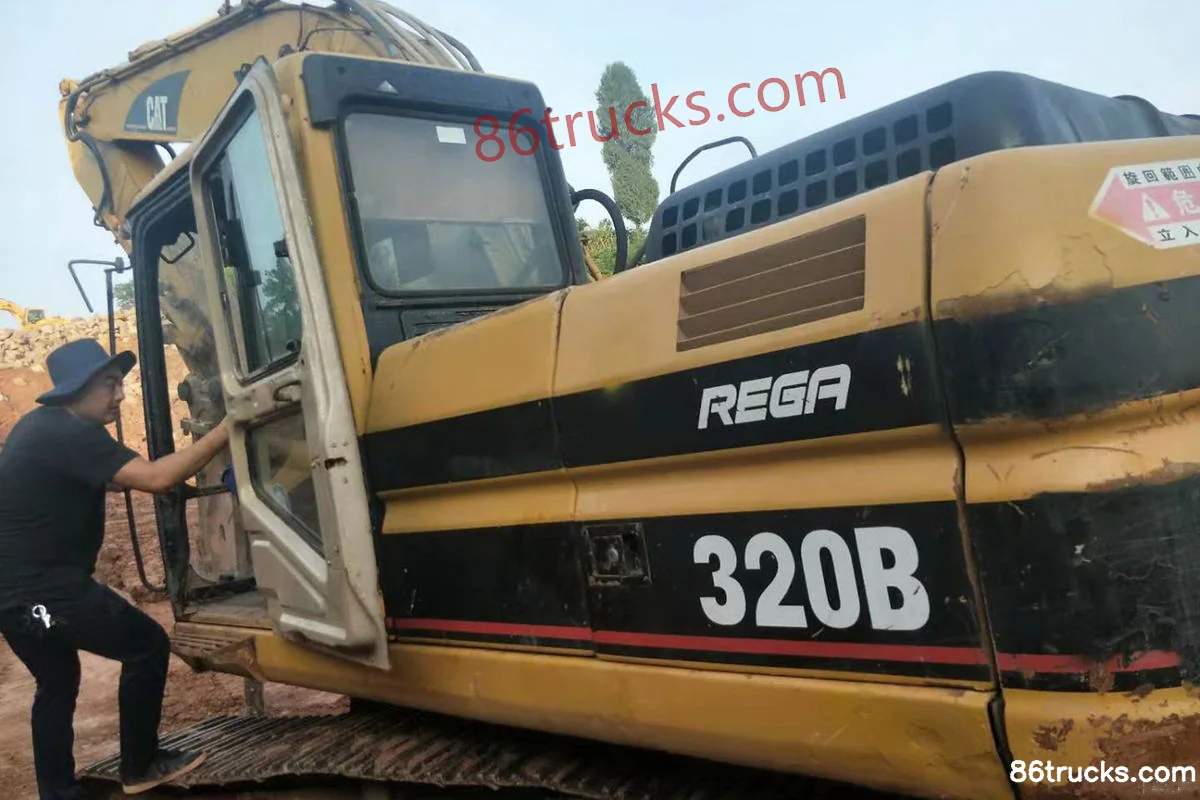

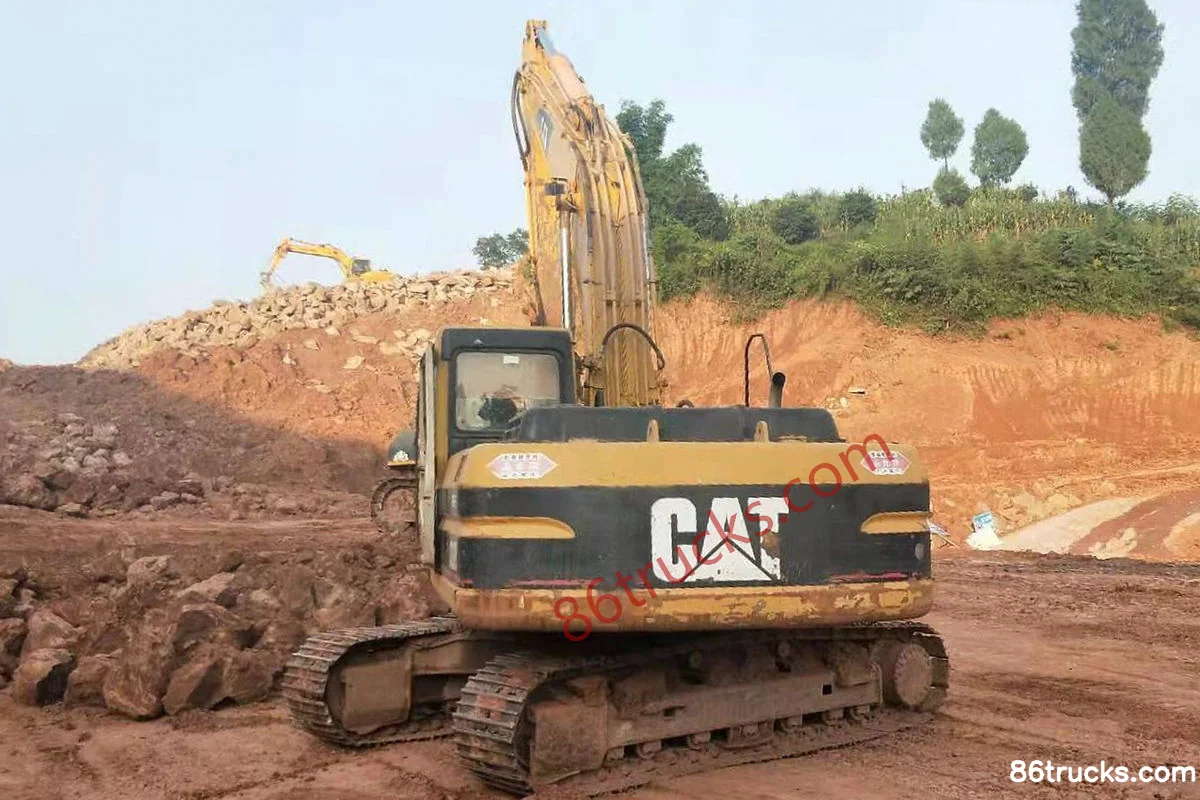

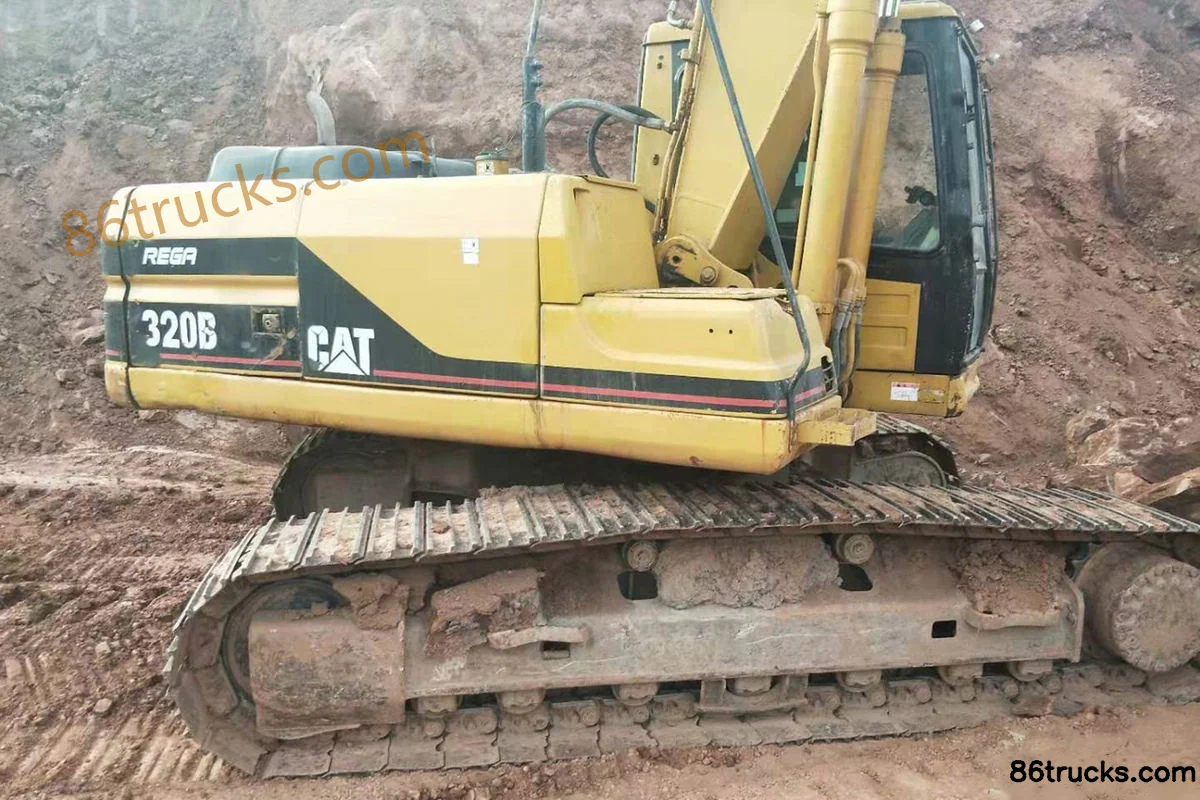

Caterpillar 320B Crawler Excavator Exterior (1) | 86Trucks Caterpillar 320B Crawler Excavator Exterior (2) | 86Trucks Caterpillar 320B Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 320B Crawler Excavator suited for?

Caterpillar 320B Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 320B Crawler Excavator differ from other variants in the same series?

Caterpillar 320B Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 320B Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 320B Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
