FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30)

Export reference
From $72,222
MSRP ¥52M CNY
Fuel: Diesel
Curb Weight:: 14.21ton
Wheelbase:: 1900+2950+1350mm
Tire Size:: 11.00R20-18
Cab dimensions:: 10.3×2.55×3.995m
Truck Type:: concrete mixer truck
Rated payload: 16.66ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) is a concrete mixer truck featuring 16.66t payload, 14.21ton GVW, 8X4 (12 wheels) drive and Flat roof, fully floating cab cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.3×2.55×3.995m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Pingdingshan, Henan
Front/rear track width: Front: 2050/2050mm; Rear: 1878/1878
Wheelbase: 1900+2950+1350mm
Curb Weight: 14.21ton
Rated payload: 16.66ton
Max. speed: 89km/h
Front/rear suspension: 1.495/2.605m
Body Parameters
Mixing drum capacity: 7.6m³
Vehicle certification code: AYD5312GJBCA30
Body Brand: Shenzhou Yongda
Engine parameters
Engine Model: WeichaiWP8.320E51A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Rated speed: 2100rpm
Chassis Specs
Chassis Series: FAW JiefangJH6
Chassis Model: CA1310P27K2L1T4S2BE5A81
rear axle description: 290 wheel reduction axle
Axle ratio: 6.733
Leaf spring count: 10/10/10 (low arch)
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD135
Cab parameters
Cab: Flat roof, fully floating cab
Tire
Tire Size: 11.00R20-18
Number of tires: 12pcs

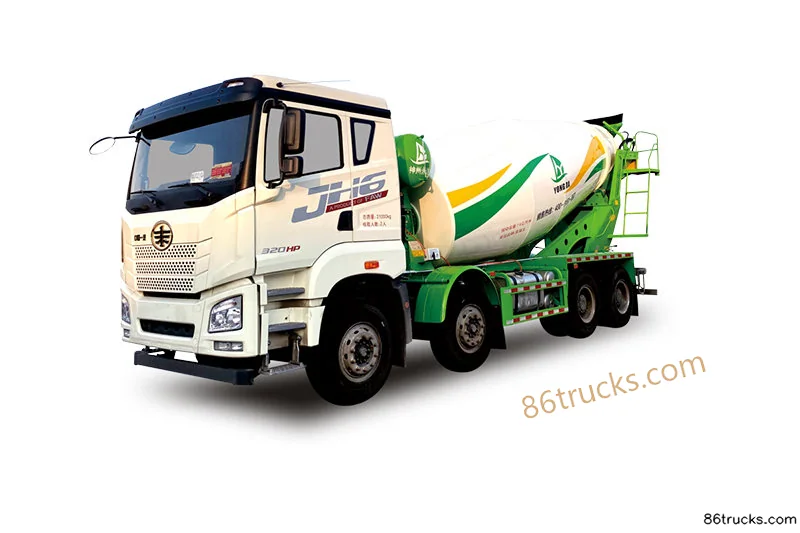

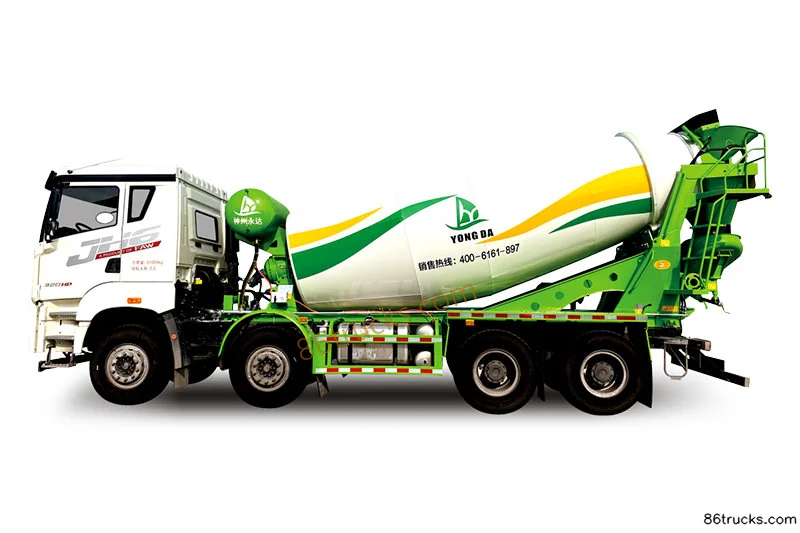

Photos

Exterior2

2 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30), and what does it include?

FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) export reference is about From $72,222; MSRP is ¥52M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30)?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) suited for?

FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30) belongs to Shenzhou Yongda (Shenzhou Yongda) FAW Jiefang Qingdao Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck 320hp 8X4(12 wheels) 7.6m³ Concrete Mixer Truck (Shenzhou Yongda Brand)(Convex Floor)(AYD5312GJBCA30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
