Caterpillar 305.5E Hydraulic Crawler Excavator

Export reference
MSRP N/A
Model:: 305.5E
Engine Model:: crawler excavator
Tonnage:: 5ton
Bucket capacity:: 0.22cubic meter
boom length:: 3200mm
Arm Length:: 1500mm
Caterpillar 305.5E Hydraulic Crawler Excavator exterior
View more photos (3)
Operating weight: 5.35ton
Bucket type: backhoe
Fuel Tank Capacity: 78L
Product power: Conventional Power

Overview

The Caterpillar 305.5E Hydraulic Crawler Excavator is a excavator featuring 5.35ton GVW, backhoe bucket capacity, 78L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 305.5E
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 5ton
Bucket capacity: 0.22cubic meter
Operating weight: 5.35ton
boom length: 3200mm
Arm Length: 1500mm
Machine dimensions: 5.765×1.95×2.54mm
Track shoe width: 400mm
Track gauge: 1550mm
Counterweight ground clearance: 628mm
Rear Overhang Radius: 1580mm
hydraulic system
Max flow of main pump: 140L/min
Working hydraulic circuit: 25
travel hydraulic circuit: 25Mpa
Swing Hydraulic Circuit: 21.6Mpa
performance specs
Travel speed: 4.3/2.8km/h
Bucket digging force: 35kN
Max tractive force: 40.2kN
Arm Digging Force: 27.2kN
Oil capacity
Fuel Tank Capacity: 78L
coolant: 9.8L
hydraulic oil tank: 58L
Engine Oil Capacity: 9.7L
Operating Range
Max digging radius: 5955mm
Max digging depth: 3720mm
Max digging height: 5460mm
Max unloading height: 3835mm
Max vertical digging depth: 2210mm
Engine parameters
Engine Model: CAT C2.4DI
Max output power: 34.1kW

Photos

Exterior3

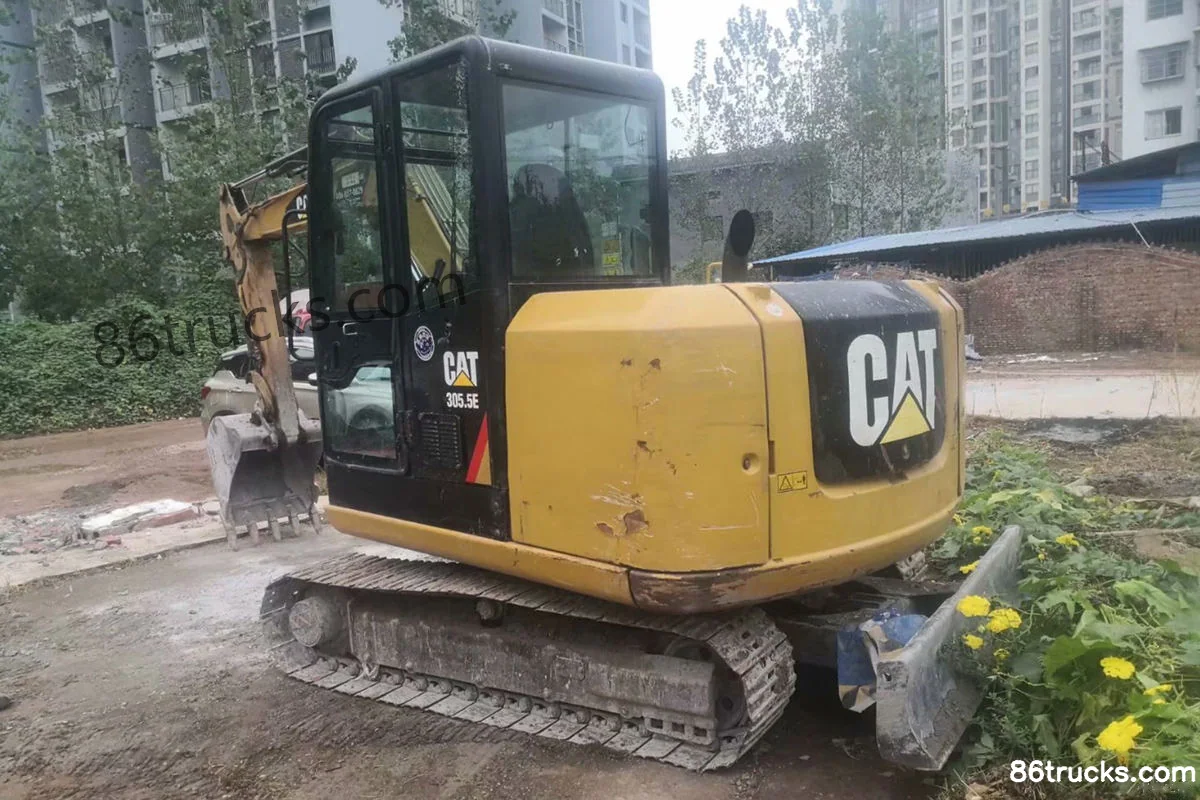

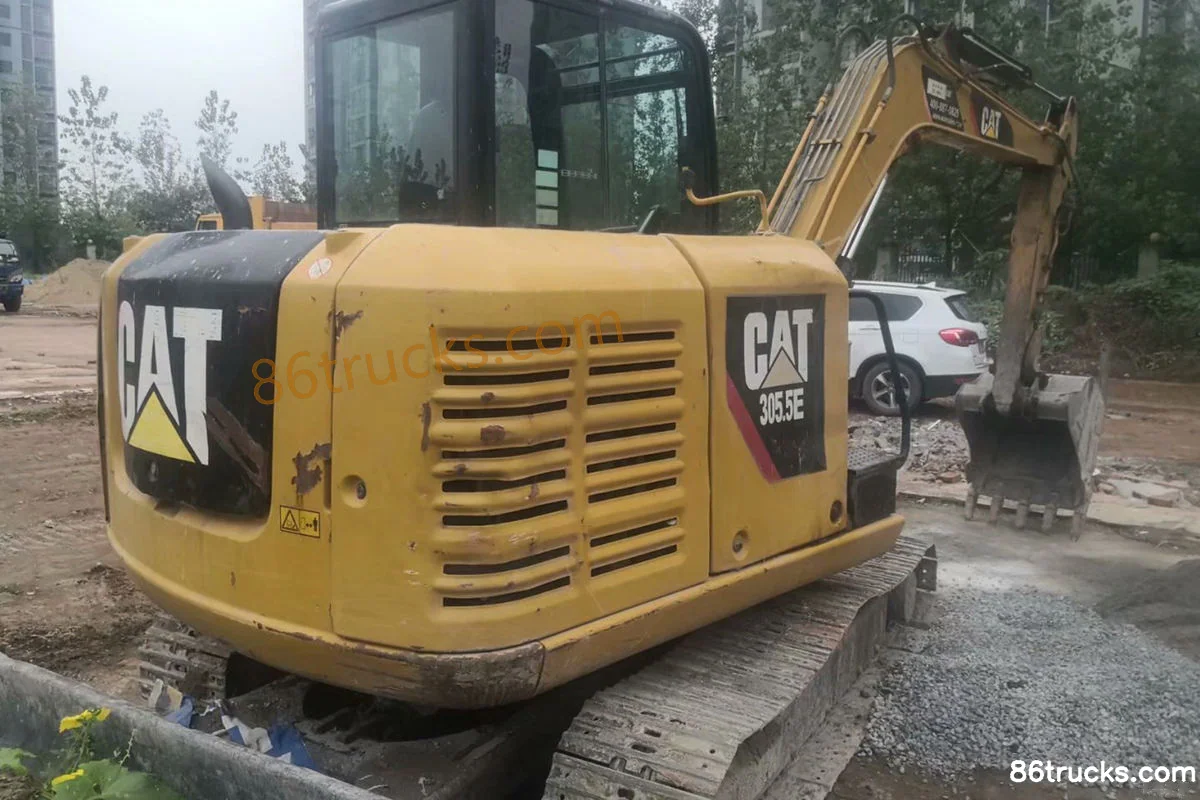

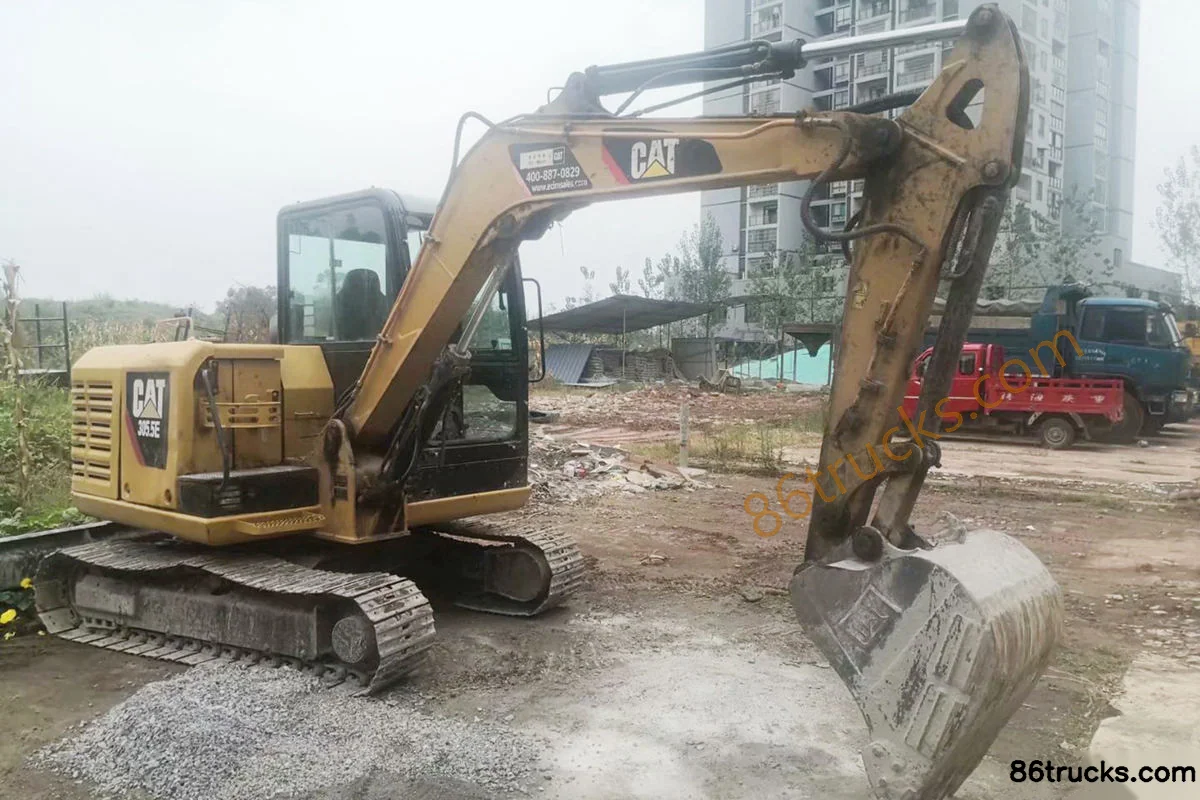

Caterpillar 305.5E Hydraulic Crawler Excavator Exterior (1) | 86Trucks Caterpillar 305.5E Hydraulic Crawler Excavator Exterior (2) | 86Trucks Caterpillar 305.5E Hydraulic Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 305.5E Hydraulic Crawler Excavator suited for?

Caterpillar 305.5E Hydraulic Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 305.5E Hydraulic Crawler Excavator differ from other variants in the same series?

Caterpillar 305.5E Hydraulic Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 305.5E Hydraulic Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 305.5E Hydraulic Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
