Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.5×2.3×3.55m
Type:: truck-mounted crane
GVWR:: 11.45ton
Front/rear suspension:: 1.46/2.14m
Drive 4X2 (6 wheels)
Horsepower 130
Rated mass: 3.775ton
Emission China V

Overview

The Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane is a truck-mounted crane featuring 11.45t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 130 hp, China V emissions and Diesel fuel.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.5×2.3×3.55m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900mm
Rated mass: 3.775ton
GVWR: 11.45ton
Front/rear suspension: 1.46/2.14m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S130-50
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 430N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Body Parameters
Vehicle certification code: STQ5118JSQN5
Body Brand: Sanhuan Shitong
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Chuangke
Chassis Model: STQ1118L07Y1N5
Leaf spring count: 8/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: Flat roof
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs

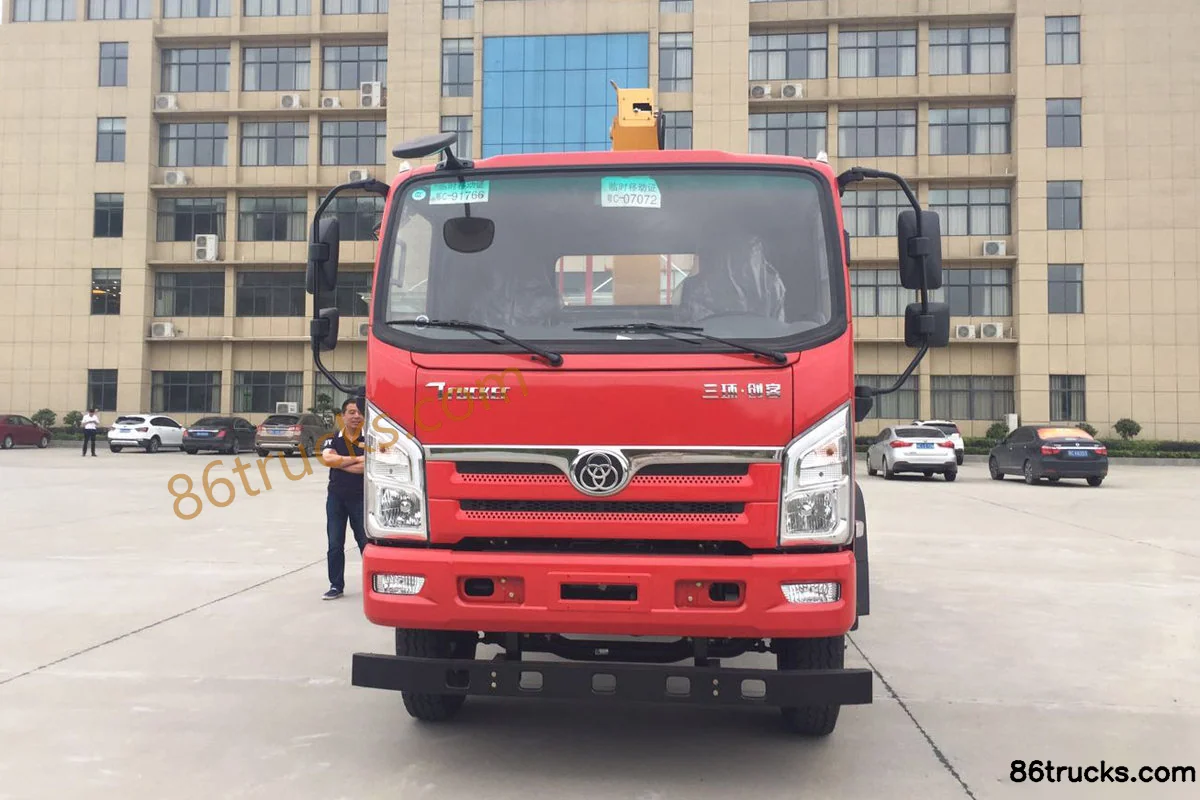

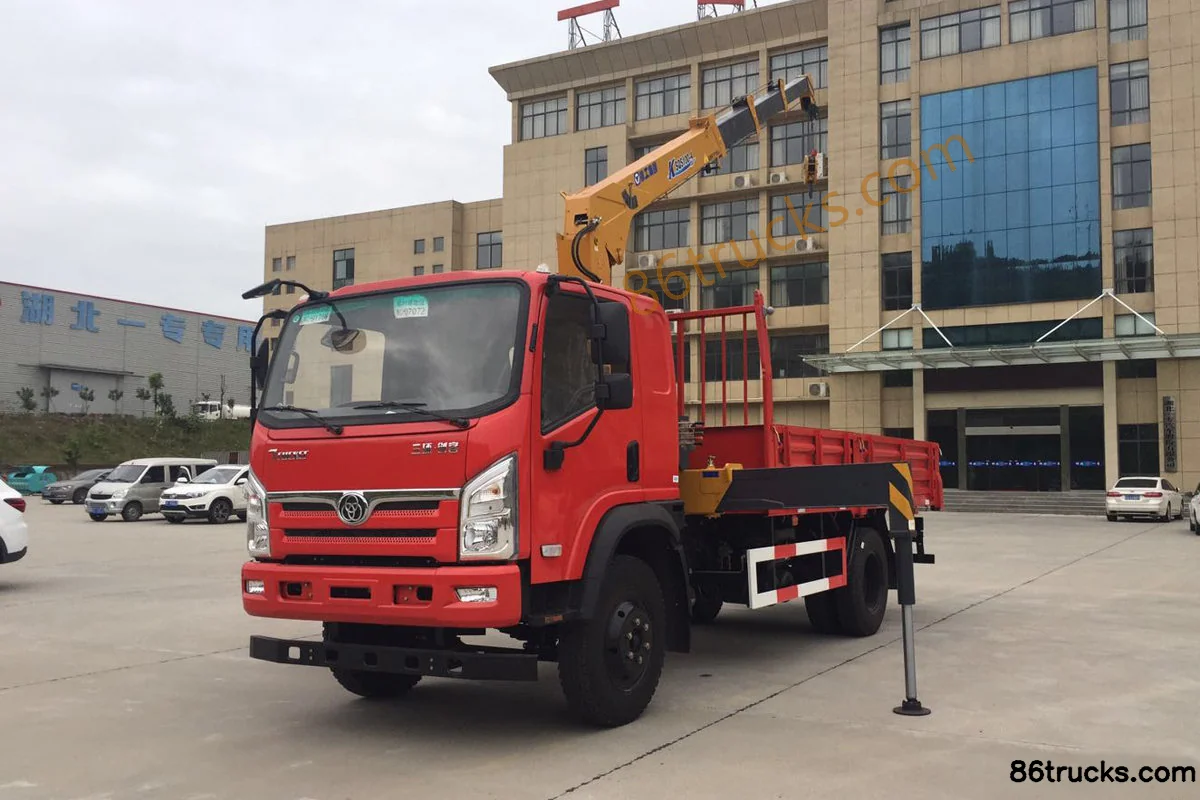

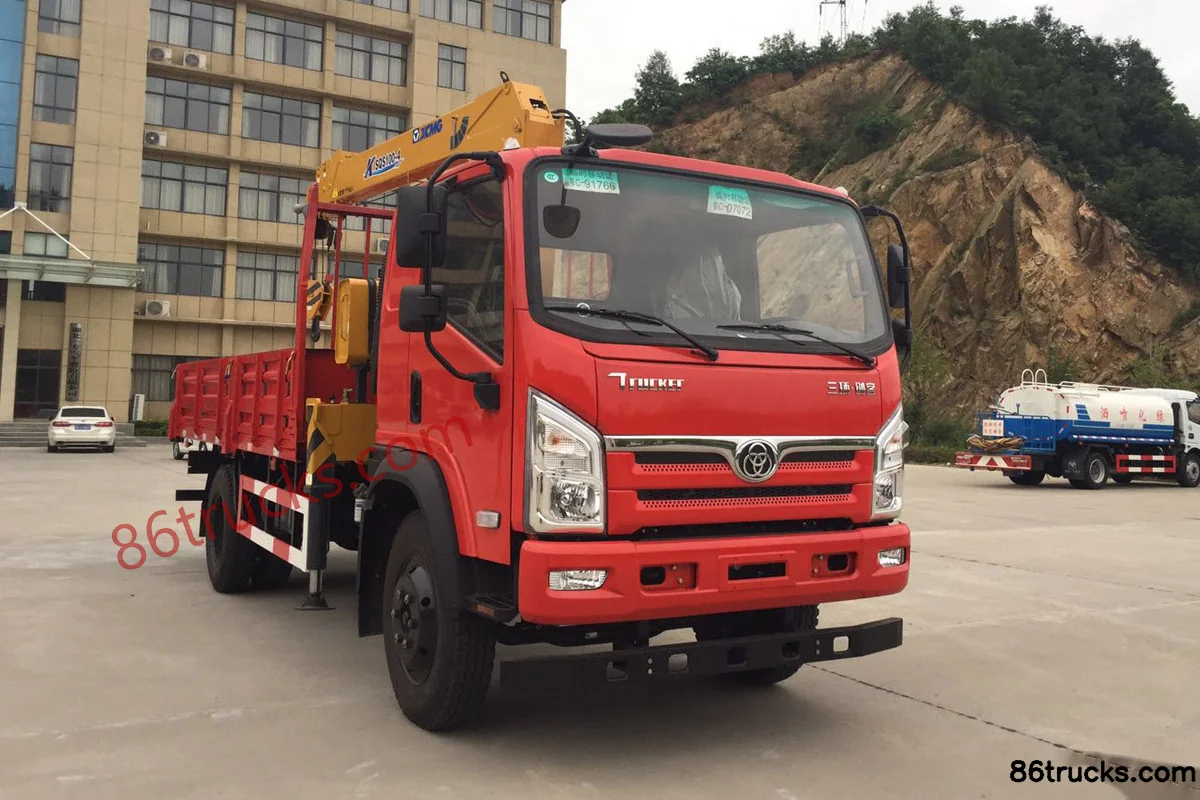

Photos

Exterior3

3 photos

FAQ

What emission standard does Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane?

Key specs of Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane suited for?

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane belongs to Sanhuan Shitong Chuanke Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 4.3m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
