SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 6X4(10 wheels) 8.3m truck-mounted crane
EXW
From $37,667
Export quote
SHACMAN Commercial Vehicle Xuande Yi 6
Main model photos
196 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande Wing 6 300 hp 6X4(10 wheels) 8.3m truck-mounted crane | 4x2 / 300hp / China VI | From $37,667 | |
| SHACMAN Commercial Vehicle Xuande Wing 6 270 hp 6X4(10 wheels) 8.3m truck-mounted crane | 4x2 / 270hp / China VI | From $37,347 | |
| SHACMAN Commercial Vehicle Xuande Y6 Standard Load Edition 300 hp 6X4(10 wheels) 8.6m Truck Mounted Crane | 6x4 / 330hp / China VI | From $41,819 | |
| SHACMAN Commercial Vehicle Xuande Wing 6 200 hp 4X2(6 wheels) 5.5m Truck-Mounted Crane | 4x2 / 200hp / China VI | From $33,403 | |
| SHACMAN Commercial Vehicle Xuande Wing 6 270 hp 6X4(10 wheels) 8.5m Truck-Mounted Crane | 6x4 / 270hp / China VI | From $40,667 |
SHACMAN Commercial Vehicle Xuande Wing 6 270 hp 6X4(10 wheels) 8.3m truck-mounted crane
EXW
From $37,347
Export quote
SHACMAN Commercial Vehicle Xuande Y6 Standard Load Edition 300 hp 6X4(10 wheels) 8.6m Truck Mounted Crane
EXW
From $41,819
Export quote

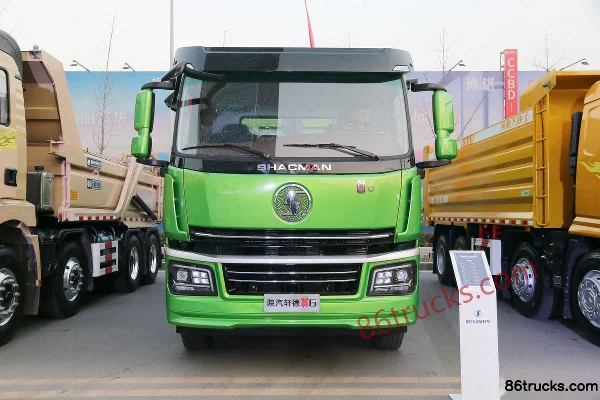

SHACMAN Commercial Vehicle Xuande Wing 6 200 hp 4X2(6 wheels) 5.5m Truck-Mounted Crane
EXW
From $33,403
Export quote
SHACMAN Commercial Vehicle Xuande Wing 6 270 hp 6X4(10 wheels) 8.5m Truck-Mounted Crane
EXW
From $40,667
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande Yi6 160hp 4X2(6 wheels) 6.1m Truck Mounted Crane | 4x2 / 160hp / China V | From $24,486 | |
| SHACMAN Commercial Vehicle Xuande Yi6 185hp 4X2(6 wheels) 6.1m Truck Mounted Crane | 4x2 / 185hp / China V | From $25,597 | |
| SHACMAN Commercial Vehicle Xuande Yi6 180hp 4X2(6 wheels) 6.1m Truck Mounted Crane | 4x2 / 180hp / China V | From $26,181 | |
| SHACMAN Commercial Vehicle Xuande Yi6 270hp 6X4(10 wheels) 7.8m Truck Mounted Crane | 6x4 / 270hp / China V | From $33,806 | |
| SHACMAN Commercial Vehicle Xuande Yi6 240hp 6X4(10 wheels) 7.8m Truck Mounted Crane | 6x4 / 240hp / China V | From $32,958 |
SHACMAN Commercial Vehicle Xuande Yi6 160hp 4X2(6 wheels) 6.1m Truck Mounted Crane
EXW
From $24,486
Export quote
SHACMAN Commercial Vehicle Xuande Yi6 185hp 4X2(6 wheels) 6.1m Truck Mounted Crane
EXW
From $25,597
Export quote
SHACMAN Commercial Vehicle Xuande Yi6 180hp 4X2(6 wheels) 6.1m Truck Mounted Crane
EXW
From $26,181
Export quote
SHACMAN Commercial Vehicle Xuande Yi6 270hp 6X4(10 wheels) 7.8m Truck Mounted Crane
EXW
From $33,806
Export quote
SHACMAN Commercial Vehicle Xuande Yi6 240hp 6X4(10 wheels) 7.8m Truck Mounted Crane
EXW
From $32,958
Export quote
Series Specs
Basic Info
Cab dimensions: 12x2.55x3.95 / 12×2.55×3.9 / 9×2.55×3.82 / 12×2.55×3.8 / 9×2.55×3.85 / 9.0×2.55×3.85 / 11.5×2.5×3.65 / 12×2.55×3.85 / 9×2.4×0.6m
Type: Truck with crane / truck-mounted crane
Drive type: 4x2 / 6X4
Wheelbase: 5800+1300 / 5200 / 4600mm
Rated mass: 8.605 / 5.805 / 6.425 / 9.435 / 9.605ton
Front track width: 1970mm
rear track: 1860/1860mm
GVWR: 25 / 18 / 24.5ton
Front/rear suspension: 1.45/3.45 / 1.45/2.35 / 1.45/2.48 / 1.45/3.4 / 1.45/3.1m
Energy Type: Diesel
Body Parameters
Crane model: JSQ200 / JSQ300
Lifting capacity: 8 / 12 / 12T / 6.3-8T / 10-12Tton
crane self-weight: 3.55 / 4.5ton
Vehicle certification code: SX5250JSQGP6584 / SX5180JSQGP6521 / SX5180JSQGP5 / SX5251JSQGP5 / SX5250JSQGP5
Body Brand: SHACMAN Commercial Vehicle
Engine parameters
Engine Brand: Yuchai / Weichai
Engine Model: YuchaiYCS06300-61 / YuchaiYCS06270-60 / YuchaiYCK08330-60 / YuchaiYCS06200-60 / YuchaiYC4E160-56 / YuchaiYC4EG185-50 / YuchaiYC6JA180-50 / YuchaiYC6A270-50 / YuchaiYC6JA240-50 / WeichaiWP7.270E51 / WeichaiWP6.245E50
Displacement: 6.442 / 6.23 / 7.7 / 4.26 / 4.73 / 6.87 / 7.52 / 7.47 / 6.75L
Emission standard: China VI / China V
Max output power: 221 / 199 / 243 / 147 / 118 / 136 / 132 / 177 / 180kW
Max hp: 300 / 270 / 330 / 200 / 160 / 185 / 180 / 240 / 245Horsepower
Max torque: 1350 / 750 / 1050 / 600 / 700 / 1100 / 950 / 1160 / 900N·m
Max torque speed: 1200-1700 / 1300-1600 / 1300-1800 / 1200-1800 / 1200-1600rpm
Rated speed: 2300 / 2200 / 2600 / 2500rpm
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle / SHACMAN brand
Chassis Series: Xuande Yi6
Chassis Model: SX1250GP6584 / SX1180GP6501 / SX1181GP5 / SX1250GP5
Frame Dimensions: 300/8+6+8/ outer three-layer / 300/8+6+8 outer three-layer / 300/8+6+8 / 300/8+6+8 inner three-layer / 250/6+4 double-layer / 300/(8+6+8) external three-layer / 300/(8+6+8)/embedded three-layermm
rear axle description: HDZ11.5t single reduction dual axle / 10T+10T / 10T / 153B+153B/10T+10T / 153B
Axle ratio: 5.143
Leaf spring count: 10/10 / 9/11+8 / 9/10,10/12,12/12,10/10,9/12,3/4 / 9/10+8,9/10+6,9/11+8,8/10+8,3/4+3,3/3+2,2/3+2 / 9/10+6 / 9/10 / 9/10+8
Transmission Parameters
Number of gears: 9 / 10 / 8Gear
Transmission Model: Fast GearS9MOT / Fast Gear10JSD120TB / Fast Gear8JS85E-C / Fast Gear9JS119A / Fast Gear8JS85F-C / Fast Gear9J119TA / Fast Gear9J119A
Cargo box parameters
Cargo box length: 8.3m
Cargo box width: 2.45m
Cargo box height: 0.6m
Cab parameters
Cab: Semi-high roof/2220 / Yi6 semi-high roof/2220
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Tire
Tire Size: 11.00R20/18PR / 11.00R20 18PR / 10.00R20 18PR / 10.00R20/18PR
FAQ
What kind of truck is SHACMAN Commercial Vehicle SHACMAN Commercial Vehicle Xuande Yi 6 truck-mounted crane?
SHACMAN Commercial Vehicle SHACMAN Commercial Vehicle Xuande Yi 6 is an export-oriented truck-mounted crane lineup with about 19 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Commercial Vehicle Xuande Yi 6?
SHACMAN Commercial Vehicle Xuande Yi 6 export reference is about $24,486 – $41,819. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Commercial Vehicle Xuande Yi 6 cover?
SHACMAN Commercial Vehicle Xuande Yi 6 mainly covers: Drive: 4x2 / 6x4; Horsepower: 160 hp / 180 hp / 185 hp / 200 hp / 240 hp / 270 hp / 300 hp / 330 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Commercial Vehicle Xuande Yi 6?
For SHACMAN Commercial Vehicle Xuande Yi 6: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SHACMAN Commercial Vehicle Xuande Yi 6 include?
SHACMAN Commercial Vehicle Xuande Yi 6 currently lists about 19 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Commercial Vehicle Xuande Yi 6?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
