SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 5200mm
Cab dimensions:: 9×2.55×3.82m
Type:: Truck with crane
GVWR:: 18ton
Lifting capacity: 8ton
Drive 4X2 (6 wheels)
Horsepower 200
Rated mass: 5.805ton

Overview

The SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) is a truck-mounted crane featuring 8ton tank capacity, 18t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 200 hp, China VI emissions and Diesel fuel.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9×2.55×3.82m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5200mm
Rated mass: 5.805ton
GVWR: 18ton
Front/rear suspension: 1.45/2.35m
Energy Type: Diesel
Body Parameters
Crane model: JSQ200
Lifting capacity: 8ton
crane self-weight: 3.55ton
Vehicle certification code: SX5180JSQGP6521
Body Brand: SHACMAN Commercial Vehicle
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06200-60
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 750N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande Yi6
Chassis Model: SX1180GP6501
Frame Dimensions: 300/8+6+8 inner three-layermm
rear axle description: 10T
Axle ratio: 5.143
Leaf spring count: 9/10+8,9/10+6,9/11+8,8/10+8,3/4+3,3/3+2,2/3+2
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E-C
Cab parameters
Cab: Yi6 semi-high roof/2220
Tire
Tire Size: 10.00R20/18PR
Number of tires: 6pcs

Photos

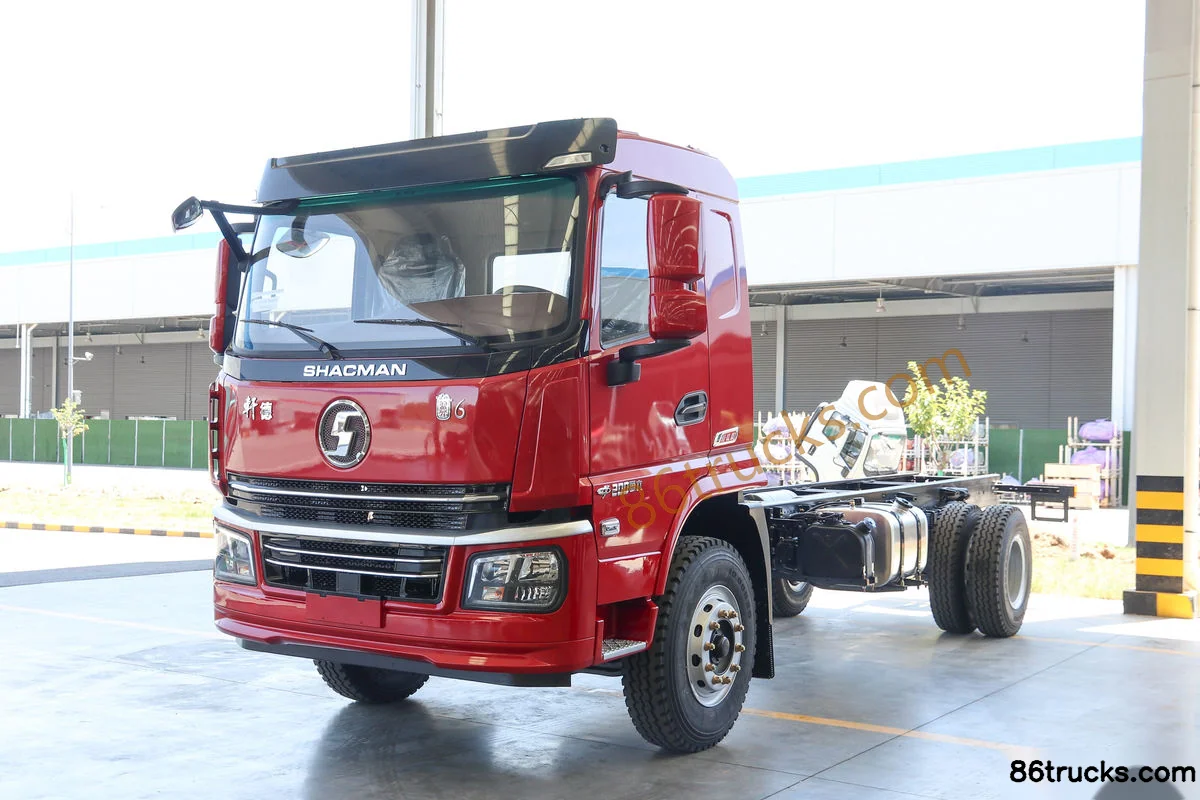

Exterior3

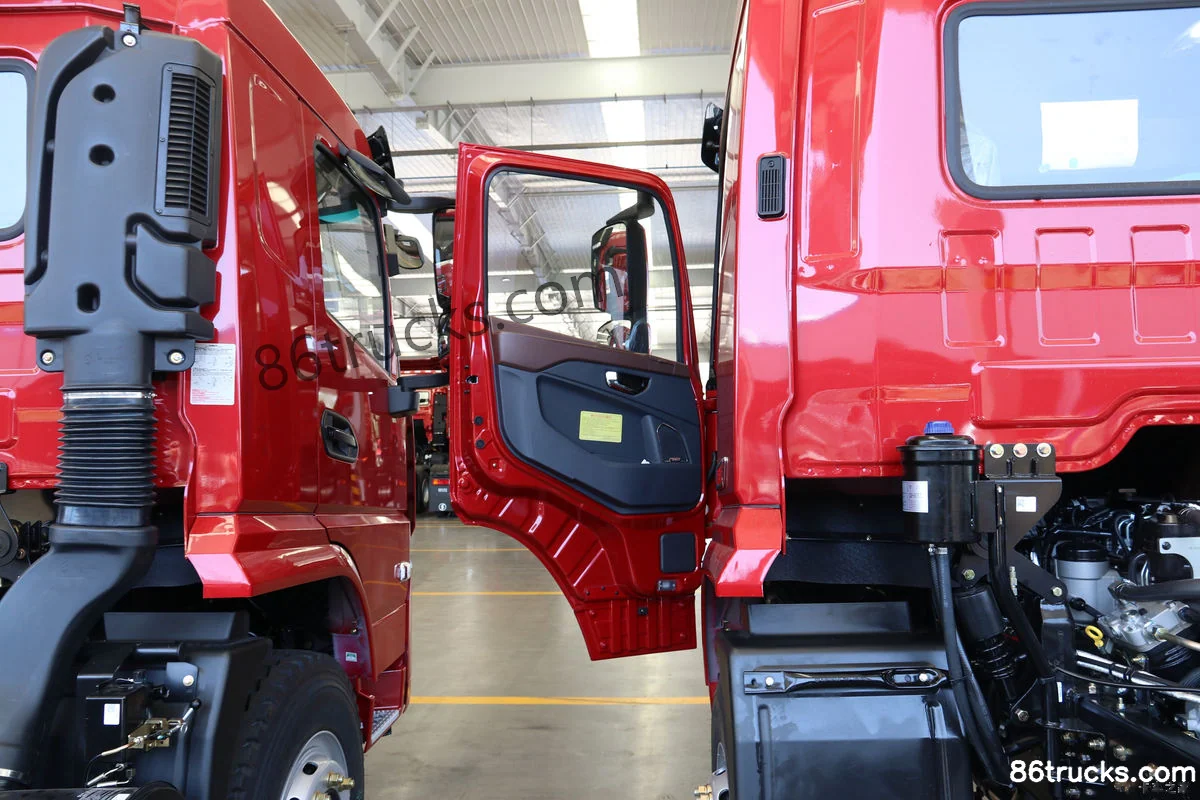

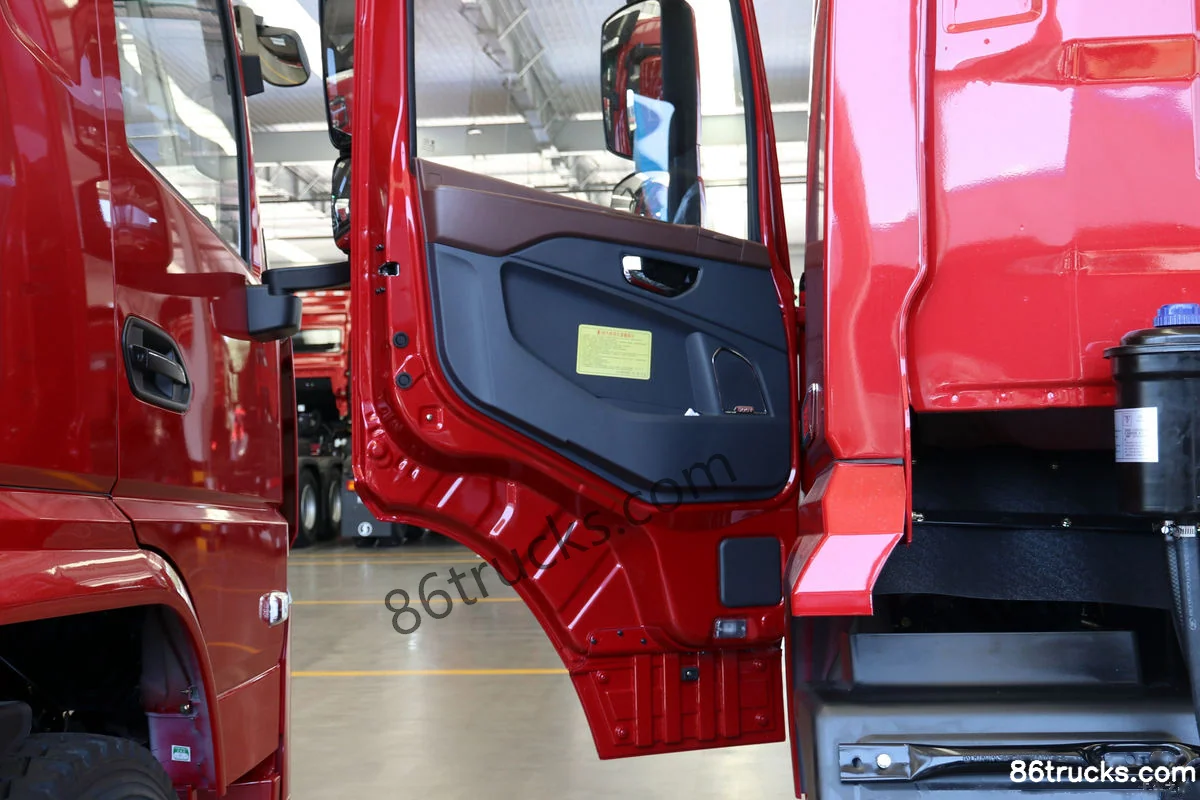

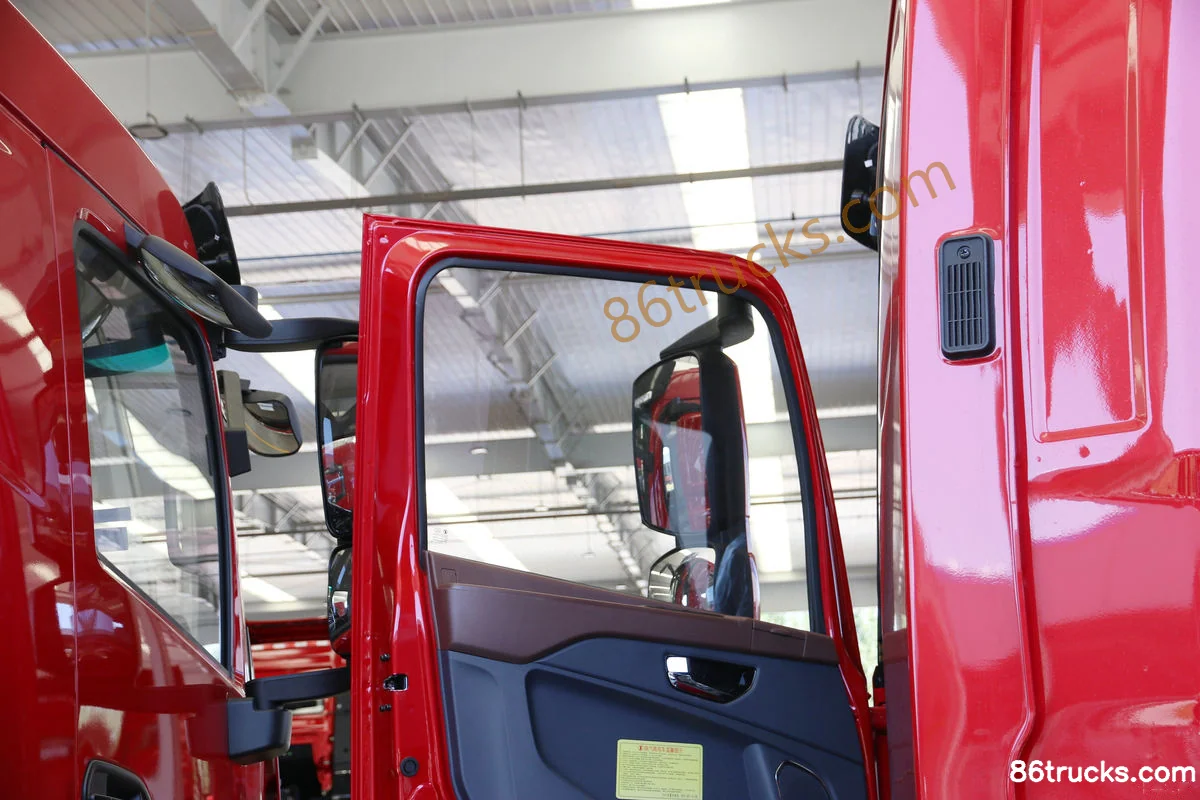

Cab3

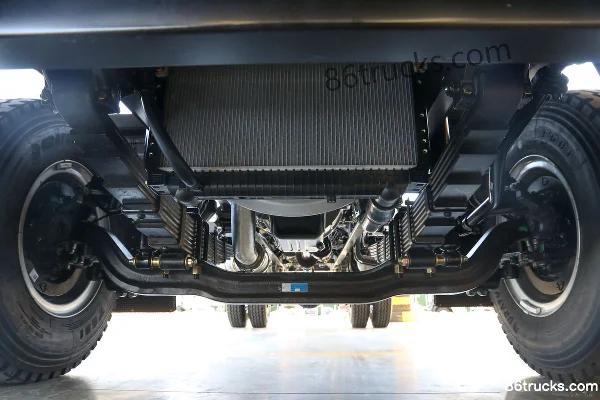

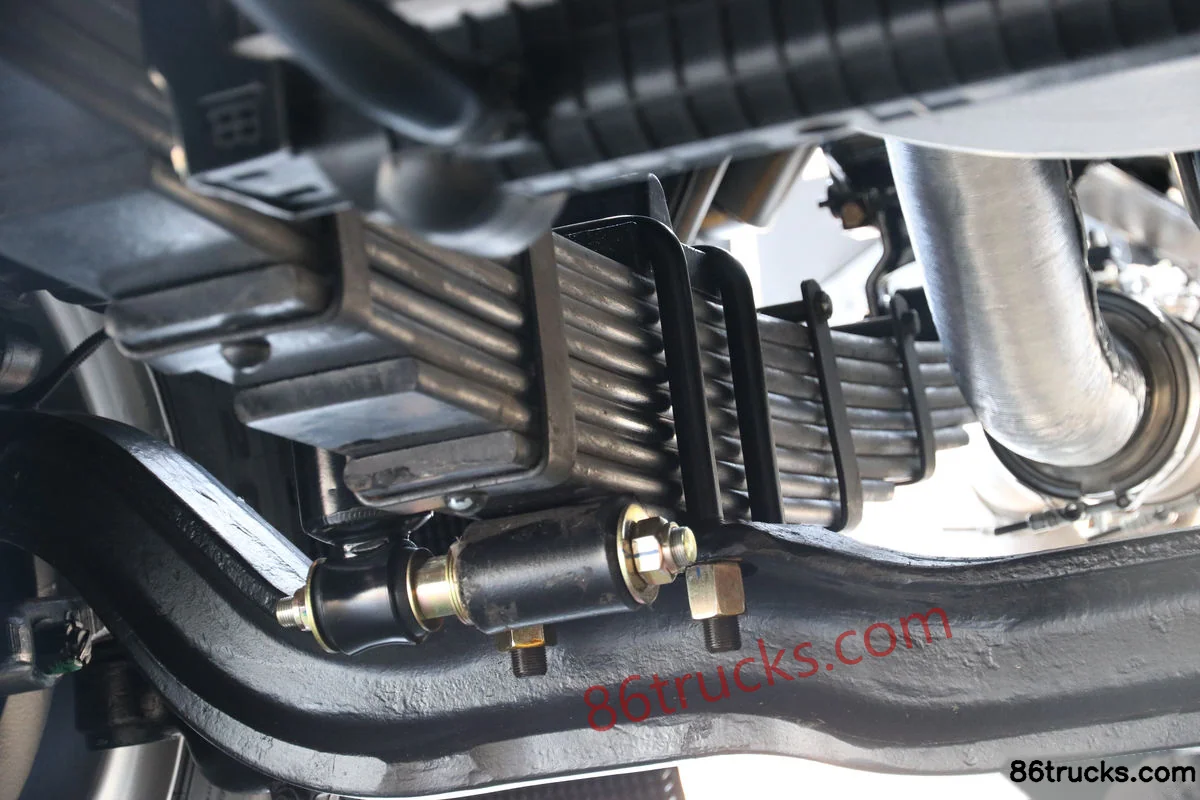

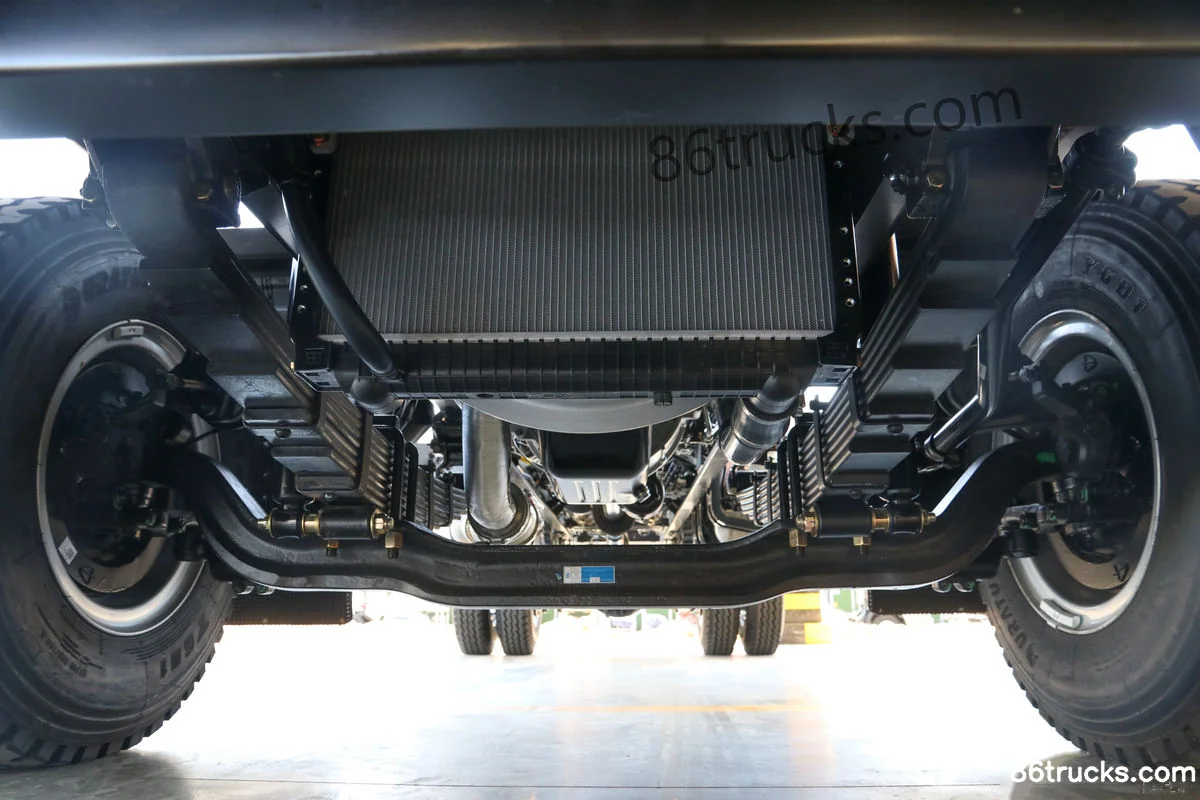

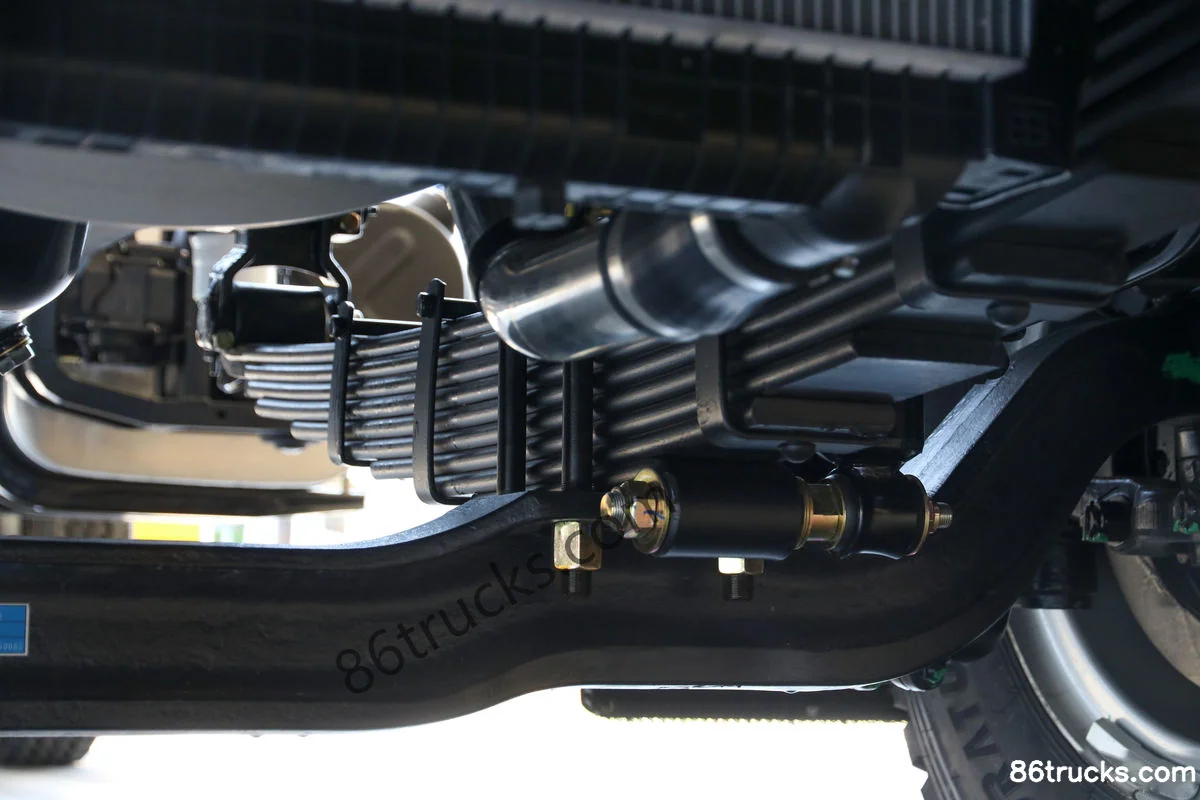

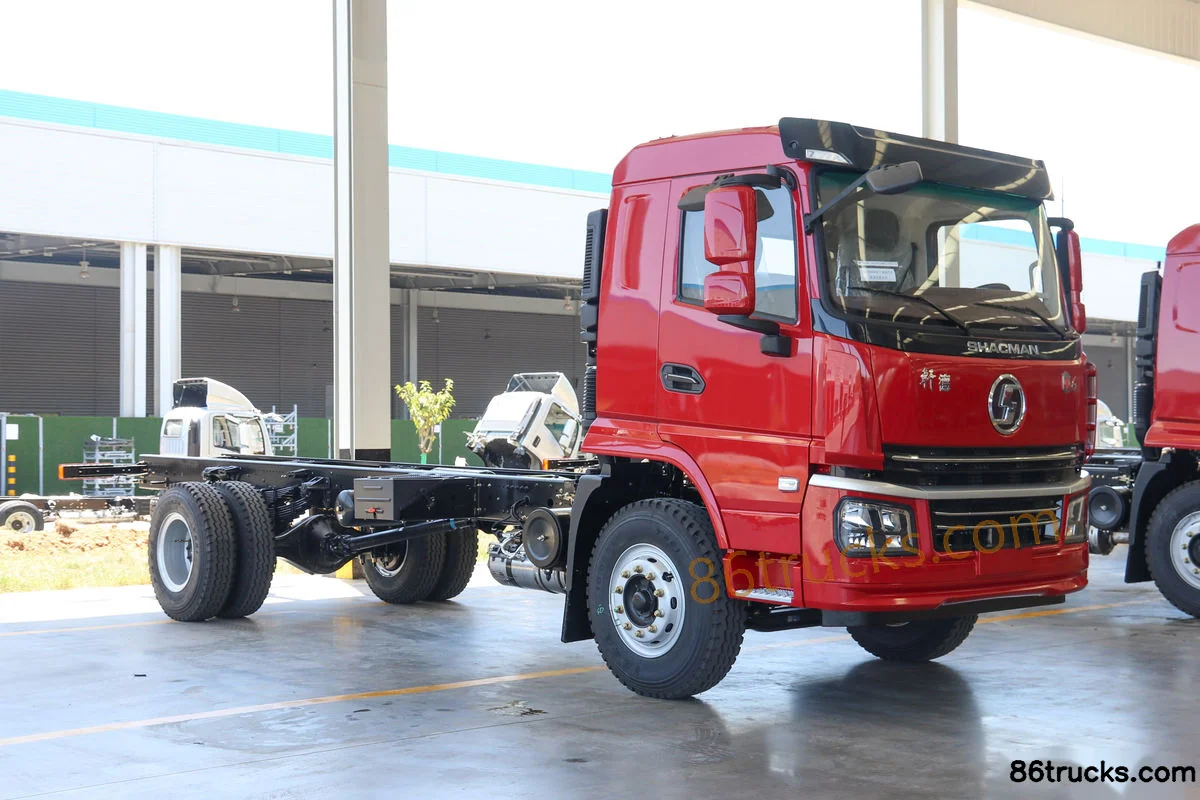

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI)?

Key specs of SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) suited for?

SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI) belongs to SHACMAN Commercial Vehicle Xuande Yi 6 (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi6 New Rui Edition 200 hp 4X2(6 wheels) 5.5m Truck-mounted Crane (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
