Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck

Export reference
From $52,778
MSRP ¥38M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20 18PR
Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck exterior
View more photos (9)
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP9H350E62 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ3250H7DC1
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP9H350E62
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 5.262
Cab length: 8.625m
Cab width: 2.545m
Cab height: 3.45m
Front track width: 2020mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 18°
Remarks: Optional: 12JSD180TA + 5.262/5.921 ratio, 4.769 ratio, rear axle stabilizer bar, electro-hydraulic tilt, automatic A/C.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP9H350E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1700N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Engine Type: CR+DOC+DPF+Hi_SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: H52
Cab width: 2300mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 6.5T front axle
Front axle allowable load: 7000kg
Frame Dimensions: 282(8+4)mm
rear axle description: 2*300 stamped-welded axle
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 11/13
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
AEB automatic emergency braking system:

Photos

Exterior3

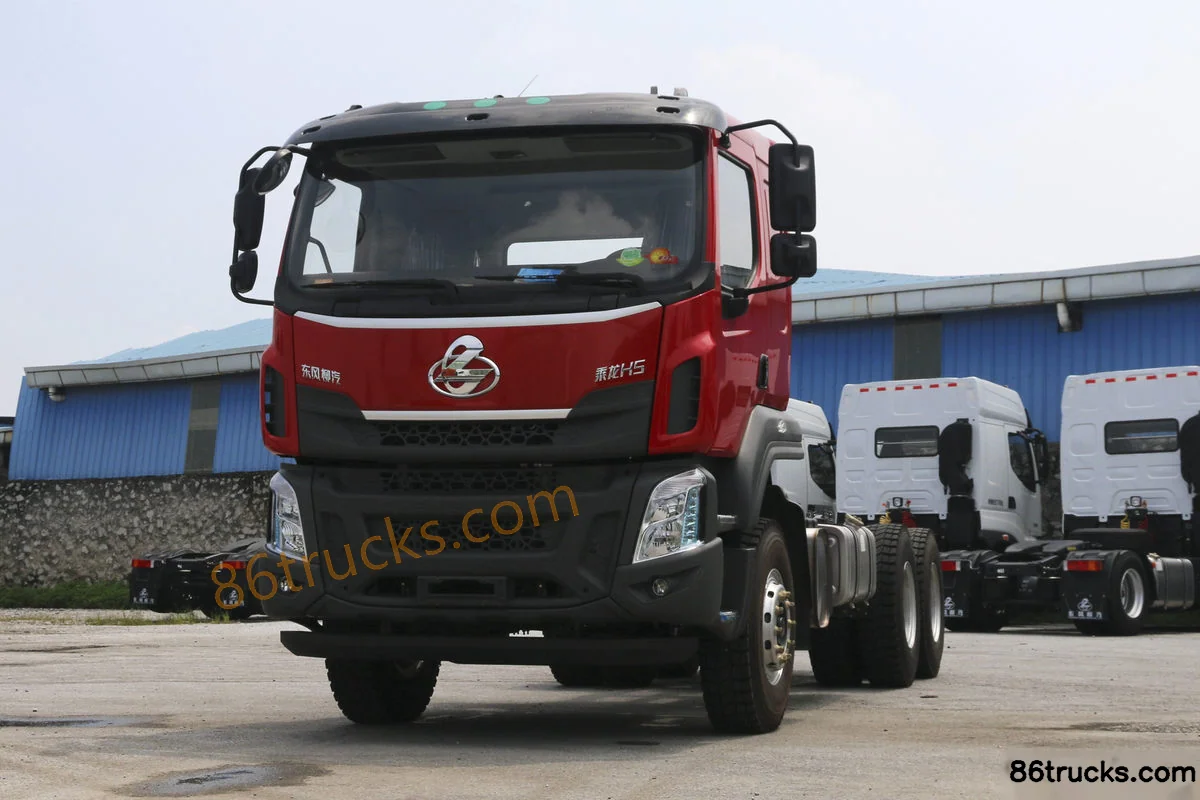

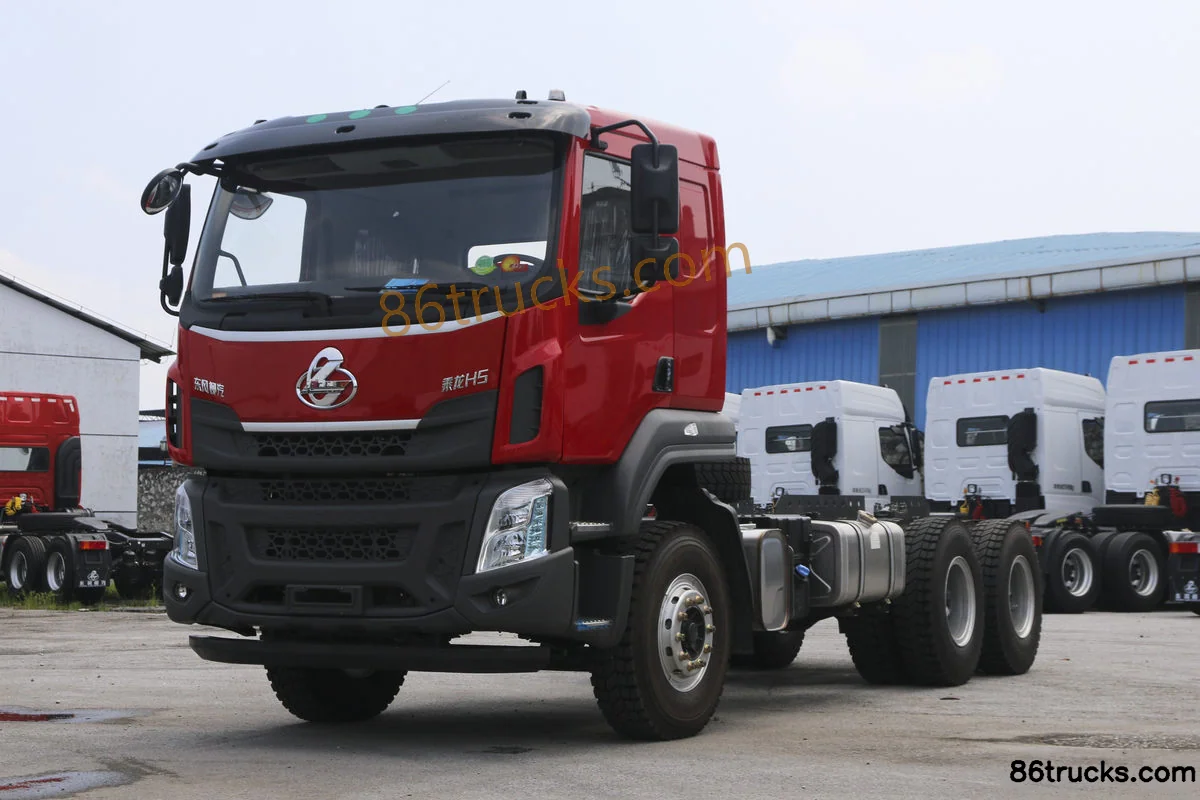

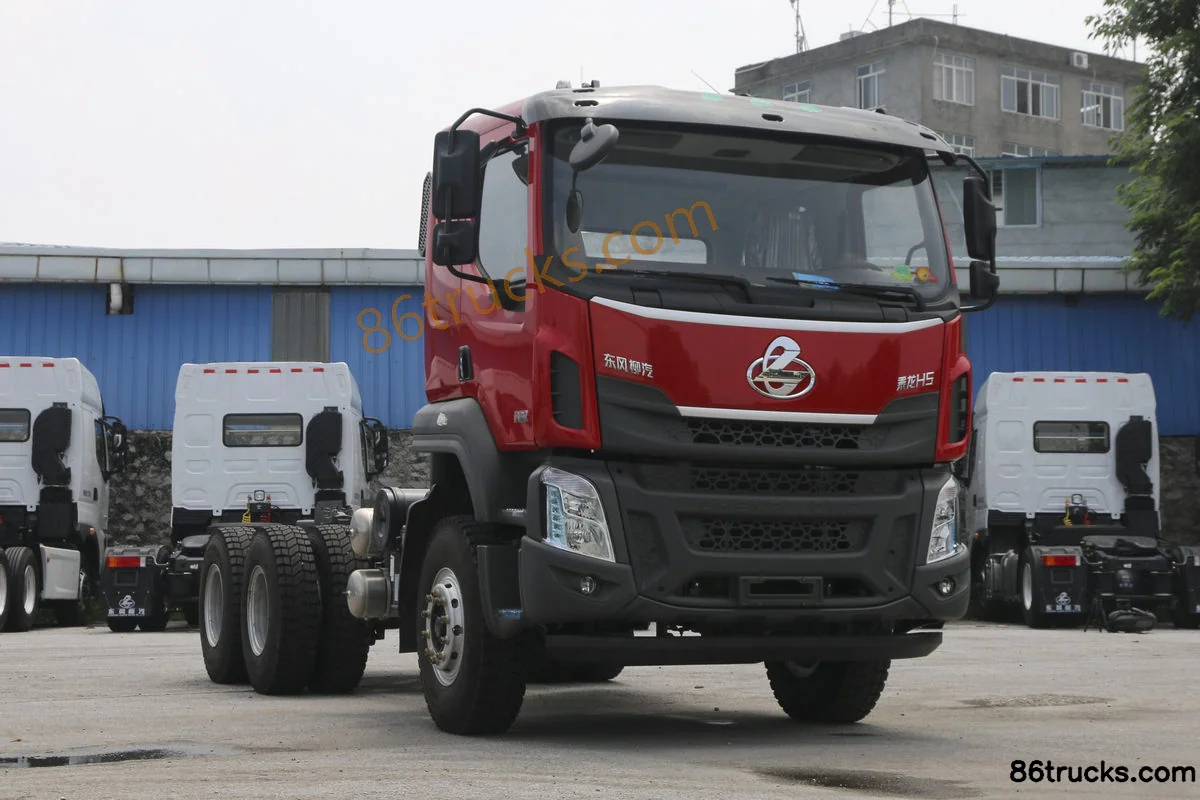

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Exterior (1) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Exterior (2) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Exterior (3) | 86Trucks

Cab3

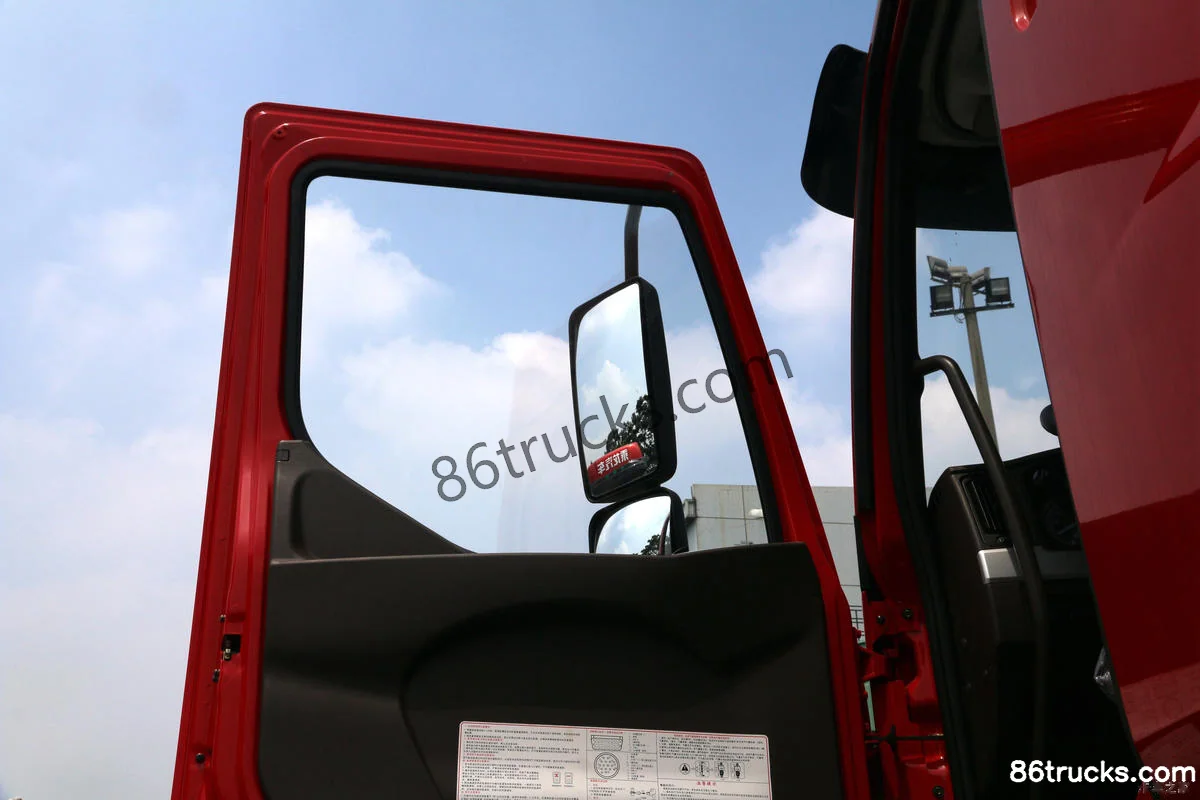

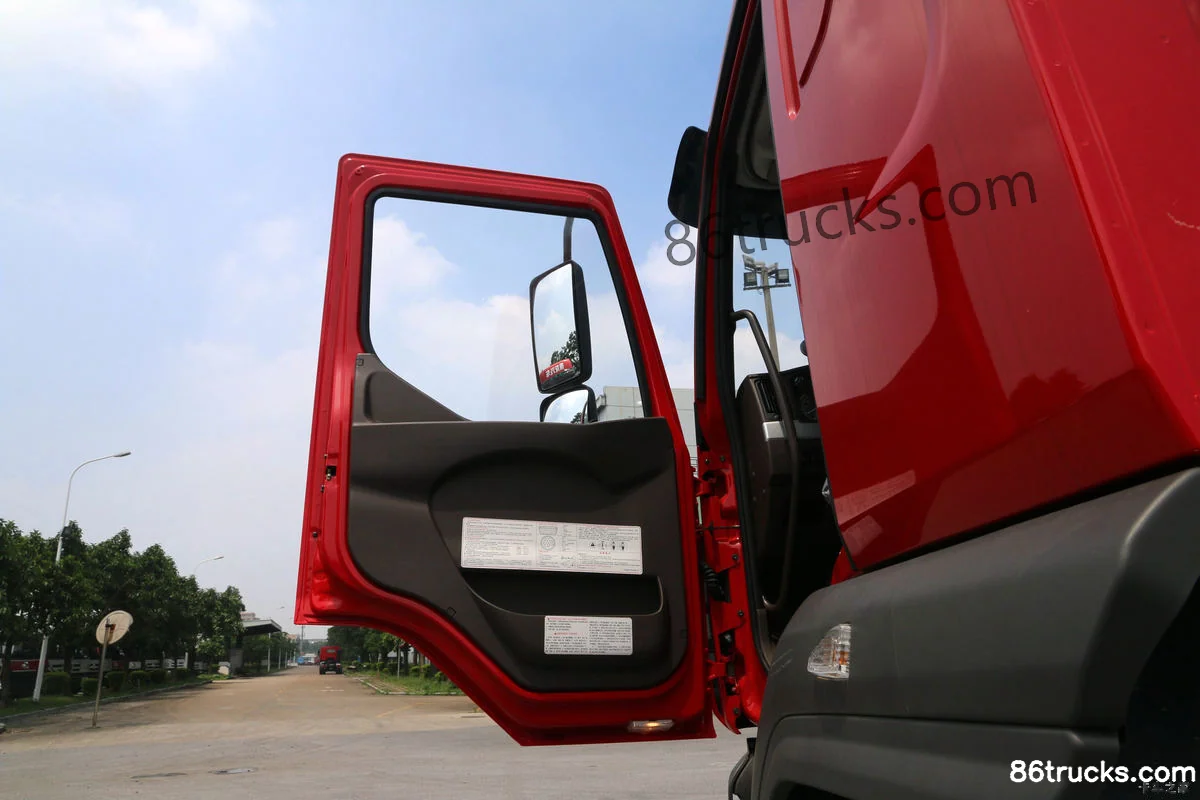

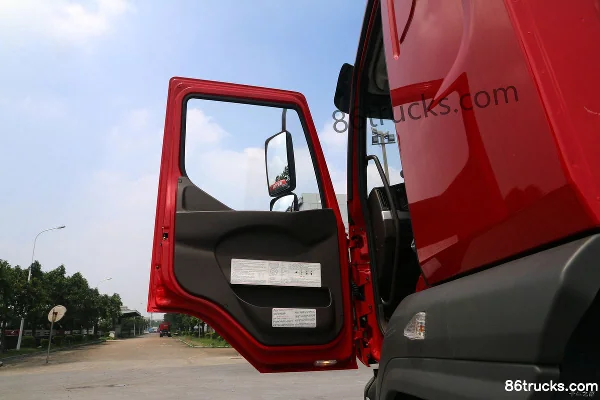

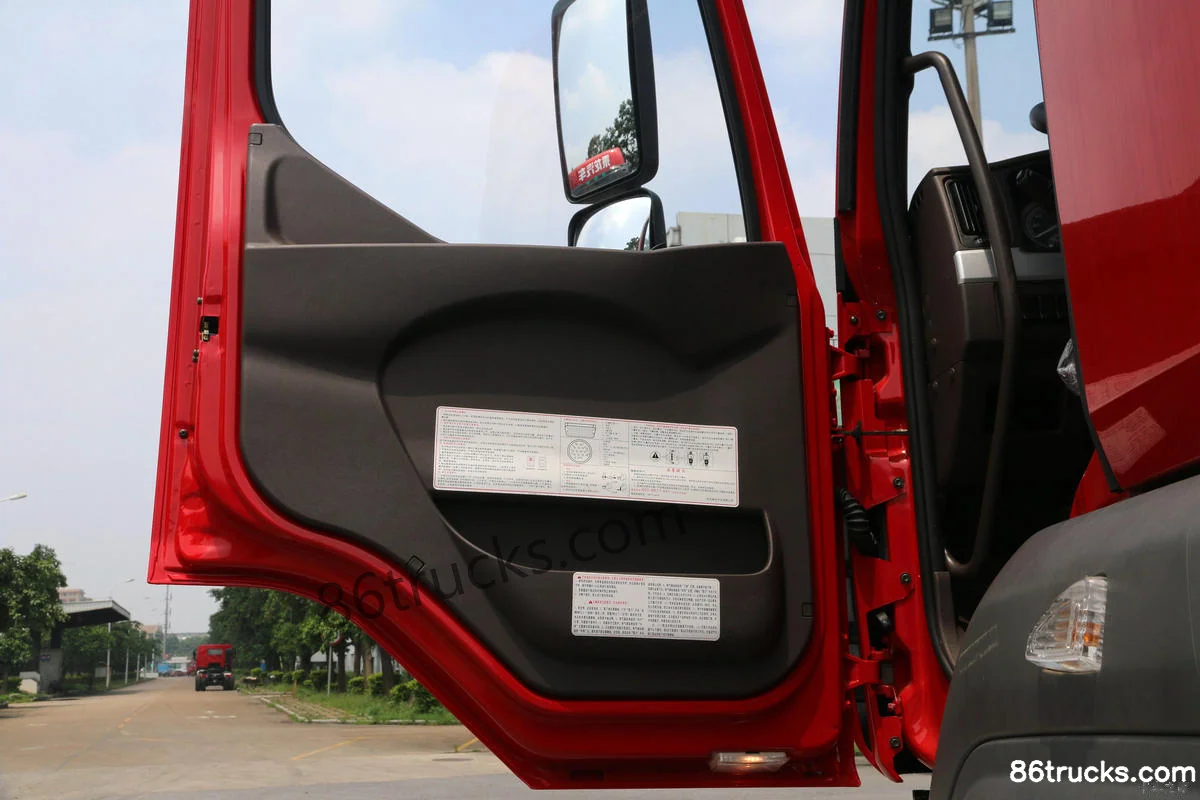

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Cab (1) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Cab (2) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Cab (3) | 86Trucks

Chassis3

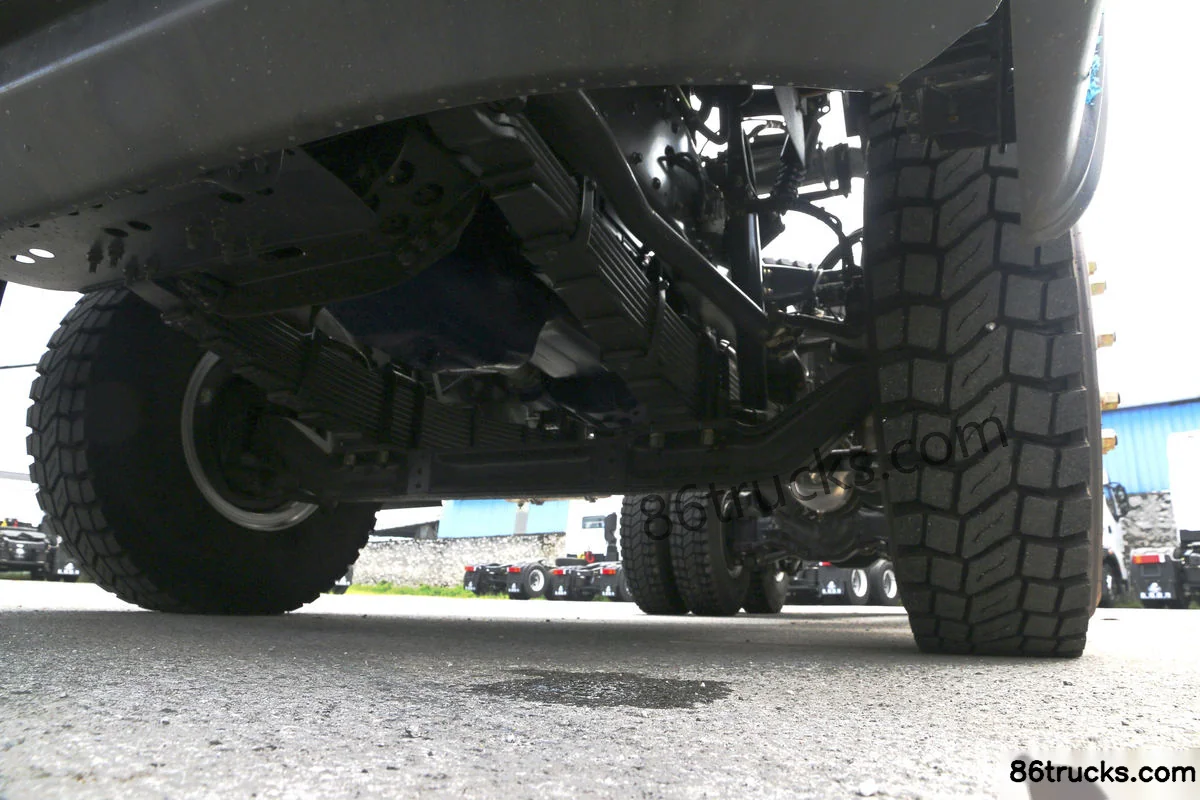

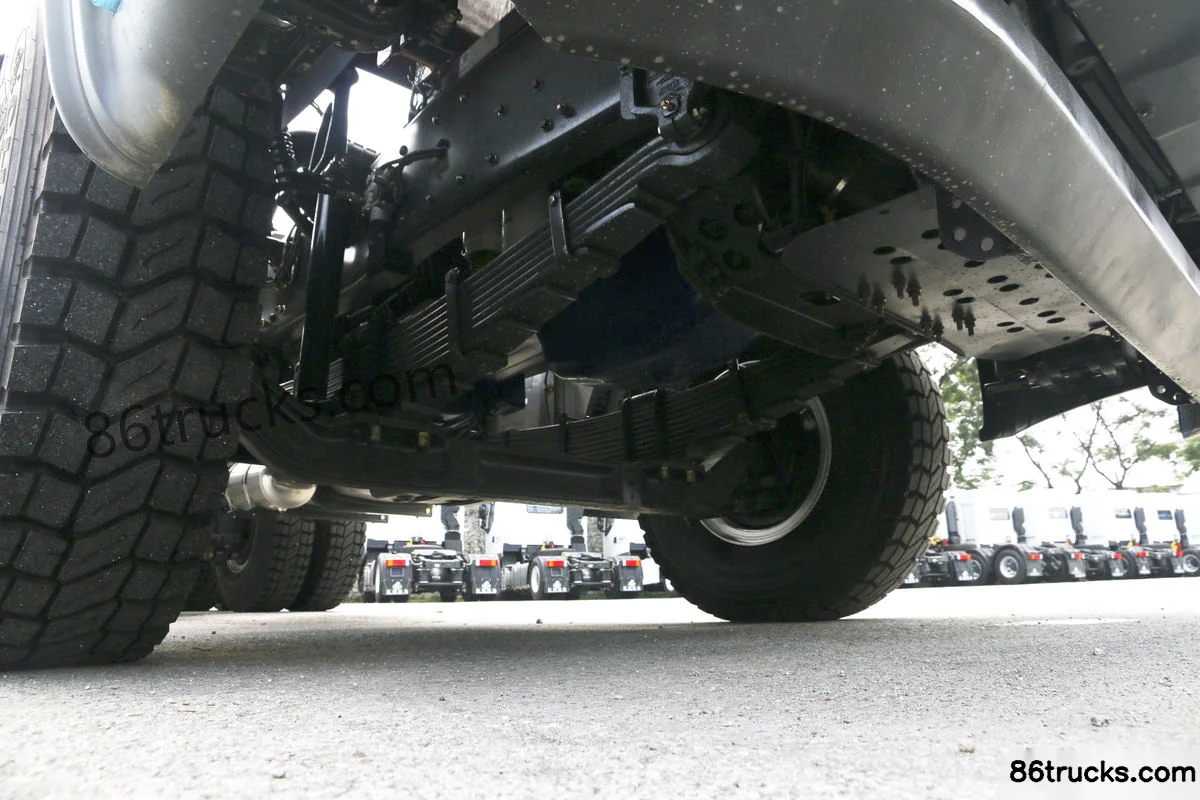

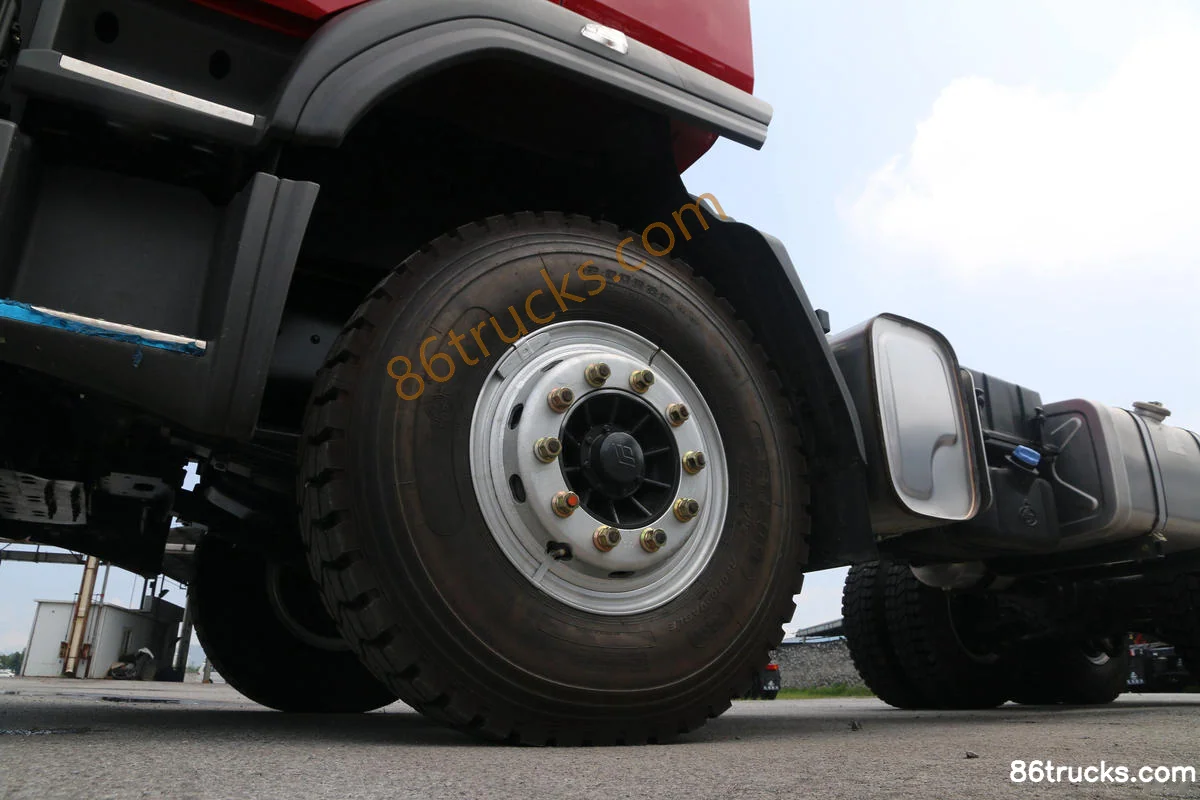

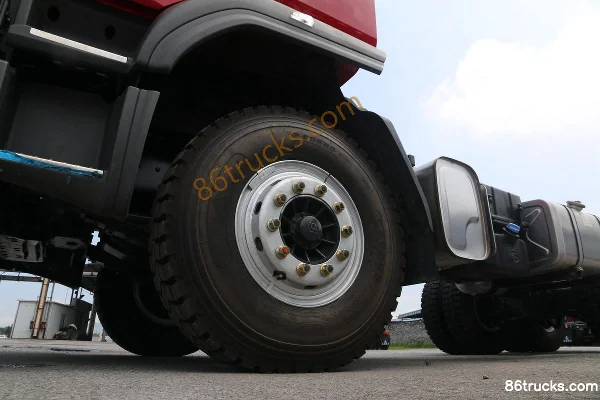

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Chassis (1) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Chassis (2) | 86Trucks Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck, and what does it include?

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck export reference is about From $52,778; MSRP is ¥38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck?

Key specs of Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck: Drive: 6x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck suited for?

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck belongs to Dongfeng H5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 350hp 6X4(10 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
