Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: ≤205g/kW.h
noise at 1m:: 113dB

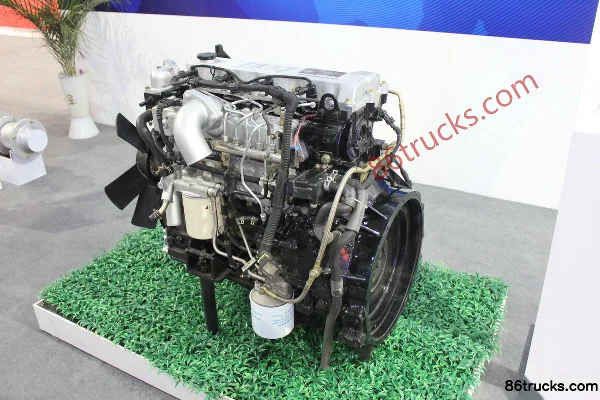

Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine exterior
Suitable Range: For 8-12 ton trucks, construction vehicles, 7-9m buses, school buses, 5-10 ton forklifts
Engine Model: CY4D115-CE4
Engine Series: CYD Series

Overview

The Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine is a parts product with fit for For 8-12 ton trucks, construction vehicles, 7-9m buses, school buses, 5-10 ton forklifts and spec CY4D115-CE4.

China IV 160 Diesel

Model Specs

Legend: ● Standard　○ Optional　- N/A

Engine parameters
Engine Series: CYD Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: For 8-12 ton trucks, construction vehicles, 7-9m buses, school buses, 5-10 ton forklifts
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤205g/kW.h
Engine net weight: 470kg
Engine Dimensions: 892x733x788mm
noise at 1m: 113dB
Compression ratio: 17：1
Bore × Stroke: 110x125mm
Valves per cylinder: 2pcs
firing order: 1-3-4-2
Engine Brand: Chaochai
Engine Model: CY4D115-CE4
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.752L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2600rpm
Engine Type: Vertical inline water-cooled 4-stroke, turbocharged intercooled, electronically controlled high-pressure common rail, DOC+POC

Photos

0 photos

FAQ

What emission standard does Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine?

Key specs of Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine: Horsepower: 160 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine suited for?

Match Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine differ from other variants in the same series?

Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine belongs to Chaochai CYD Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chaochai CY4D115-CE4 160 hp 4.75L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
