Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2600mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCF25160-66 engine, 160 hp, China VI emissions and WLY transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3048F17FB5
Drive type: 4X2
Wheelbase: 2600mm
engine: YuchaiYCF25160-66
transmission: WLYWLY8GS60
Rear Axle Ratio: 4.875
Cab length: 4.995m
Cab width: 1.95m
Cab height: 2.18m
Front track width: 1501mm
rear track: 1445mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Energy Type: Diesel

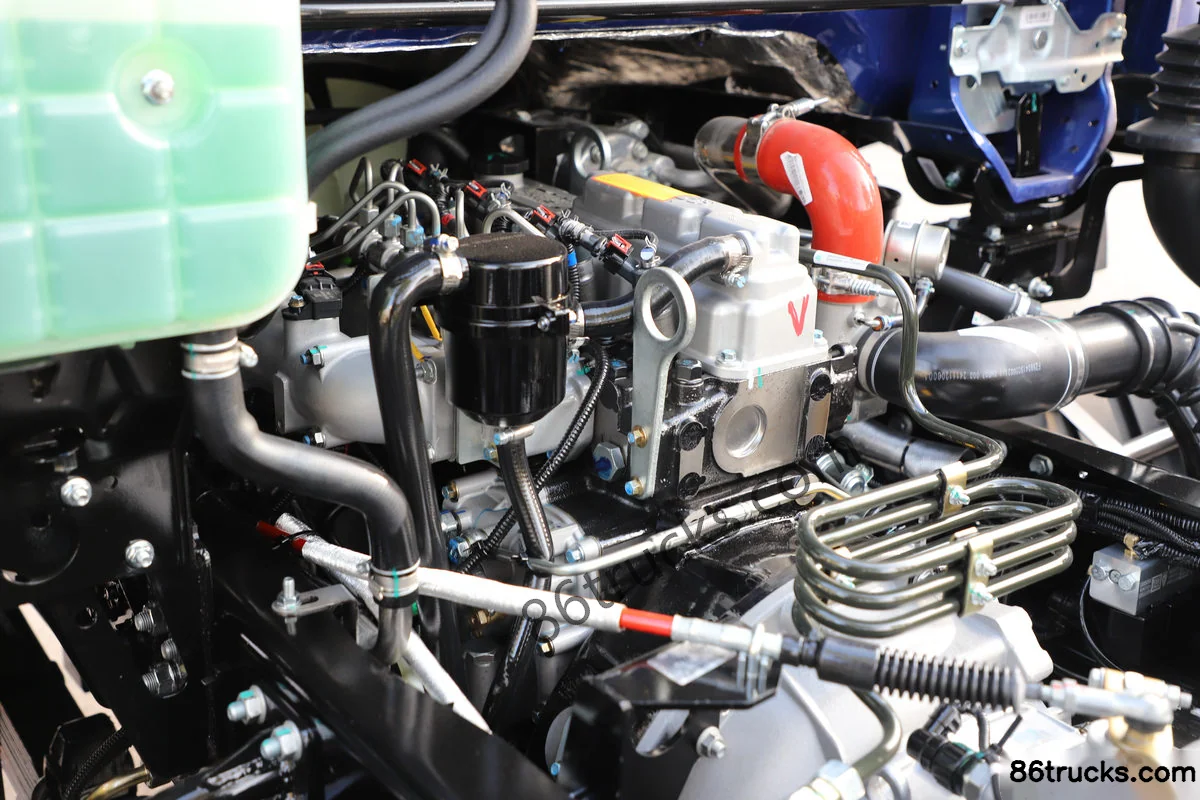

Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCF25160-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.488L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: WLYWLY8GS60
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.18m
Cargo box width: 1.75m
Cargo box height: 0.5m
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 2065kg
rear axle allowable load: 2430kg
Axle ratio: 4.875
Leaf spring count: 3/8+5

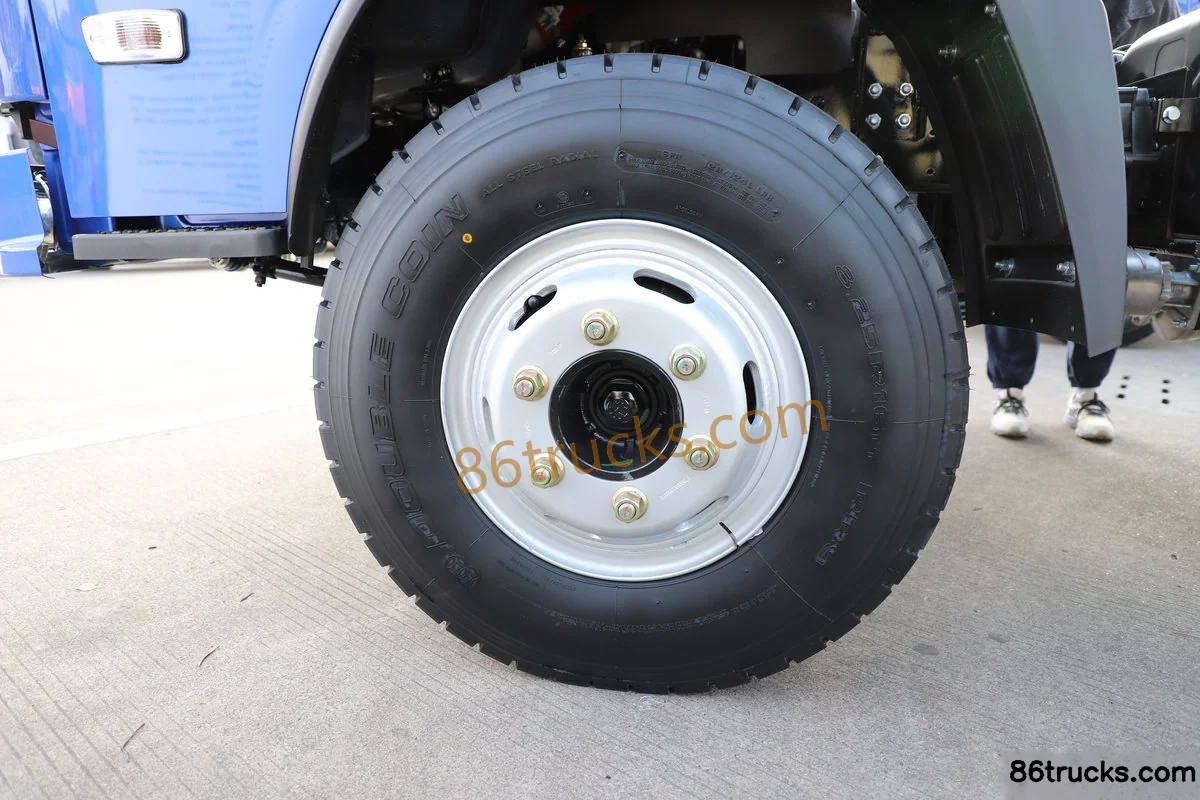

Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

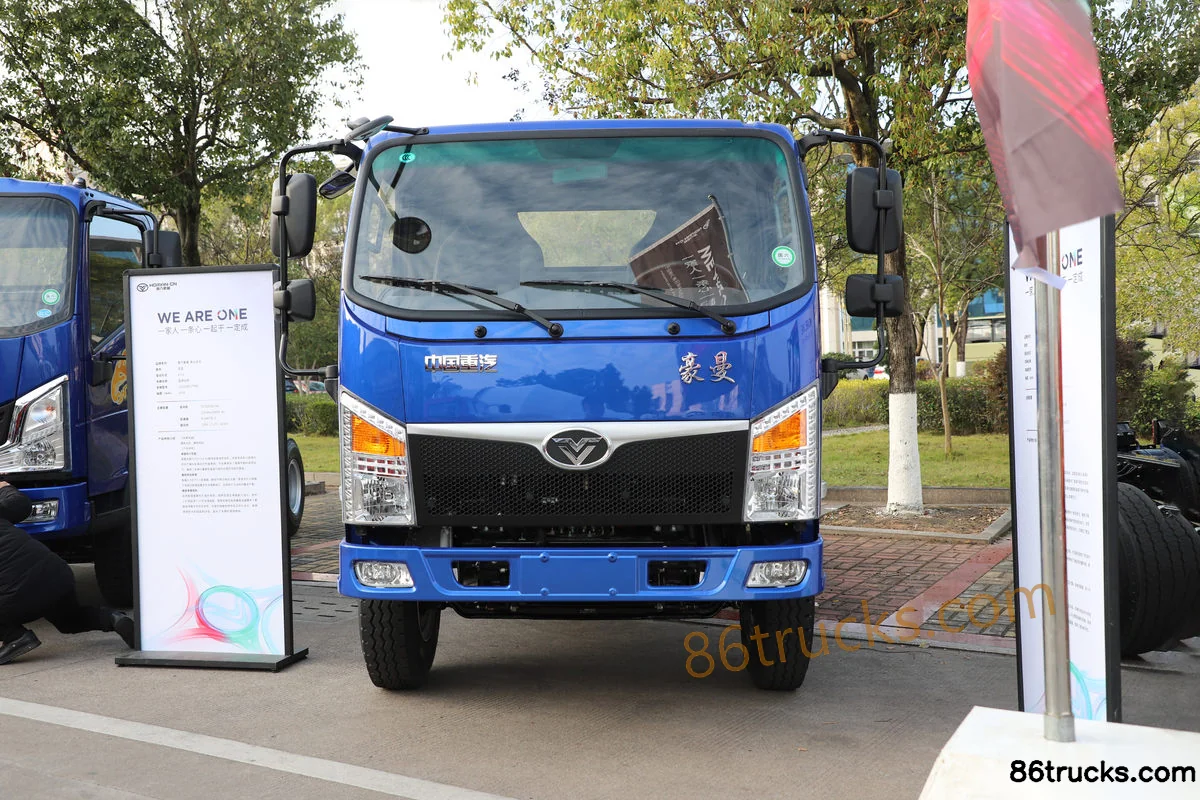

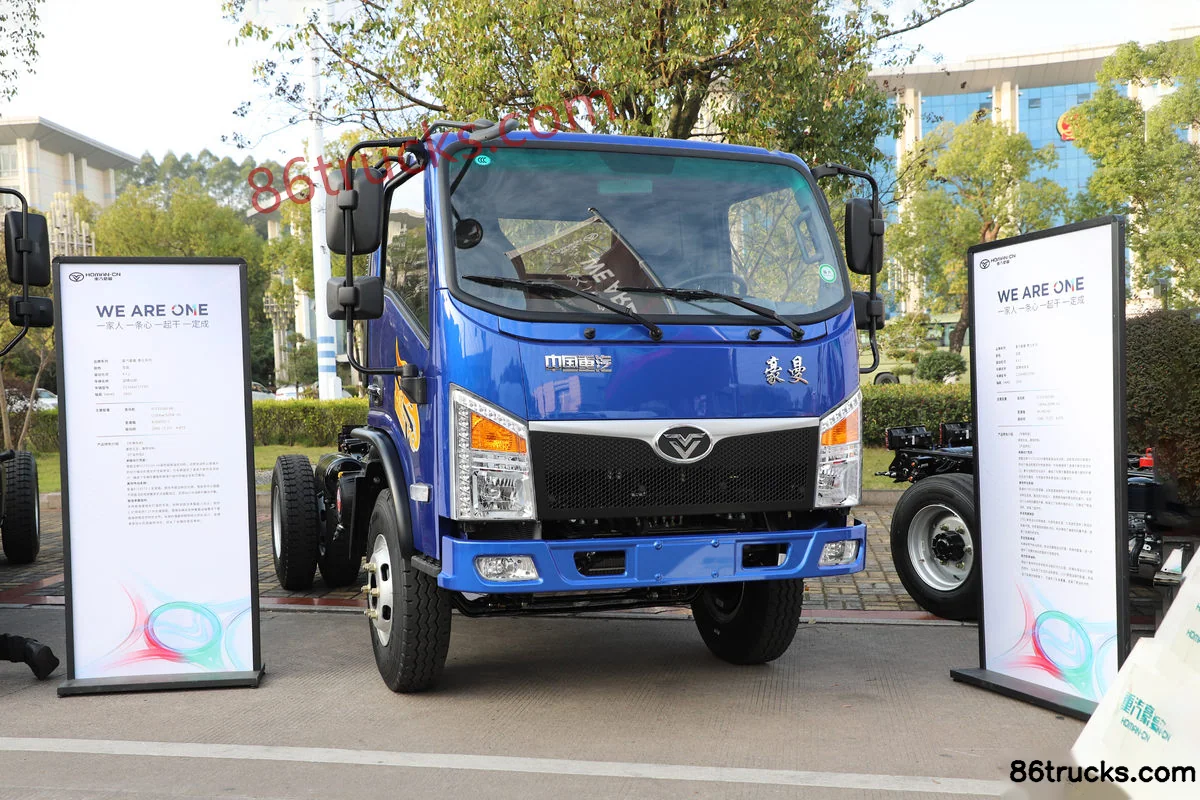

Exterior3

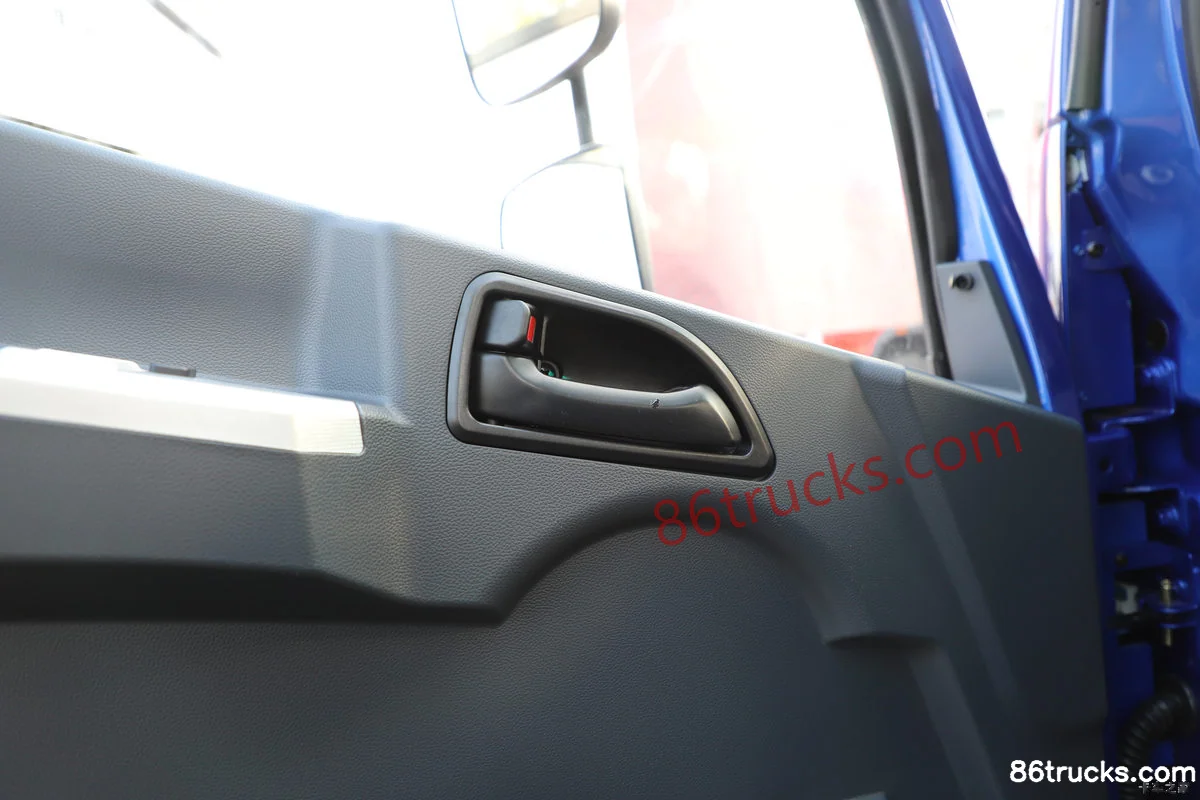

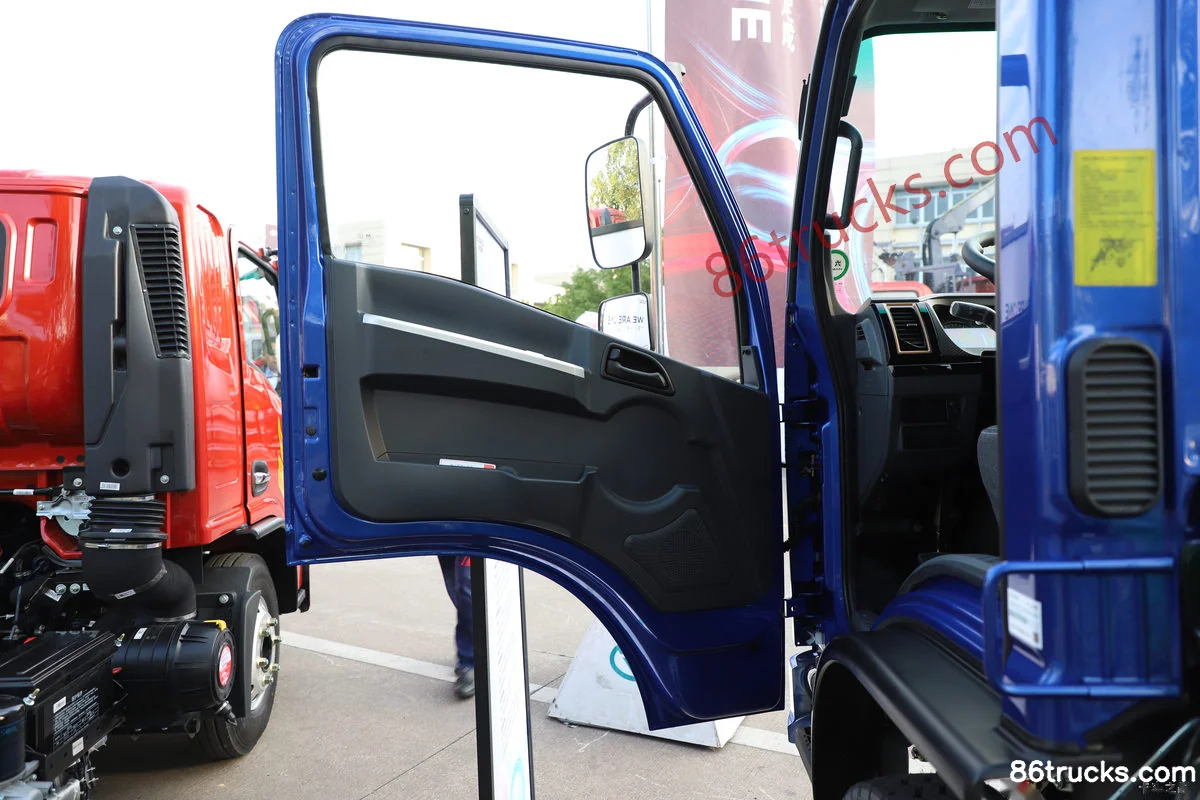

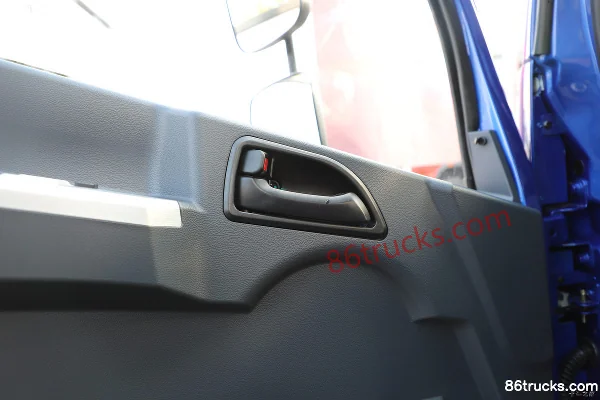

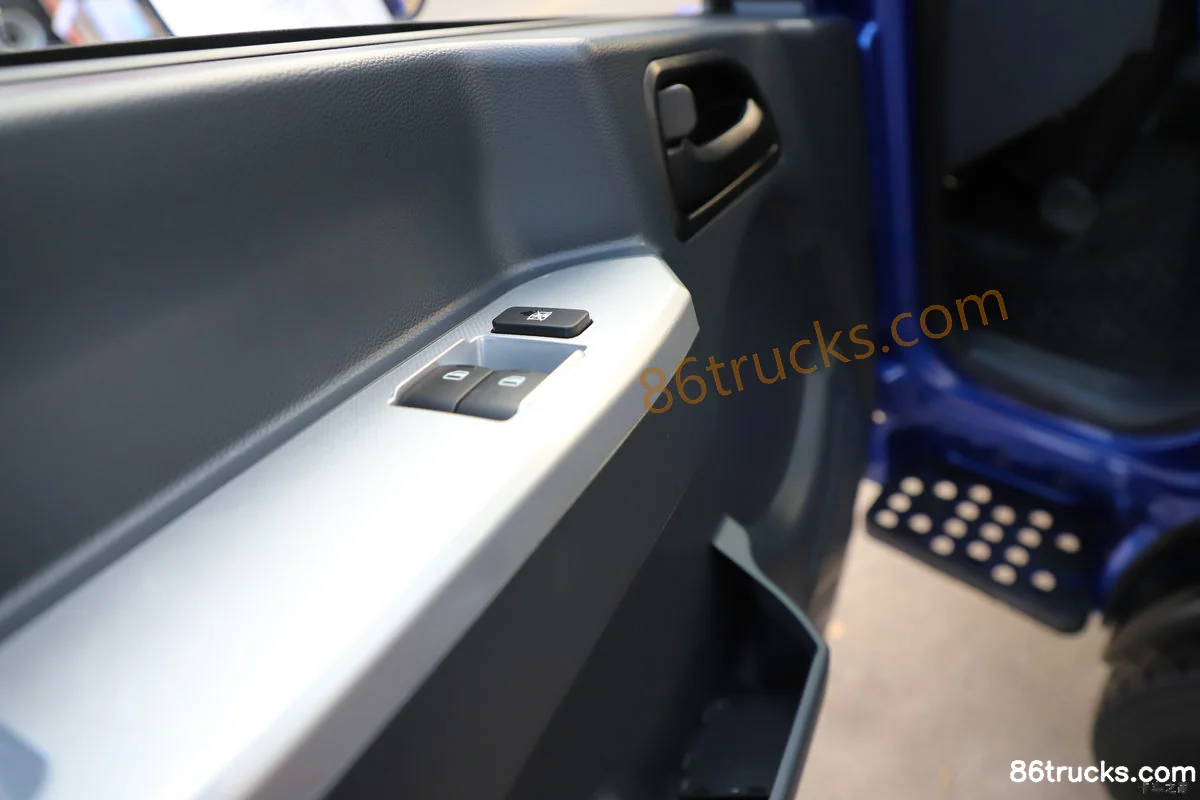

Cab3

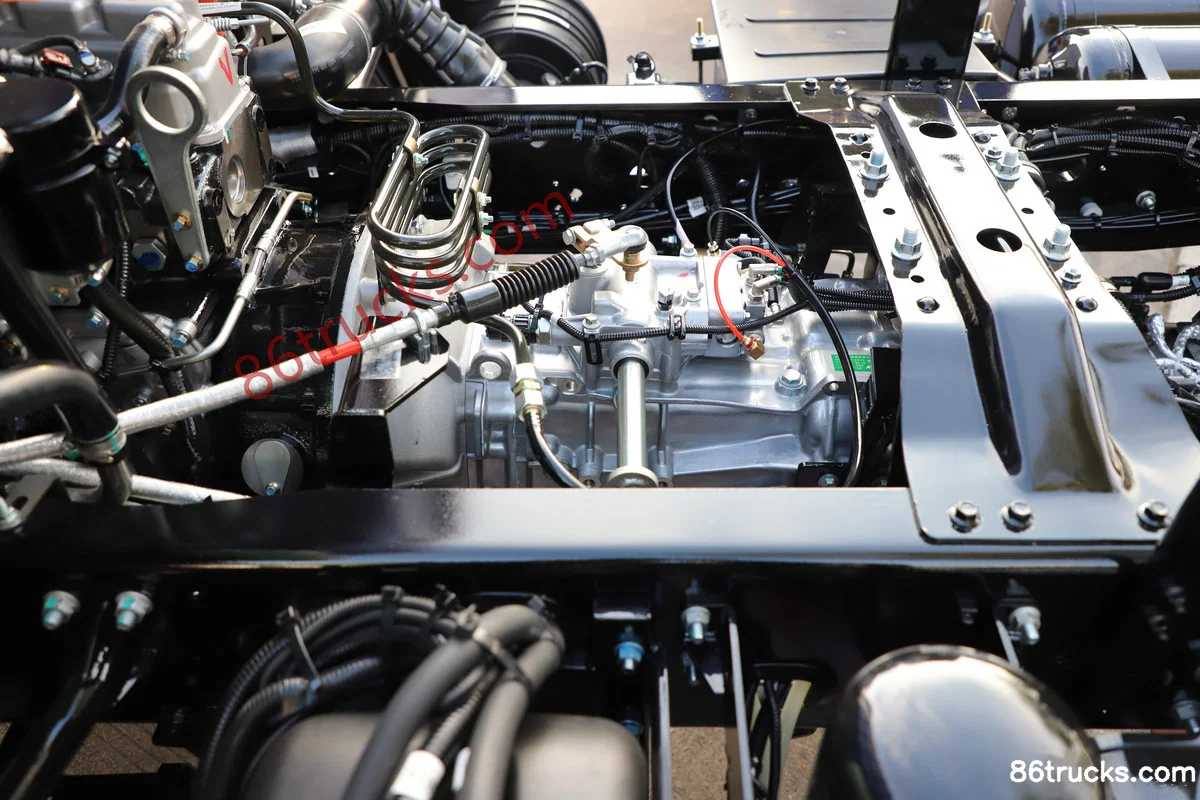

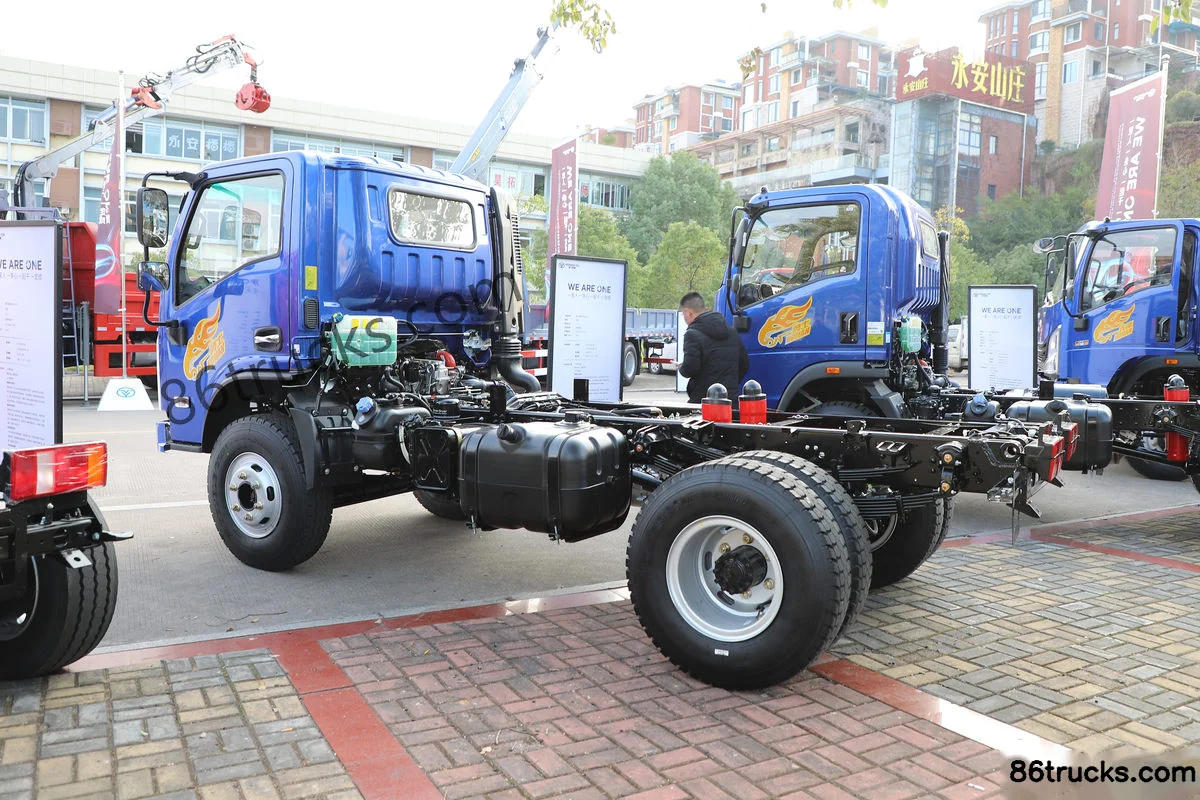

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck?

Key specs of Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck suited for?

Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck differ from other variants in the same series?

Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck belongs to Sinotruk Warrior M1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Warrior M1 160hp 4X2(6 wheels) 3.18m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
