Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis

Export reference
From $46,806
MSRP ¥33.7M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1800+4260+1350mm
Tire Size:: 11.00R20
Rated payload: 16.1ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis is a Heavy truck featuring 16.1t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6MK350-40 engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3310QEKA
Drive type: 8X4
Wheelbase: 1800+4260+1350mm
engine: YuchaiYC6MK350-40
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 5.286
Cab length: 10.872m
Cab width: 2.495m
Cab height: 3.52m
Front track width: 2045mm
rear track: 1860mm
Curb Weight: 14.77ton
Rated payload: 16.1ton
GVWR: 31ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 30°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6MK350-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.338L
Emission standard: China IV
Max output power: 258kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: High-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 8m
Cargo box width: 2.3m
Cargo box height: 1.04m
fuel tank
Fuel tank capacity: 350L
Chassis Specs
rear axle description: 2×457 cast steel
rear axle allowable load: 16000x2kg
Axle ratio: 5.286
Leaf spring count: 11/11/13
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

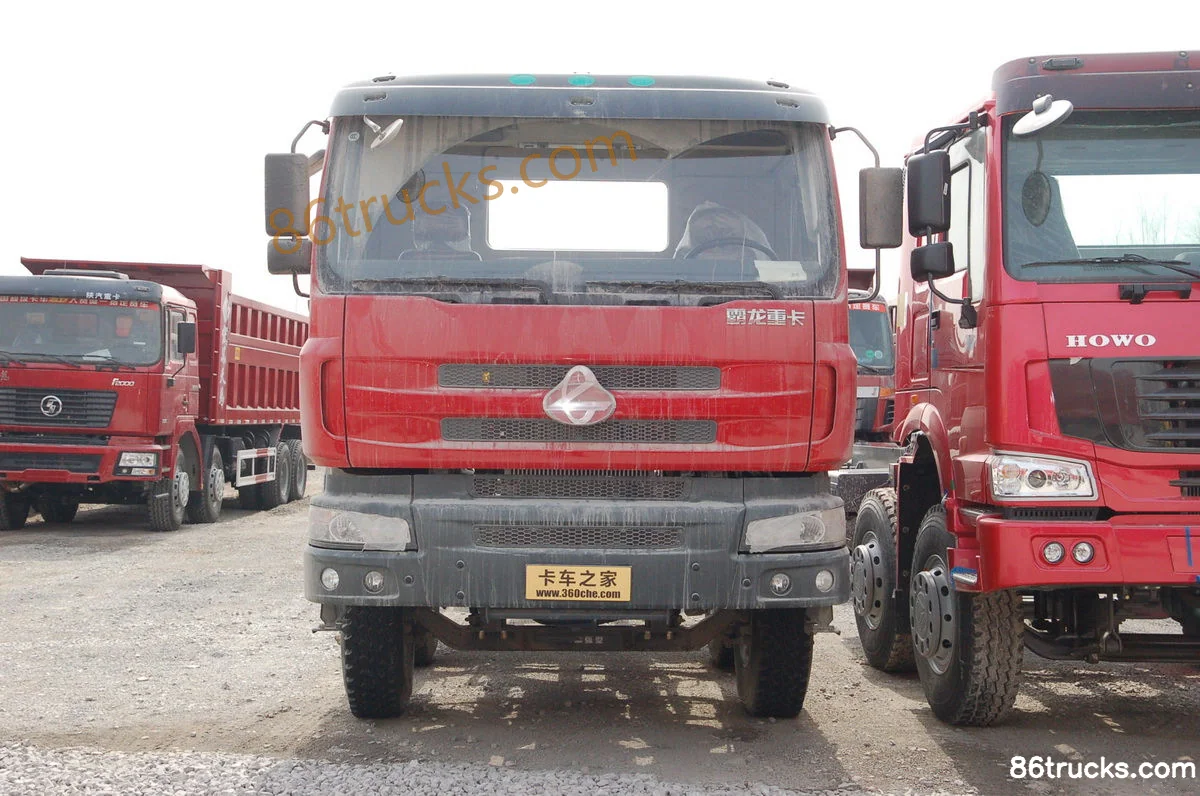

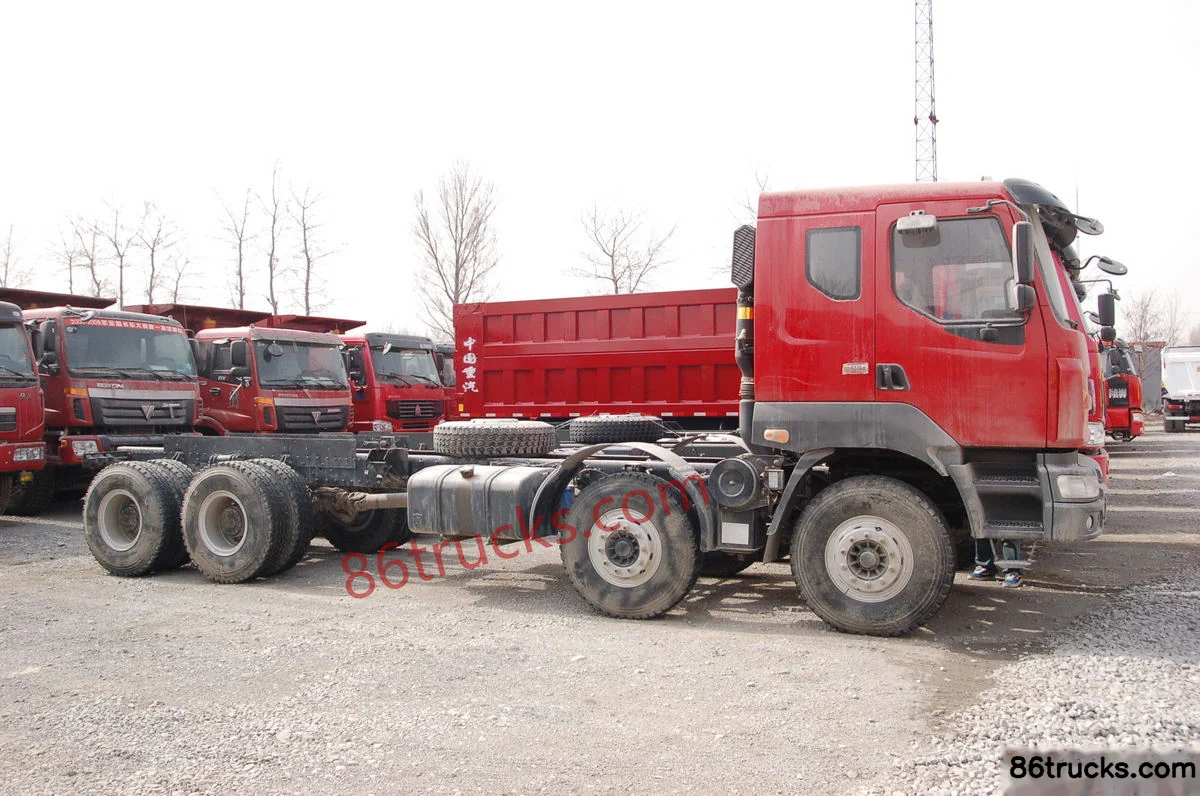

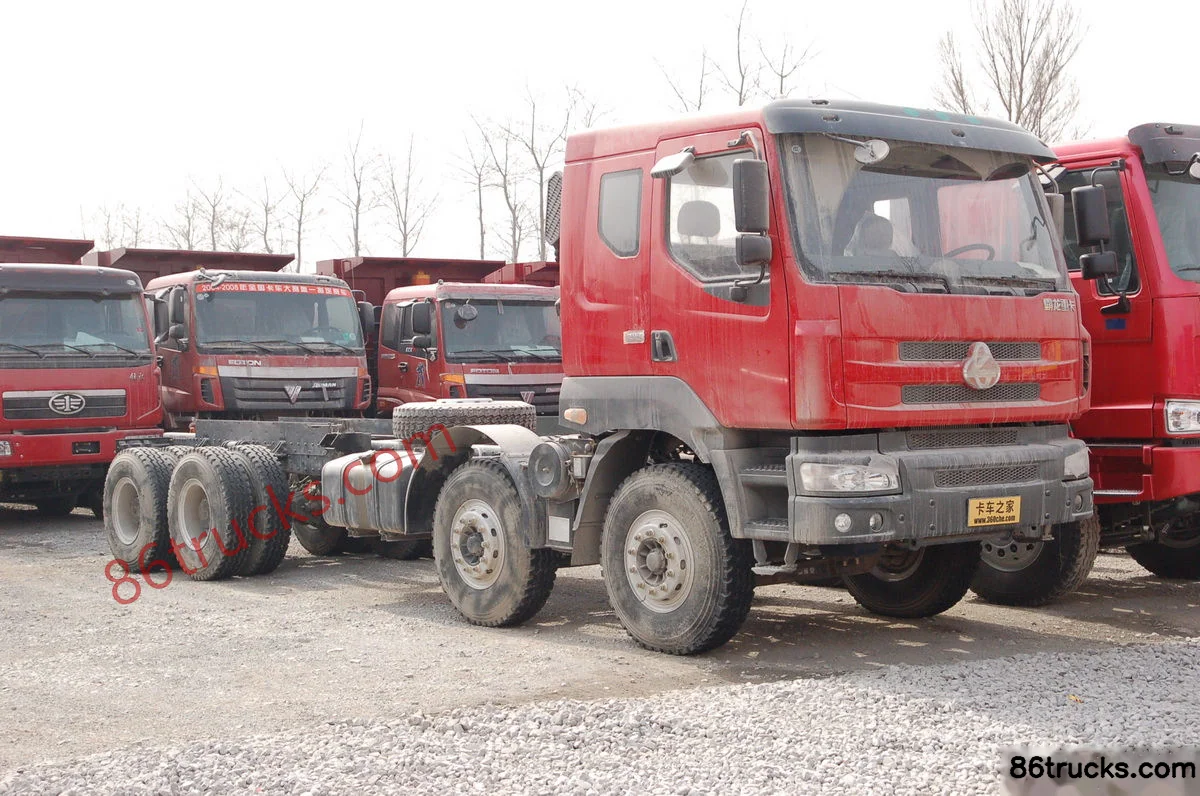

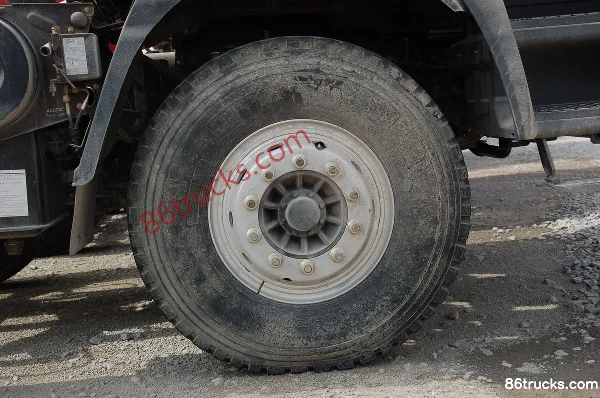

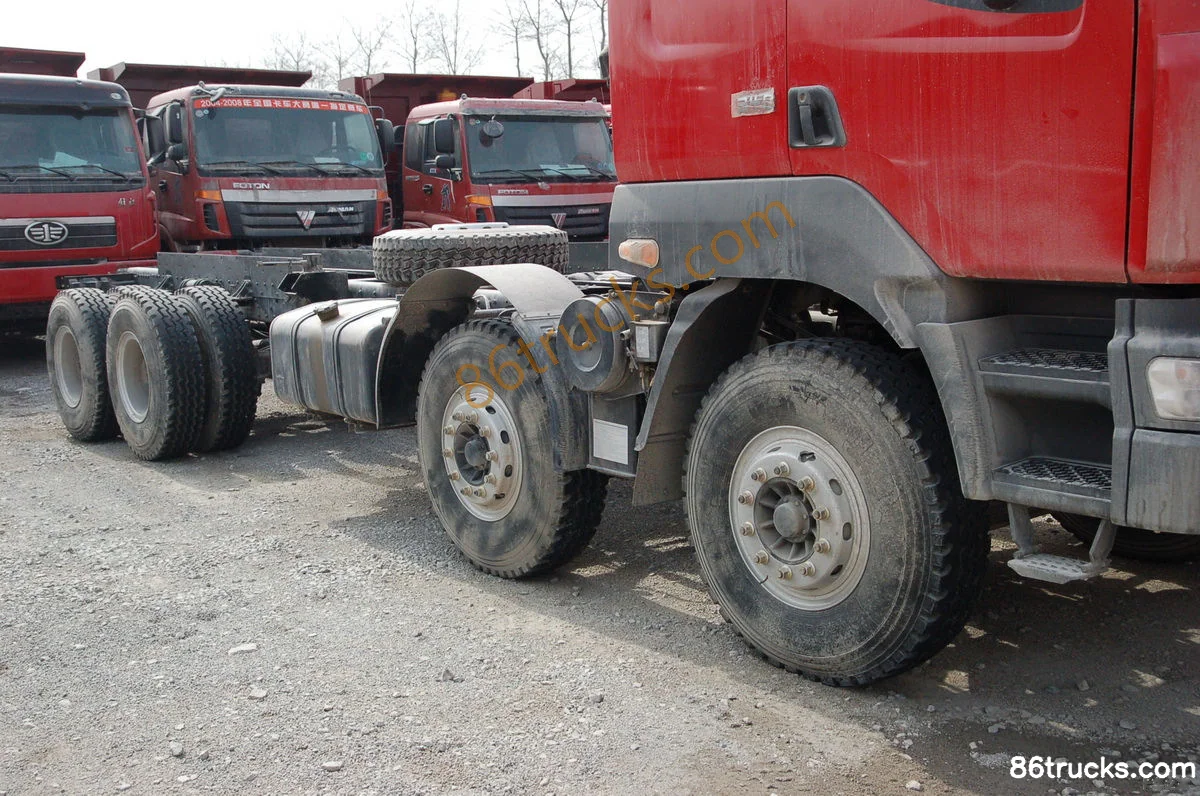

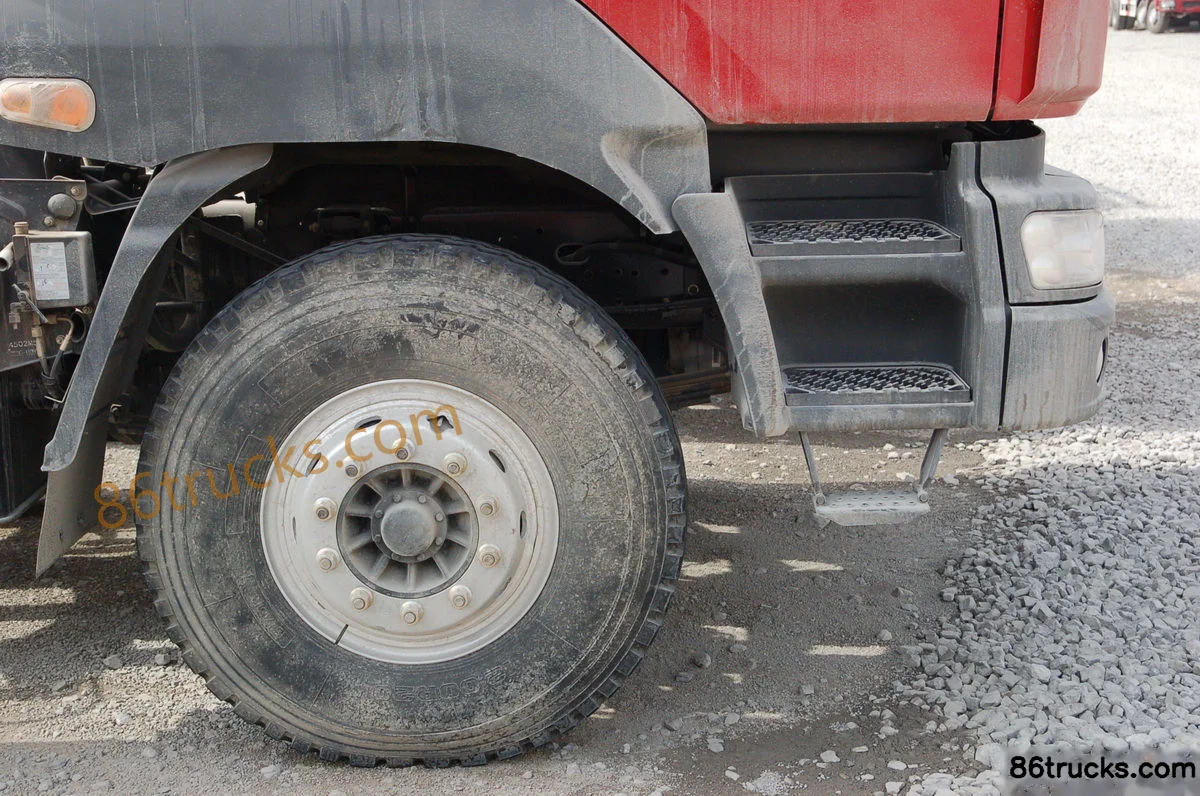

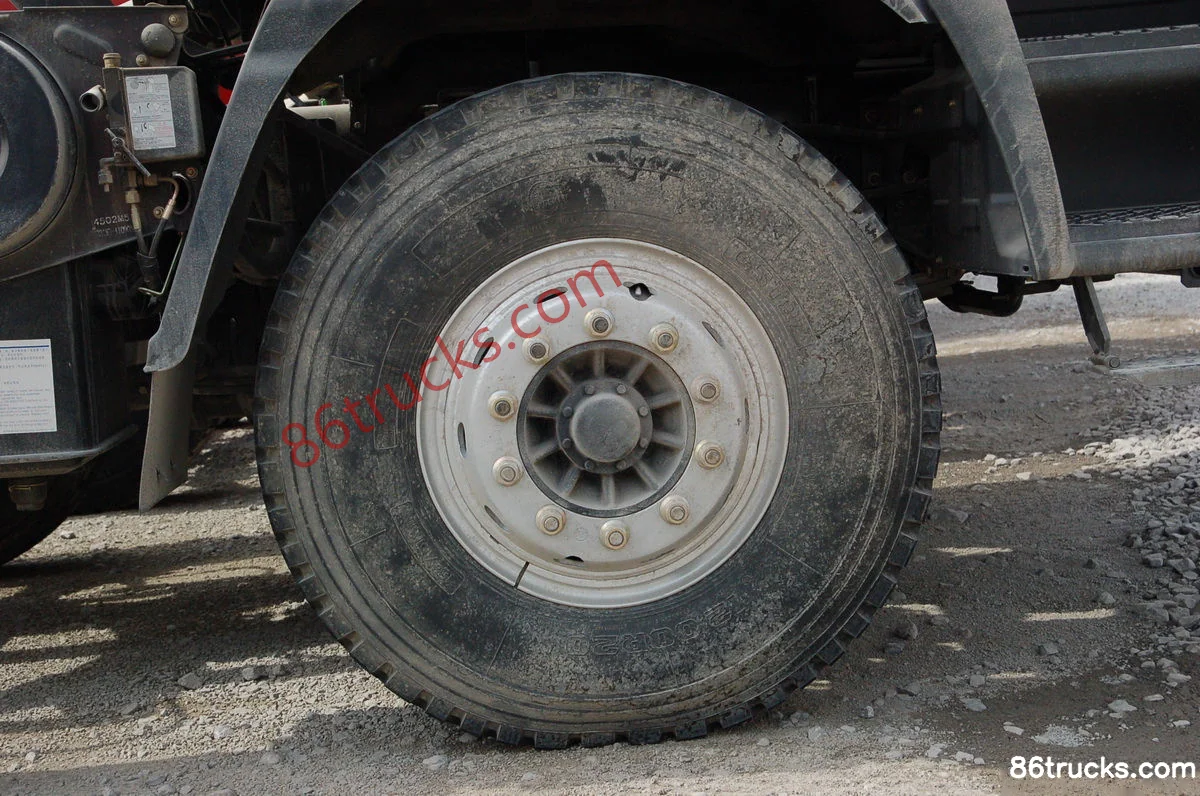

Photos

Exterior3

Chassis3

6 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis, and what does it include?

Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis export reference is about From $46,806; MSRP is ¥33.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis?

Key specs of Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis: Drive: 8x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis suited for?

Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis belongs to Dongfeng M5 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M5 350 hp 8X4(12 wheels) 8m dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
