FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: FAW Jiefang
Curb Weight:: 12.43ton
Wheelbase:: 4050+1350mm
Tire Size:: 12.00R20 16PR
Rated payload: 12.44ton
Drive 6X4 (10 wheels)
Horsepower 370
Cargo box type: Rear-dump body

Overview

The FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck is a Heavy truck featuring 12.44t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6SM2-37E5N engine, 370 hp, China V emissions and FAW Jiefang transmission.

China V 370 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3250P66L0T1E24M5
Drive type: 6X4
Wheelbase: 4050+1350mm
engine: XichaiCA6SM2-37E5N
transmission: FAW JiefangCA12TA160M
Rear Axle Ratio: 5.921
Cab length: 8.65m
Cab width: 2.55m
Cab height: 3.68m
Front track width: 2048mm
rear track: 1878/1878mm
Curb Weight: 12.43ton
Rated payload: 12.44ton
GVWR: 25ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 20°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6SM2-37E5N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.04L
Emission standard: China V
Max output power: 272kW
Max hp: 370Horsepower
Max torque: 1650N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Lean-burn, Electronic Control System
Transmission Parameters
Transmission Model: FAW JiefangCA12TA160M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: J6P flat roof cab
Cab width: 2550mm
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 2020 front axle
Front axle allowable load: 7000kg
Frame Dimensions: 300×80×(8+8)mm
rear axle description: Φ300 wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 12/12
Tire
Tire Size: 12.00R20 16PR
Tire Type: Steel-belted tire
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake:
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:

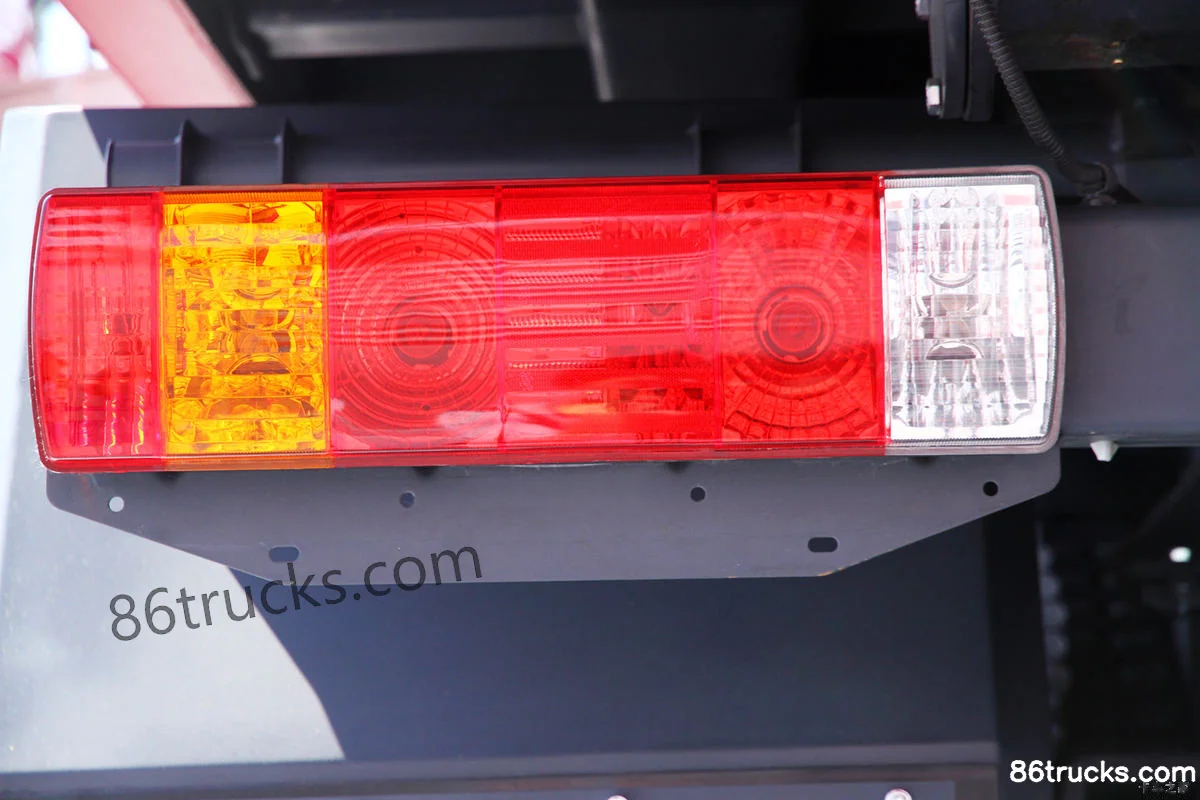

LED taillight:
smart configuration
Telematics System:
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):

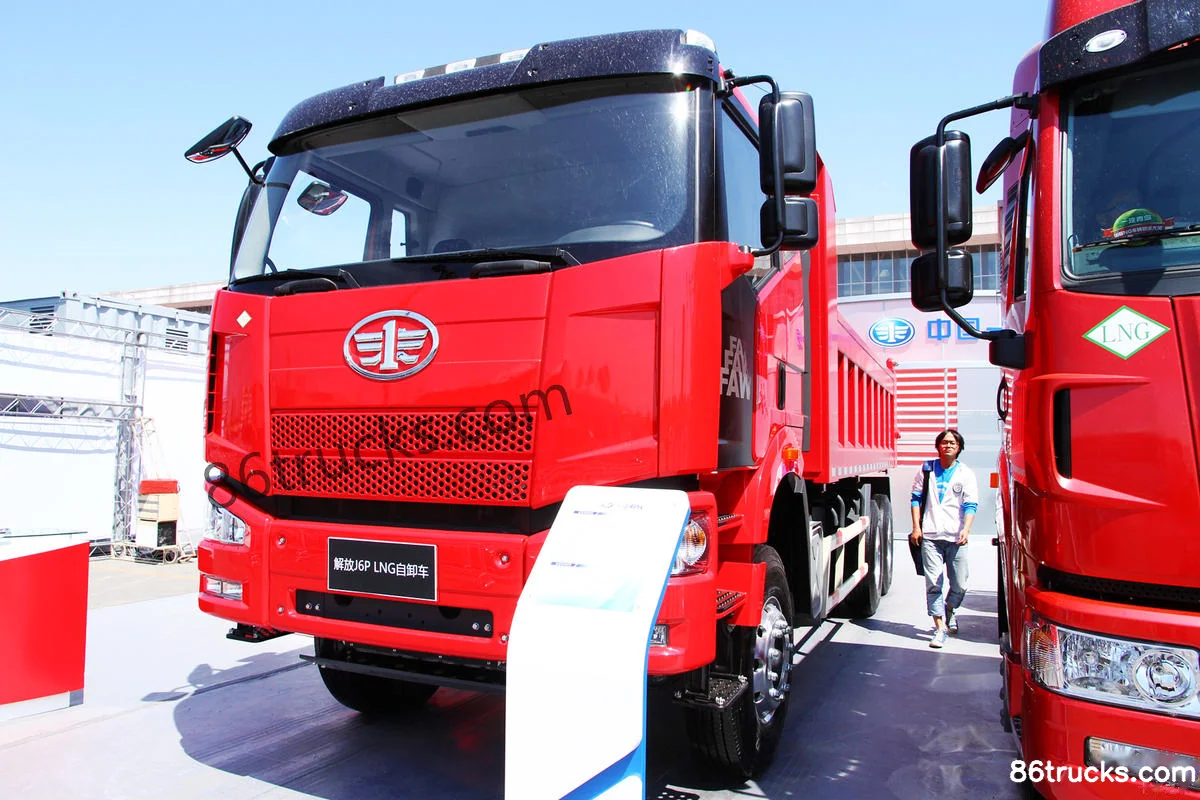

Photos

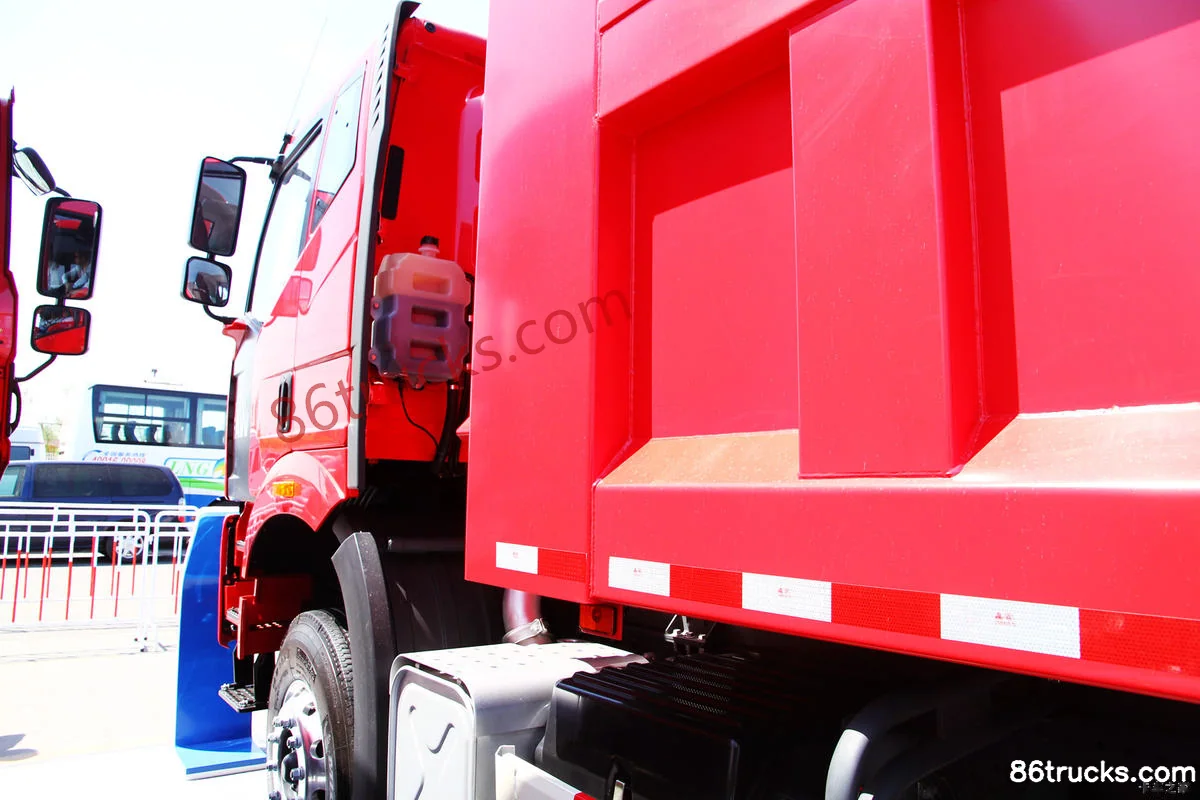

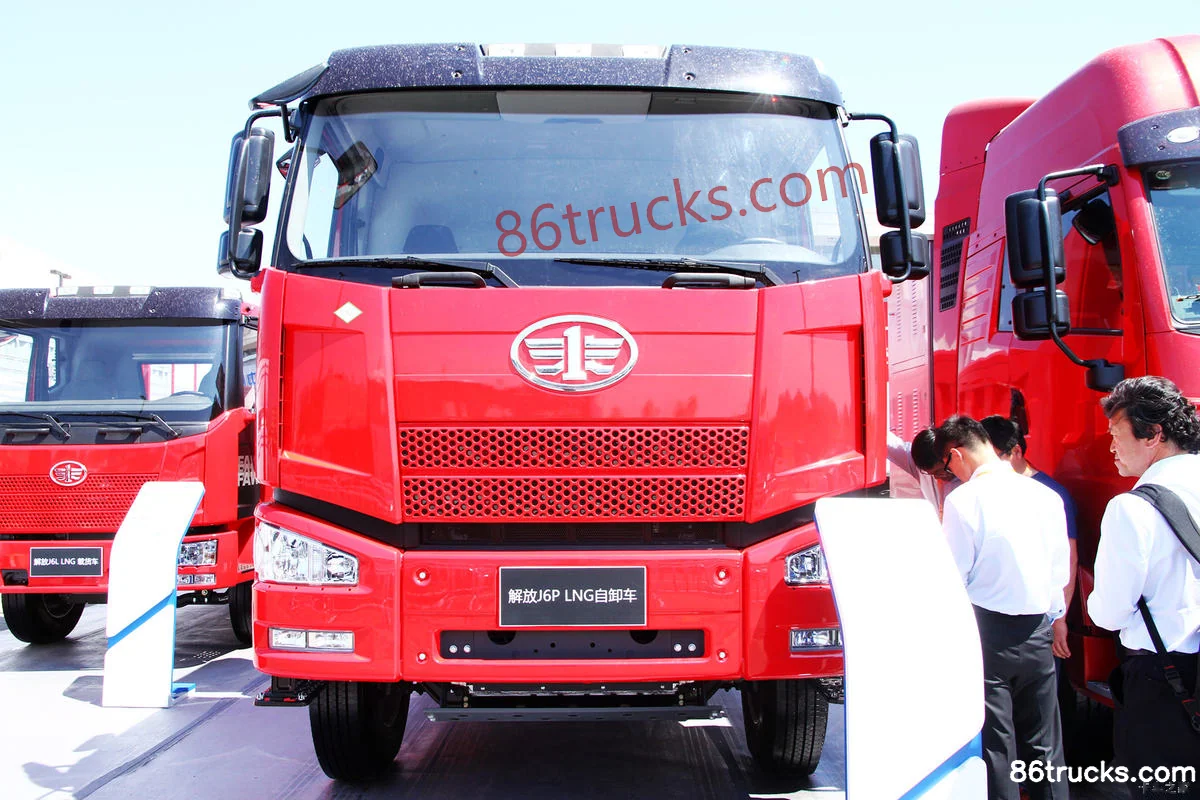

Exterior3

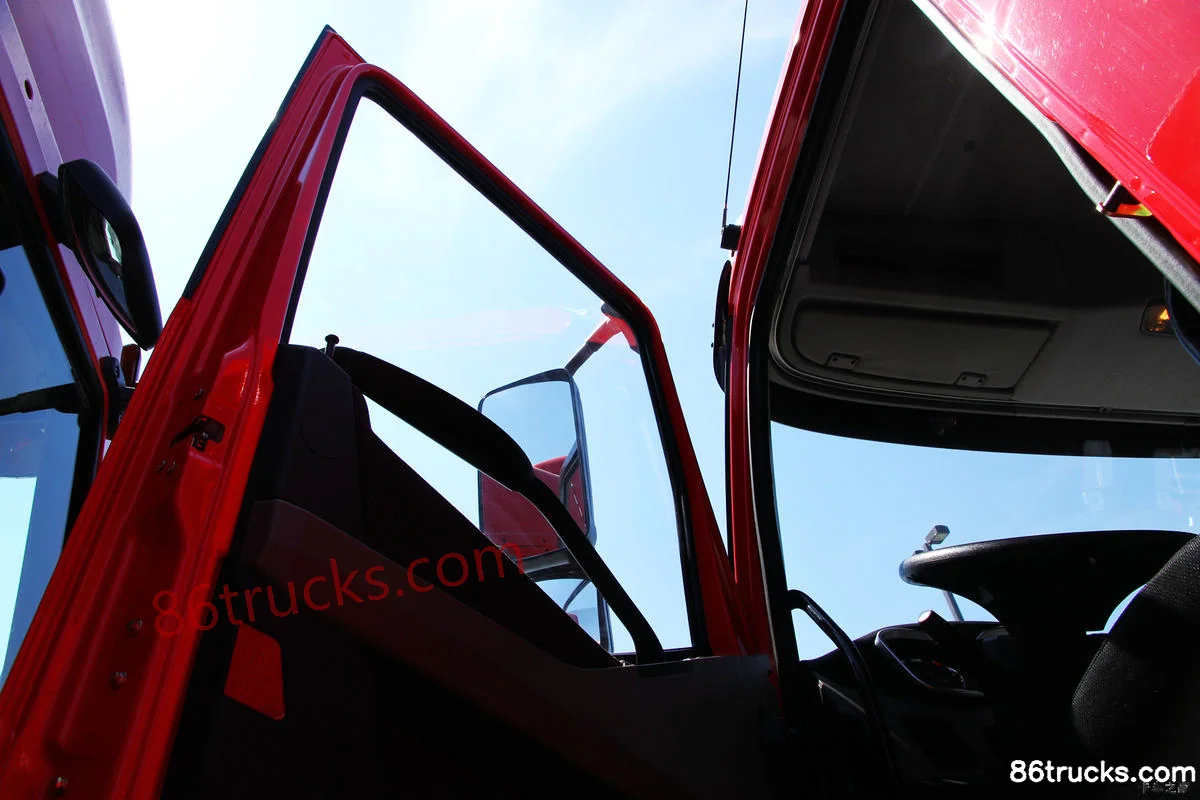

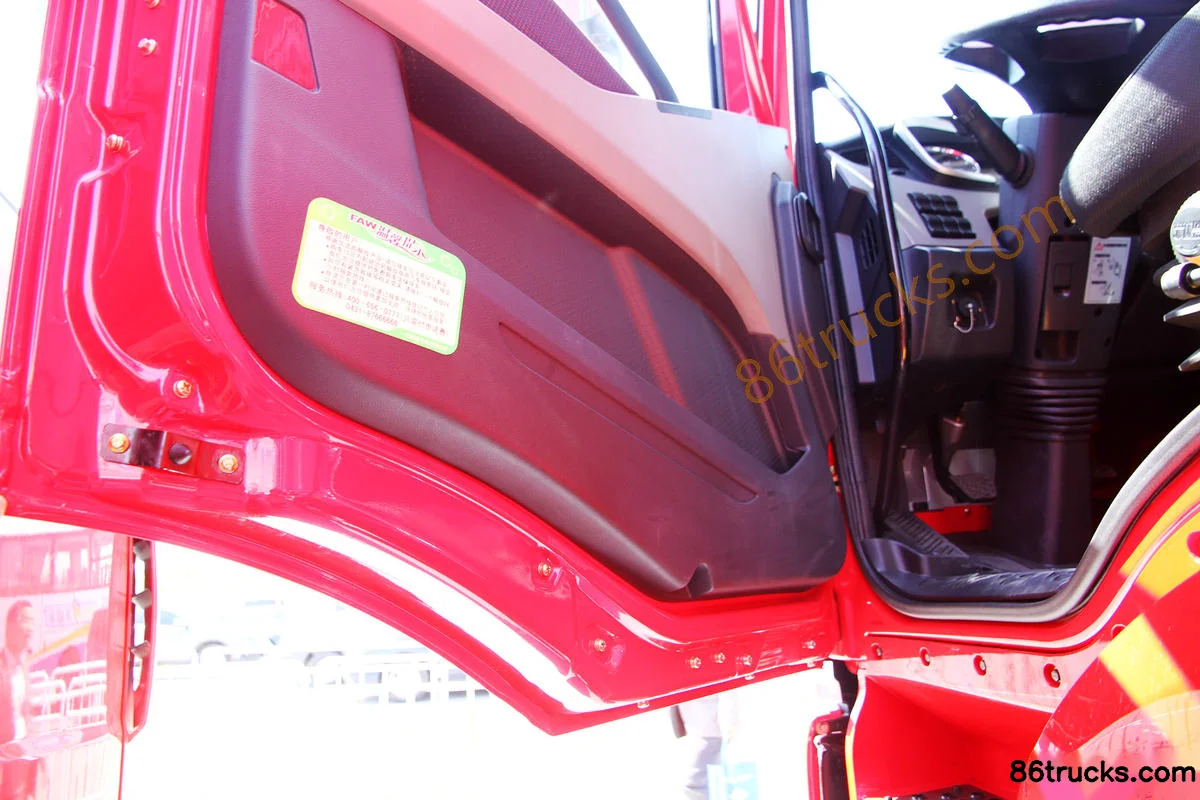

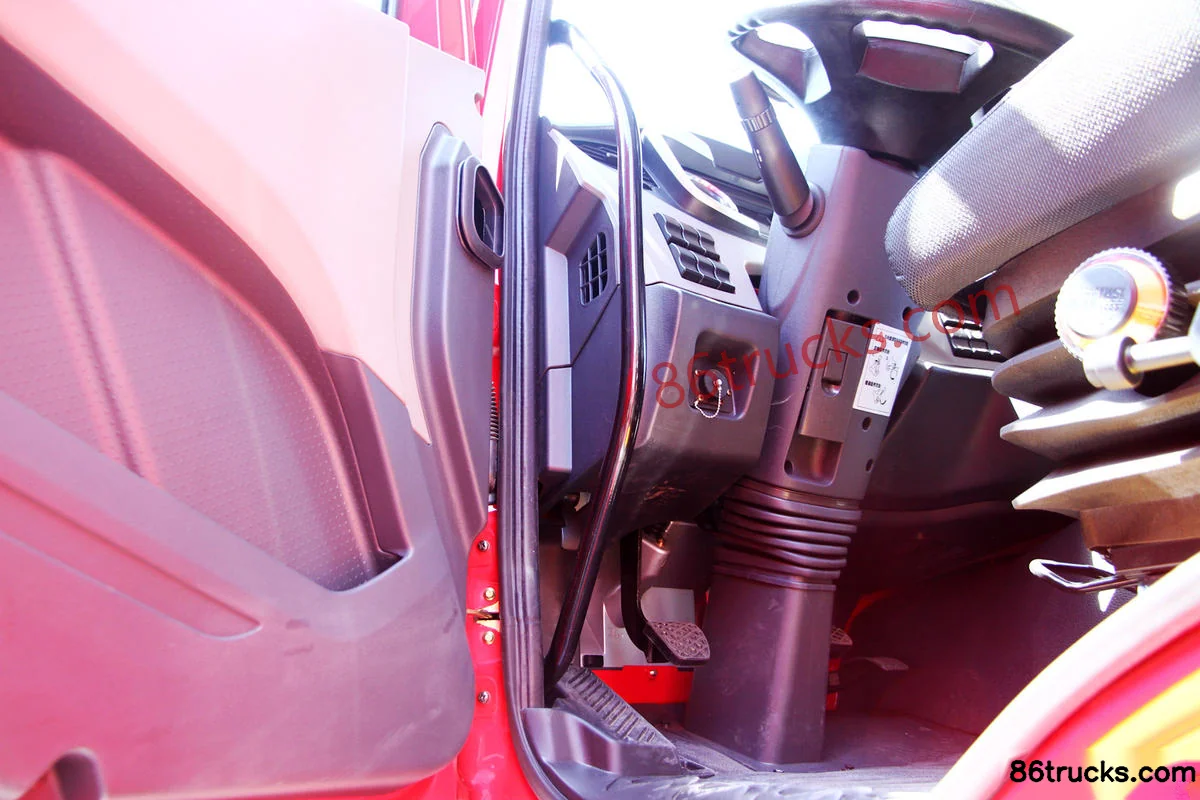

Cab3

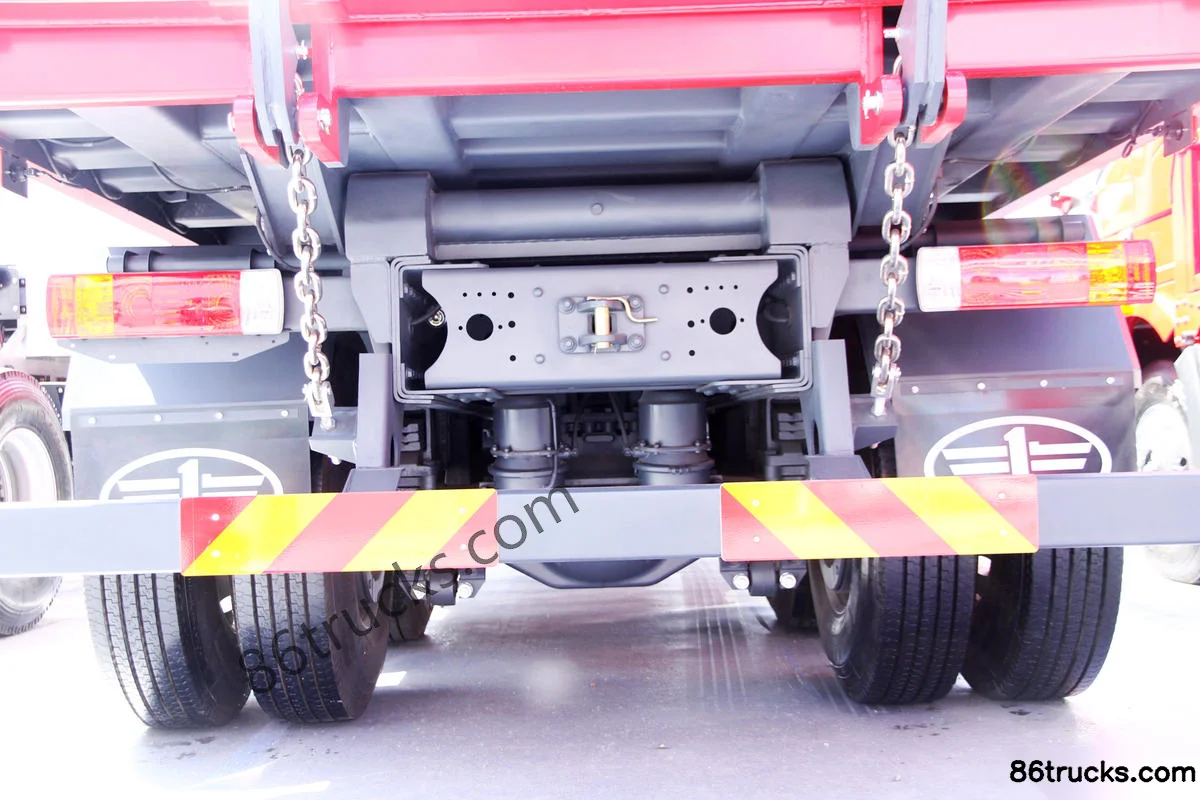

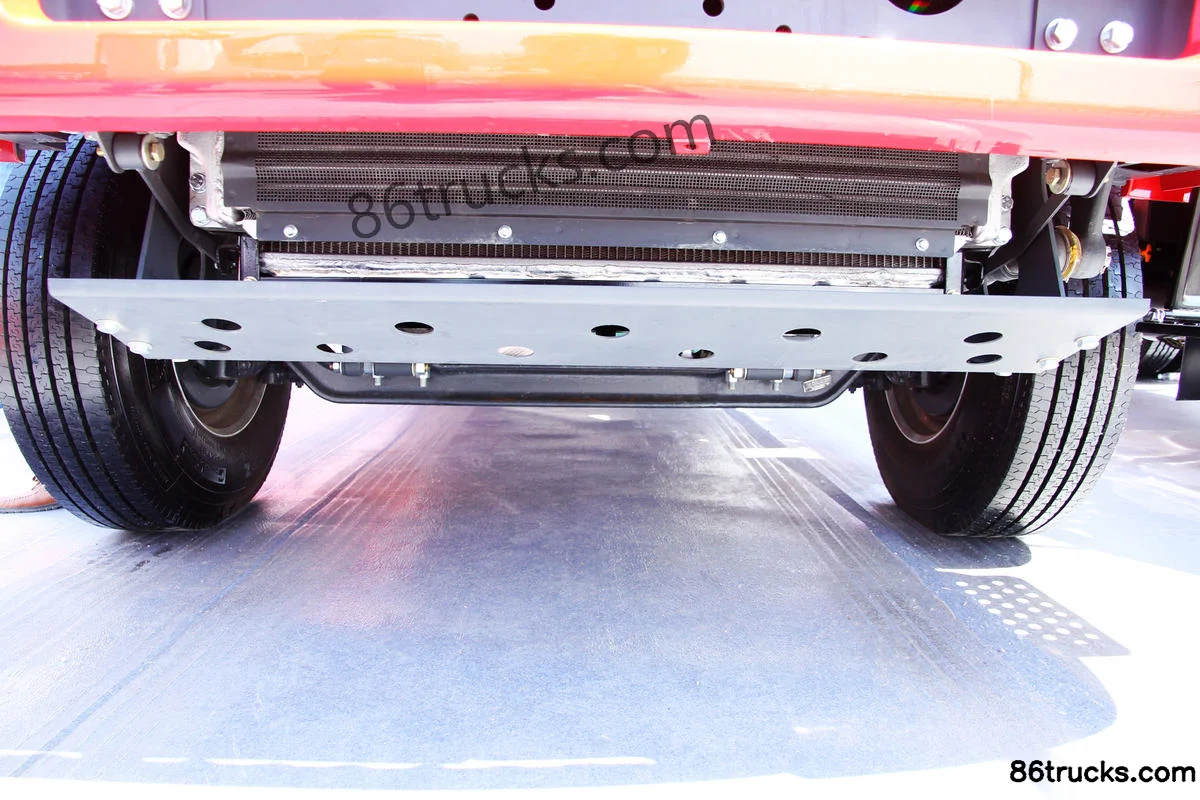

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Key specs of FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck: Drive: 6x4; Horsepower: 370 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck suited for?

FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck differ from other variants in the same series?

FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P Heavy Truck 375 hp 6X4(10 wheels) 5.8m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
