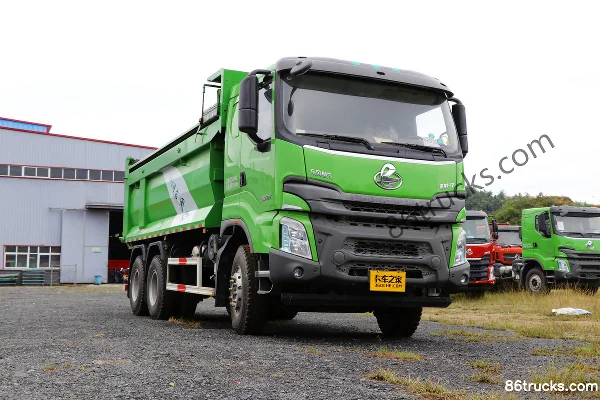

Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 4500+1350mm
Tire Size:: 11.00-20 18PR,11.00R20 18PR, 12.00-20 18PR,12.00R20 16PR
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 520
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck is a Heavy truck featuring 12.37t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a United PowerYC6K1352-50 engine, 520 hp, China V emissions and Fast Gear transmission.

China V 520 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3255H7DB
Drive type: 6X4
Wheelbase: 4500+1350mm
engine: United PowerYC6K1352-50
transmission: Fast Gear12JSDX240T
Rear Axle Ratio: 5.262
Cab length: 9.295m
Cab width: 2.545m
Cab height: 3.45m
Front track width: 2045mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 18°
Remarks: (1) Optional Ф430EATON pull-type H72D cab (2) Optional electric hydraulic tilt (3) Optional H72D cab + front/rear air-suspension cab mount (4) Optional rear air-suspension cab mount (5) Optional 11.00-20, 12.00R20 (heavy-duty construction), 12.00R20 (mining) (6) Optional imported steering gear (7) Optional 12JSDX240TA + 5.262/5.921 ratio (8) Optional 4.769 ratio (9) Optional 8.8-inch steel wheel + 12.00R20 (heavy-duty construction)/12.00R20 (mining) (10) Optional reinforced leaf springs
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1352-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.939L
Emission standard: China V
Max output power: 382kW
Max hp: 520Horsepower
Max torque: 2400N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear12JSDX240T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: H72S
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 450L
Chassis Specs
Front axle allowable load: 7000kg
Frame Dimensions: 300(8+8)mm
rear axle description: 2*300 cast steel heavy-duty
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 11/13
Tire
Tire Size: 11.00-20 18PR,11.00R20 18PR, 12.00-20 18PR,12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck?

Key specs of Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck: Drive: 6x4; Horsepower: 520 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck suited for?

Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck belongs to Dongfeng Chenglong H7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 520 hp 6X4(10 wheels) 6.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
