Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model)

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Sinotruk
Tire brand:: Triangle
Model code (announced):: ZZ3257V3647P1
engine:: SinotrukD12.42-40
Rear Axle Ratio:: 5.45
Drive 6X4 (10 wheels)
Horsepower 420
Cargo box type: square box
Emission China IV

Overview

The Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) is a Heavy truck featuring Dump type cargo body, 6X4 (10 wheels) drive and Flat roof cab. On the powertrain side, it comes with a SinotrukD12.42-40 engine, 420 hp, China IV emissions and Sinotruk transmission.

China IV 420 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3257V3647P1
Drive type: 6X4
engine: SinotrukD12.42-40
transmission: SinotrukHW19710T
Rear Axle Ratio: 5.45
Origin: Jinan, Shandong
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD12.42-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China IV
Max output power: 309kW
Max hp: 420Horsepower
Max torque: 1820N·m
Max torque speed: 1100-1400rpm
Rated speed: 2000rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19710T
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Seal cover type: none
Cargo box type: square box
Cargo box type: Dump type
Cab parameters
Cab: Flat roof
Cab suspension: 4-point mechanical suspension
Cab tilting: Electric
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: HR9
Frame Dimensions: (8+8/300)mm
rear axle description: AC16 dual rear axle
Axle ratio: 5.45
Leaf spring count: 10/12
Suspension (front/rear): leaf spring suspension
Tire
Tire brand: Triangle
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

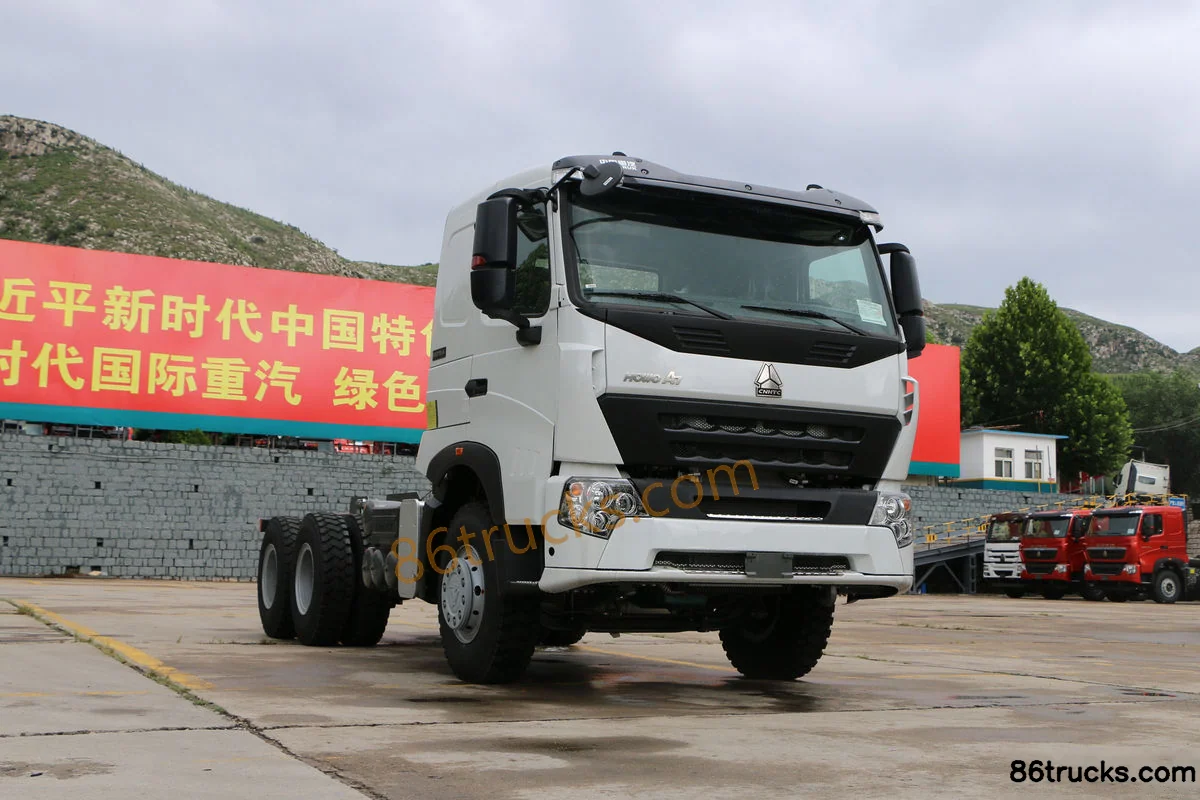

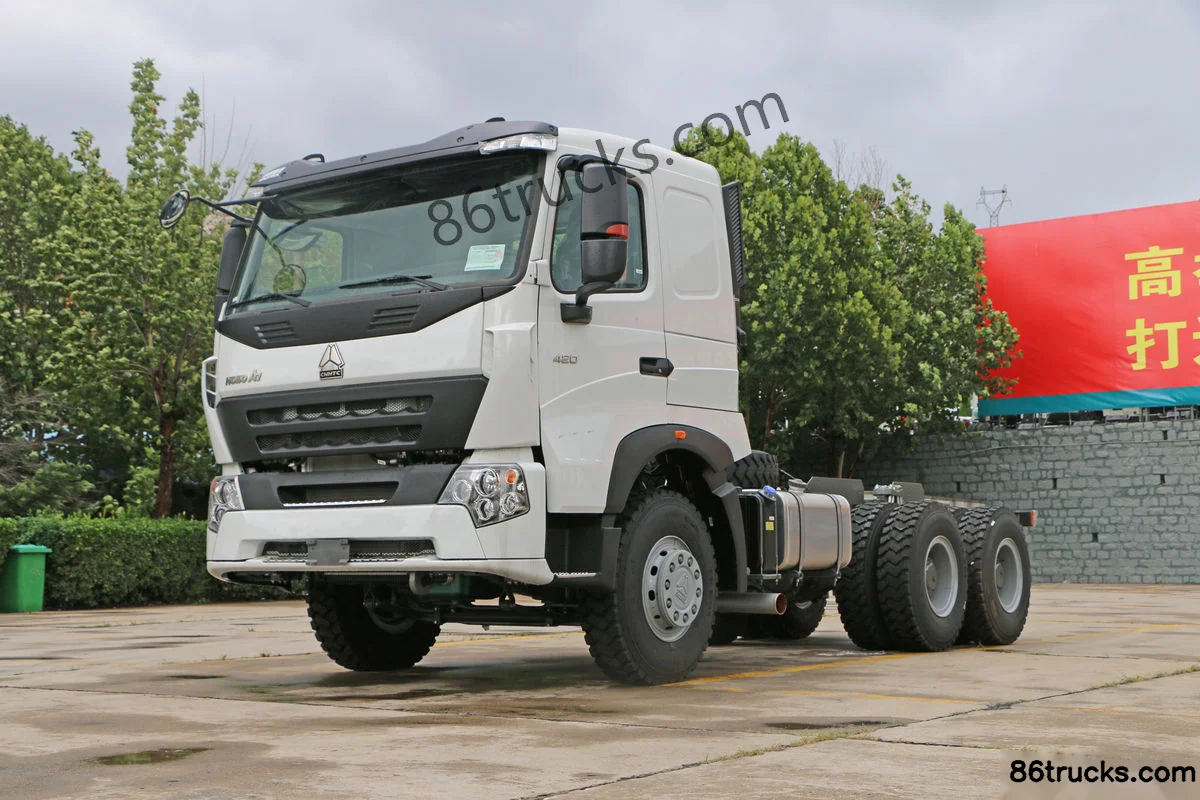

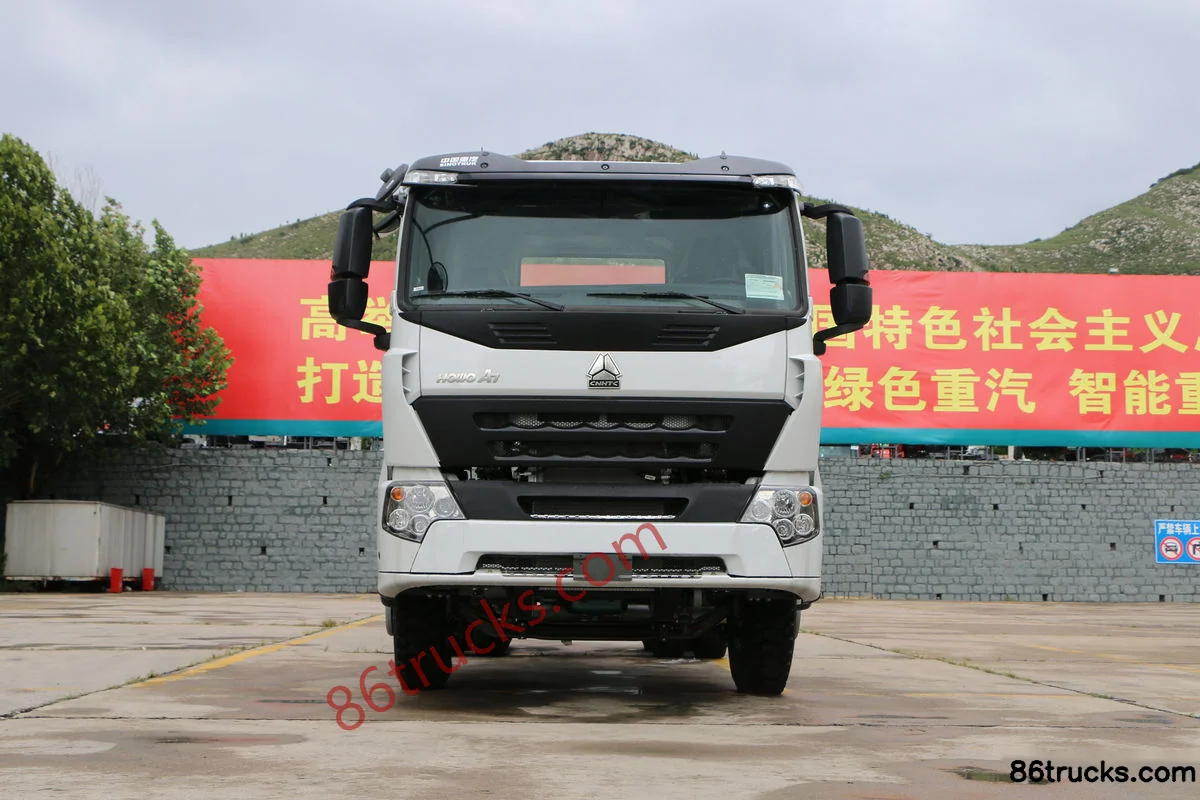

Exterior3

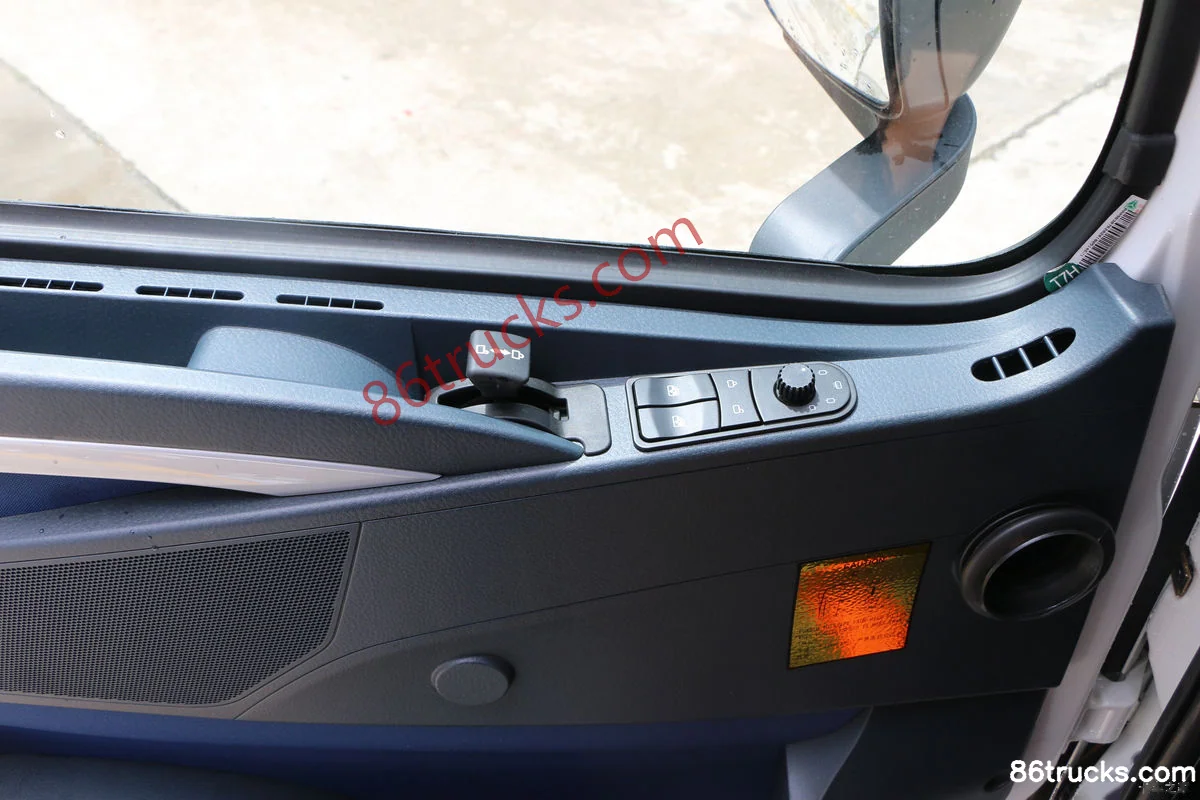

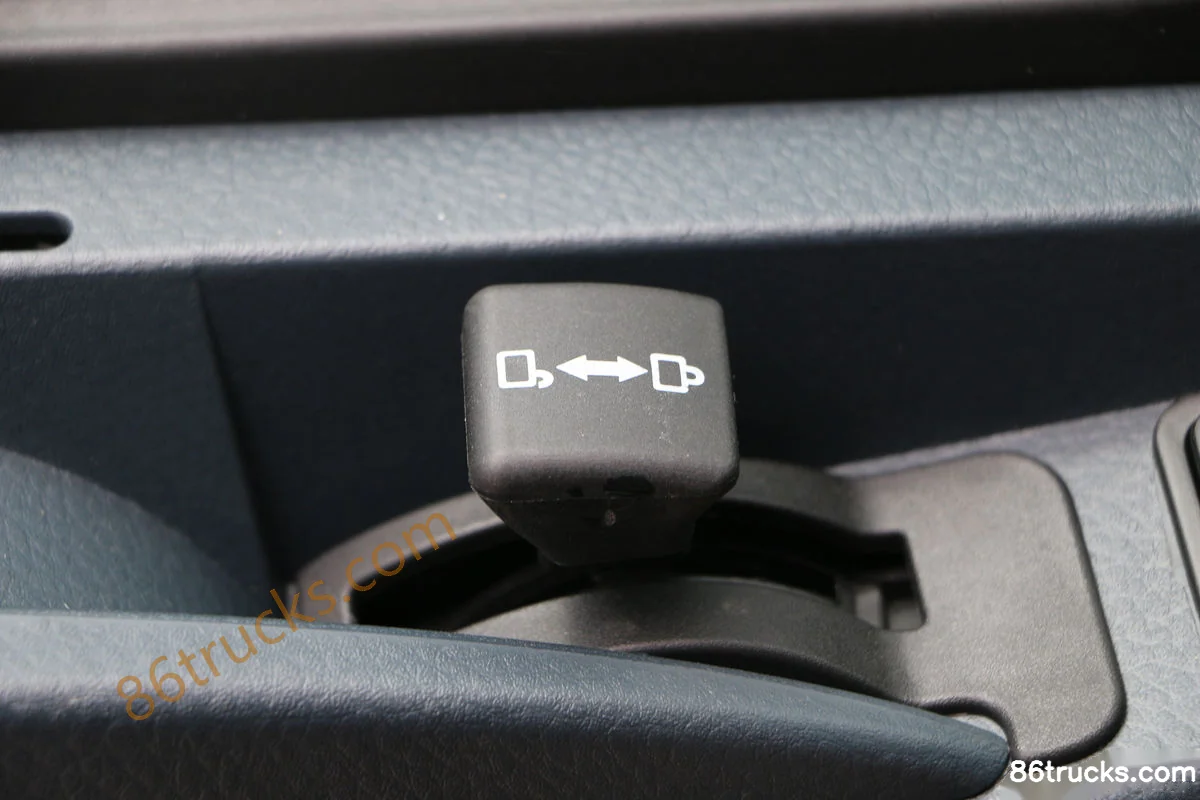

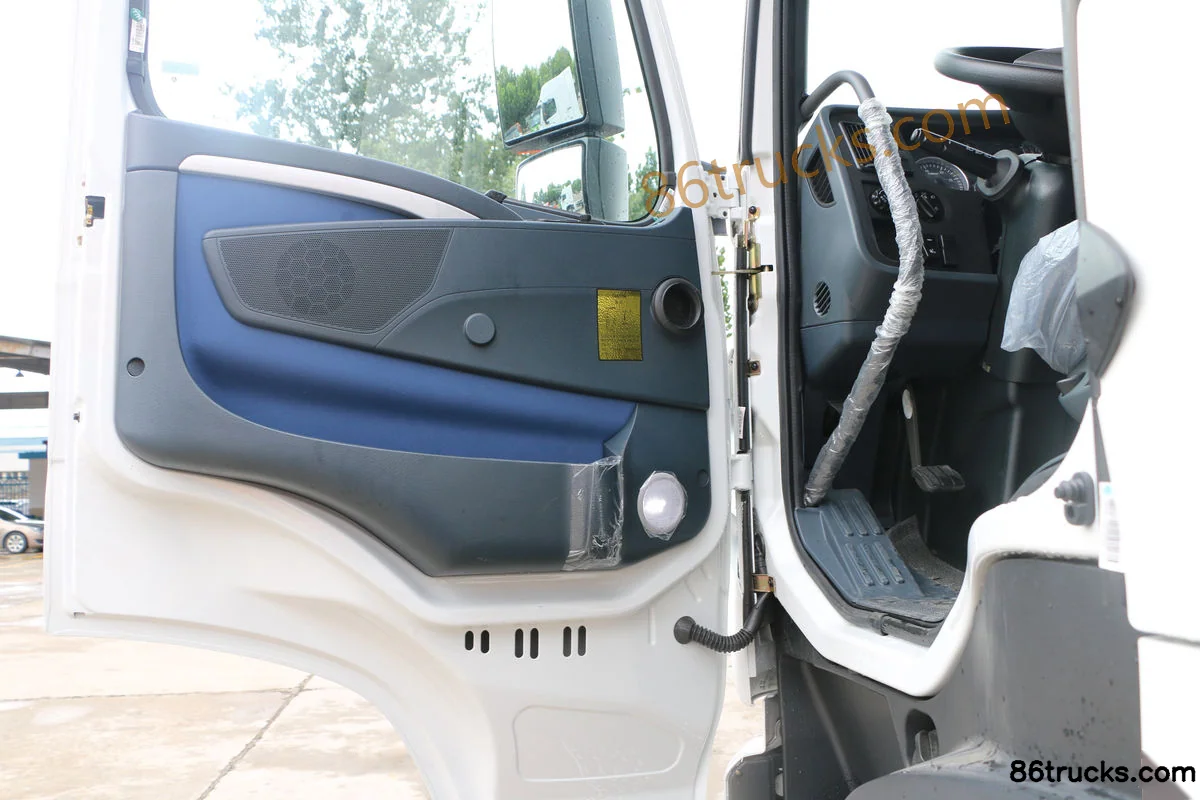

Cab3

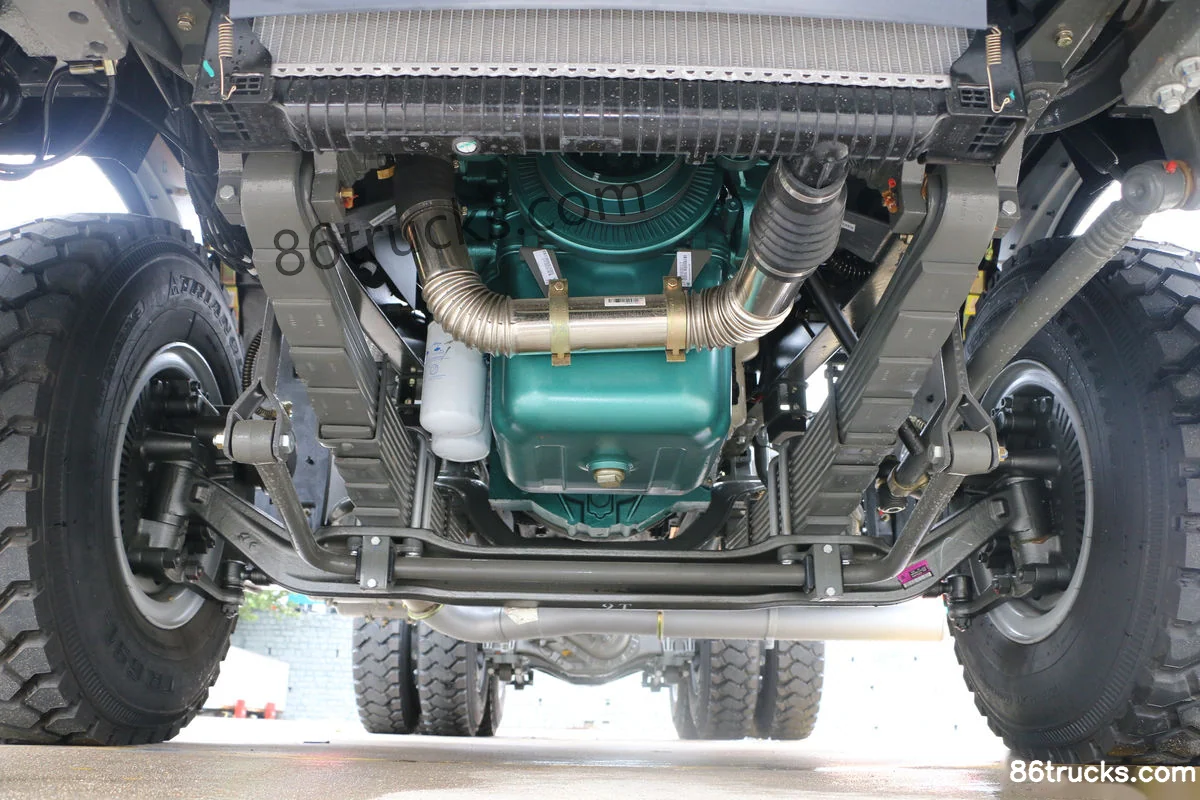

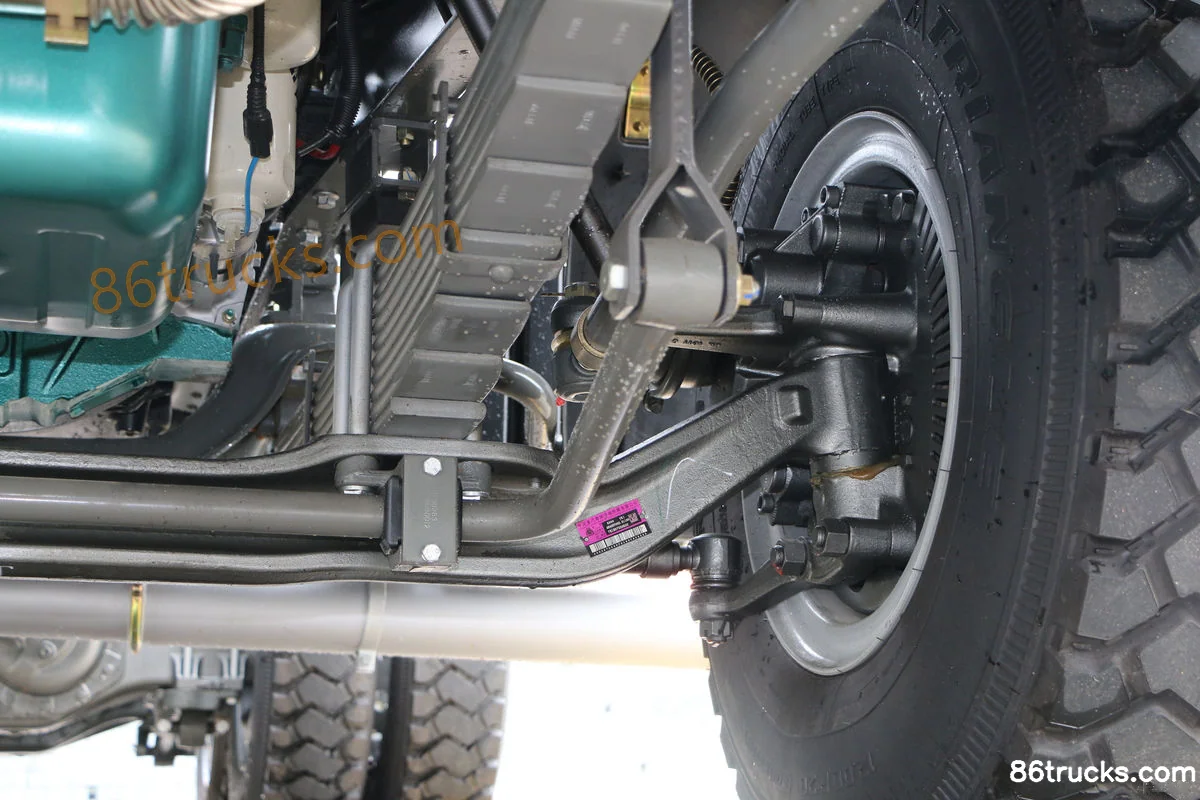

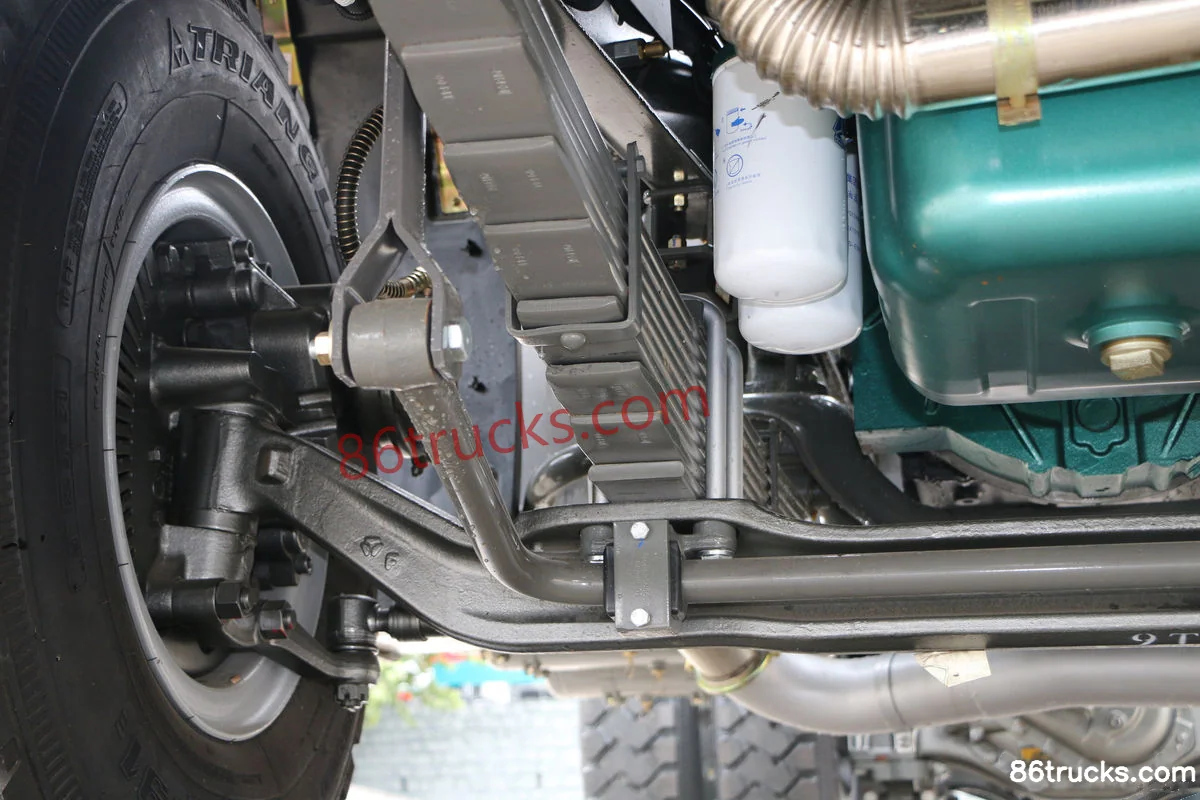

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model)?

Key specs of Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model): Drive: 6x4; Horsepower: 420 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) suited for?

Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) differ from other variants in the same series?

Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model) belongs to Sinotruk HOWO A7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO A7 Series Heavy Truck 420 hp 6X4(10 wheels) Dump Truck Chassis (Export Model)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
