Caterpillar 349D2L Crawler Excavator

Export reference
MSRP N/A
Model:: 349D2L
Engine Model:: crawler excavator
Tonnage:: 49ton
Bucket capacity:: 3.2cubic meter
boom length:: 6900mm
Arm Length:: 3350mm

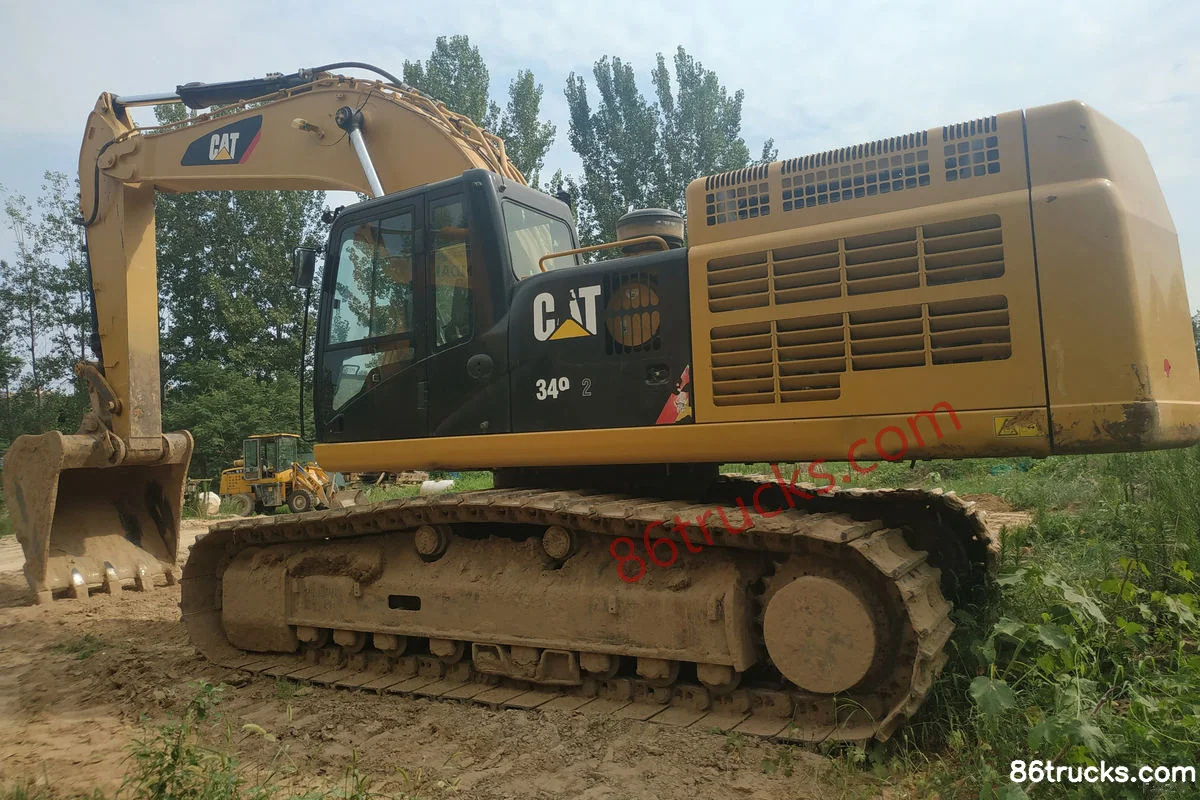

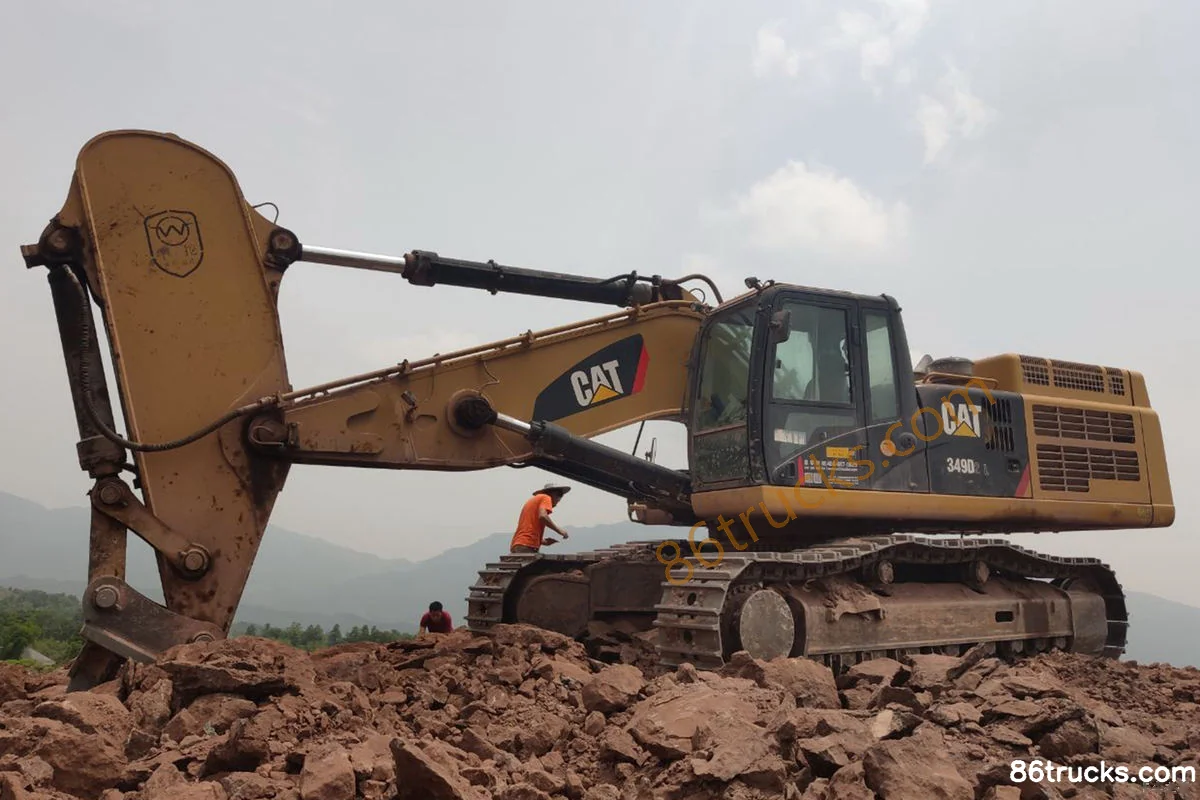

Caterpillar 349D2L Crawler Excavator exterior
View more photos (3)
Operating weight: 45.26ton
Bucket type: backhoe
Fuel Tank Capacity: 705L
Product power: Conventional Power

Overview

The Caterpillar 349D2L Crawler Excavator is a excavator featuring 45.26ton GVW, backhoe bucket capacity, 705L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 349D2L
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 49ton
Bucket capacity: 3.2cubic meter
Operating weight: 45.26ton
boom length: 6900mm
Arm Length: 3350mm
Machine dimensions: 11.94×3.34×3.69mm
Track shoe width: 750mm
Track gauge: 2740mm
Counterweight ground clearance: 1320mm
Min ground clearance: 510cm
Rear Overhang Radius: 3770mm
hydraulic system
Max flow of main pump: 734L/min
travel hydraulic circuit: 35Mpa
Swing Hydraulic Circuit: 31.4Mpa
performance specs
Travel speed: 4.5km/h
Bucket digging force: 267kN
Max tractive force: 338kN
Arm Digging Force: 201kN
Oil capacity
Fuel Tank Capacity: 705L
coolant: 35.5L
hydraulic oil tank: 243L
Engine Oil Capacity: 570L
Operating Range
Max digging radius: 11660mm
Max digging depth: 7600mm
Max digging height: 10800mm
Max unloading height: 7470mm
Max vertical digging depth: 6300mm
Engine parameters
Engine Model: Cat C13 ACERT
Max output power: 289kW

Photos

Exterior3

Caterpillar 349D2L Crawler Excavator Exterior (1) | 86Trucks Caterpillar 349D2L Crawler Excavator Exterior (2) | 86Trucks Caterpillar 349D2L Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 349D2L Crawler Excavator suited for?

Caterpillar 349D2L Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 349D2L Crawler Excavator differ from other variants in the same series?

Caterpillar 349D2L Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 349D2L Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 349D2L Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
