JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.81ton
Wheelbase:: 5000mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) is a Medium-duty truck featuring 9.995t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-68 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3180B80K1E2S
Drive type: 4X2
Wheelbase: 5000mm
engine: YuchaiYCS04200-68
transmission: Fast Gear8JS75C
Rear Axle Ratio: 5.83
Cab length: 8.995m
Cab width: 2.495m
Cab height: 2.73m
Front track width: 1905mm
rear track: 1810mm
Curb Weight: 7.81ton
Rated payload: 9.995ton
GVWR: 18ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 26°
departure angle: 12°
Remarks: Standard: driving recorder, standard rims, MP3, telematics; optional: MP5, crane frame, FARIZON accelerator.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Weisida
Cab width: 2235mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 6500kg
Frame Dimensions: 245×865×75×7mm
rear axle description: 10T
rear axle allowable load: 11500kg
Axle ratio: 5.83
Leaf spring count: 10/11+7
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

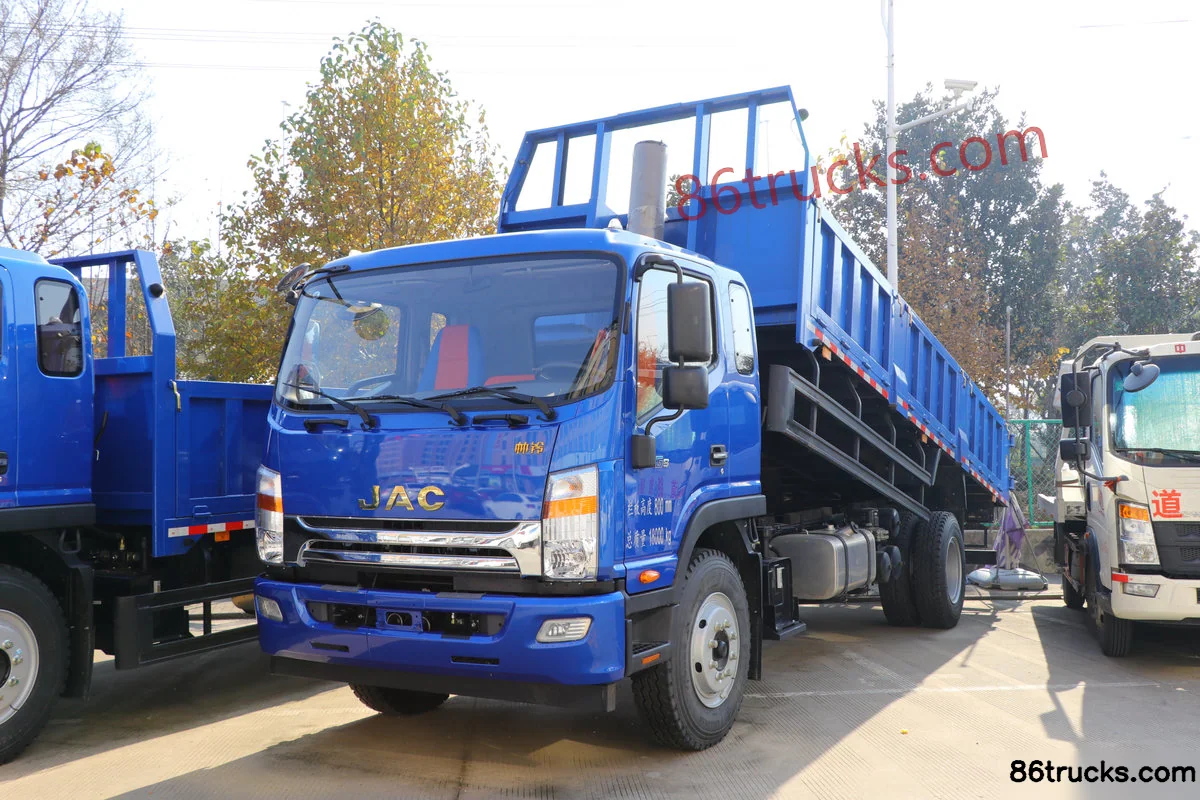

Exterior1

1 photos

FAQ

What emission standard does JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI)?

Key specs of JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) suited for?

JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) differ from other variants in the same series?

JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI) belongs to JACG (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing G9 200 hp 4X2(6 wheels) 6.5 m semi-row dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
