XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck

Export reference
From $53,611
MSRP ¥38.6M CNY
Fuel: Diesel
Curb Weight:: 11.5ton
Wheelbase:: 3400+1350mm
Tire Size:: 11.00R20-16PR
Cab dimensions:: 8.44×2.52×3.92m
Truck Type:: concrete mixer truck
Rated payload: 13.305ton
Drive 6X4 (10 wheels)
Horsepower 300
Emission China V

Overview

The XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck is a concrete mixer truck featuring 13.305t payload, 11.5ton GVW, 6X4 (10 wheels) drive and G5LM cab. On the powertrain side, it comes with 300 hp, China V emissions and Diesel fuel.

China V 300 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.44×2.52×3.92m
Truck Type: concrete mixer truck
Drive type: 6X4
Wheelbase: 3400+1350mm
Vehicle origin: Xuzhou, Jiangsu
Front/rear track width: Front: 1980; Rear: 1860/1860mm
Curb Weight: 11.5ton
Rated payload: 13.305ton
Max. speed: 80km/h
Front/rear suspension: 1.485/2.205m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP7.300E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 220kW
Max hp: 300Horsepower
Rated speed: 2100rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Body Parameters
Mixing drum capacity: 6m³
Vehicle certification code: NXG5251GJBN5
Body Brand: XCMG Truck
Chassis Specs
Chassis Series: Hanfeng G5
Chassis Model: NXG3251D5NCX
Front axle description: 5.5T
Frame Dimensions: 300×80×(8+6)mm
rear axle description: 435
Axle ratio: 5.143
Leaf spring count: 3/4,9/13
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS118
Cab parameters
Cab: G5LM
Tire
Tire Size: 11.00R20-16PR
Number of tires: 10pcs

Photos

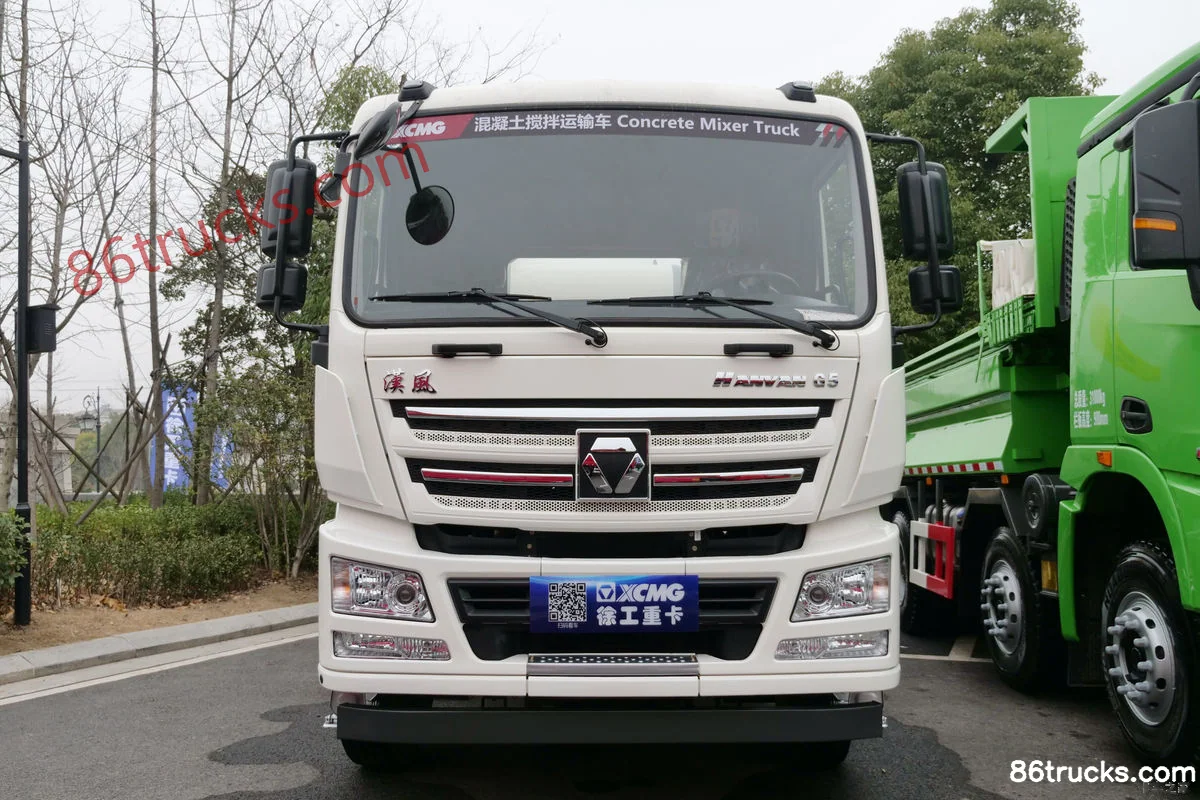

Exterior1

1 photos

FAQ

What is the export price of XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck, and what does it include?

XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck export reference is about From $53,611; MSRP is ¥38.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck?

Key specs of XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck: Drive: 6x4; Horsepower: 300 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck suited for?

XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck differ from other variants in the same series?

XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck belongs to XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5 300hp 6X4(10 wheels) 6 Cubic Meter Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
