FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle)

Export reference
From $30,833
MSRP ¥22.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.9ton
Wheelbase:: 1860+3000mm
Tire Size:: 11.00R20
Rated payload: 15.385ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) is a Medium-duty truck featuring 15.385t payload, 24.48t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a XichaiCA6DLD-22E5 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZT3240P3K2E5T3A90
Drive type: 6X2
Wheelbase: 1860+3000mm
engine: XichaiCA6DLD-22E5
transmission: Fast Gear9JS119A
Rear Axle Ratio: 6.33
Cab length: 7.845m
Cab width: 2.55m
Cab height: 3.4m
Front track width: 1935/1935mm
rear track: 1860mm
Curb Weight: 8.9ton
Rated payload: 15.385ton
GVWR: 24.48ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 16°
Remarks: Optional cargo box size 5.2m, heavy-duty
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-22E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.6L
Emission standard: China V
Max output power: 164kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear9JS119A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cargo box material: Manganese Plate
Cab parameters
Cab: Jinlu Flat Top
Chassis Specs
Front axle description: G116
Front axle allowable load: 10000kg
rear axle description: 457 cast steel axle
rear axle allowable load: 13000kg
Axle ratio: 6.33
Leaf spring count: 10/8+9
clutch: Φ395
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Telematics System:

Photos

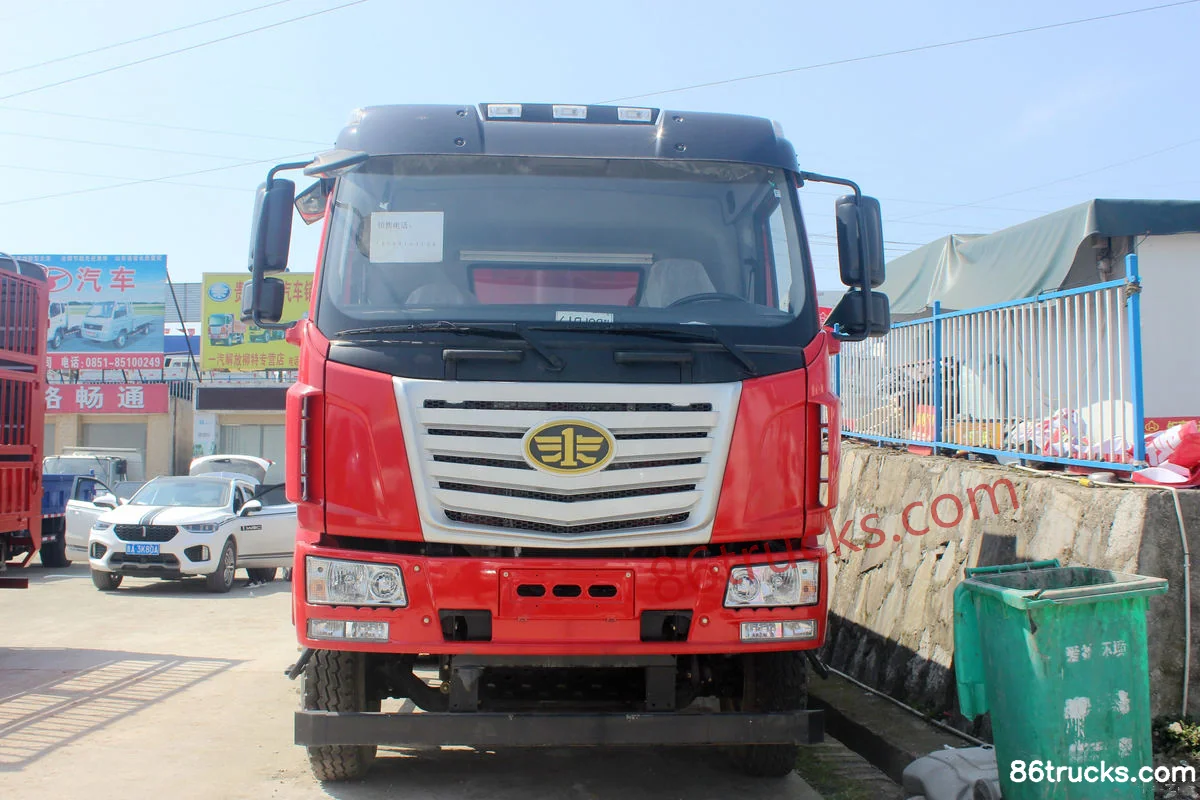

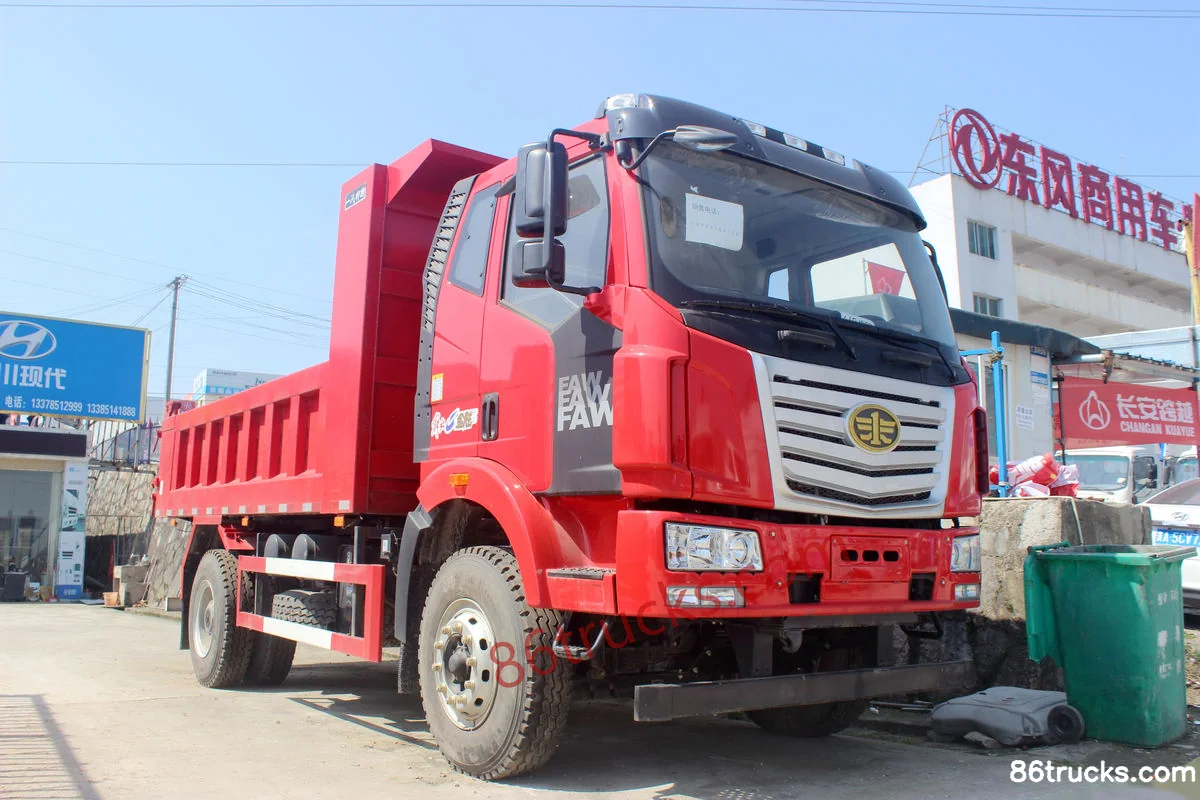

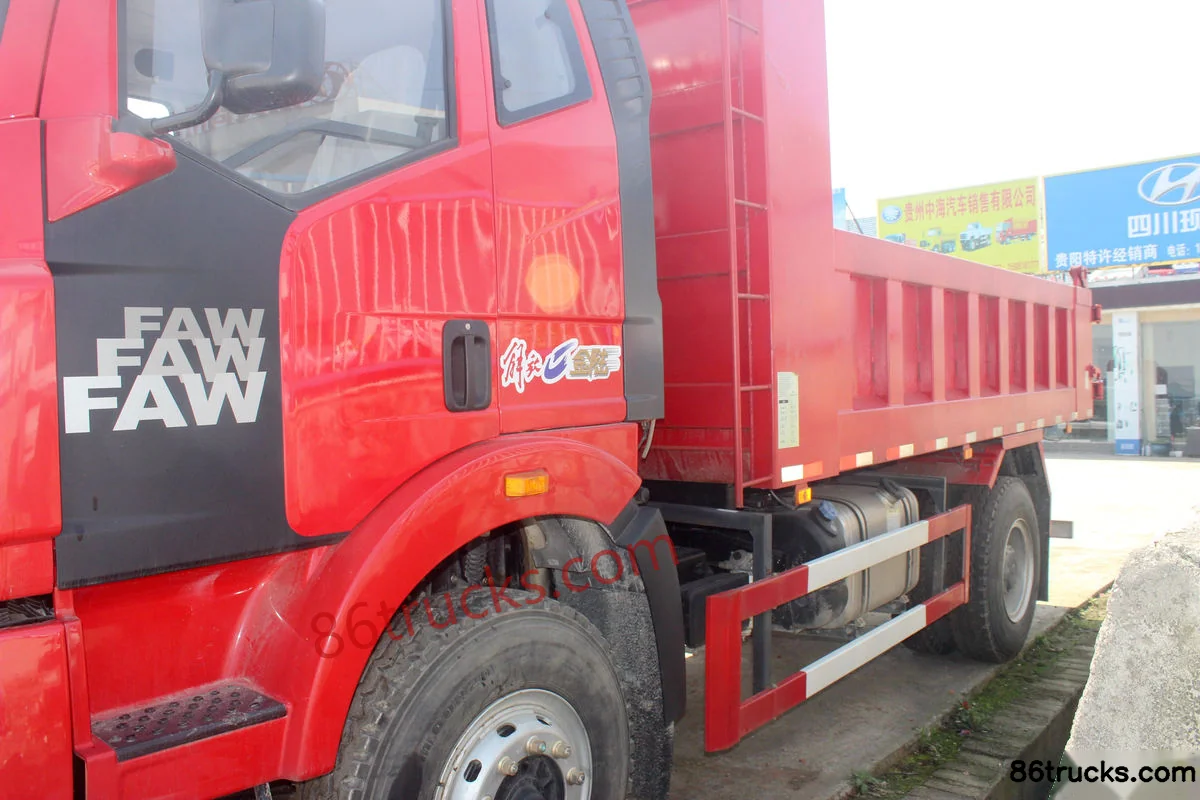

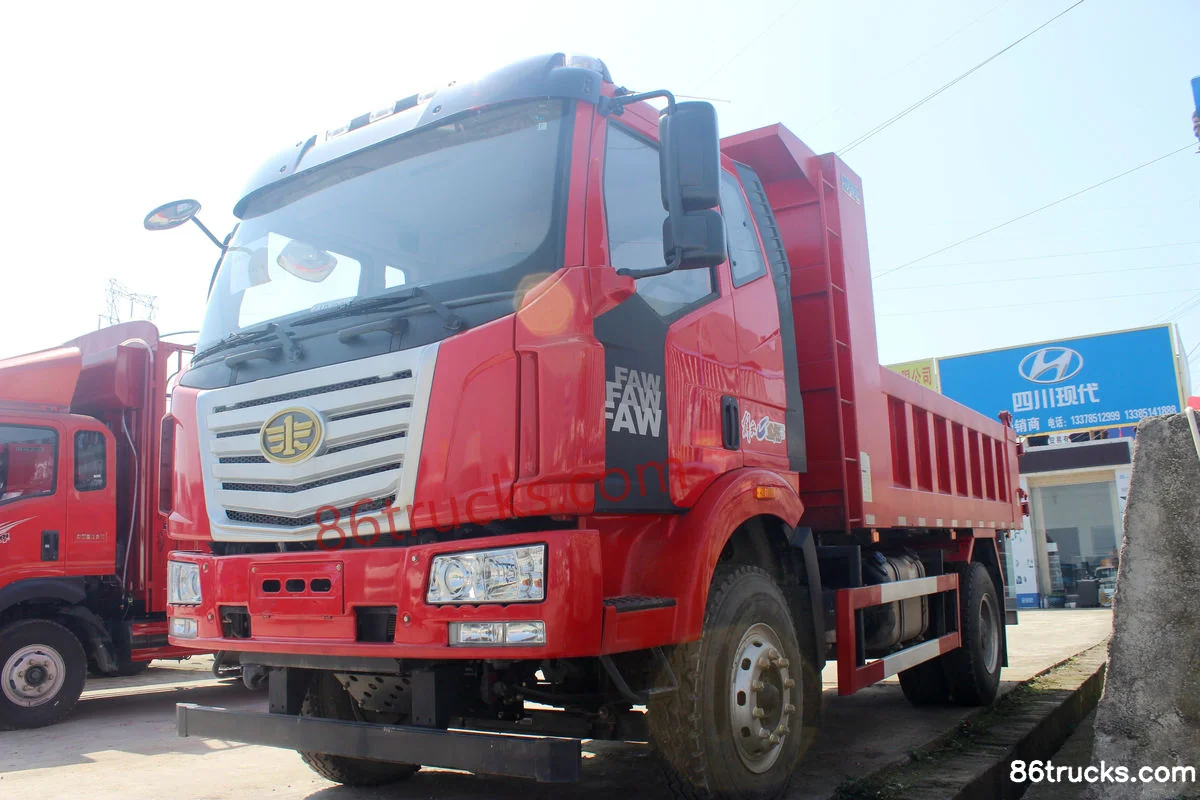

Exterior3

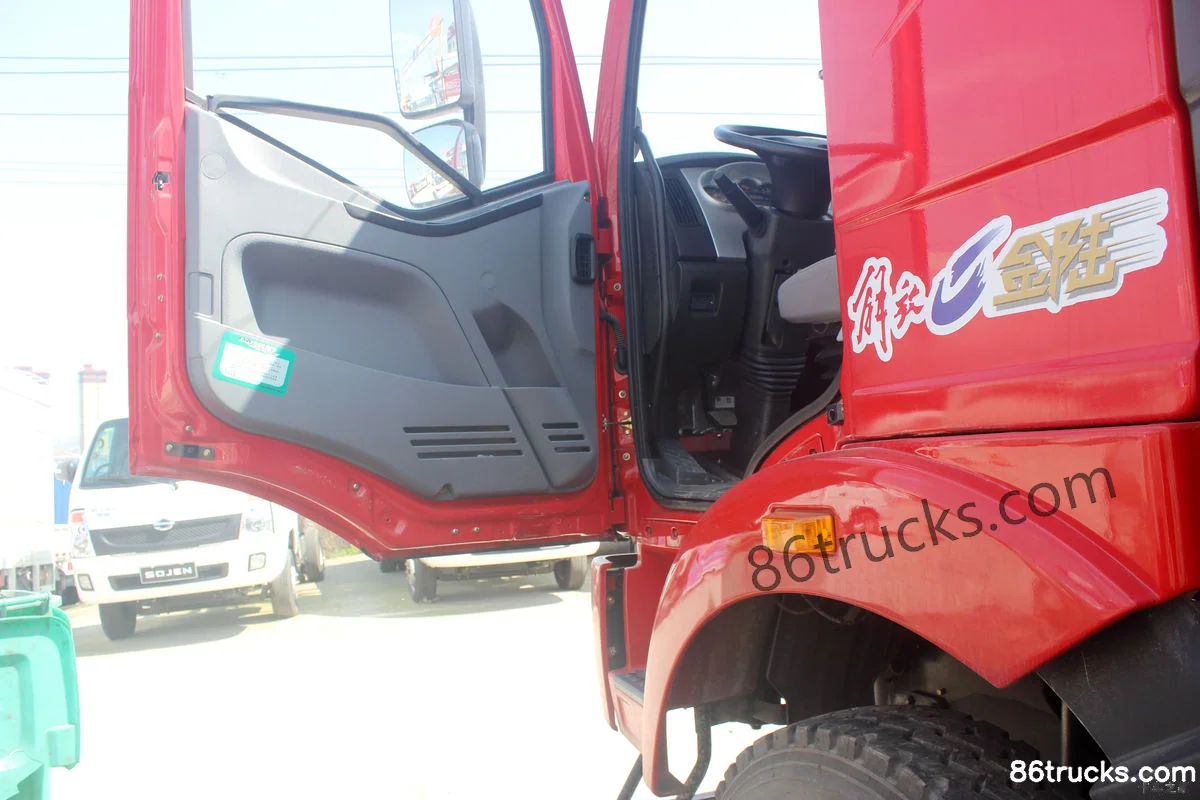

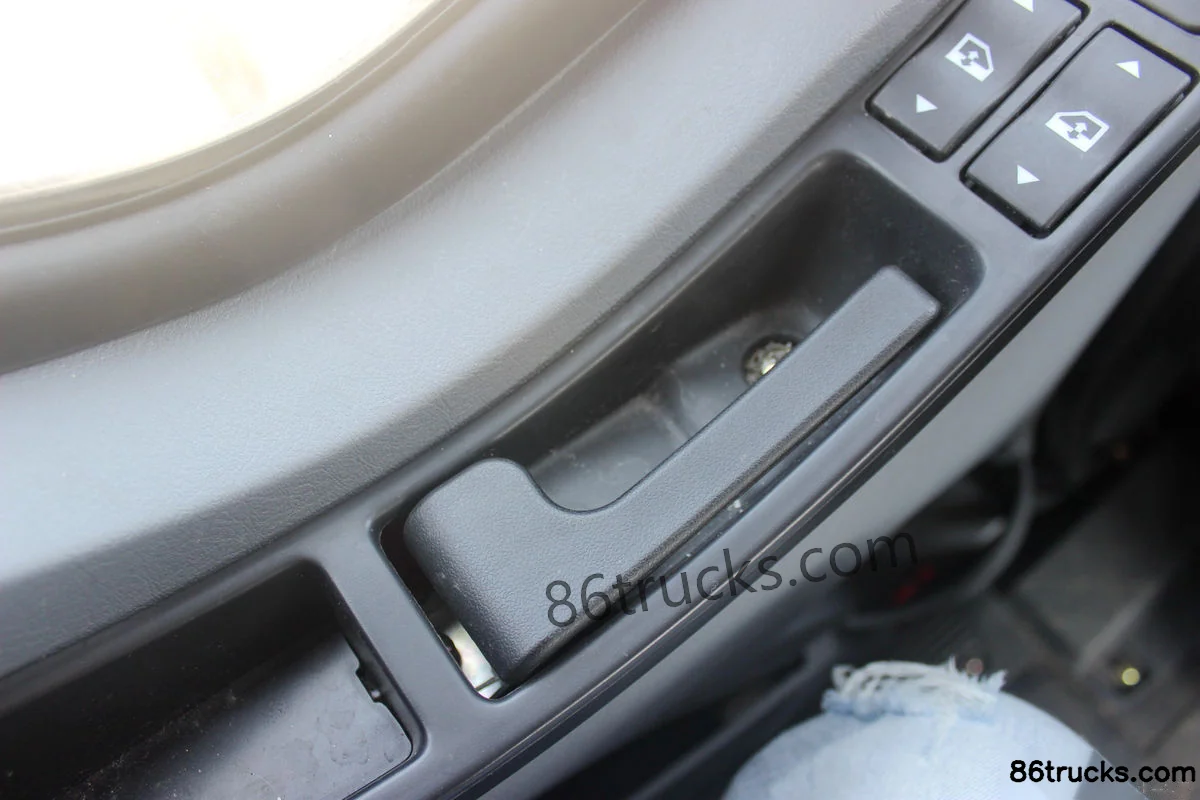

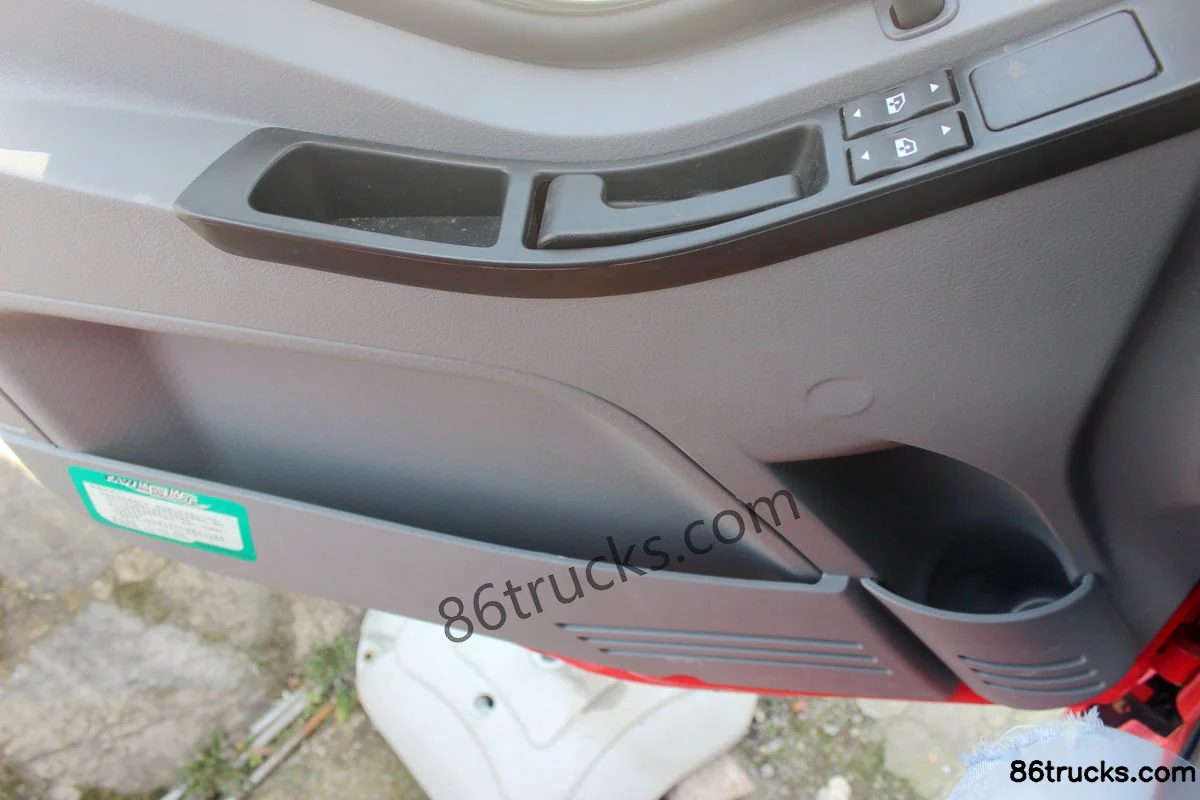

Cab3

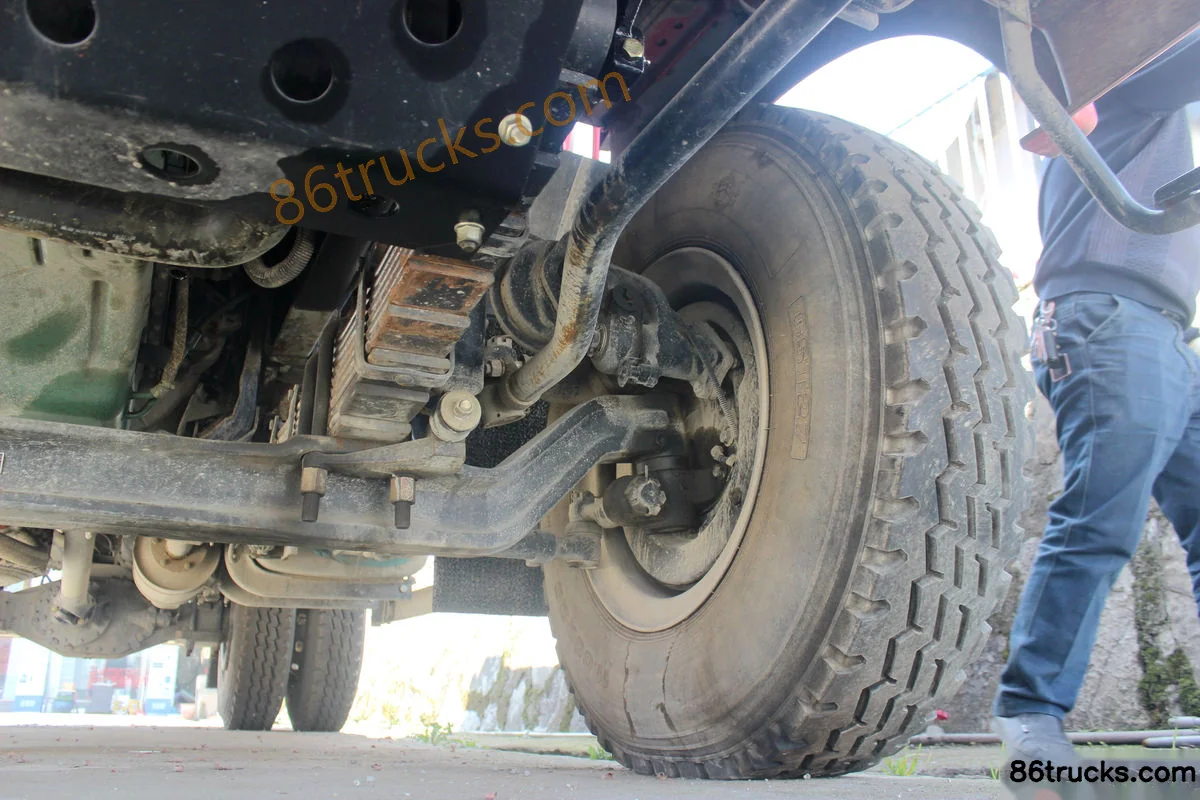

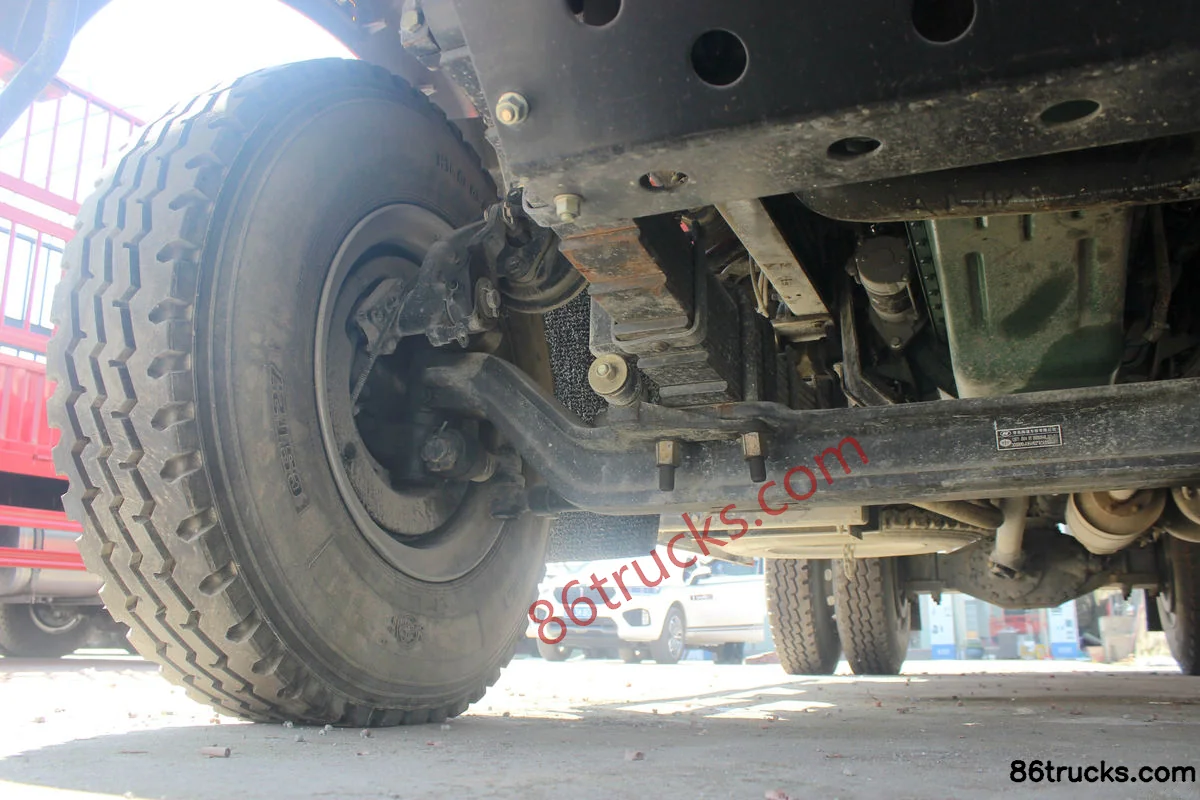

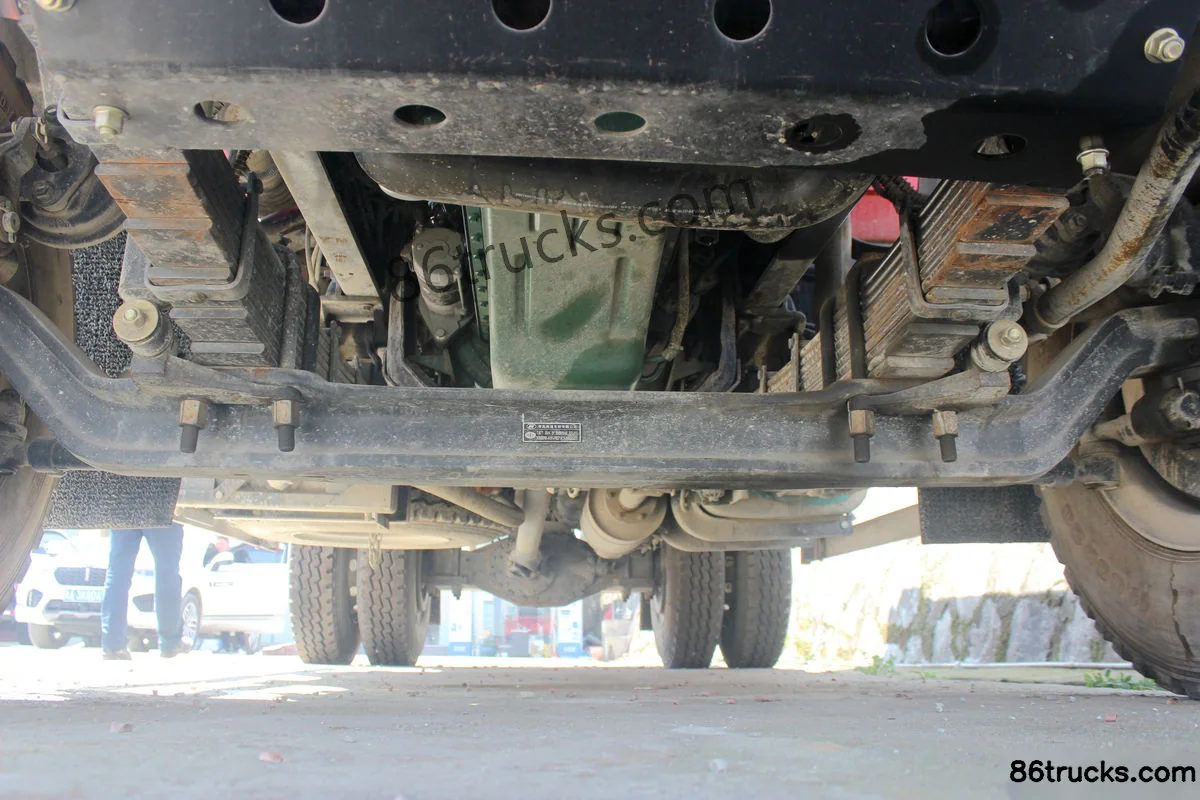

Chassis3

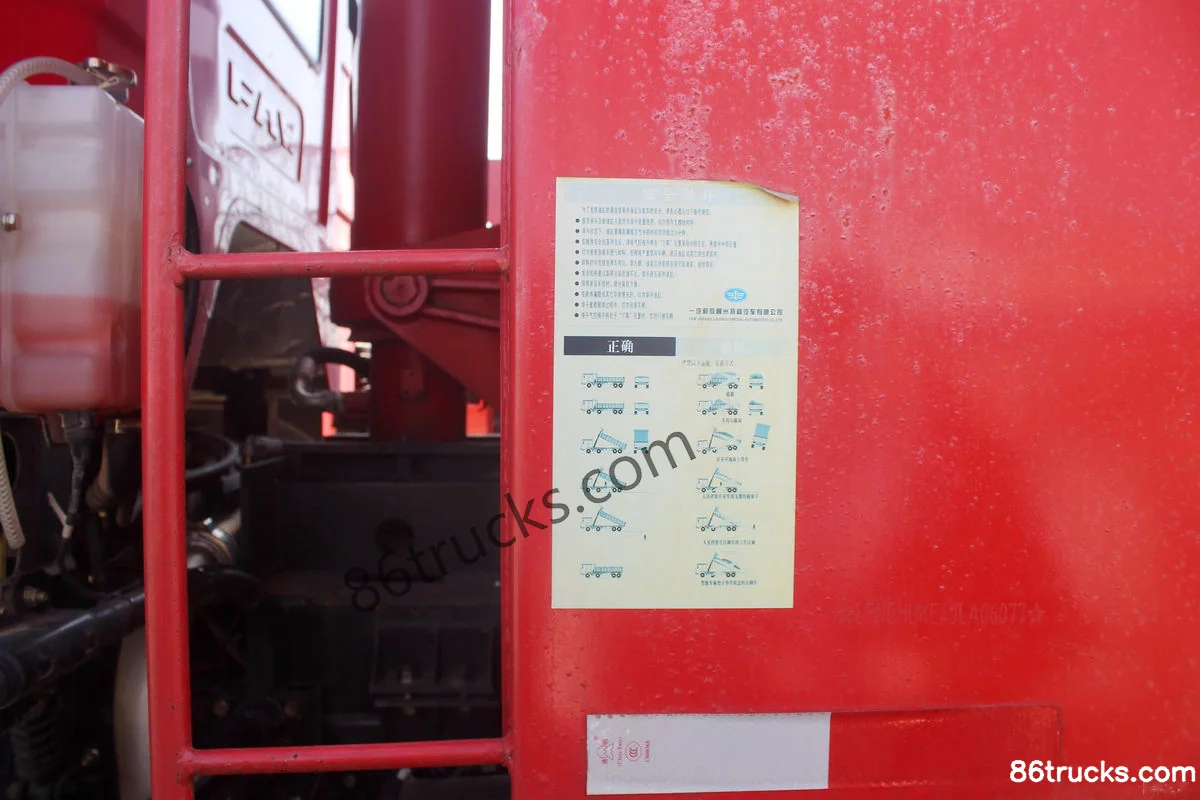

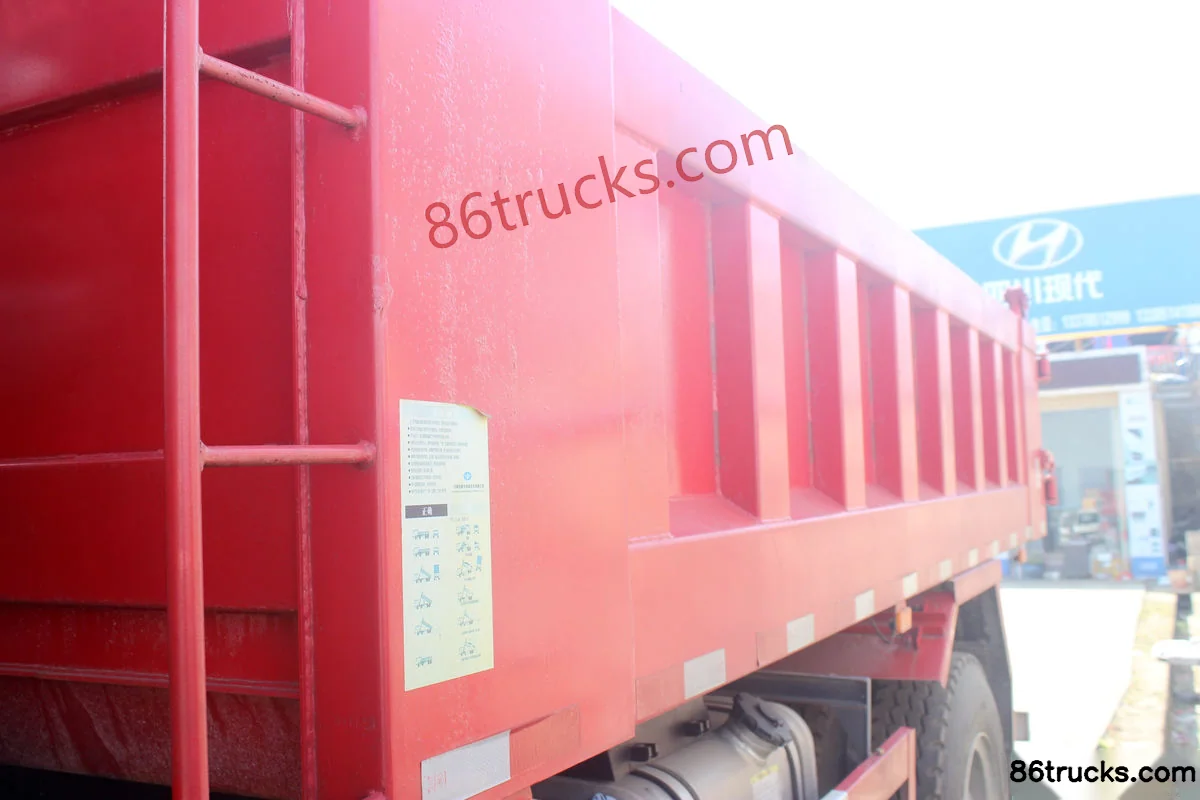

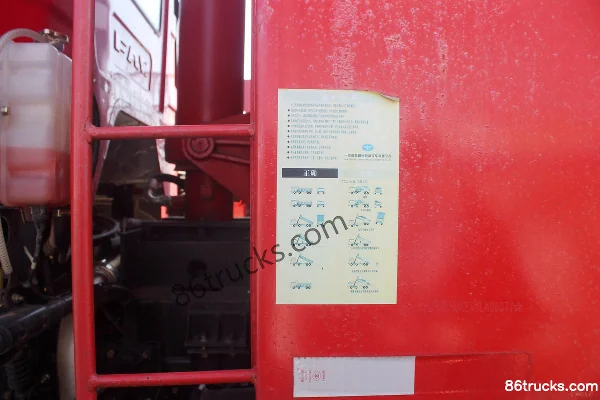

Body3

12 photos

FAQ

What is the export price of FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle), and what does it include?

FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) export reference is about From $30,833; MSRP is ¥22.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle)?

Key specs of FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle): Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) suited for?

FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) differ from other variants in the same series?

FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle) belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute JinLu (L6L) Medium Truck 220hp 6X2(8 wheels) 5m Dump Truck (457 Rear Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
