Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane

Export reference
From $19,625
MSRP ¥14.13M CNY
Fuel: Diesel
Wheelbase:: 3300mm
Cab dimensions:: 5.995×2.52×3.2m
Type:: truck-mounted crane
GVWR:: 4.495ton
Front/rear suspension:: 1.175/1.52m
Drive 4X2 (6 wheels)
Horsepower 170
Rated mass: 0.495ton
Emission China V

Overview

The Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane featuring 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 170 hp, China V emissions and Diesel fuel.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.52×3.2m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3300mm
Rated mass: 0.495ton
GVWR: 4.495ton
Front/rear suspension: 1.175/1.52m
Energy Type: Diesel
Body Parameters
Other special notes: 120L aluminum fuel tank; PTO; double-layer frame; spare tire; full interior trim
Vehicle certification code: ZZ5048JSQD17EB0
Body Brand: Sinotruk
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: YNF40E1
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: HOWO MAN H3
Chassis Model: ZZ1048D17EB1
Frame Dimensions: 216(865)mm
rear axle description: 1080 rear axle; 7.2T
Axle ratio: 4.333
Leaf spring count: 11/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85TE
Cab parameters
Cab: Single row 2080
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

Photos

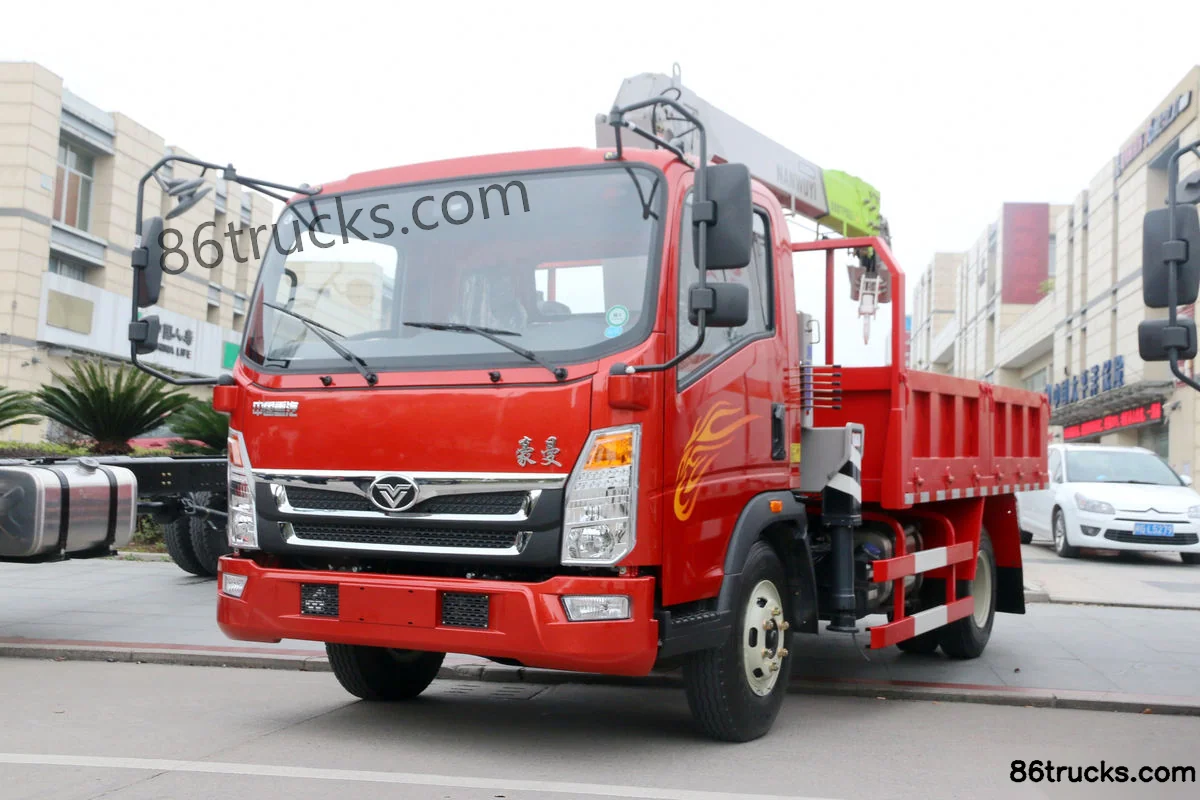

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane, and what does it include?

Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane export reference is about From $19,625; MSRP is ¥14.13M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane?

Key specs of Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane suited for?

Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane differ from other variants in the same series?

Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane belongs to Sinotruk Pioneer Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 170 hp 4X2(6 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
