Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.6ton
Wheelbase:: 4200mm
Tire Size:: 10.00R20 18PR

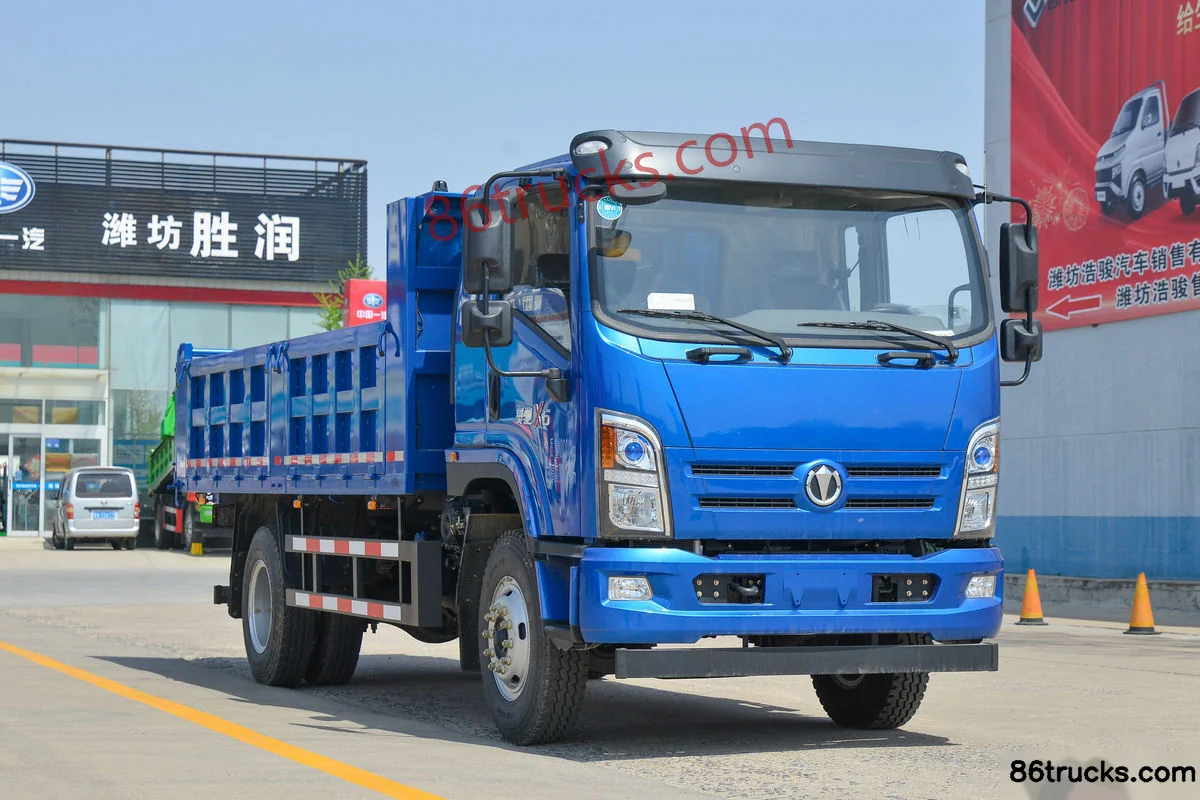

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) exterior
View more photos (12)
Rated payload: 11.025ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) is a Medium-duty truck featuring 11.025t payload, 18t GVW, side1 bottom1, side2 bottom3, side3 bottom5, etc. cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04180-68 engine, 180 hp, China VI emissions and Fast Gear transmission.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD3182P67K6-1
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYCS04180-68
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.143
Cab length: 7.72m
Cab width: 2.5m
Cab height: 2.785m
Front track width: 1757mm
rear track: 1724mm
Curb Weight: 6.6ton
Rated payload: 11.025ton
GVWR: 18ton
Origin: Rizhao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04180-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Cargo box type: U-shaped box
Cargo box length: 5.3m
Cargo box width: 2.4m
Cargo box height: 0.8m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.143
Leaf spring count: 10/12+9
Aluminum wheels:
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

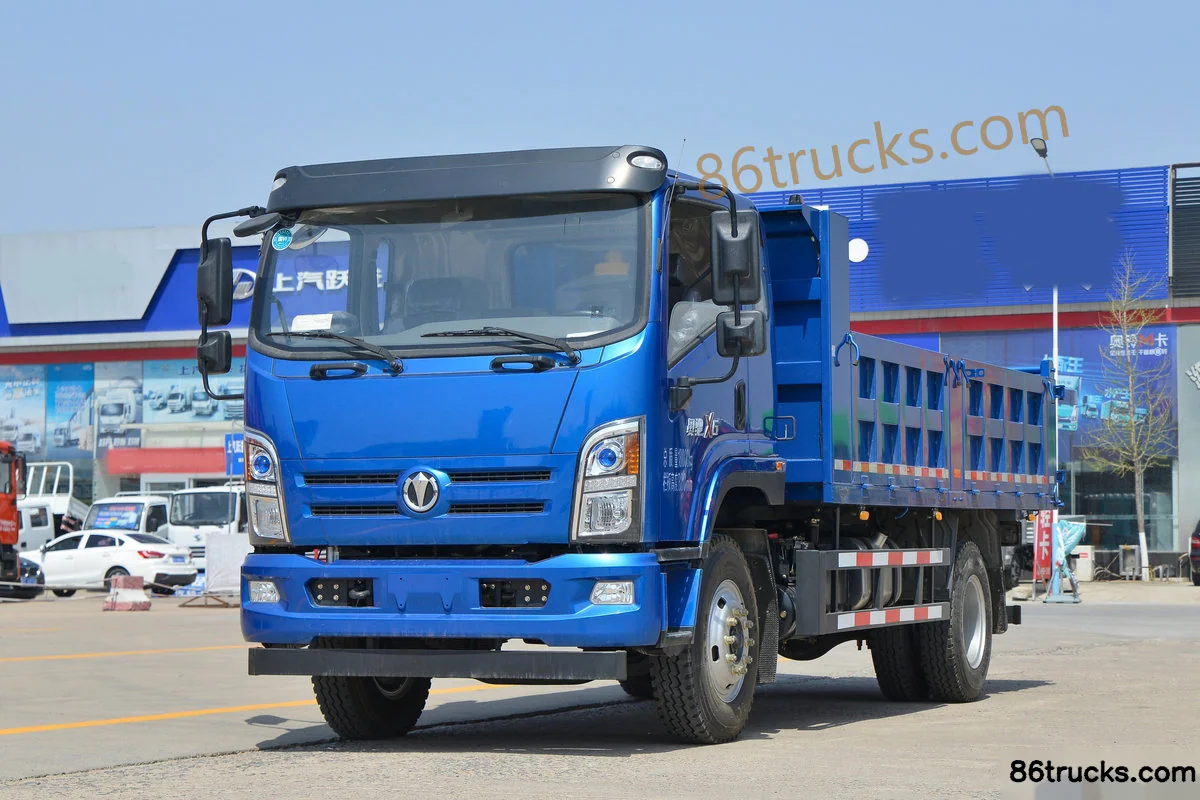

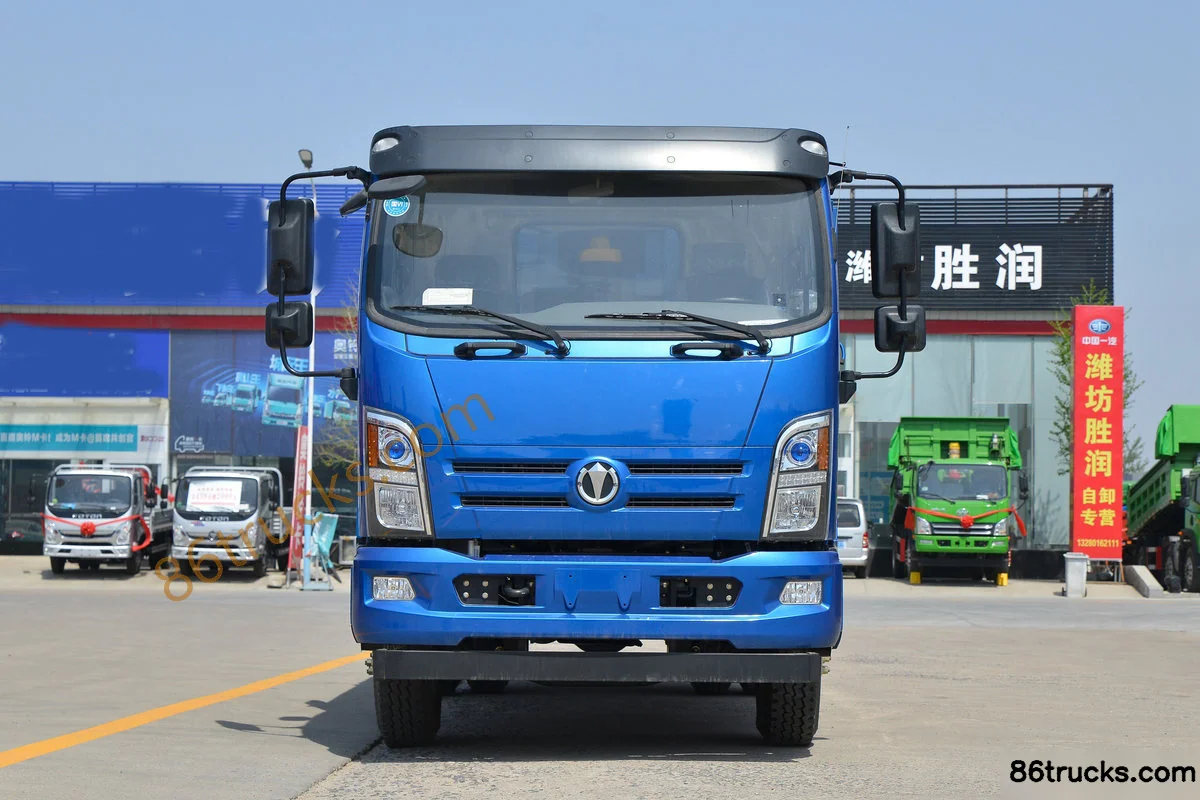

Exterior3

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Exterior (1) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Exterior (2) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Exterior (3) | 86Trucks

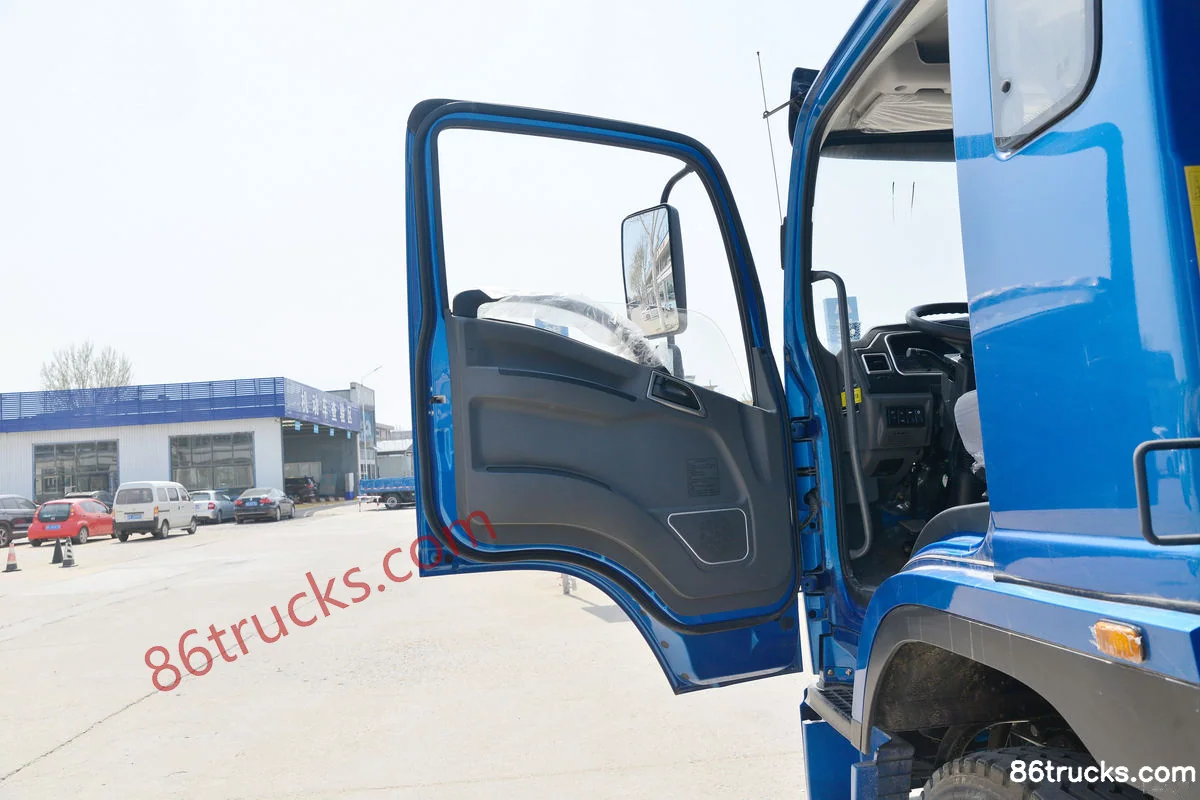

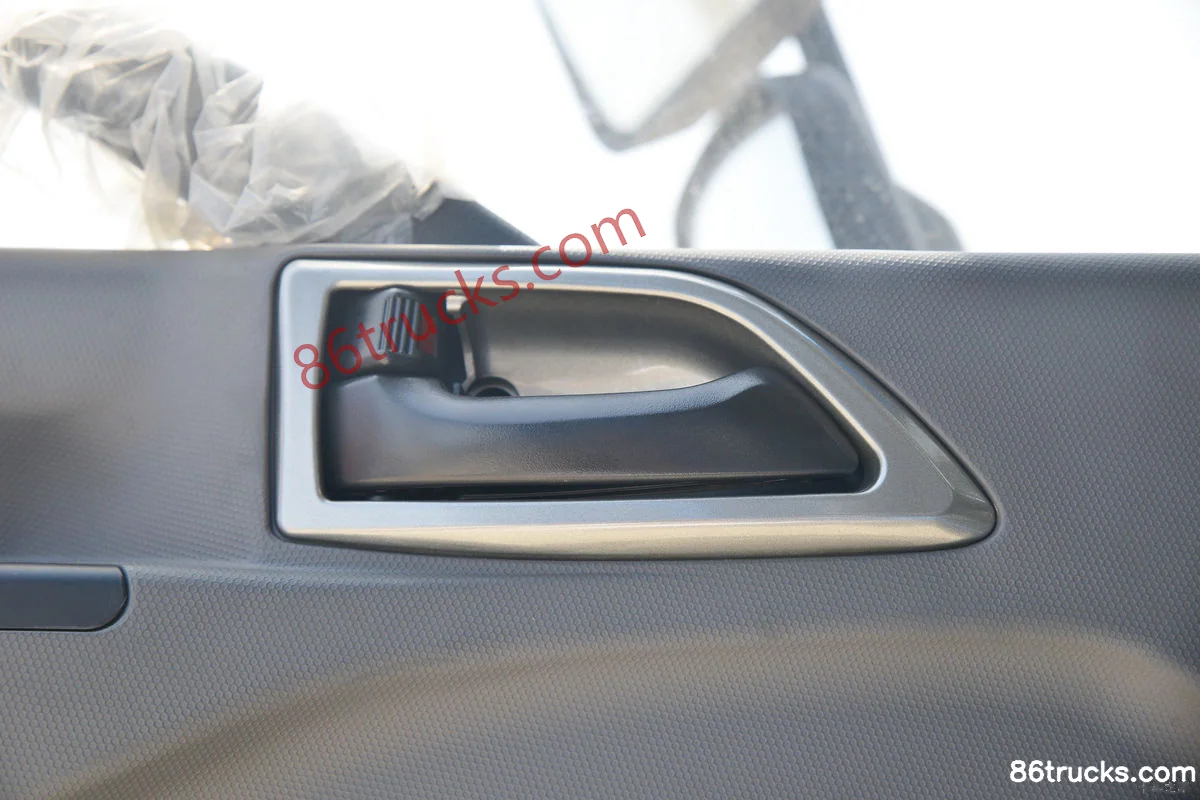

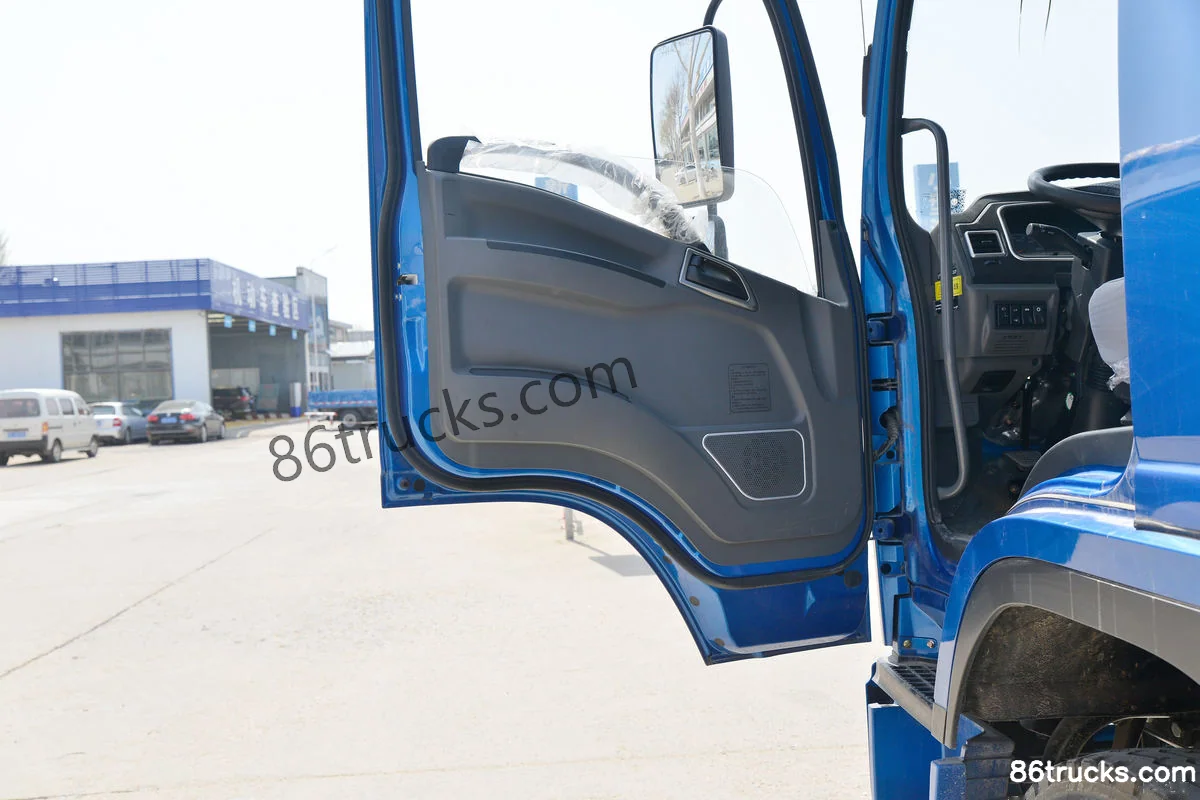

Cab3

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Cab (1) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Cab (2) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Cab (3) | 86Trucks

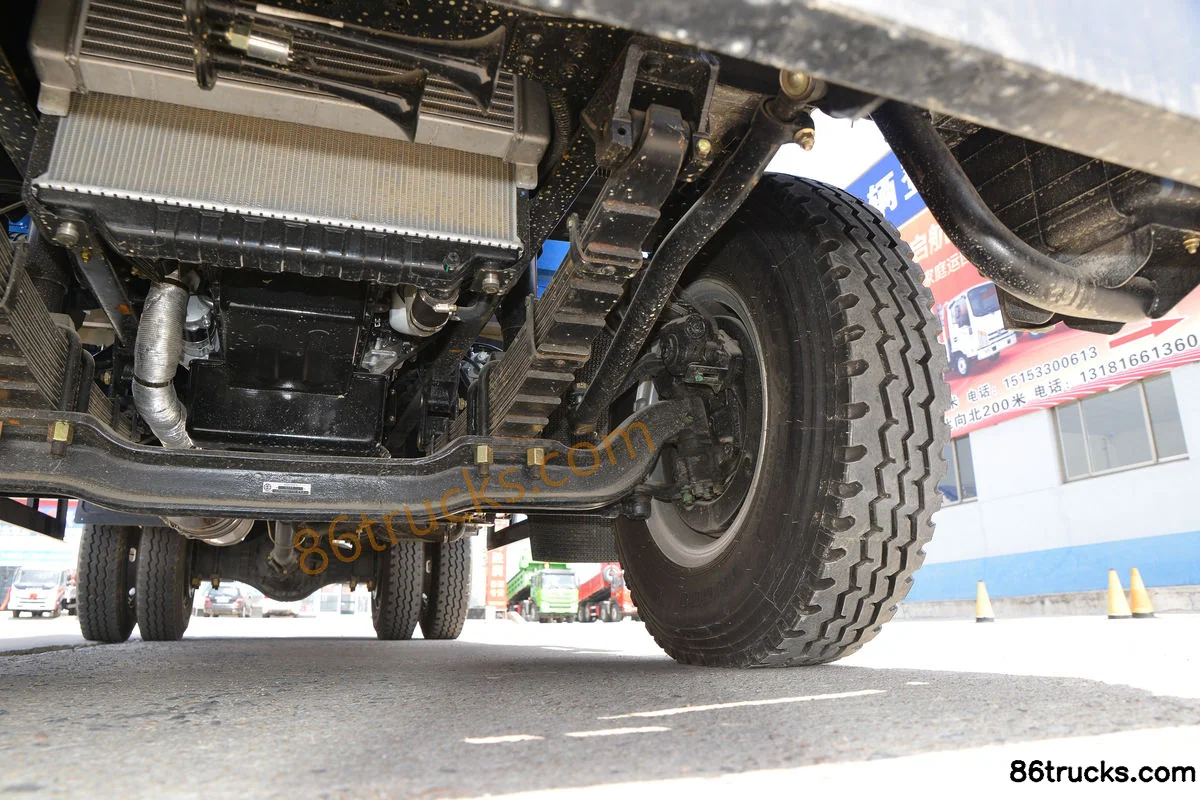

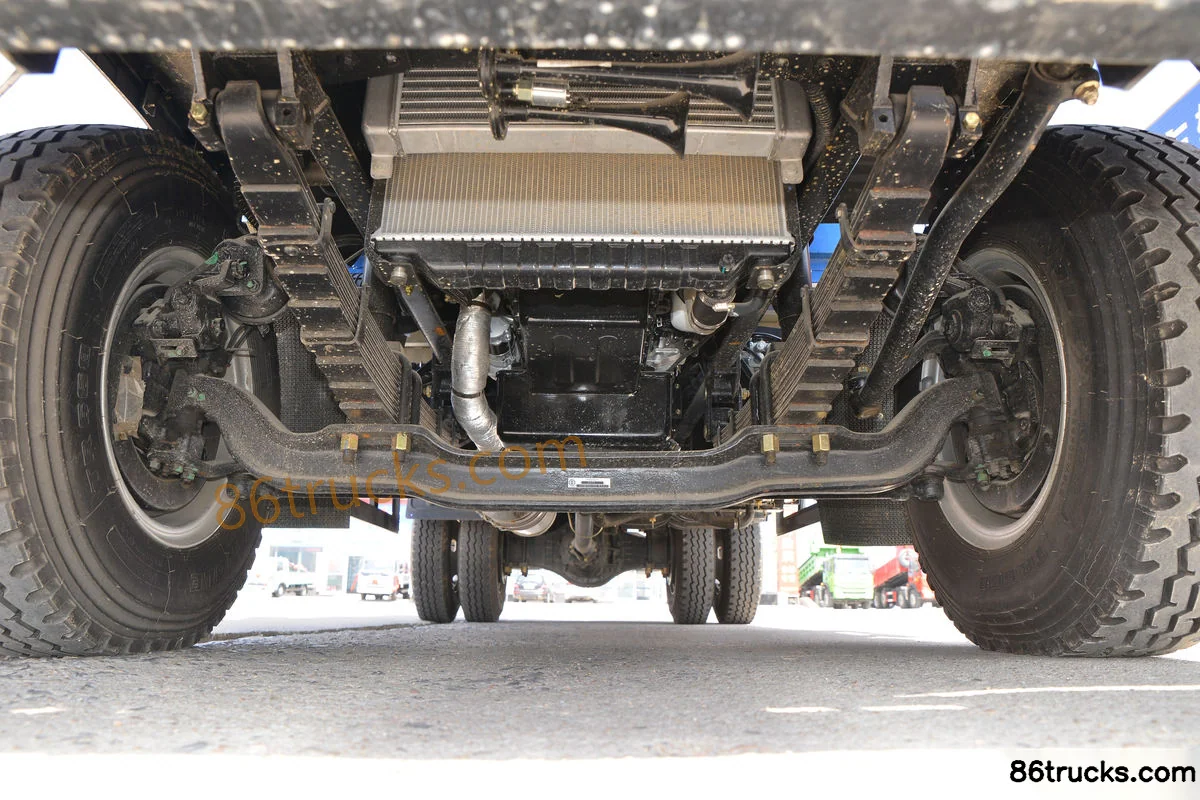

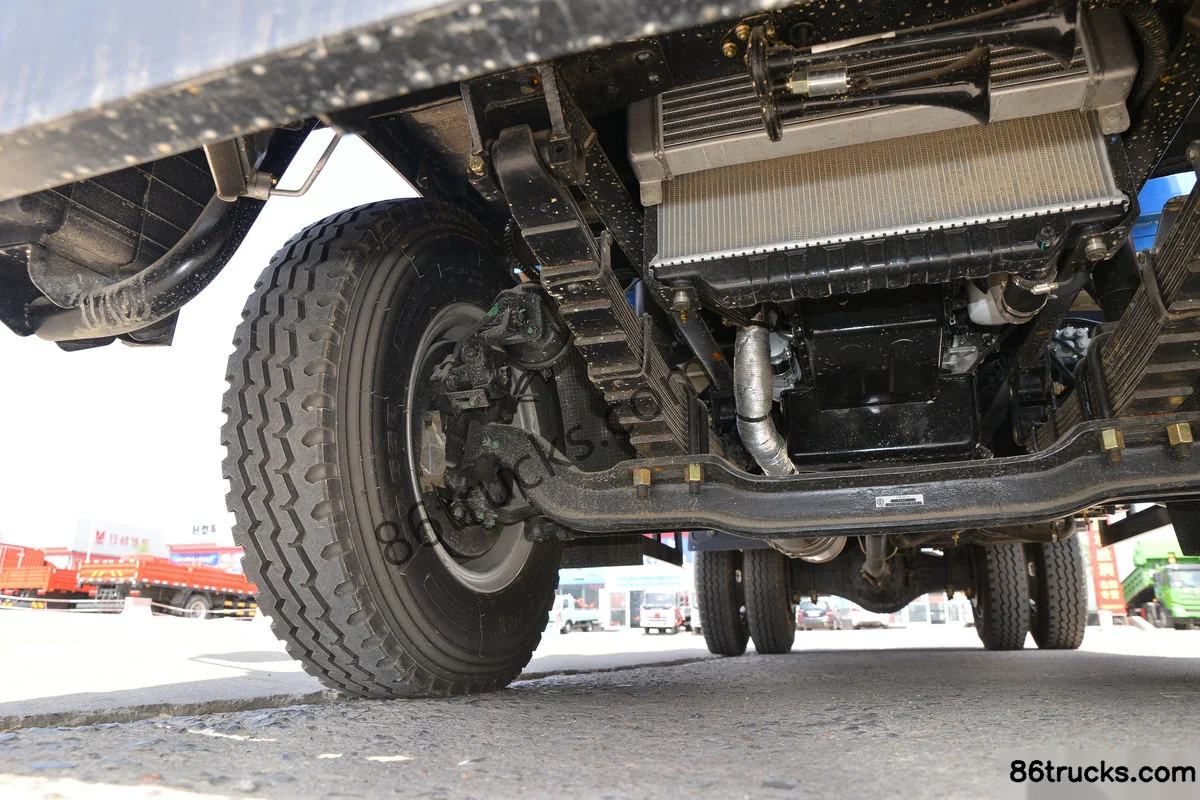

Chassis3

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Chassis (1) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Chassis (2) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Chassis (3) | 86Trucks

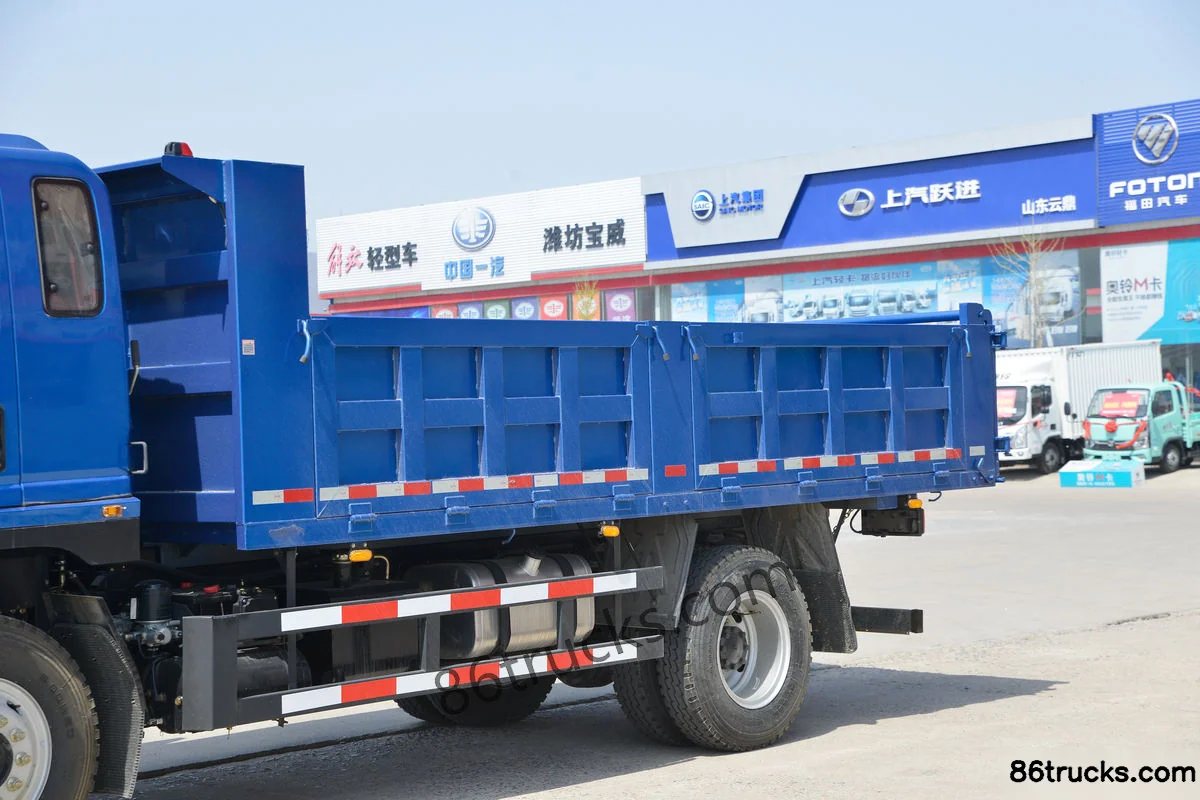

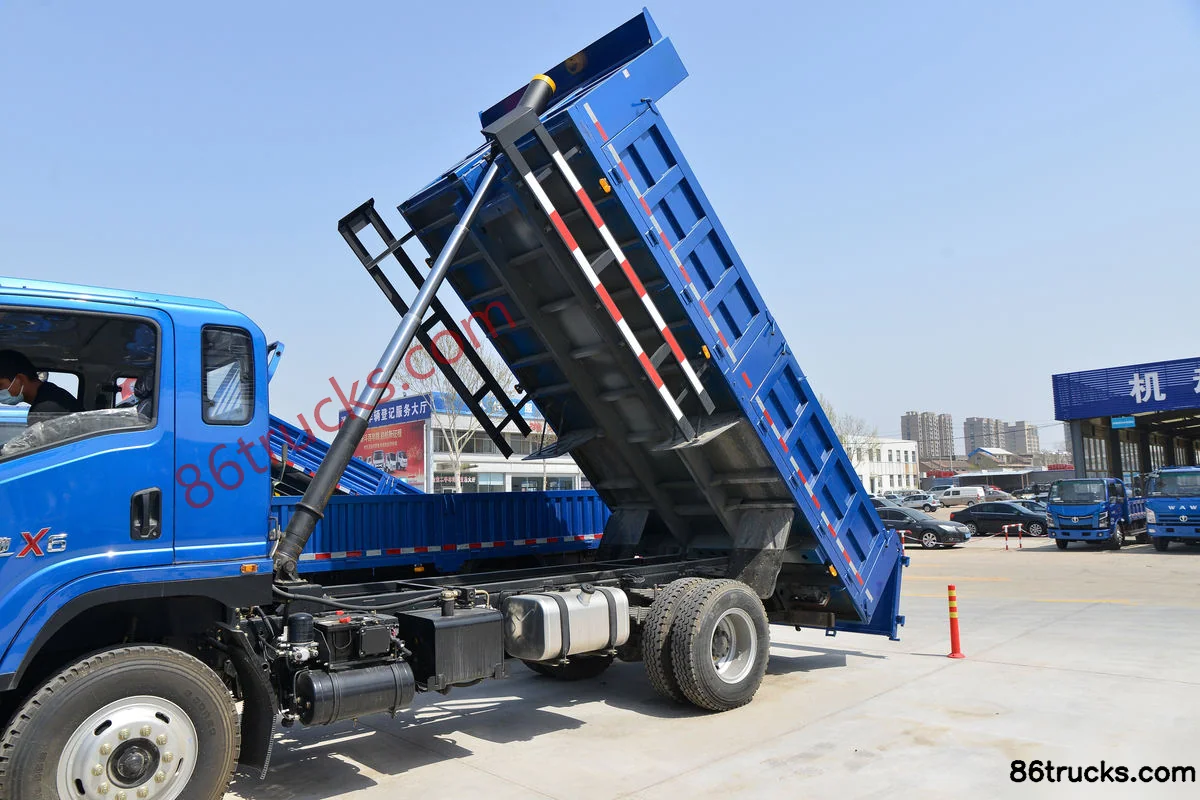

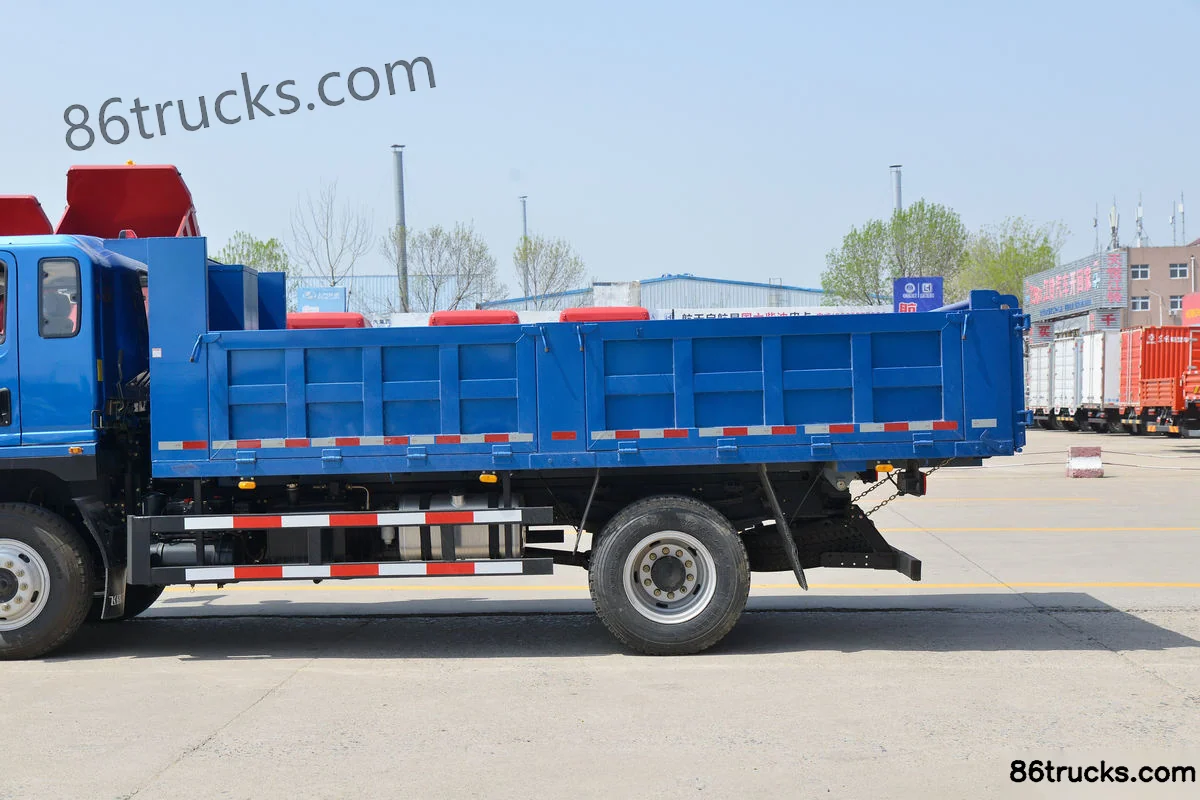

Body3

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Body (1) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Body (2) | 86Trucks Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI)?

Key specs of Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI): Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) suited for?

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) differ from other variants in the same series?

Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI) belongs to Aochi X Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi X6 Series 180 hp 4X2(6 wheels) 5.3m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
