Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck

Export reference
From $12,139
MSRP ¥8.74M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3100mm
Tire Size:: 7.50-16 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Rear-dump body

Overview

The Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3Q110E50 engine, 110 hp, China V emissions and WLY transmission.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3042VEDBNW1
Drive type: 4X2
Wheelbase: 3100mm
engine: WeichaiWP2.3Q110E50
transmission: WLYWLY10H35
Rear Axle Ratio: 6.167
Cab length: 5.54m
Cab width: 2.03m
Cab height: 2.4m
Front track width: 1650mm
rear track: 1485mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 21°
departure angle: 27°
Remarks: Automatic slack adjuster
Version: Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.3m
Cargo box width: 1.82m
Cargo box height: 0.6m
Cab parameters
Cab suspension: Front: rigid connection; Rear: mechanical
Cab tilting: Manual
Driver seat type: Rigid connection seat
Sunroof: Manual sunroof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1845kg
Frame Dimensions: 200mm
rear axle description: 1069
rear axle allowable load: 2445kg
Axle ratio: 6.167
Leaf spring count: 8/10+6
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 7.50-16 6PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Service brake
Parking brake: Spring brake

Photos

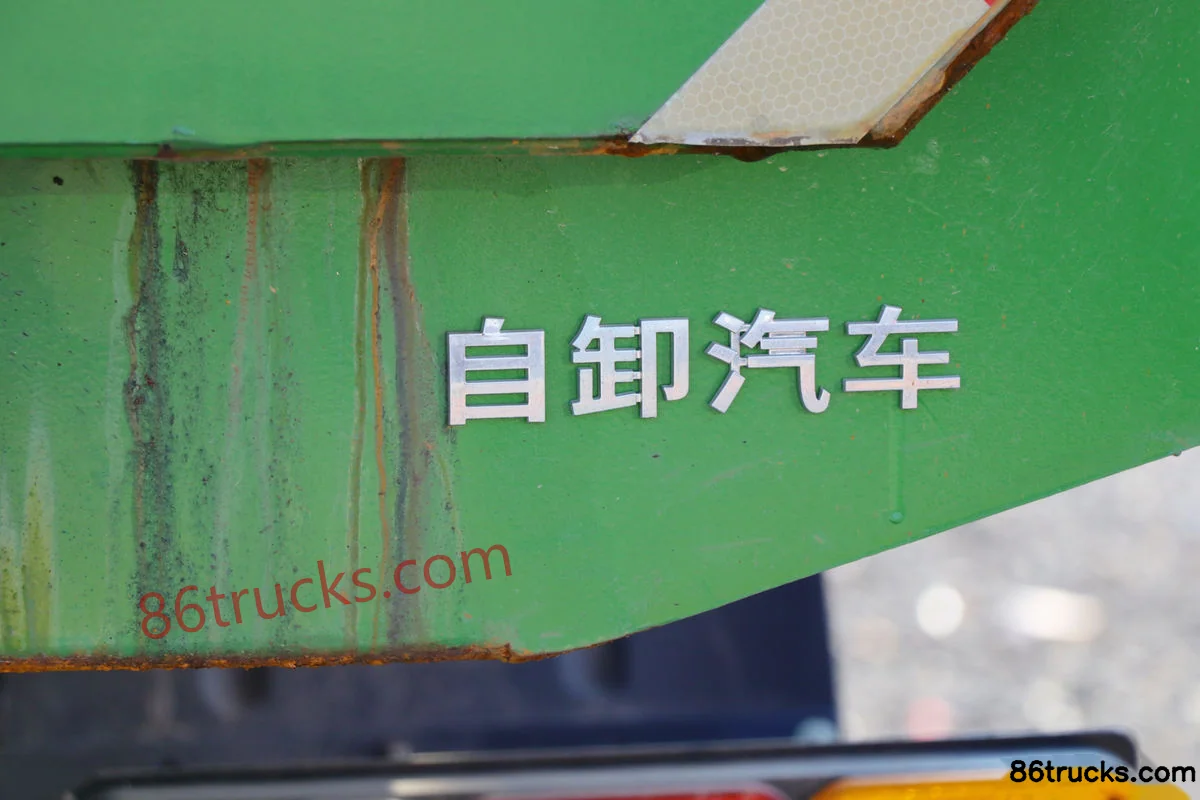

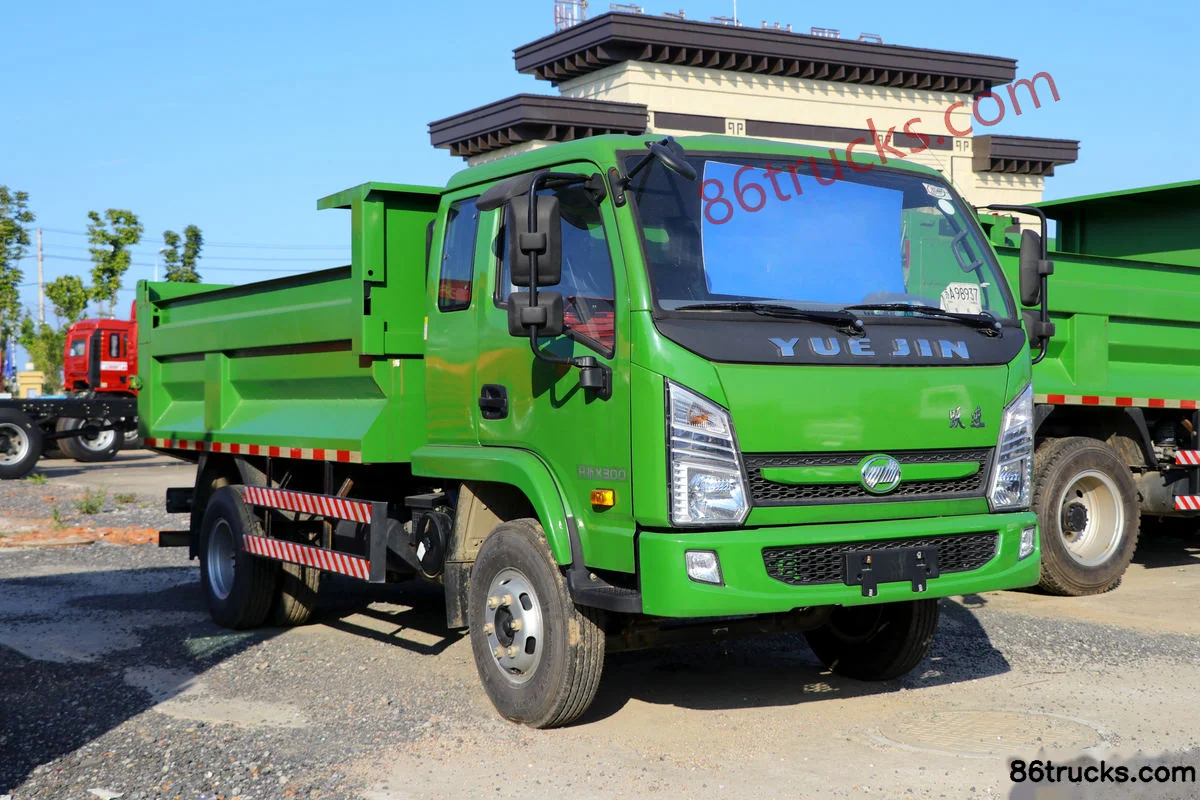

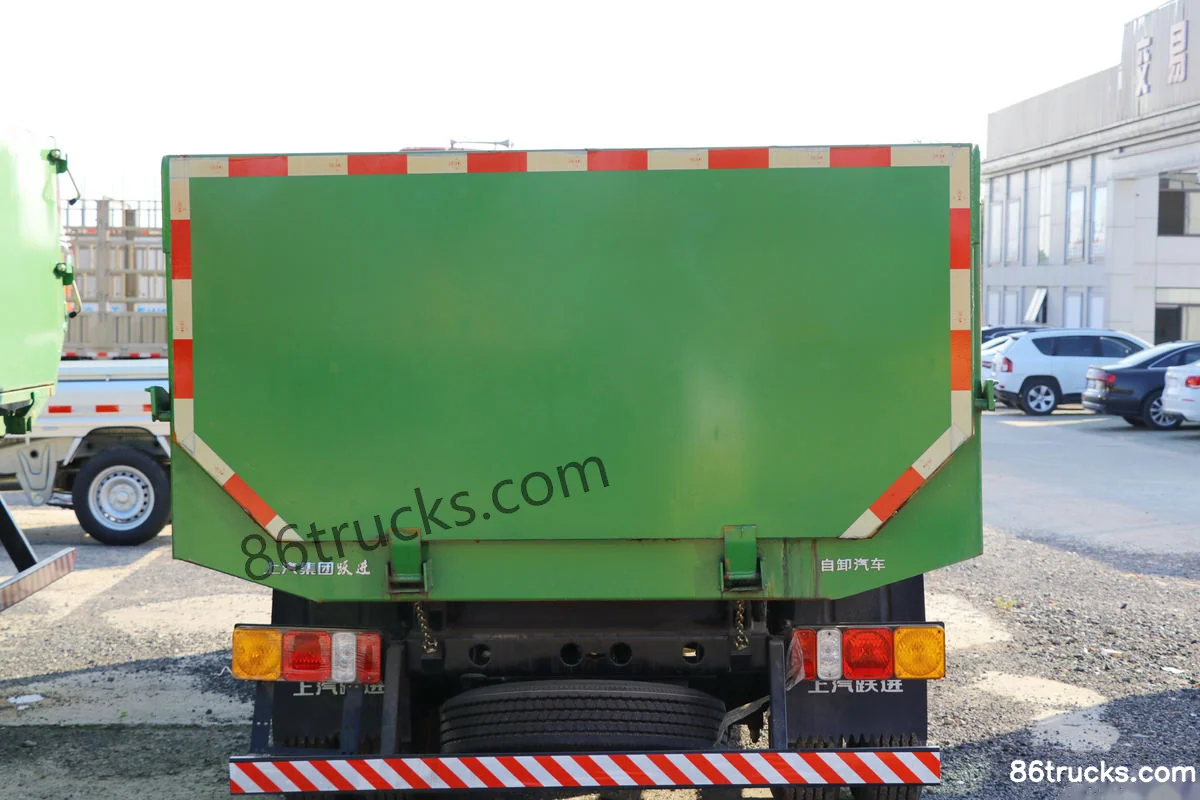

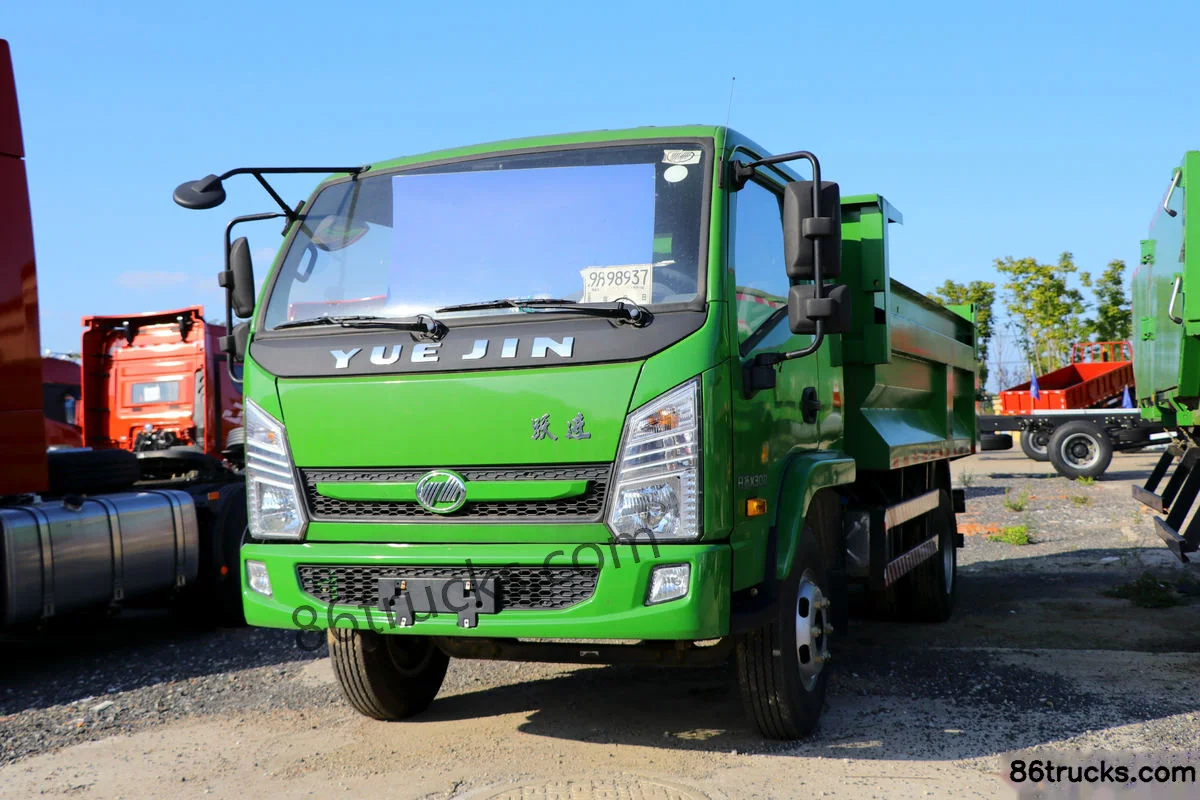

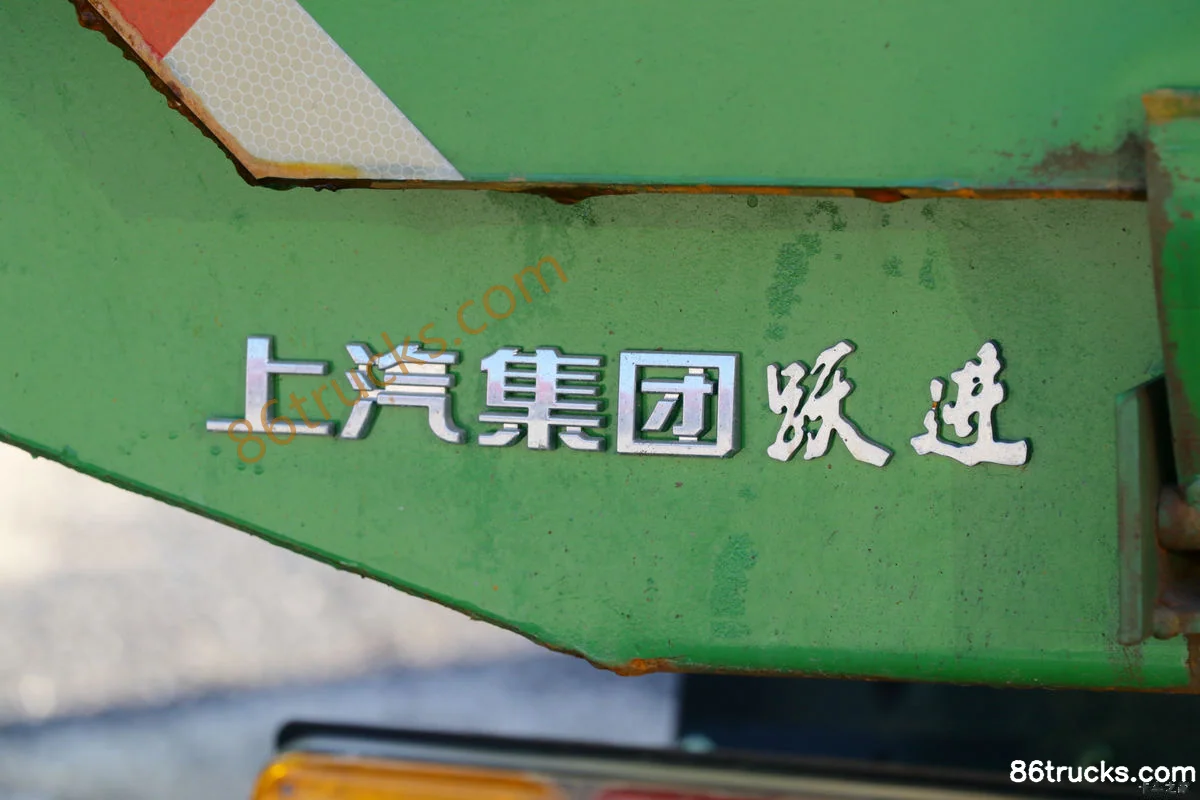

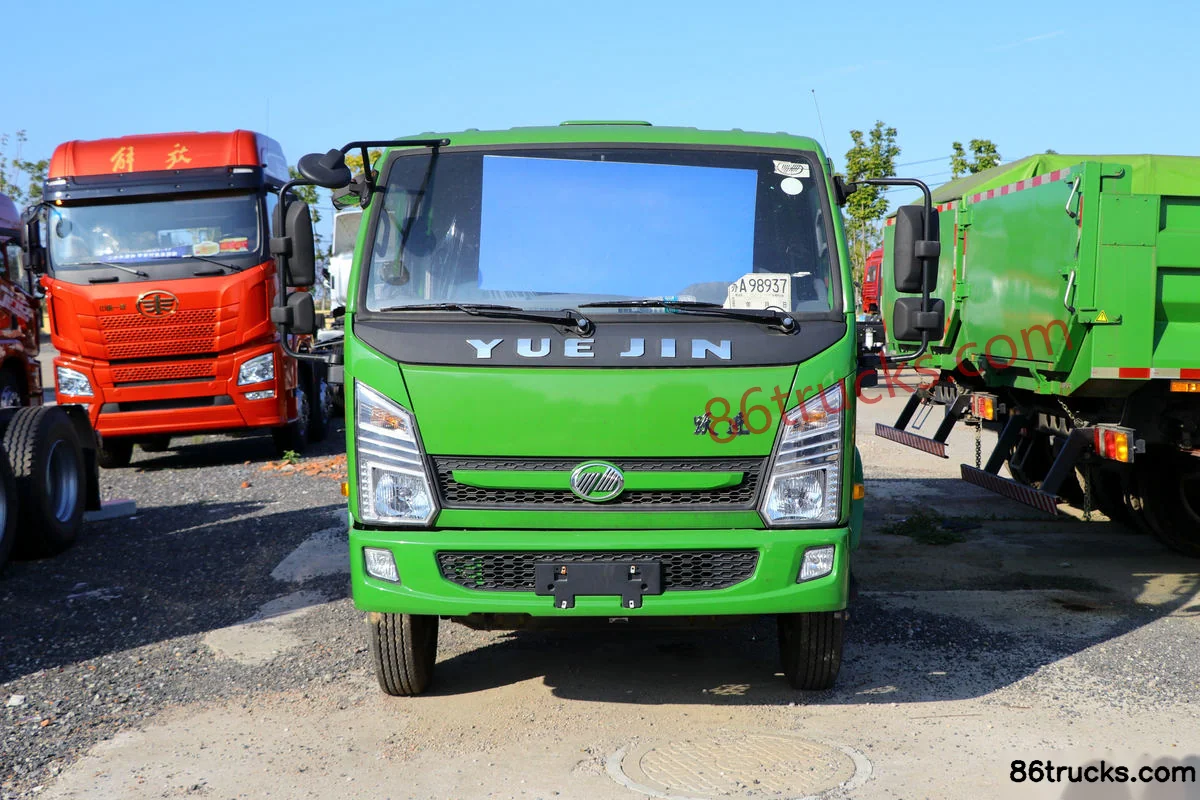

Exterior3

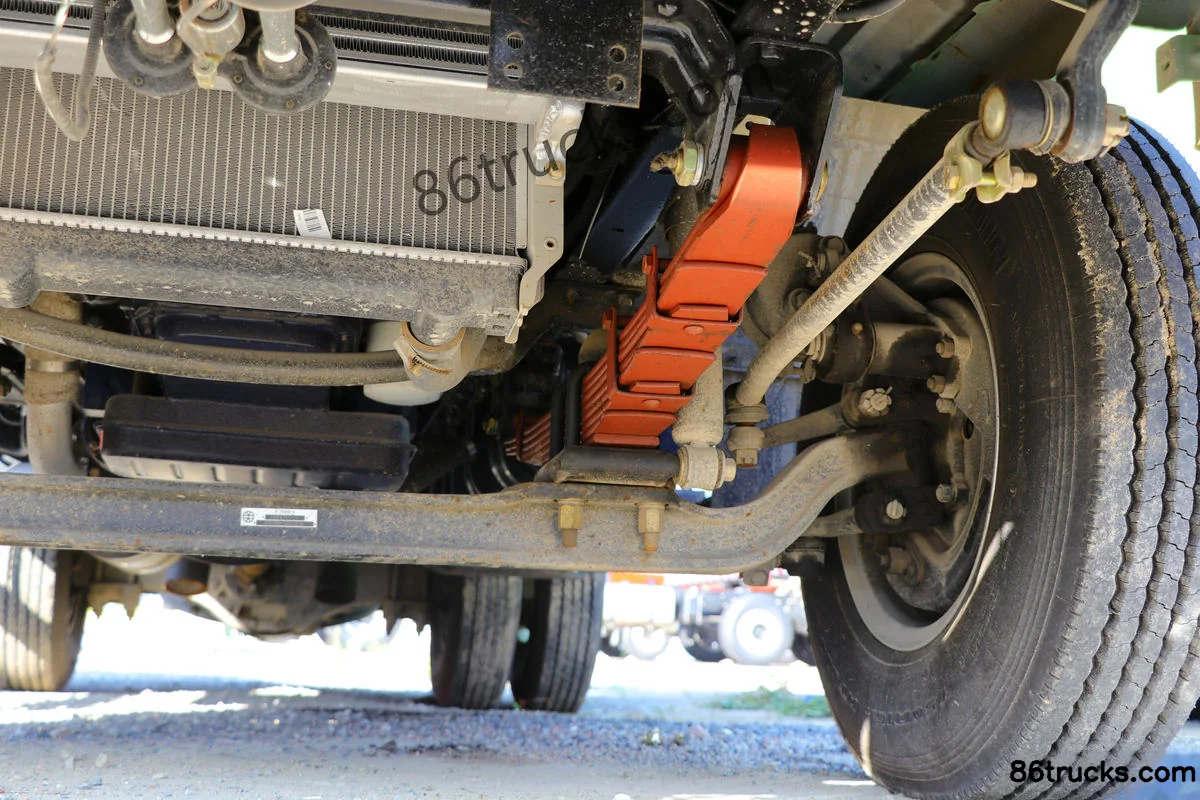

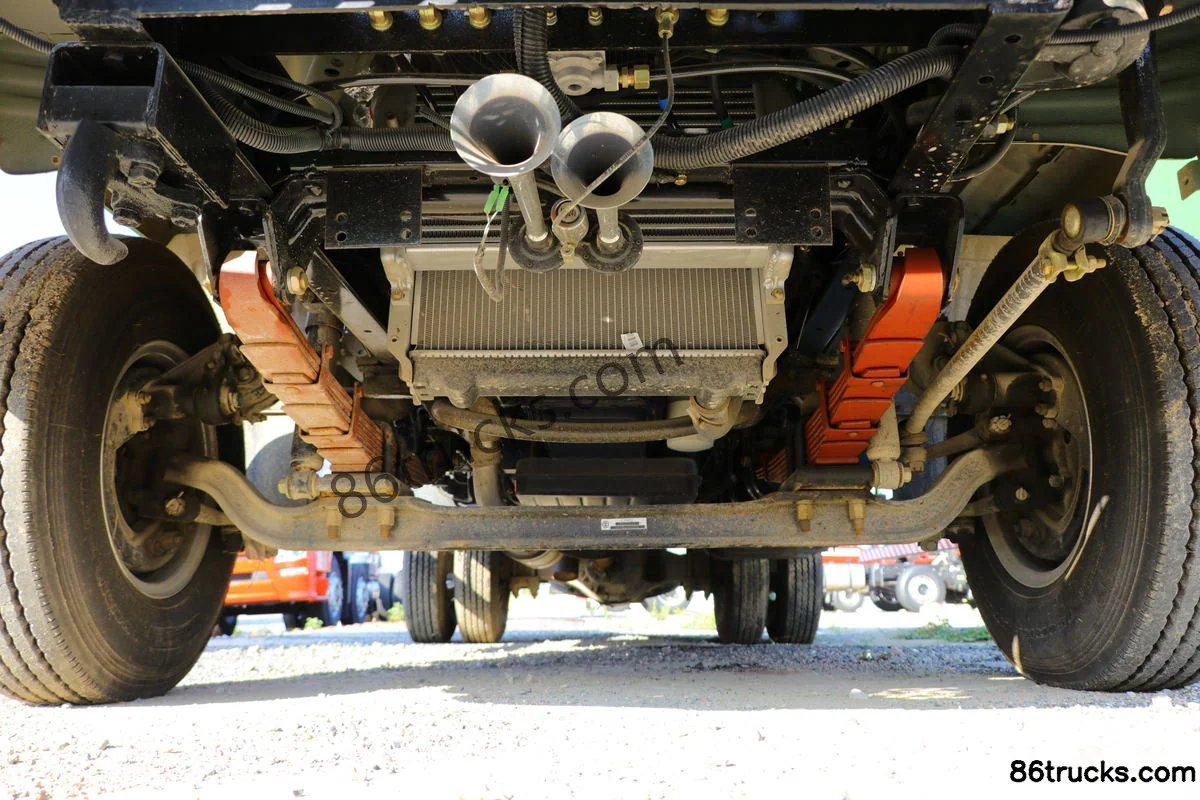

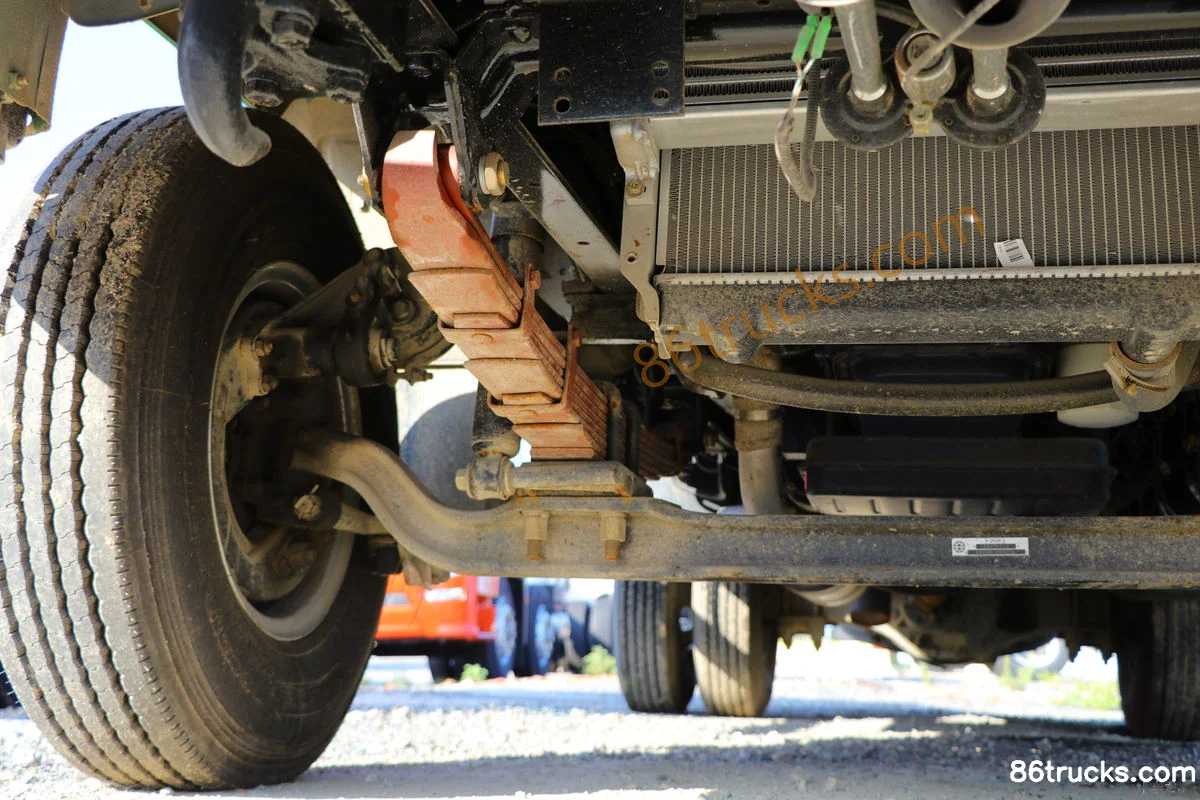

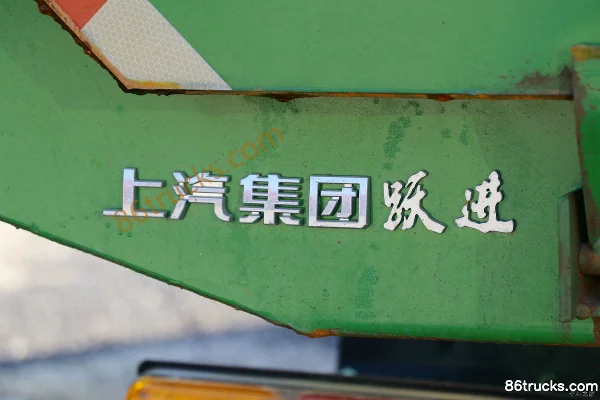

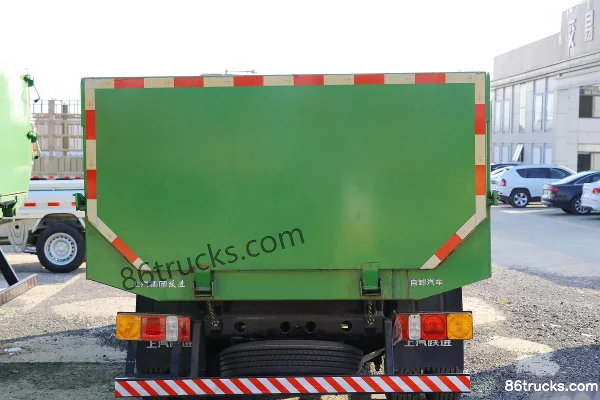

Chassis3

Chassis3

9 photos

FAQ

What is the export price of Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck, and what does it include?

Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck export reference is about From $12,139; MSRP is ¥8.74M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck?

Key specs of Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck suited for?

Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck differ from other variants in the same series?

Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck belongs to Yuejin Kaituo X300 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X300 Engineering Type 110hp 4X2(6 wheels) 3.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
