Caterpillar 330D2L Crawler Excavator

Export reference
MSRP N/A
Model:: 330D2L
Engine Model:: crawler excavator
Tonnage:: 30ton
Bucket capacity:: 1.54cubic meter
boom length:: 6150mm
Arm Length:: 3200mm
Caterpillar 330D2L Crawler Excavator exterior
View more photos (3)
Operating weight: 30.115ton
Bucket type: backhoe
Fuel Tank Capacity: 520L
Product power: Conventional Power

Overview

The Caterpillar 330D2L Crawler Excavator is a excavator featuring 30.115ton GVW, backhoe bucket capacity, 520L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 330D2L
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 30ton
Operating weight: 30.115ton
Bucket capacity: 1.54cubic meter
boom length: 6150mm
Arm Length: 3200mm
Machine dimensions: 10.36×3.19×3.33mm
Track gauge: 2590mm
Counterweight ground clearance: 1100mm
Min ground clearance: 480cm
Rear Overhang Radius: 3080mm
hydraulic system
Max flow of main pump: 254 × 2L/min
travel hydraulic circuit: 35Mpa
Swing Hydraulic Circuit: 27.5Mpa
Oil capacity
Fuel Tank Capacity: 520L
coolant: 31L
hydraulic oil tank: 257L
Engine Oil Capacity: 22L
performance specs
Travel speed: 5.3km/h
Bucket digging force: 179kN
Arm Digging Force: 126kN
Max tractive force: 248kN
Operating Range
Max digging radius: 10720mm
Max digging depth: 7290mm
Max digging height: 10720mm
Max unloading height: 6900mm
Max vertical digging depth: 6160mm
Engine parameters
Engine Model: Cat C7.1 ACERT
Max output power: 156kW

Photos

Exterior3

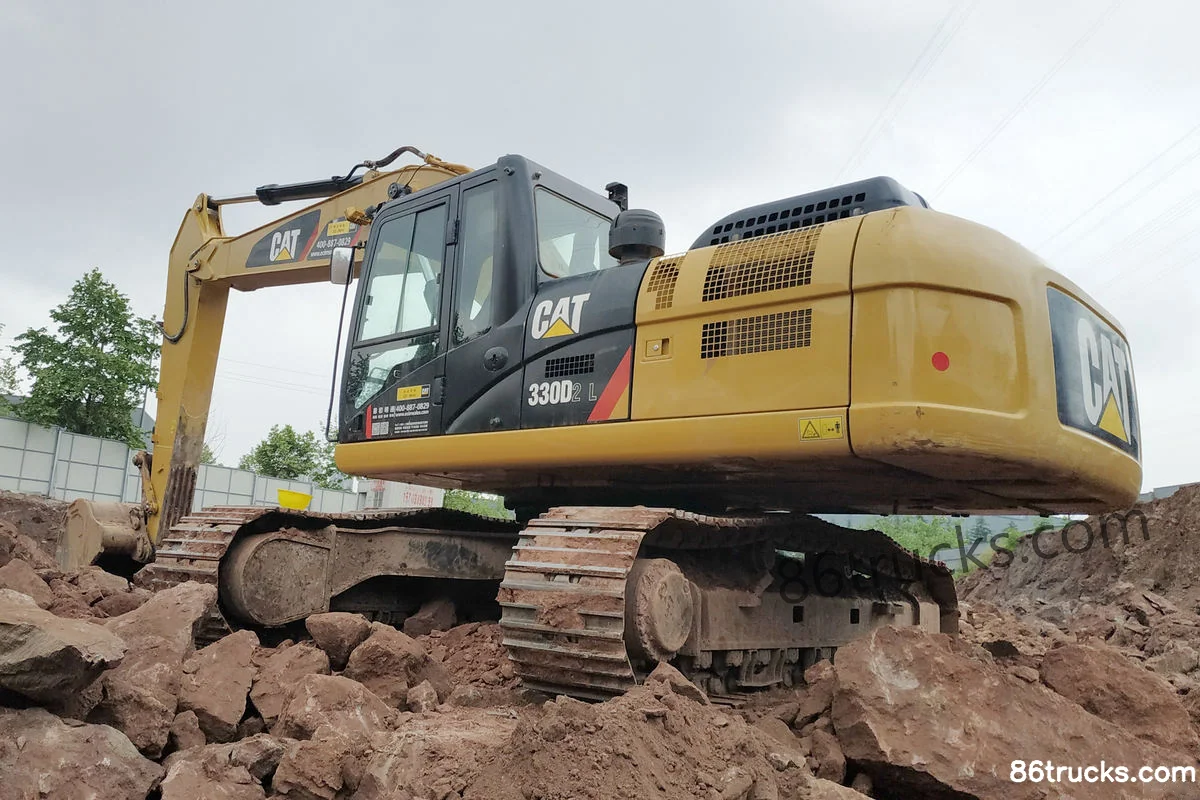

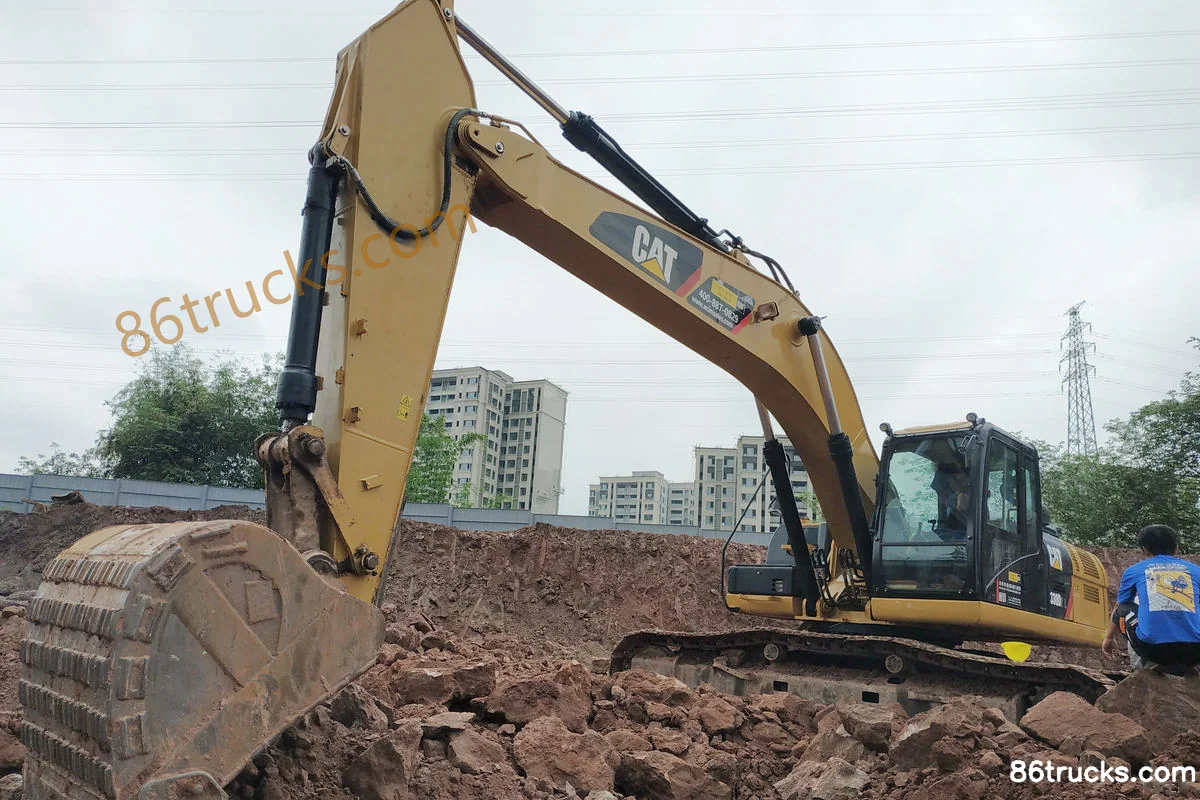

Caterpillar 330D2L Crawler Excavator Exterior (1) | 86Trucks Caterpillar 330D2L Crawler Excavator Exterior (2) | 86Trucks Caterpillar 330D2L Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 330D2L Crawler Excavator suited for?

Caterpillar 330D2L Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 330D2L Crawler Excavator differ from other variants in the same series?

Caterpillar 330D2L Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 330D2L Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 330D2L Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
