SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 1950+3225+1400mm
Tire Size:: 12.00R20 18PR
Model code (announced):: SX3319XE6
SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck exterior
View more photos (6)
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 600
Cargo box length: 6.8m

Overview

The SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, 6.8m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Xi’an CumminsM13NS6B600 engine, 600 hp, Fast Gear transmission and Diesel fuel.

600 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX3319XE6
Drive type: 8X4
Wheelbase: 1950+3225+1400mm
engine: Xi’an CumminsM13NS6B600
transmission: Fast Gear13JSDX260T
Cab length: 9.75m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2036/2036mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 17°
Remarks: Tianxingjian Smart Edition 12.8-inch floating screen, wireless phone charging, wireless phone charging, integrated auxiliary discharge system, integrated safety monitoring and warning system, ESC, side tool box, under-door guard, ring curtain, electronically controlled hydraulic steering gear
Version: High-altitude version
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: M13NS6B600
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.5L
Max output power: 441kW
Max hp: 600Horsepower
Max torque: 2750N·m
Rated speed: 1800rpm
Engine Type: DOC+DPF+SCR+ASC
Transmission Parameters
Transmission Model: 13JSDX260T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 13Gear
Number of Reverse Gears:
Body Parameters
Lifting type: Electronic Control
Cargo box parameters
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof
Cab tilting: Electric
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: drum front axle beam
Front axle allowable load: 6500/6500kg
rear axle description: 16T maintenance-free drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 10/10/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Independent AC: Yes
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Service brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

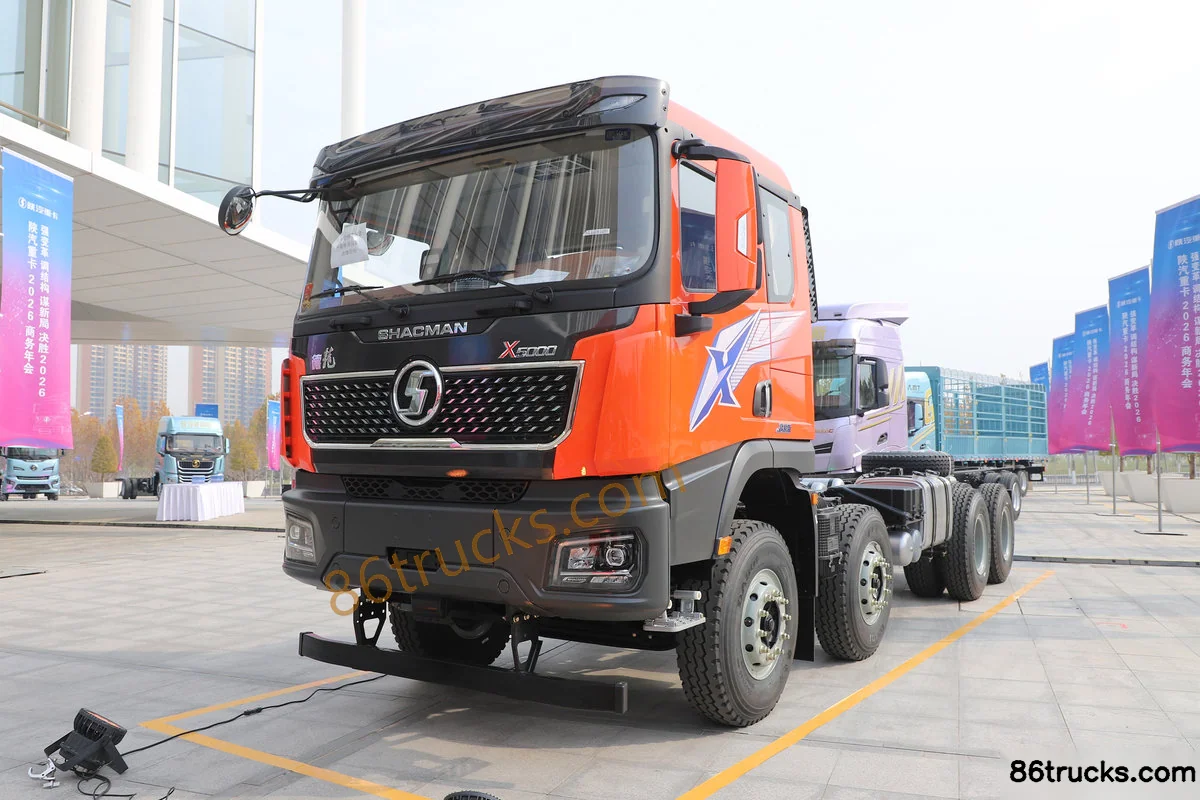

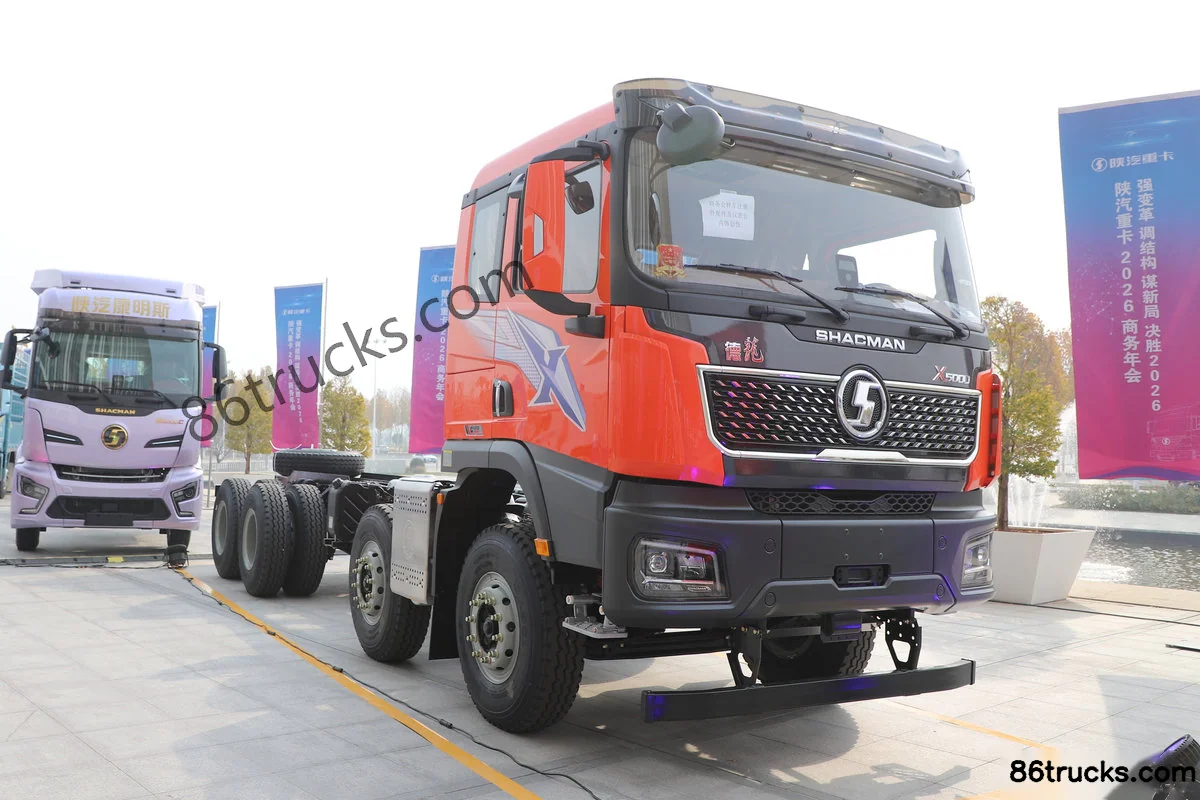

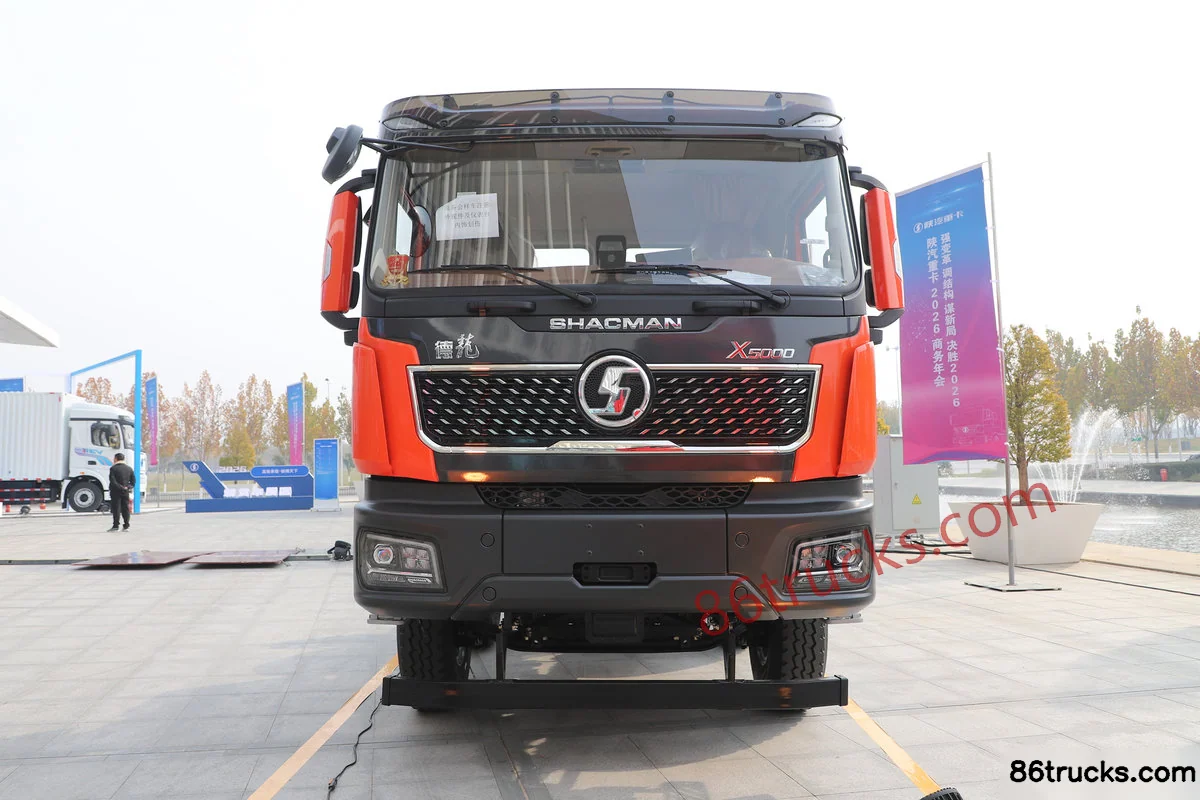

Exterior3

SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Exterior (1) | 86Trucks SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Exterior (2) | 86Trucks SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Exterior (3) | 86Trucks

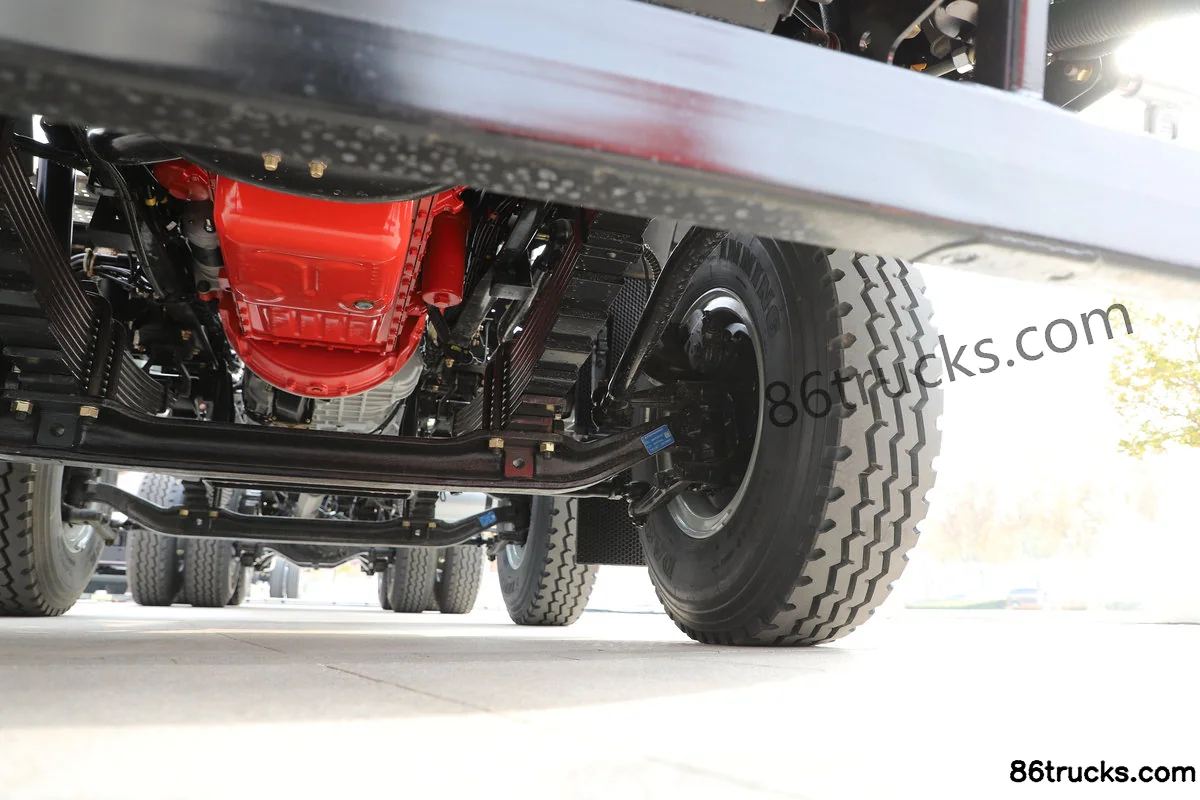

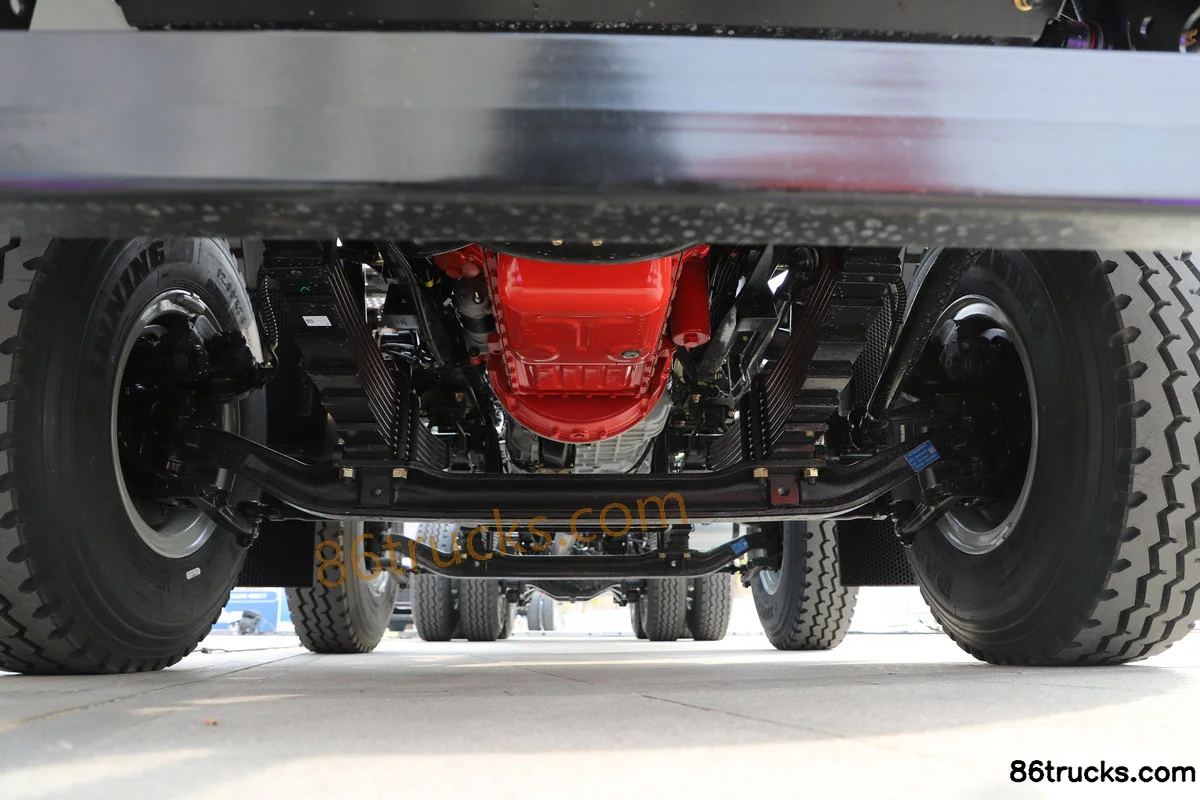

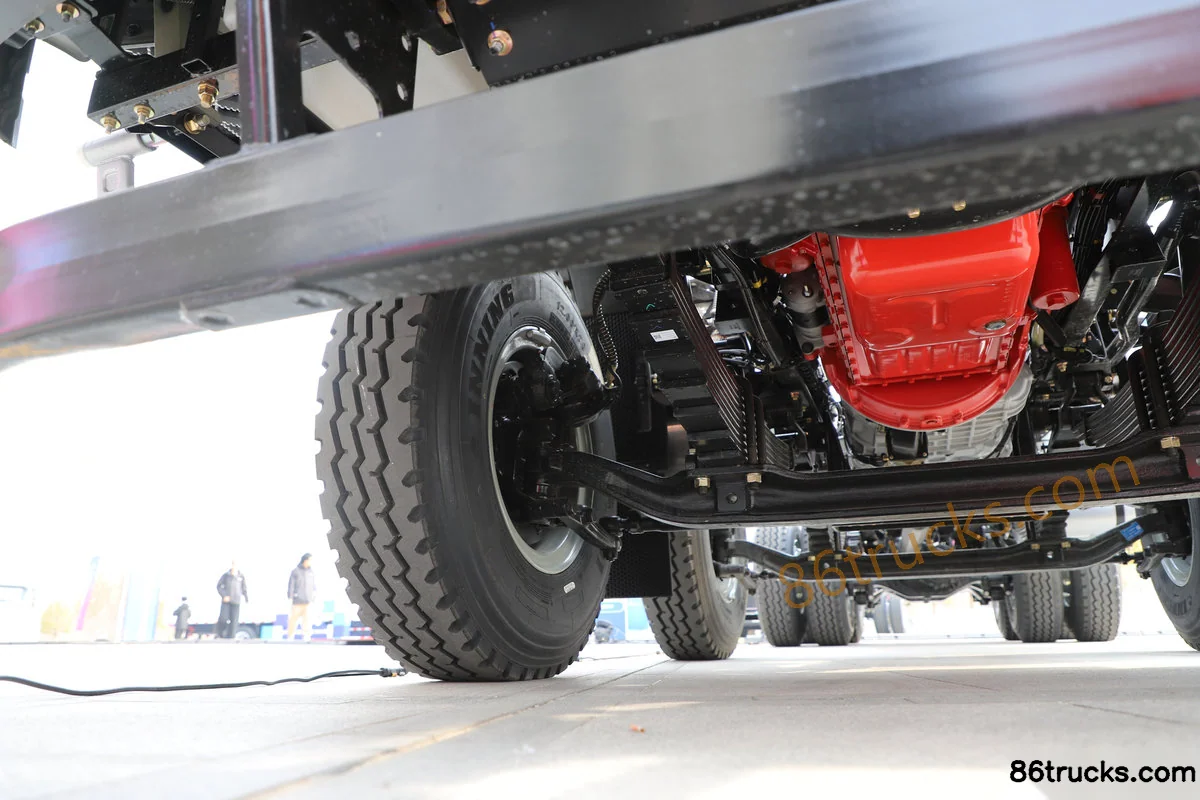

Chassis3

SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Chassis (1) | 86Trucks SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Chassis (2) | 86Trucks SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck Chassis (3) | 86Trucks

6 photos

FAQ

What are the key specs of SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck?

Key specs of SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck: Drive: 8x4; Horsepower: 600 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck suited for?

SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck differ from other variants in the same series?

SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck belongs to SHACMAN Delong X5000 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X5000C Plateau Version 12.5L Diesel 600hp 8X4(12 wheels) Fast Gear 13-Speed 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
