Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3300mm
Tire Size:: 6.50R16LT 10PR
Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box type: Dump type

Overview

The Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-11E6 engine, 110 hp, China VI emissions and WLY transmission.

China VI 110 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC3041HB280DP6
Drive type: 4X2
Wheelbase: 3300mm
engine: XichaiCA4DB1-11E6
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.45m
Cab width: 2.02m
Cab height: 2.16m
Front track width: 1530mm
rear track: 1490mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-11E6
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.2L
Emission standard: China VI
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.6m
Cargo box width: 1.92m
Cargo box height: 0.45m
Cab parameters
Cab width: 1680mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1640kg
rear axle allowable load: 2855kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

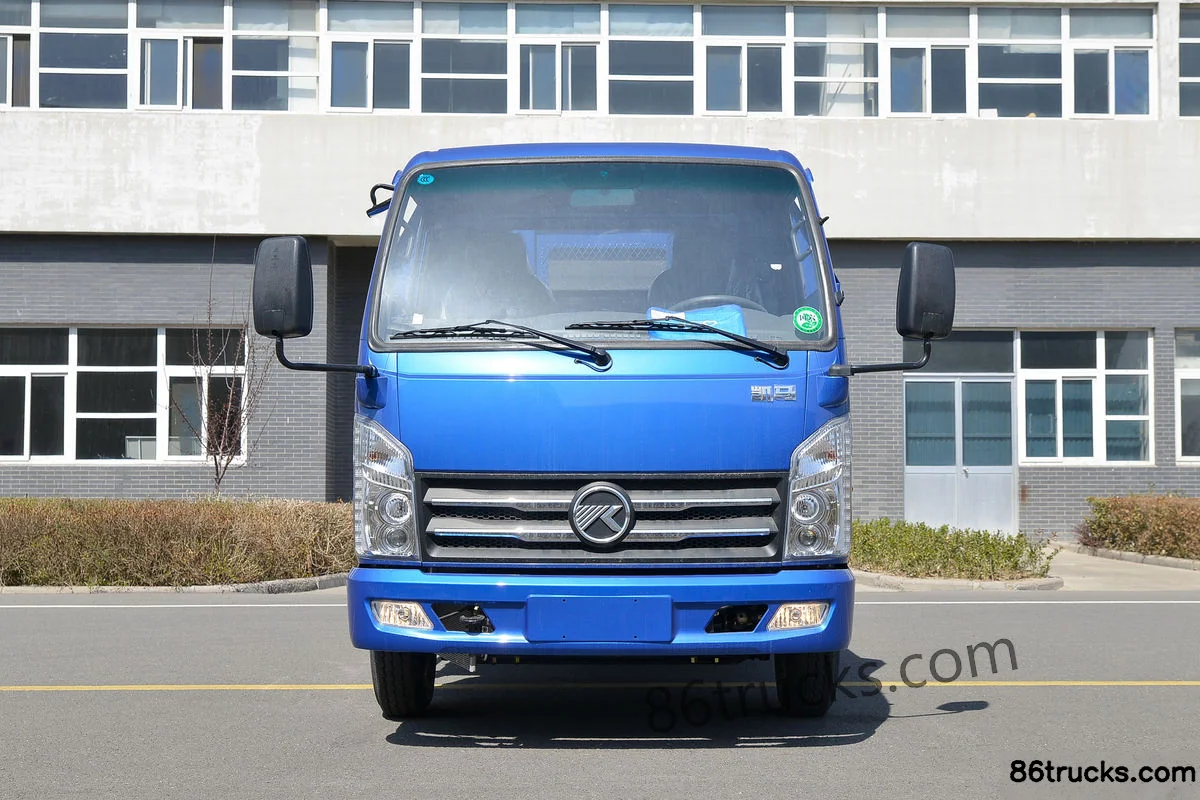

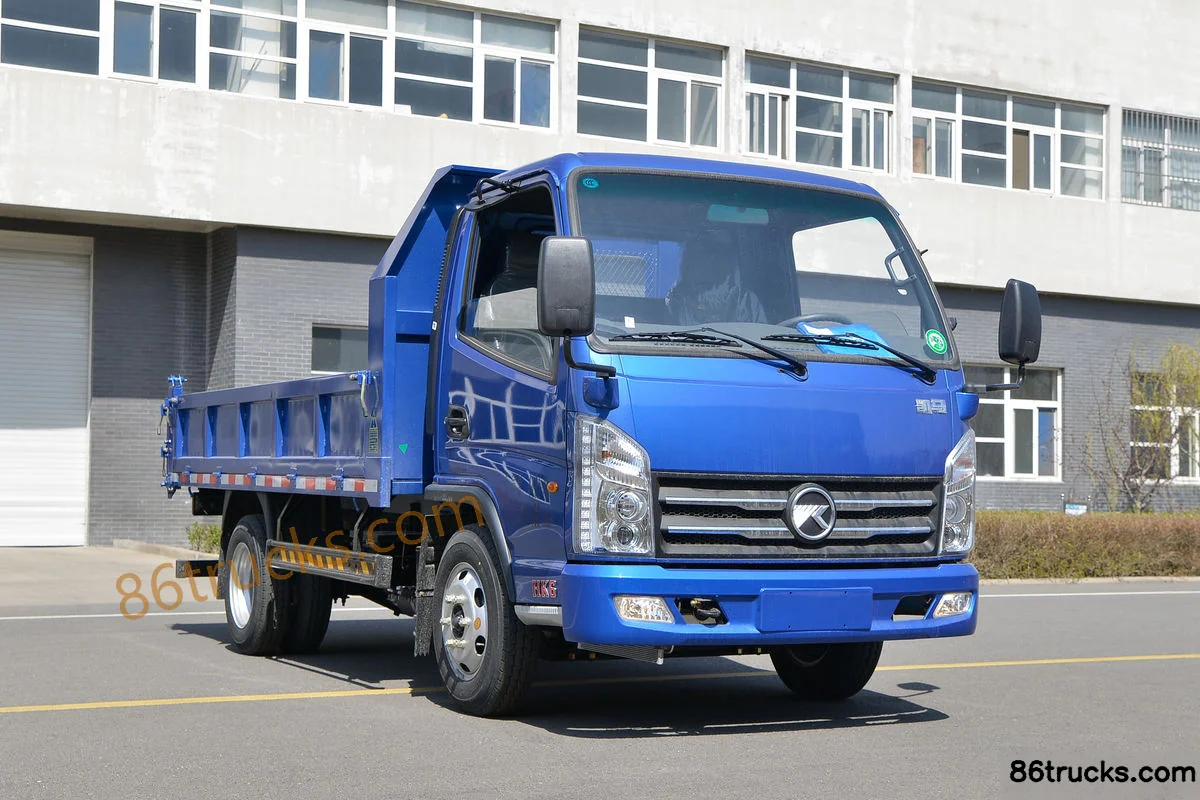

Exterior3

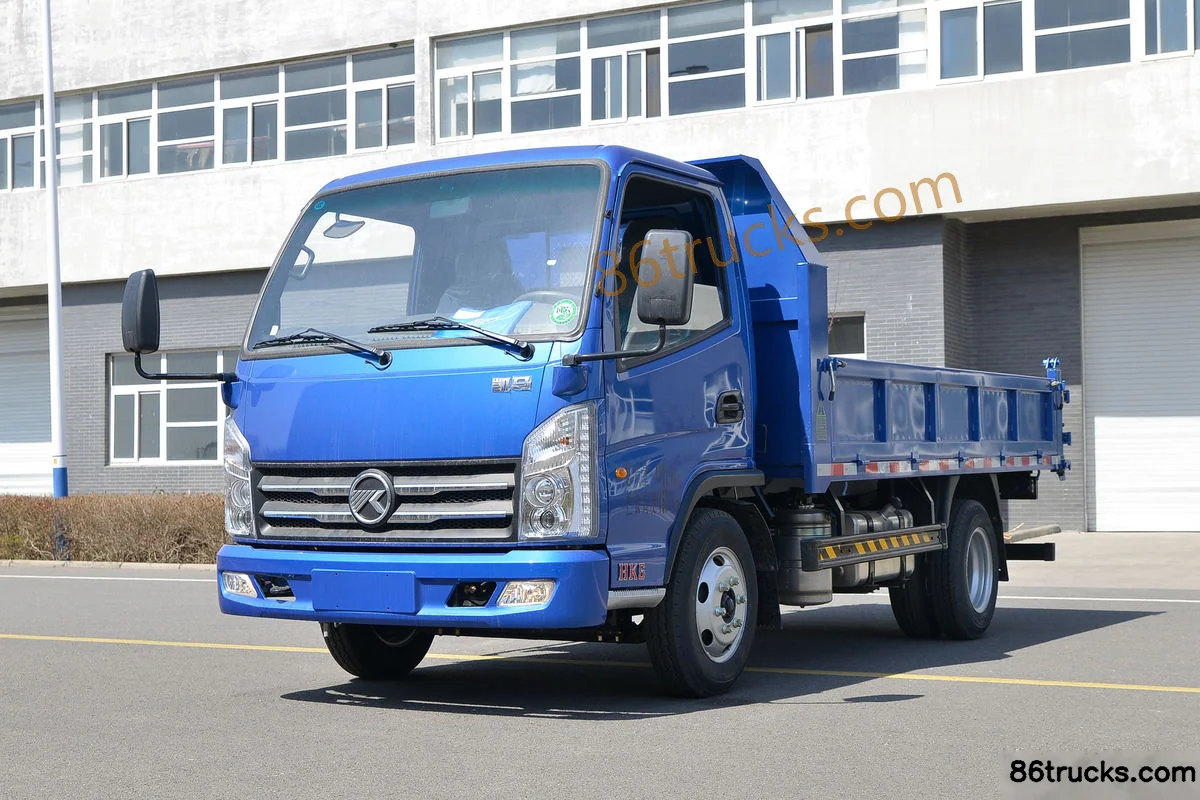

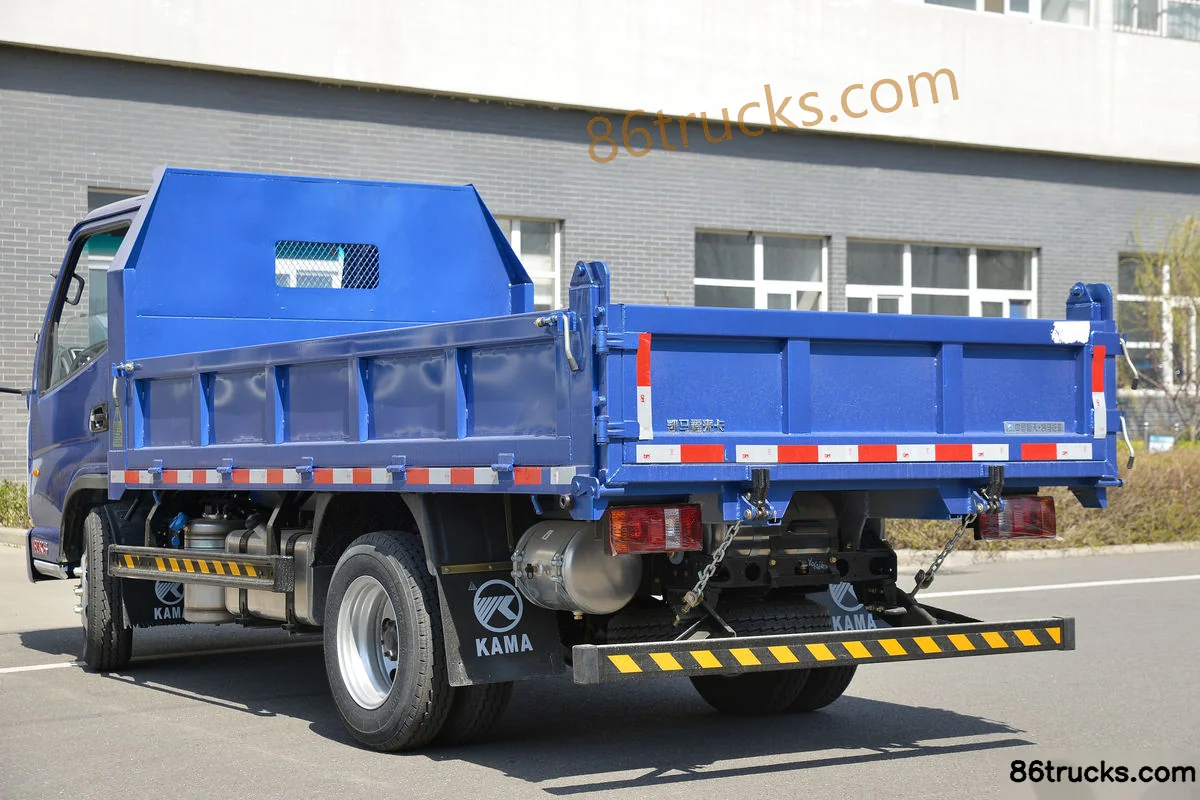

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Exterior (1) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Exterior (2) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Exterior (3) | 86Trucks

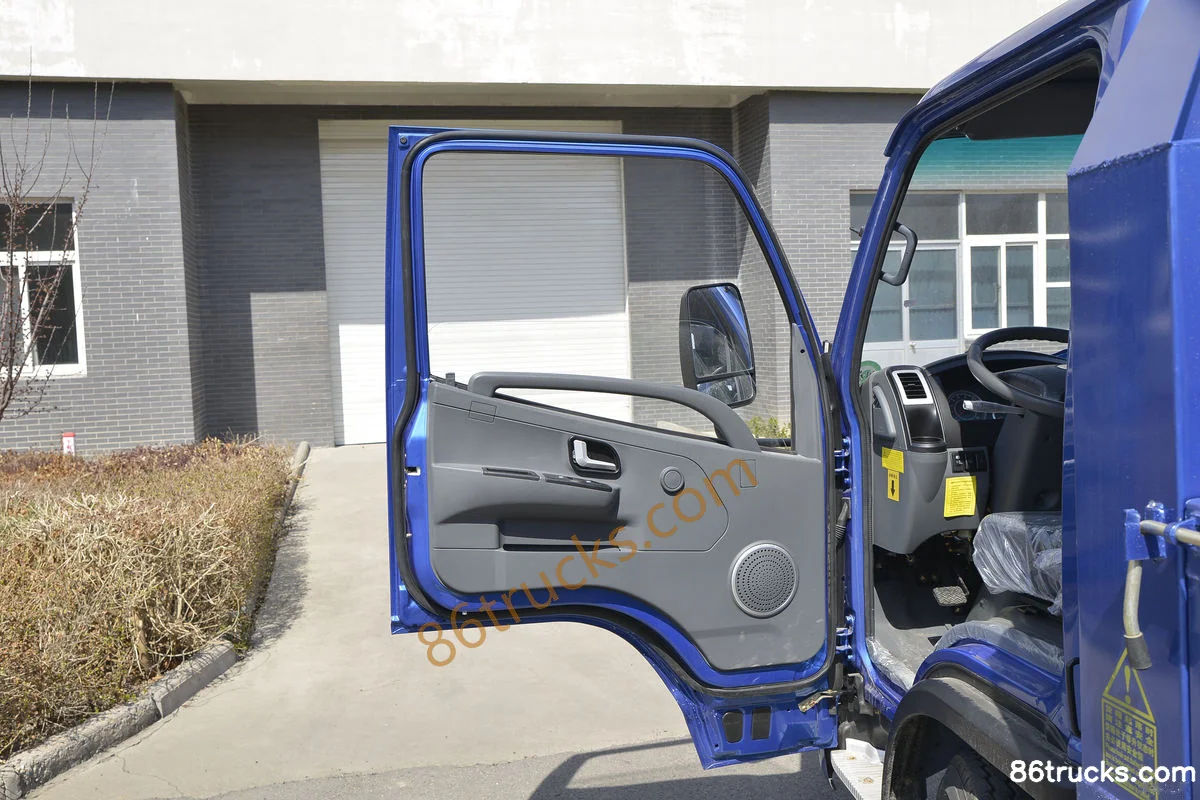

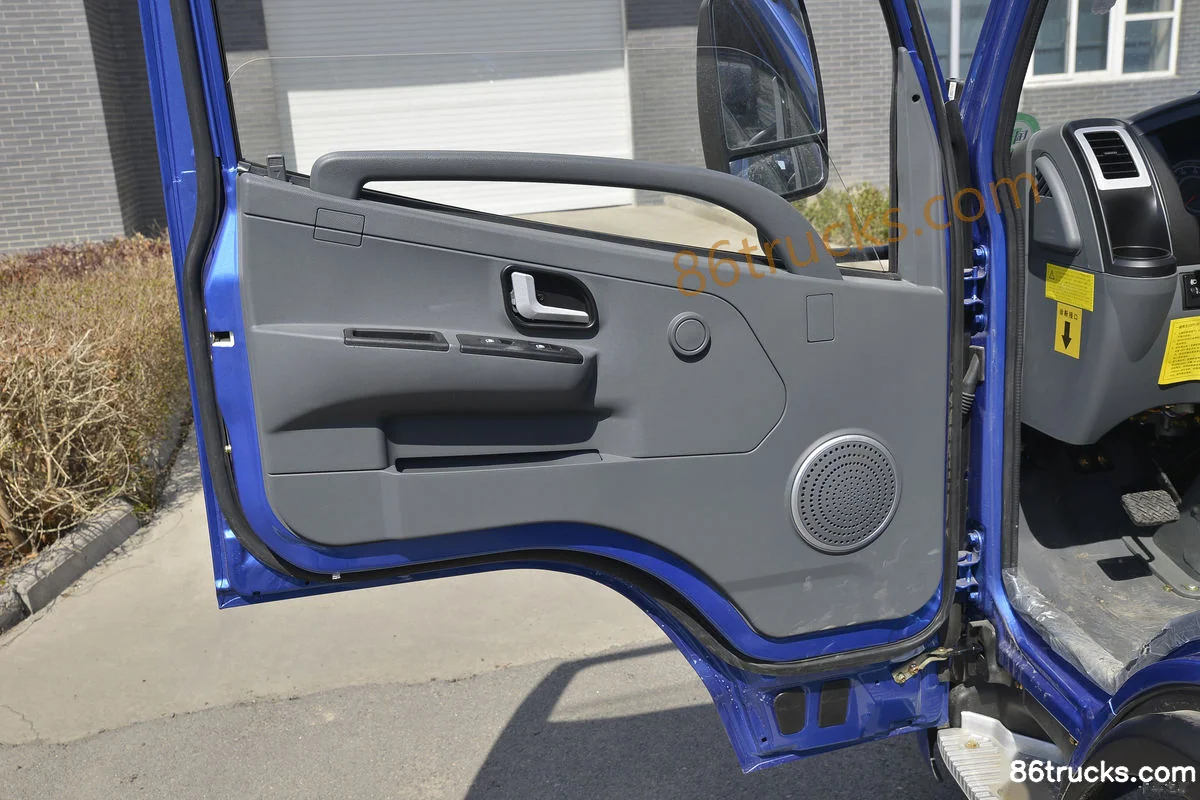

Cab3

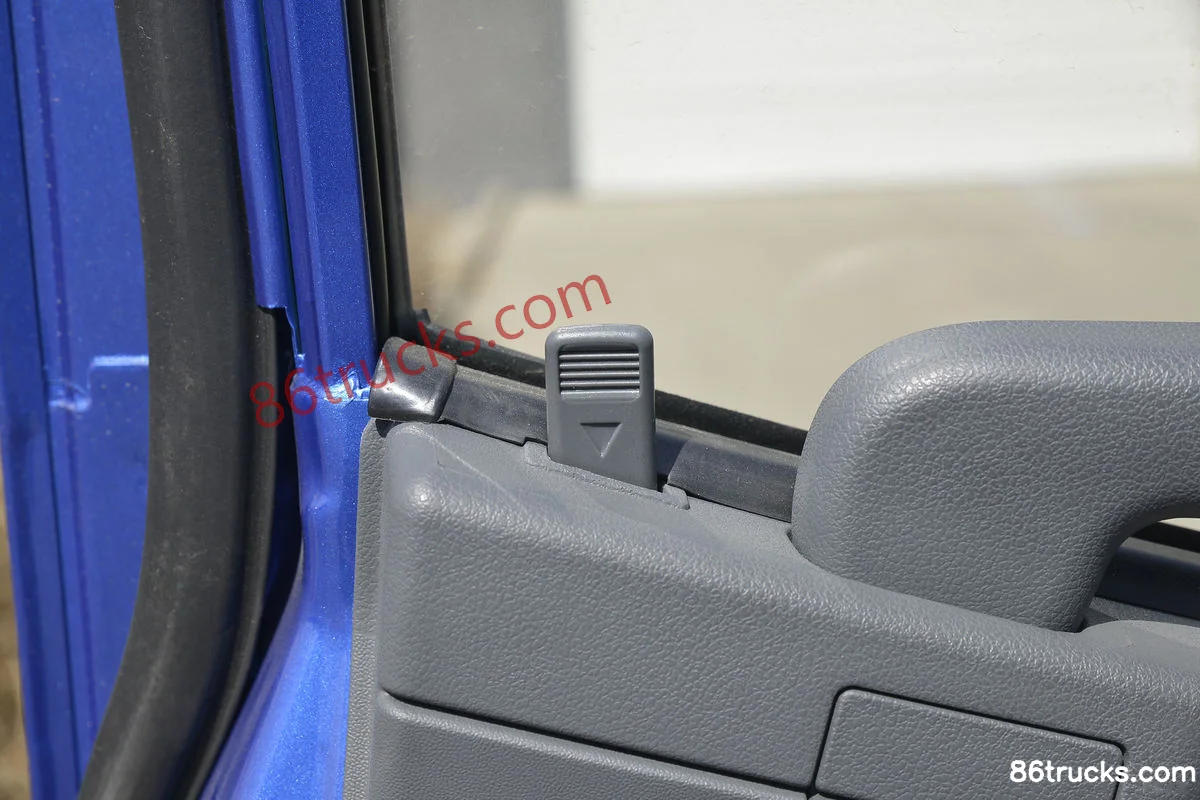

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Cab (1) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Cab (2) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Cab (3) | 86Trucks

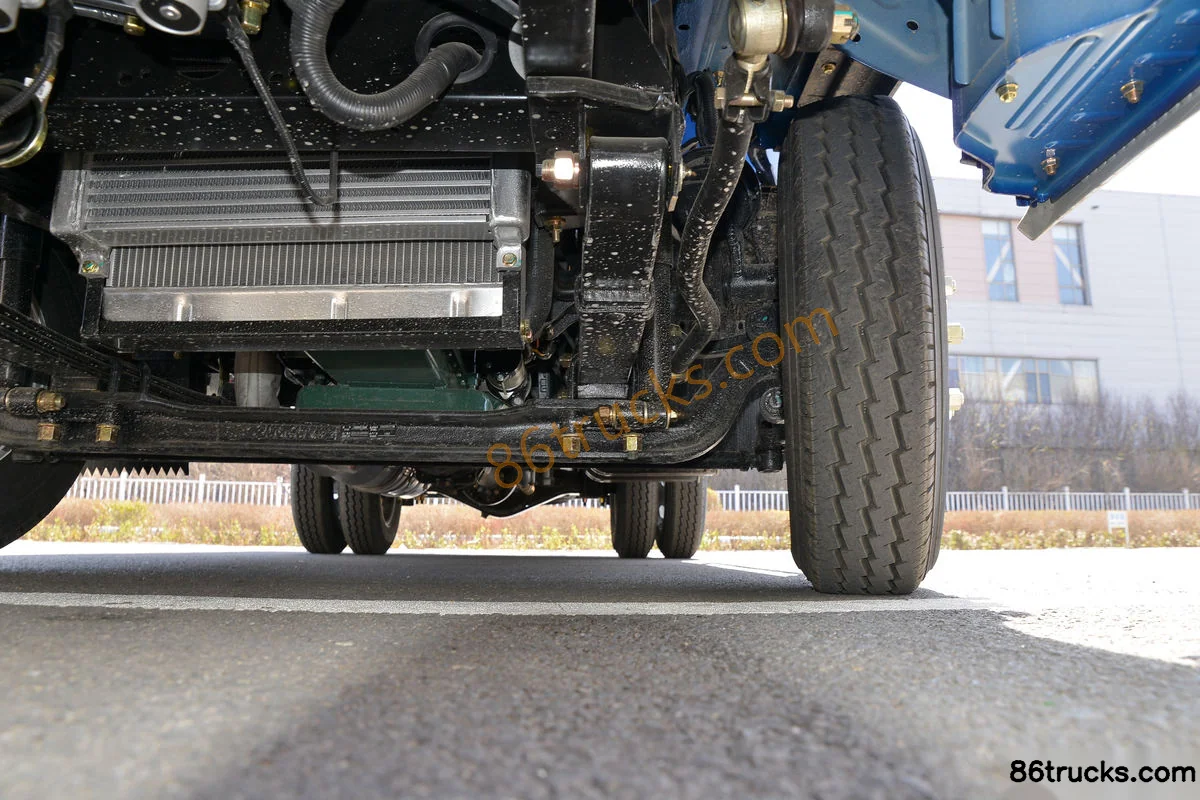

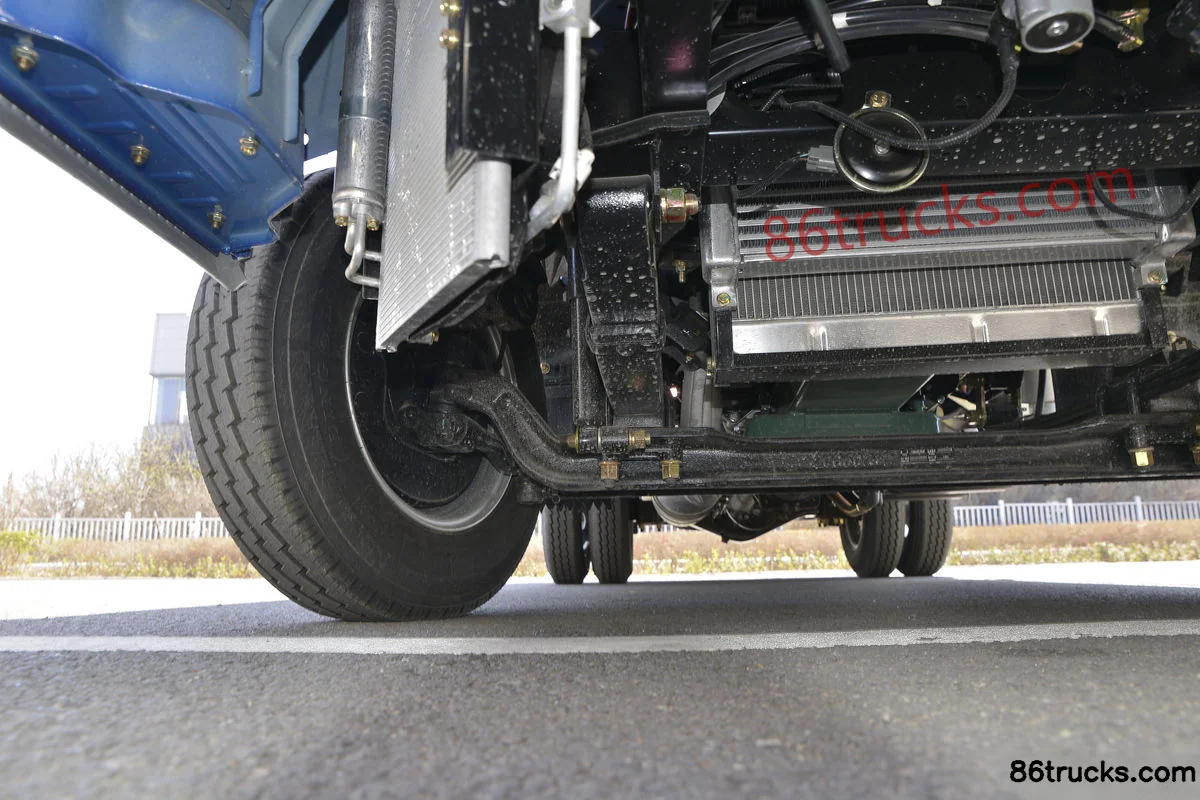

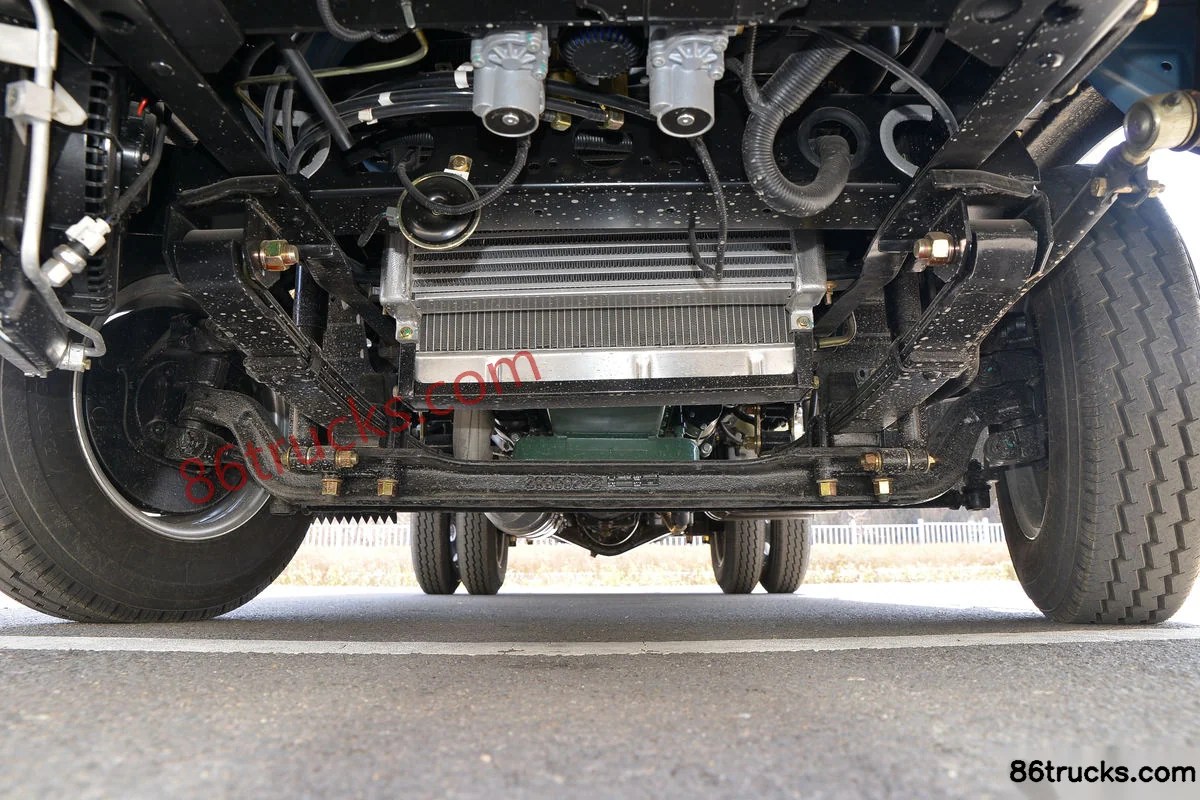

Chassis3

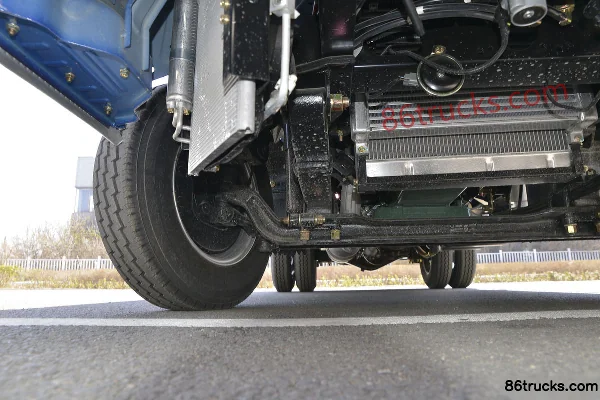

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Chassis (1) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Chassis (2) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Chassis (3) | 86Trucks

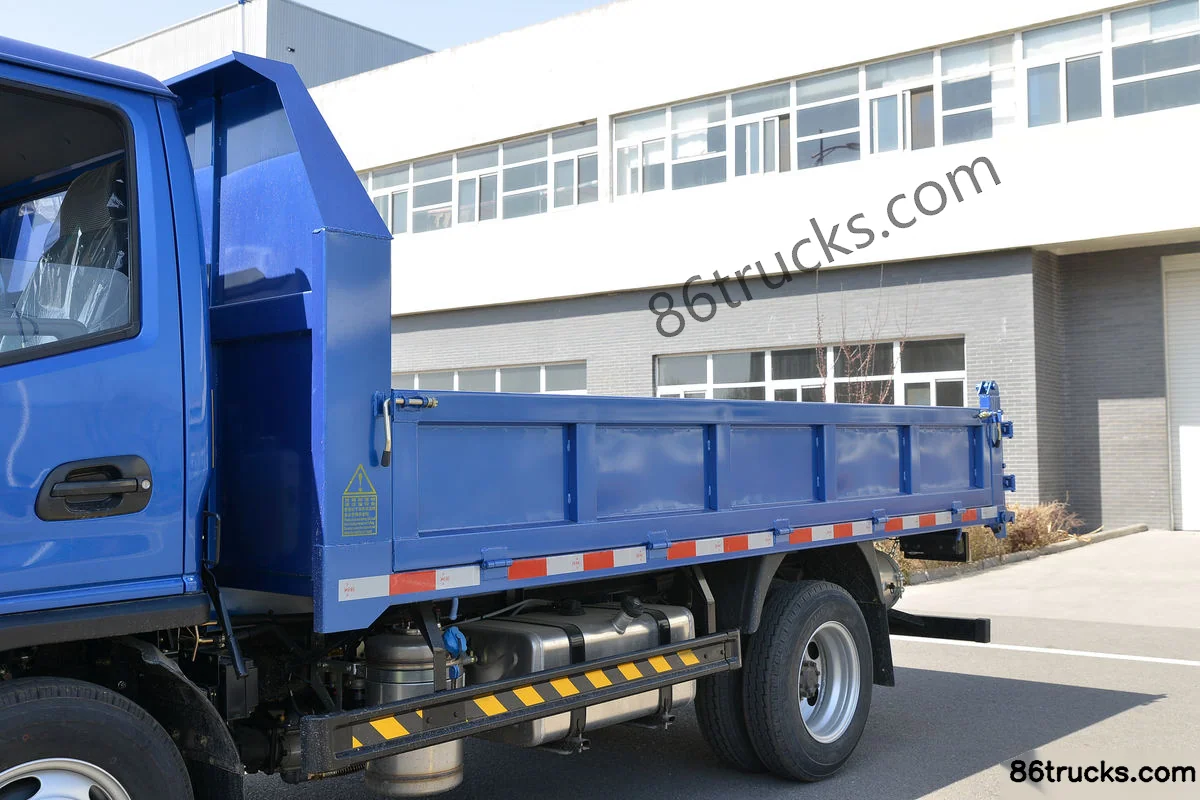

Body3

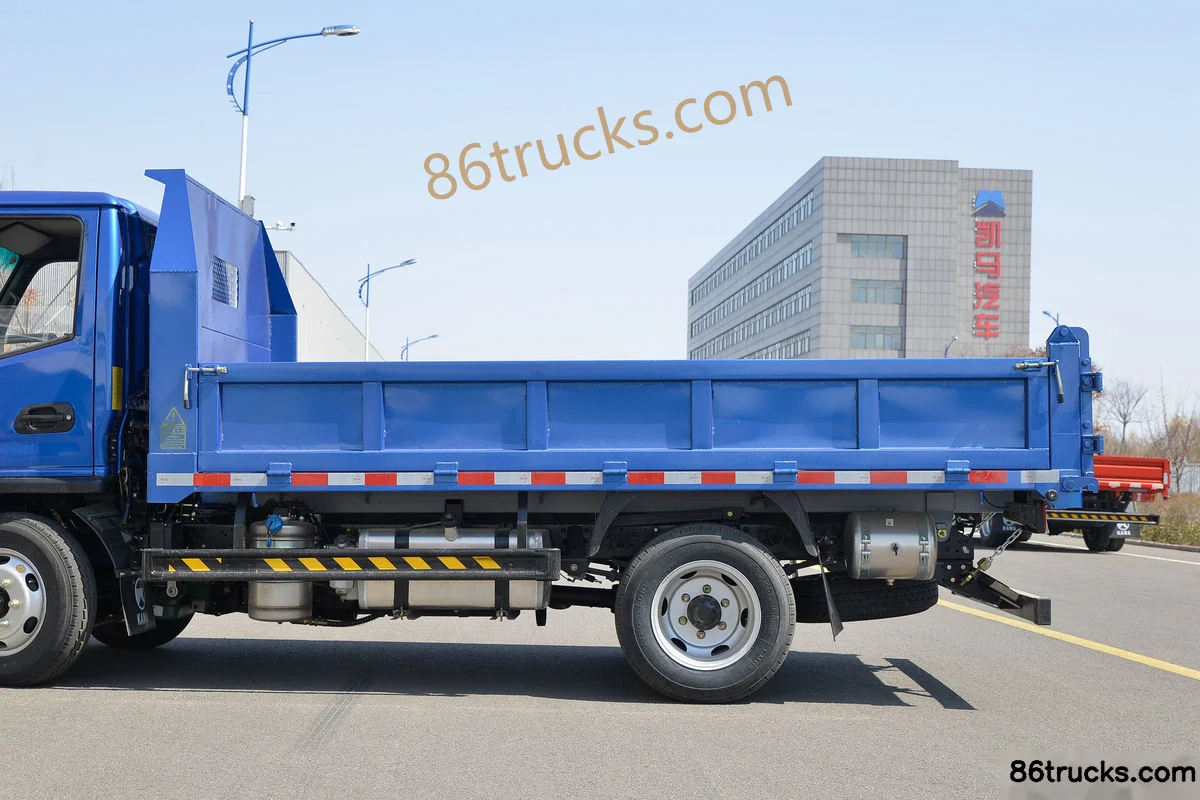

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Body (1) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Body (2) | 86Trucks Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck?

Key specs of Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck suited for?

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck differ from other variants in the same series?

Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck belongs to Kama HK6 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama HK6 Fulai 110hp 4X2(6 wheels) 3.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
