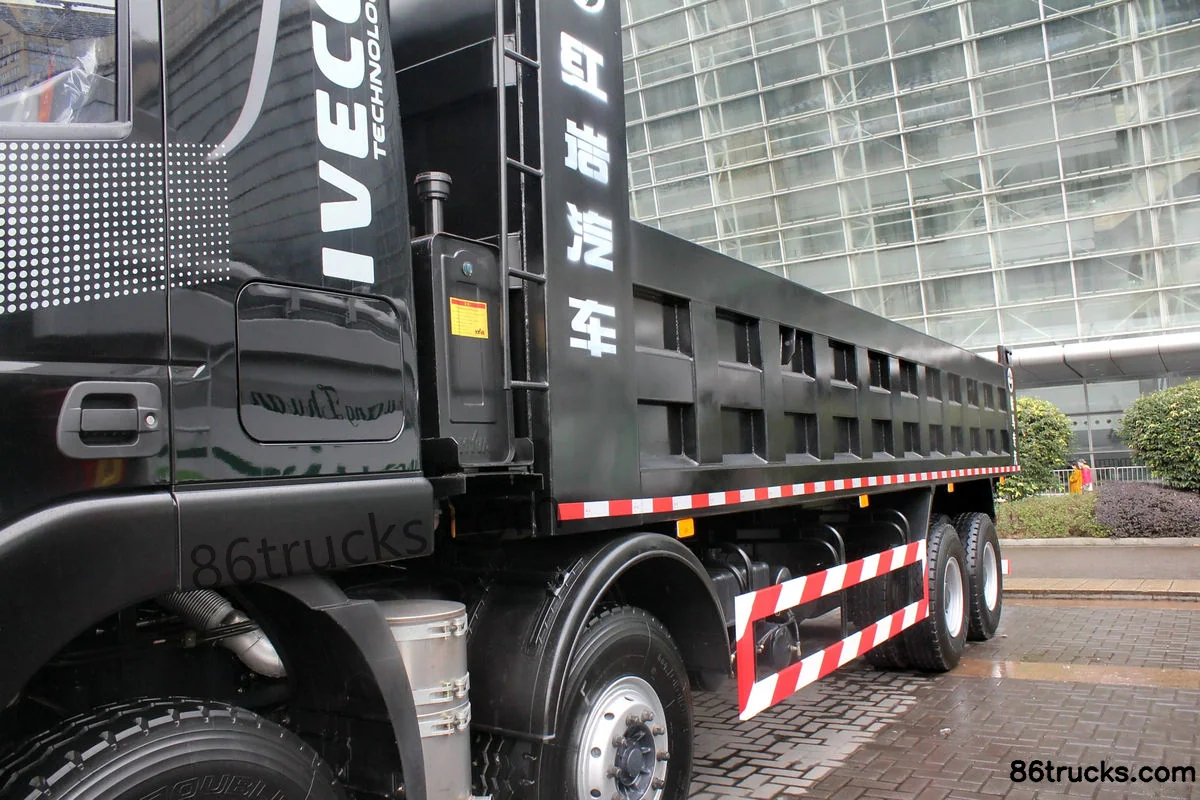

SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top)

Export reference
From $52,306
MSRP ¥37.66M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.22ton
Wheelbase:: 1800+4600+1400mm
Tire Size:: 12.00R20
Rated payload: 15.65ton
Drive 8X4 (12 wheels)
Horsepower 390
Cargo box type: Dump type

Overview

The SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) is a Heavy truck featuring 15.65t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC13 390 C4(F3BEE681C*T) engine, 390 hp, China IV emissions and Fast Gear transmission.

China IV 390 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3315HTG466
Drive type: 8X4
Wheelbase: 1800+4600+1400mm
engine: SAIC Fiat Powertrain HongyanC13 390 C4(F3BEE681C*T)
transmission: Fast Gear12JSD220T
Cab length: 11.435m
Cab width: 2.5m
Cab height: 3.86m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 15.22ton
Rated payload: 15.65ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 16°
Remarks: ABS, auto AC, 400L, air seat, power tilt, manual mirrors, central locking, four-leaf springs, rear stabilizer bar, rear tow pin bracket, no spare tire carrier
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC13 390 C4(F3BEE681C*T)
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.88L
Emission standard: China IV
Max output power: 286kW
Max hp: 390Horsepower
Engine Type: Water-cooled, 4-stroke, direct injection
Transmission Parameters
Transmission Model: Fast Gear12JSD220T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.5m
Cargo box width: 2.3m
Cargo box height: 0.995m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 940- 865/317 8+8mm
rear axle description: SIH High Torque
rear axle allowable load: 18000 (twin axle)kg
Leaf spring count: 8/8/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

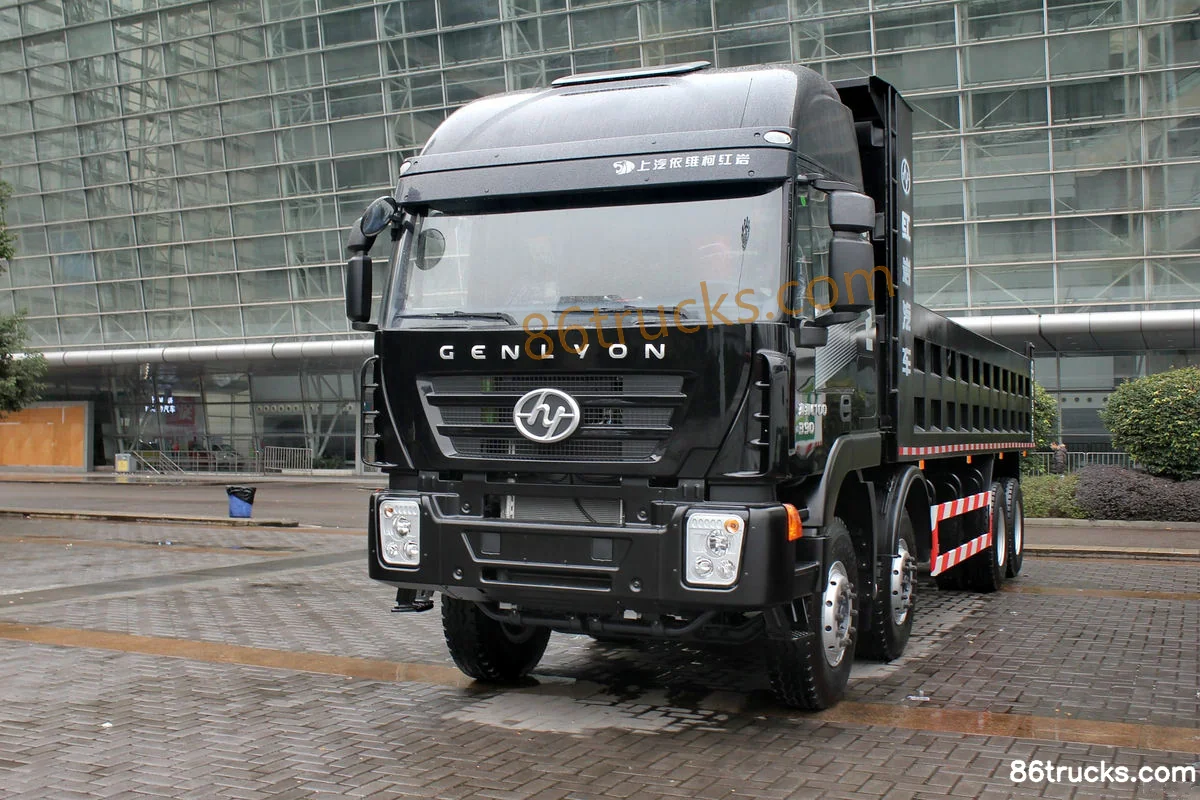

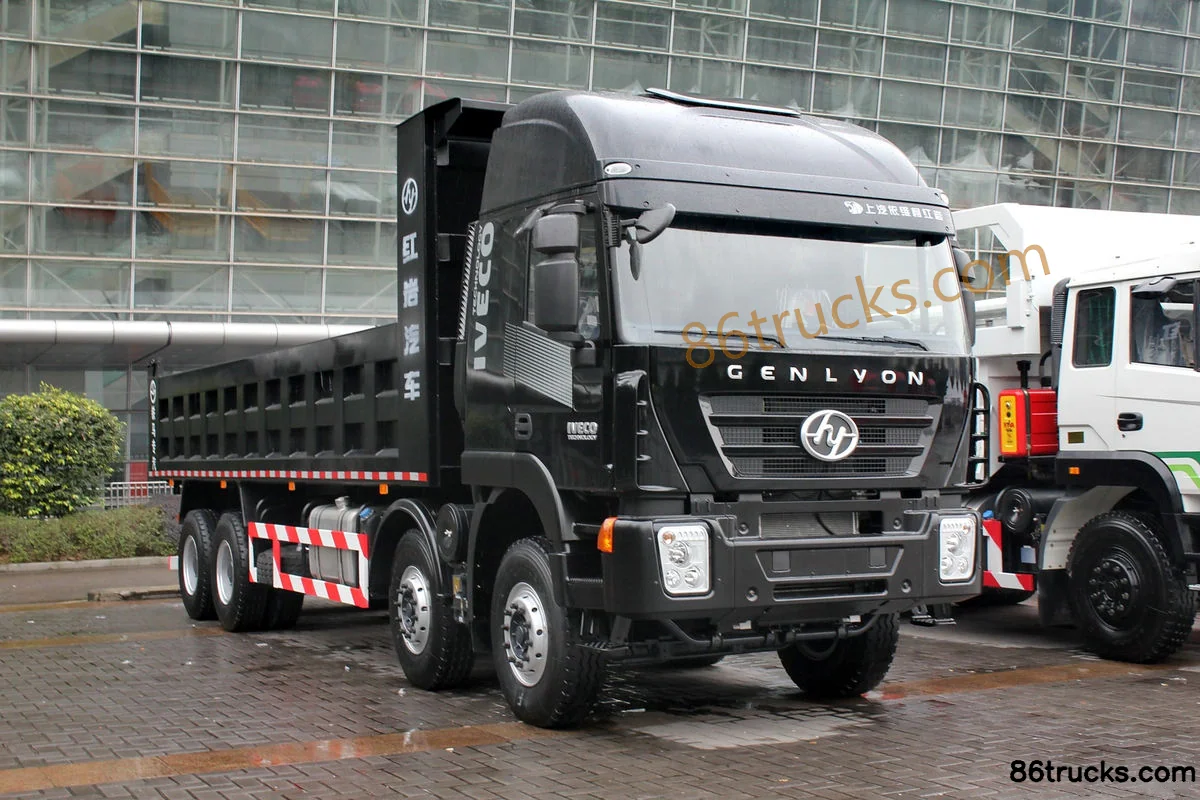

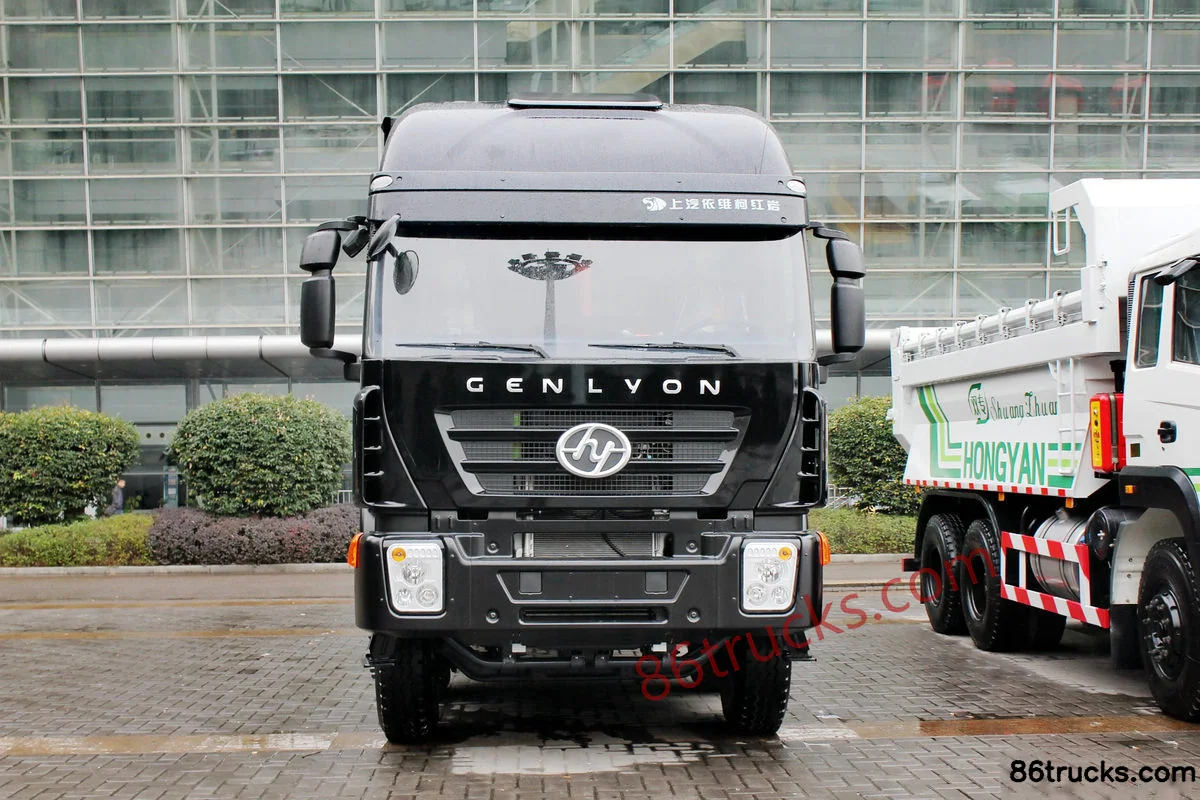

Exterior3

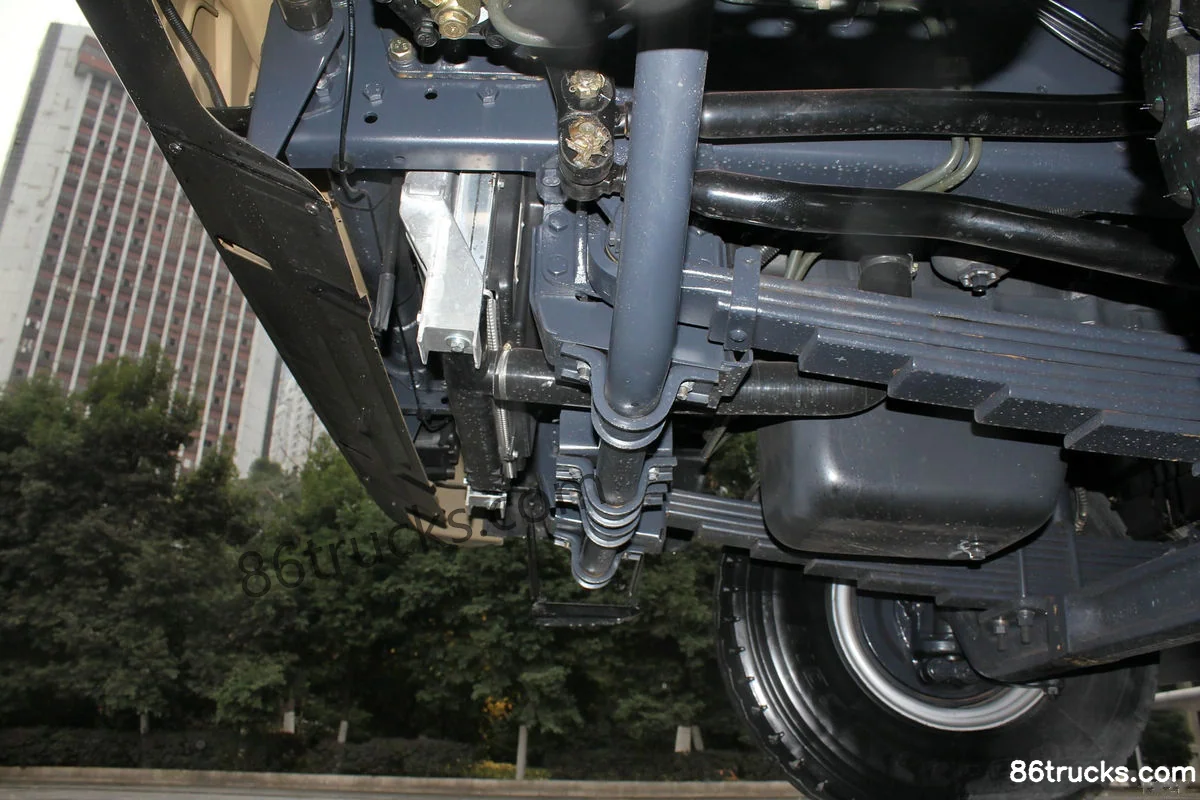

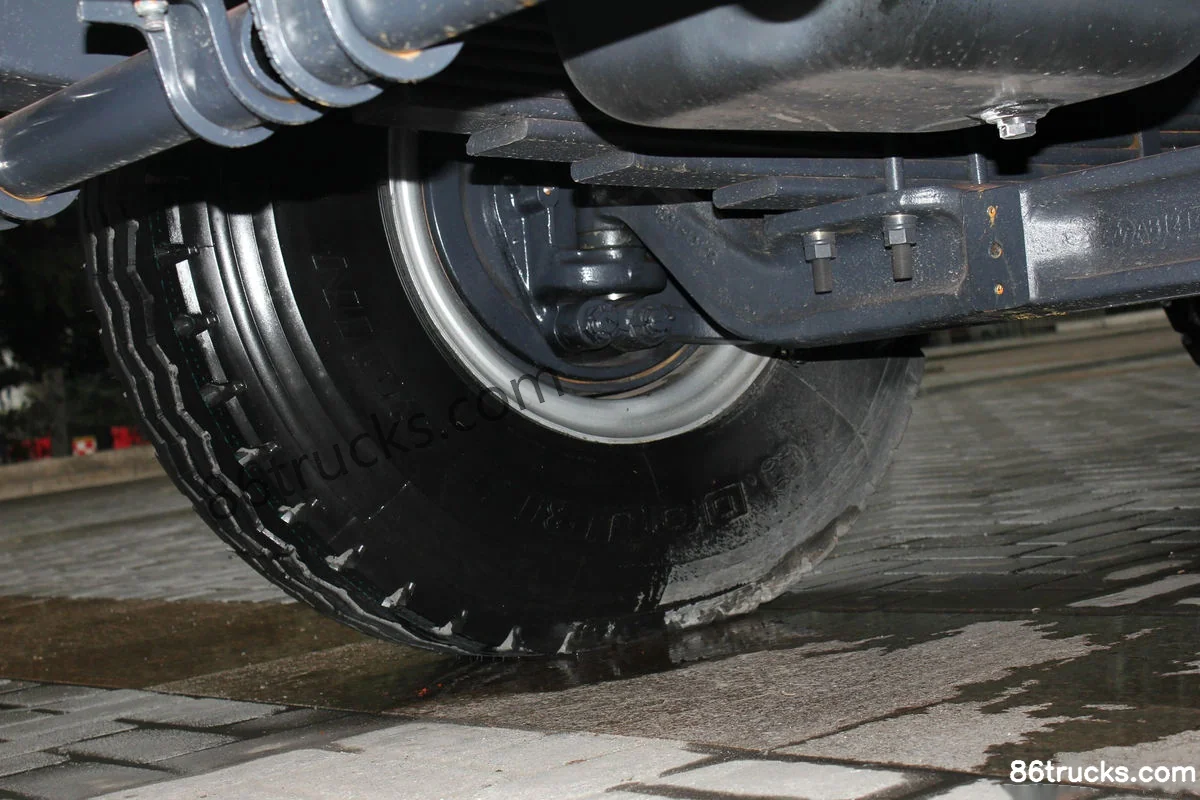

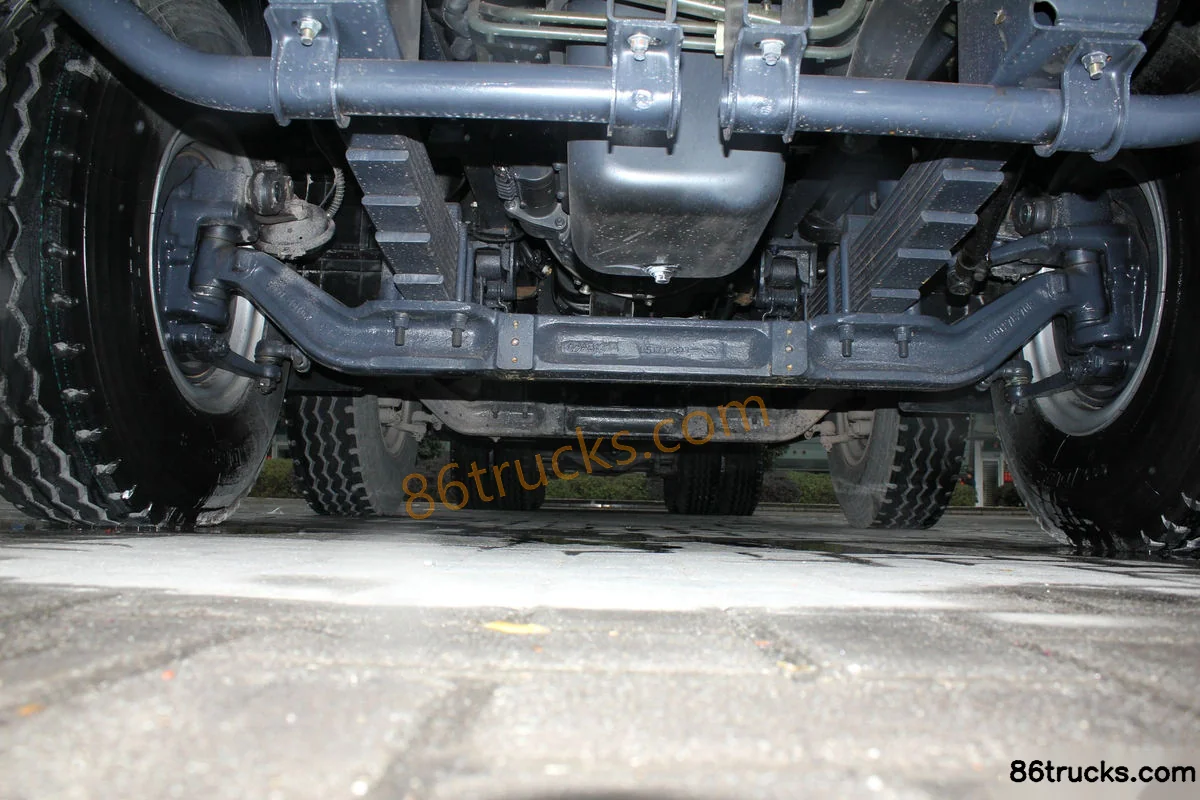

Chassis3

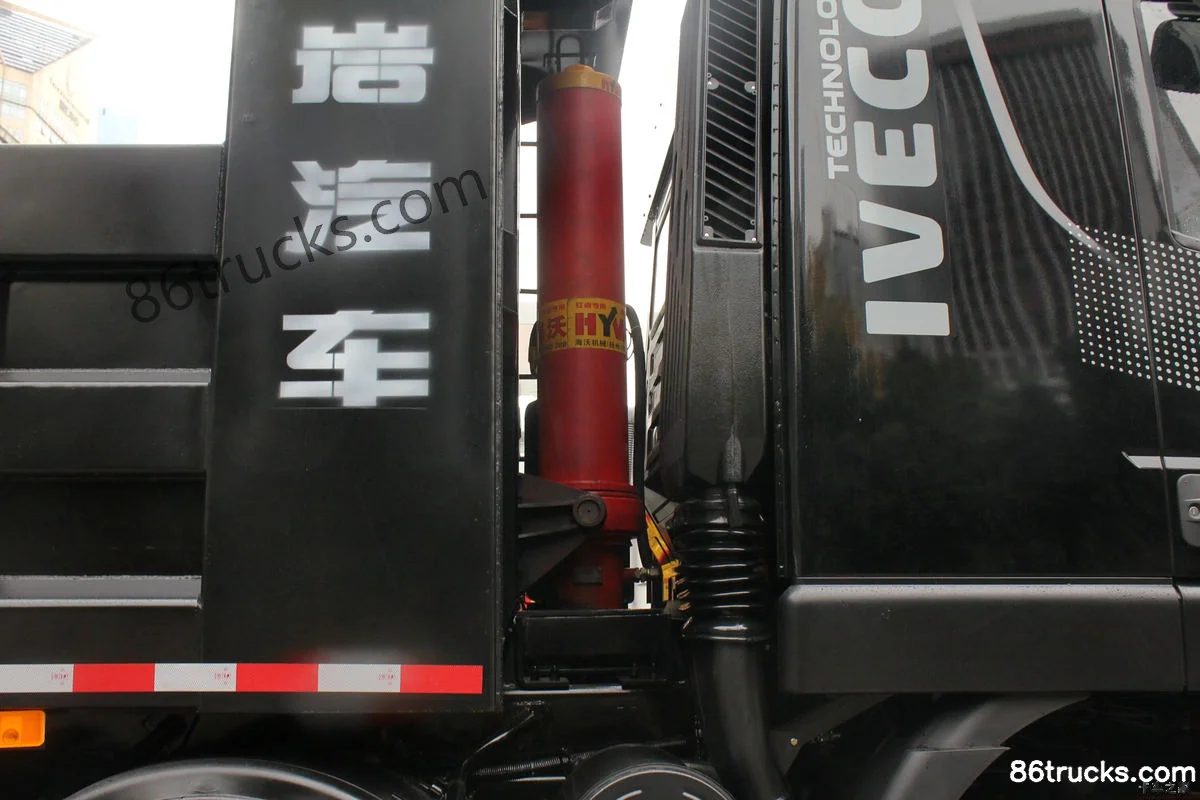

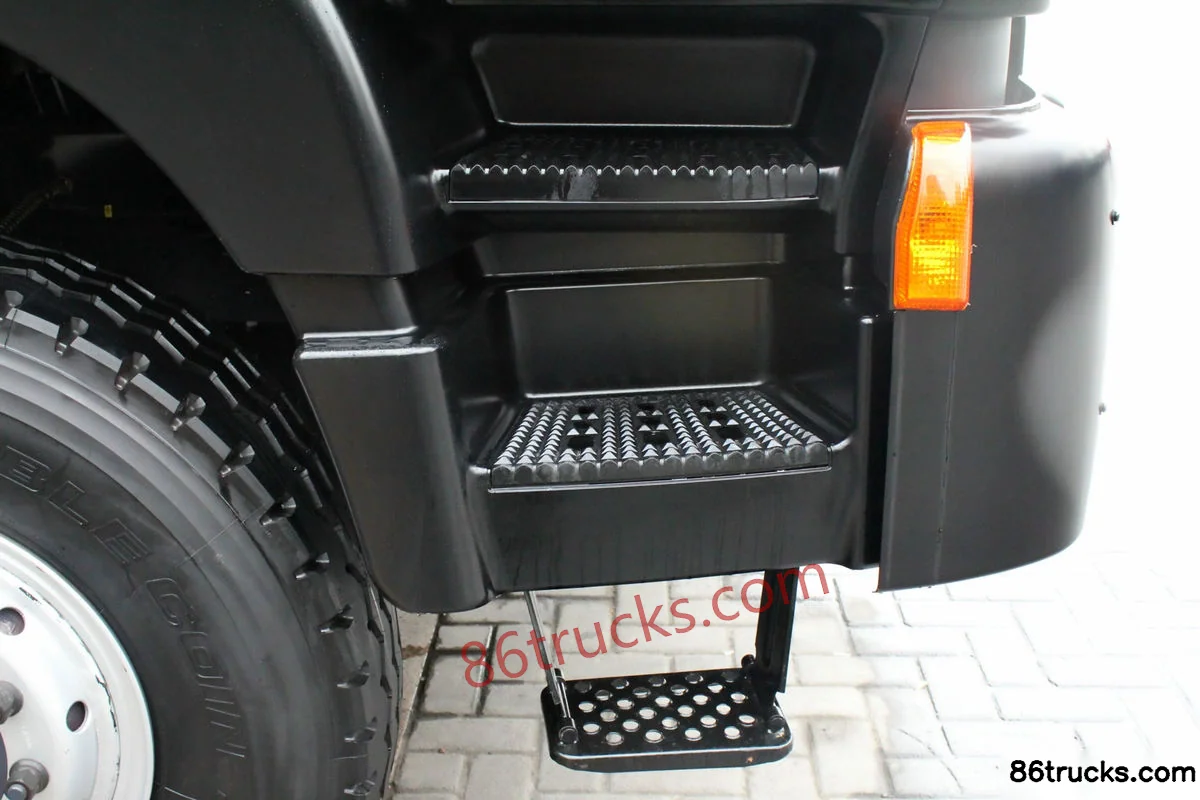

Body3

9 photos

FAQ

What is the export price of SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top), and what does it include?

SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) export reference is about From $52,306; MSRP is ¥37.66M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top)?

Key specs of SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top): Drive: 8x4; Horsepower: 390 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) suited for?

SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) differ from other variants in the same series?

SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top) belongs to SAIC Hongyan Genlyon Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C100 Heavy Truck 390 hp 8X4(12 wheels) 8.5m Dump Truck (flat top)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
